63mm Stainless Steel Liquid Filled Bottom Entry Pressure Gauge

From $24.20

In Stock
Make an Enquiry

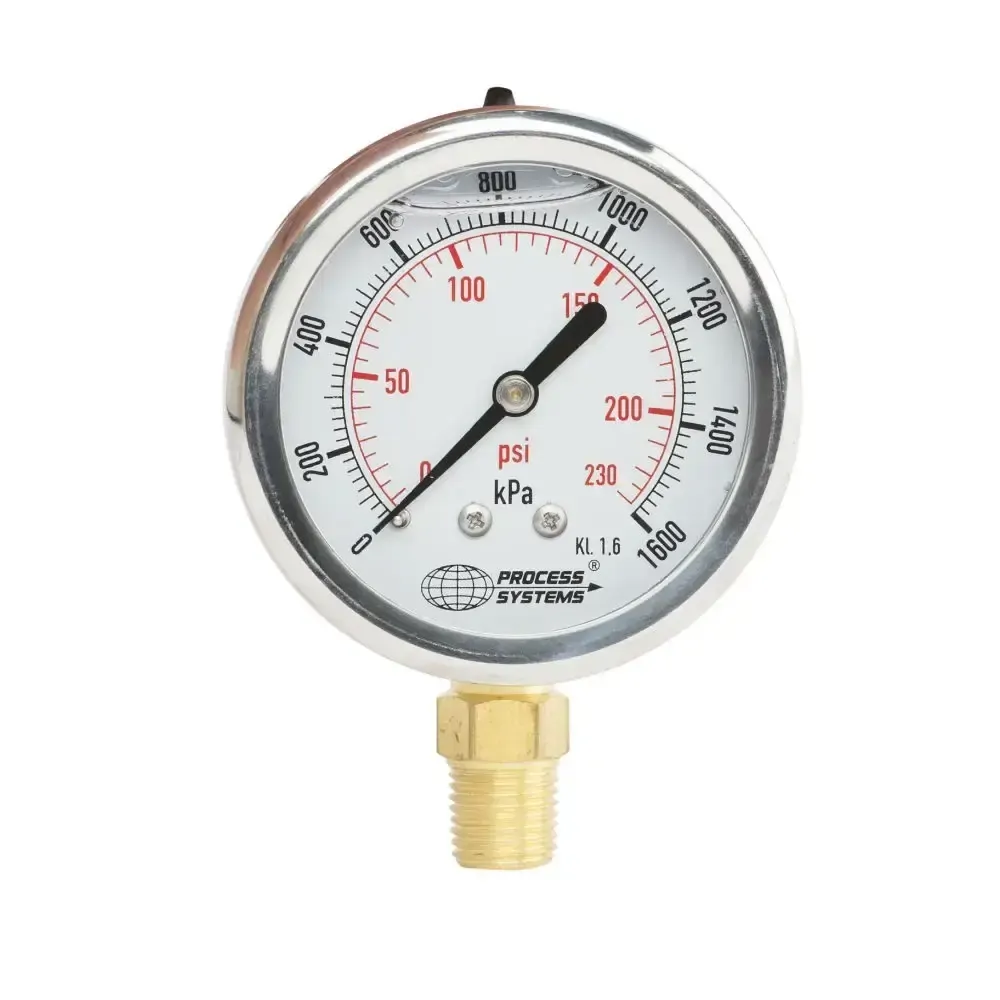

63mm Stainless Steel Pressure Gauge with Brass Bottom entry and internals. This Pressure Gauge is liquid filled with a crimped housing and a polycarbonate window. The dial reads with both Kpa and Psi (dual scale).

Size 63mm /2 1/2")
Accuracy =+/- 1.6%
Range Depends upon model
Work Pressure 3/4 of full scale
Fluctuating pressure 2/3 of full scale
Short Time Pressure Full Scale
Operating Temperature -10°C to 60°C
Media Compatible gases and liquids
Housing 304 Stainless Steel Case and crimped ring
Window Polycarbonate
Liquid Filled Glycerine
Bourdon Tube Copper Alloy
Movement Copper Alloy
Connection Copper Alloy
Thread 1/4" BSP
Scale Dual Scale kPa/PSI

63mm Stainless Steel Bottom Entry Pressure gauge

Pressure Range -100 kpa to 40,000 kpa
Body Stainless Steel
Function Dual Scale Kpa/PSI glycerine filled pressure gauge
Connection 1/4" BSP Bottom Entry
Factory Accredited CE, ISO 9001, TUV
