L Port	T Port

DN	Size	d	L	H	W	ISO5211	h	F	A	J	L1	Kg
8	1/4"	9.5	75	66	130	F03/F04	36.8	37.5	57.5	9	17	0.7
10	3/8"	11	75	66	130	F03/F04	36.8	37.5	57.5	9	17	0.67
15	1/2"	12	75	66	130	F03/F04	36.8	37.5	57.5	9	17	0.63
20	3/4"	15	85	72	161	F04/F05	41.2	42.5	65.5	11	19.5	0.94
25	1"	20	100	77	161	F04/F05	46.5	50	79	11	22	1.39
32	1-1/4"	25	122	92	203	F05/F07	56	61	97	14	23.5	2.91
40	1-1/2"	32	131	96	203	F05/F07	60	65.5	106.5	14	25	3.66
50	2"	40	158	107	203	F05/F07	70.5	79	129	14	28	6.31
65	2-1/2"	49	178	135	254	F07/F10	95.5	89	145	17	30	8.95
80	3"	60	202	147	254	F07/F10	106	101	167	17	33	13.11
100	4"	75	246	160	310	F07/F10	119	123	203	17	39	22.1

All dimension in mm unless shown otherwise.

Item	Part	Material	QTY
1	Cap	CF8M (1.4408)	3
2	Gasket	PTFE	3
3	Ball Seat	15%RPTFE	4
4	Ball	316	1
5	Body	CF8M (1.4408)	1
6	Stem	316	1
7	Thrust Washer	PTFE	1
8	O-Ring	VITON	1
9	Stem Packing	PTFE	1

Item	Part	Material	QTY
10	Stem Ring	316	1
11	Belleville Washer	304(301)	1
12	Nut	304	2
13	Plate Washer	304	1
14	Nut Stopper	304	1
15	Locking Device	304	1
16	Handle	304	1
17	Handle Sleeve	Plastic	1
18	Stop Pin	304	1

Size 1/4" to 3" BSP
Body 316 Stainless Steel
Seat Reinfoced PTFE
Pressure 63 BAR
Temperature -20°C to 180°C
Actuation Lockable Lever

-->

High performance 3 way (L and T port) reduced bore 316 Stainless Steel ball valve with BSP threaded connections. Self adjusting stem packing assembly with Belleville spring for temperature fluctuations and vibration. Pre drilled metric hole on ISO5211 direct mounting pad to minimise any thermal transfer from valve to actuator. Reinforced PTFE seats for temperatures up to 180°C. Typical applications include water treatment, chemical, marine, petrochemical and general industry. Threads conform to ISO 7.1 Sealing Threads.

Model	Size (BSP)	Orifice (mm)	Media Pressure	Media Temperature	Torque (NM)
BLS3L2B-L-RT	1/4	9.5	Vacuum (29" Hg) to 63 Bar (10 Bar Steam)	-20°C to 180°C	8
BLS3L3B-L-RT	3/8	11	Vacuum (29" Hg) to 63 Bar (10 Bar Steam)	-20°C to 180°C	8
BLS3L4B-L-RT	1/2	12	Vacuum (29" Hg) to 63 Bar (10 Bar Steam)	-20°C to 180°C	8
BLS3L5B-L-RT	3/4	15	Vacuum (29" Hg) to 63 Bar (10 Bar Steam)	-20°C to 180°C	9
BLS3L6B-L-RT	1	20	Vacuum (29" Hg) to 63 Bar (10 Bar Steam)	-20°C to 180°C	15
BLS3L7B-L-RT	1 ¼	25	Vacuum (29" Hg) to 63 Bar (10 Bar Steam)	-20°C to 180°C	20
BLS3L8B-L-RT	1 ½	32	Vacuum (29" Hg) to 63 Bar (10 Bar Steam)	-20°C to 180°C	30
BLS3L9B-L-RT	2	40	Vacuum (29" Hg) to 63 Bar (10 Bar Steam)	-20°C to 180°C	45
BLS3L10B-L-RT	2 ½	49	Vacuum (29" Hg) to 63 Bar (10 Bar Steam)	-20°C to 180°C	50
BLS3L11B-L-RT	3	60	Vacuum (29" Hg) to 63 Bar (10 Bar Steam)	-20°C to 180°C	80

For T port change the ‘L’ to a ‘T’.

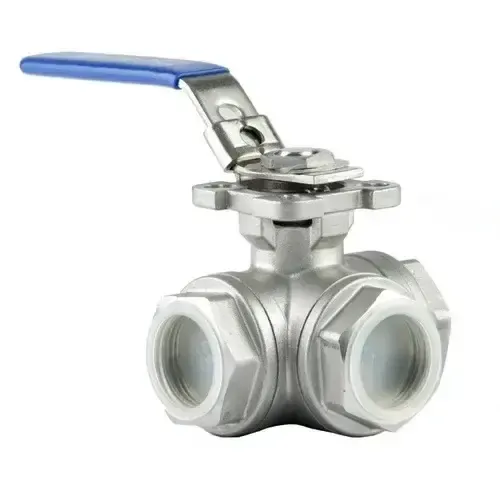

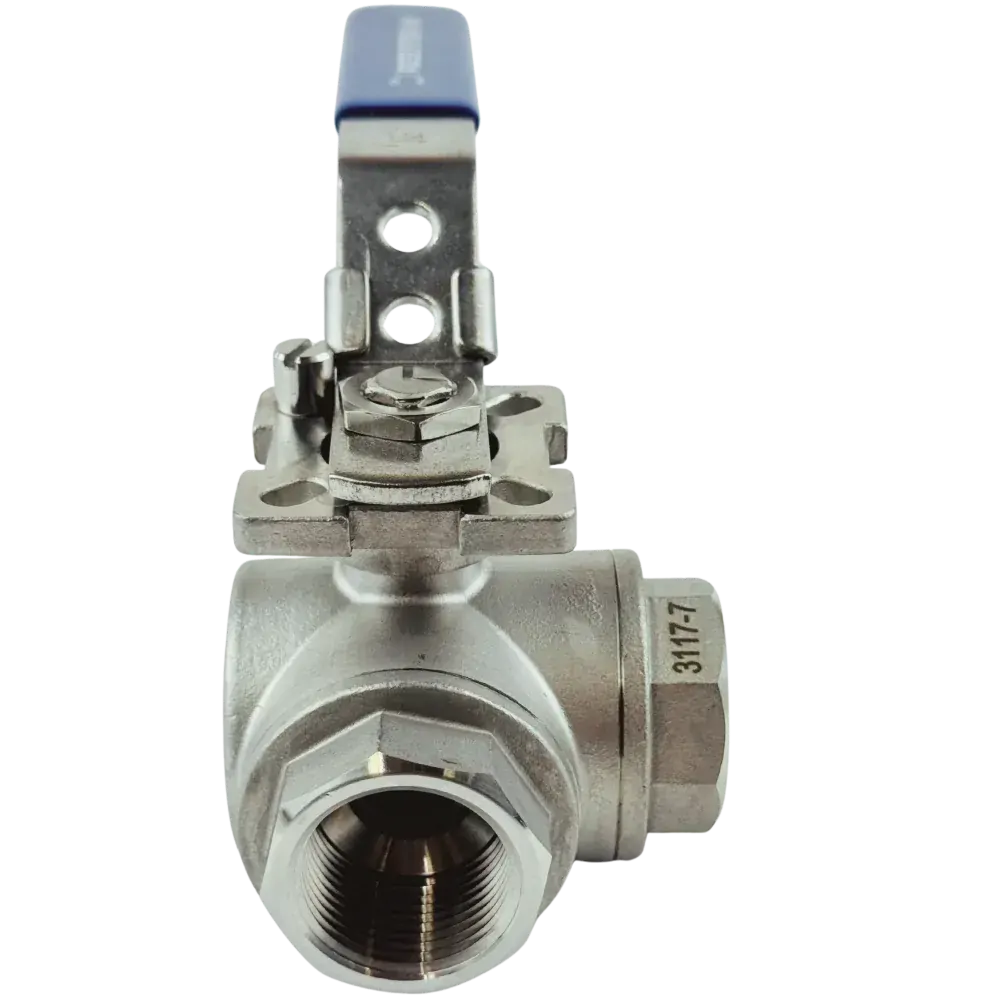

3 way stainless steel ball valve lockable lever

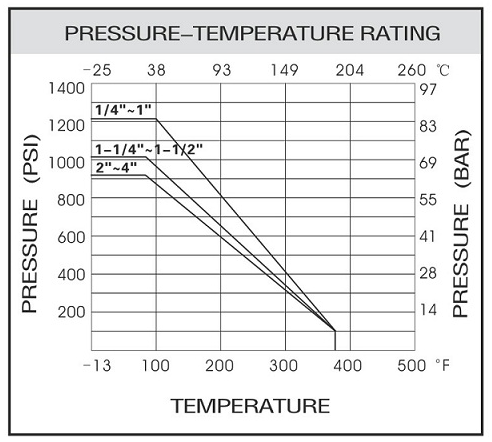

3 way Stainless Steel Ball Valve Pressure vs Temperature

L Port	T Port

Size 1/4" to 3" BSP
Body 316 Stainless Steel
Seat Reinfoced PTFE
Pressure 63 BAR
Temperature -20°C to 180°C
Actuation Lockable Lever

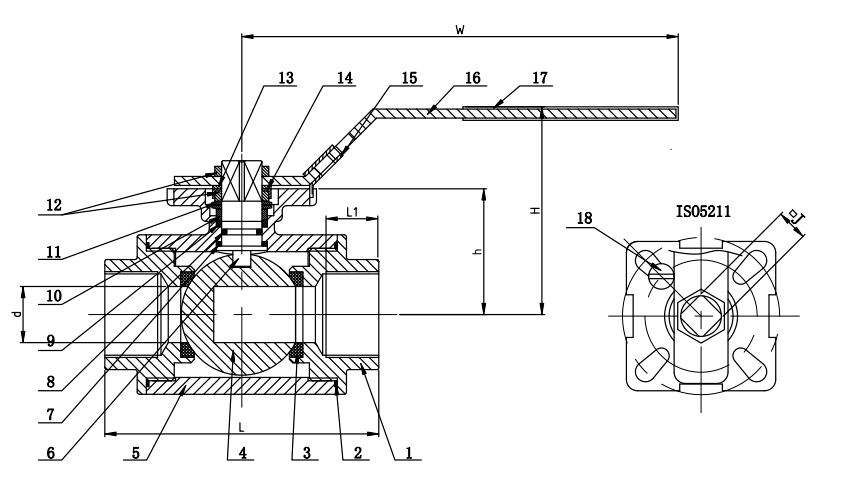

3 way Stainless Steel Ball Valve Construction

Item	Part	Material	QTY
1	Cap	CF8M (1.4408)	3
2	Gasket	PTFE	3
3	Ball Seat	15%RPTFE	4
4	Ball	316	1
5	Body	CF8M (1.4408)	1
6	Stem	316	1
7	Thrust Washer	PTFE	1
8	O-Ring	VITON	1
9	Stem Packing	PTFE	1

Item	Part	Material	QTY
10	Stem Ring	316	1
11	Belleville Washer	304(301)	1
12	Nut	304	2
13	Plate Washer	304	1
14	Nut Stopper	304	1
15	Locking Device	304	1
16	Handle	304	1
17	Handle Sleeve	Plastic	1
18	Stop Pin	304	1

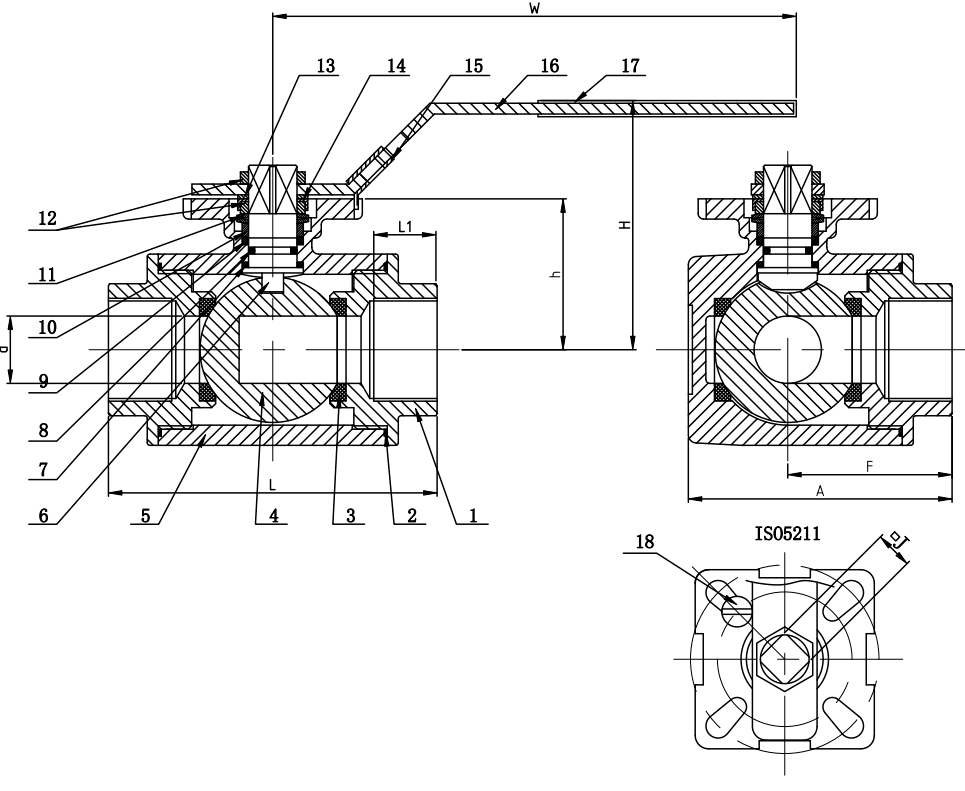

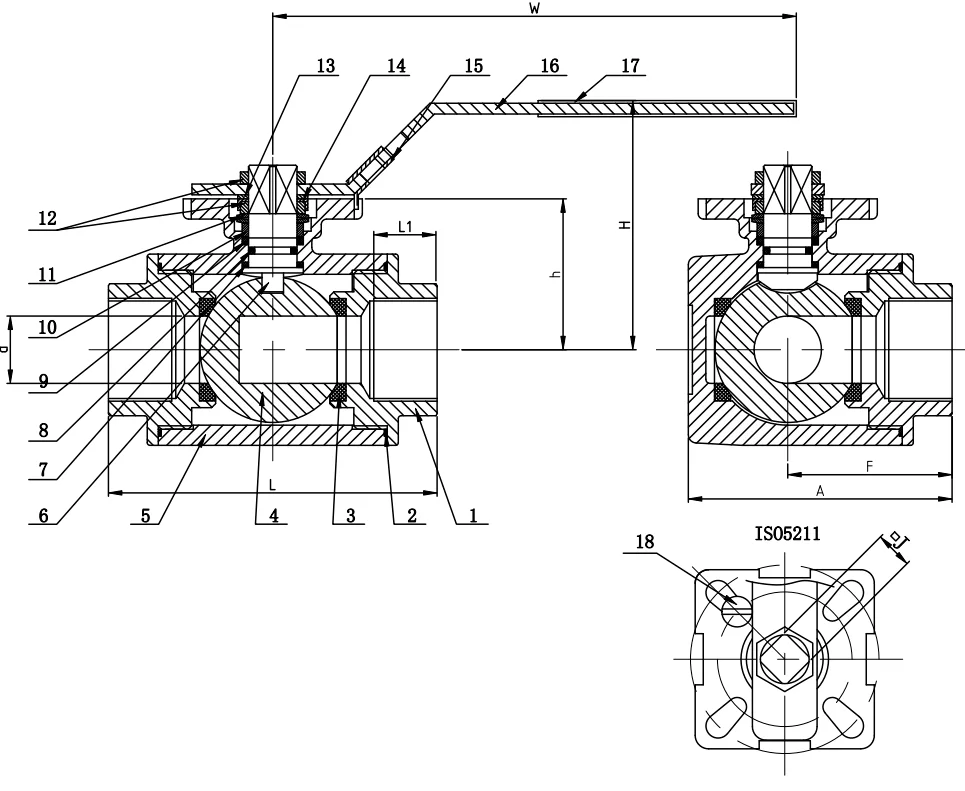

3 way Stainless Steel Ball Valve Dimensions

DN	Size	d	L	H	W	ISO5211	h	F	A	J	L1	Kg
8	1/4"	9.5	75	66	130	F03/F04	36.8	37.5	57.5	9	17	0.7
10	3/8"	11	75	66	130	F03/F04	36.8	37.5	57.5	9	17	0.67
15	1/2"	12	75	66	130	F03/F04	36.8	37.5	57.5	9	17	0.63
20	3/4"	15	85	72	161	F04/F05	41.2	42.5	65.5	11	19.5	0.94
25	1"	20	100	77	161	F04/F05	46.5	50	79	11	22	1.39
32	1-1/4"	25	122	92	203	F05/F07	56	61	97	14	23.5	2.91
40	1-1/2"	32	131	96	203	F05/F07	60	65.5	106.5	14	25	3.66
50	2"	40	158	107	203	F05/F07	70.5	79	129	14	28	6.31
65	2-1/2"	49	178	135	254	F07/F10	95.5	89	145	17	30	8.95
80	3"	60	202	147	254	F07/F10	106	101	167	17	33	13.11
100	4"	75	246	160	310	F07/F10	119	123	203	17	39	22.1

All dimension in mm unless shown otherwise.

DATA SHEET

BLS3

3 Way Stainless Steel Ball Valve

Features:

Size 1/4" to 3" BSP
Body 316 Stainless Steel
Seat Reinfoced PTFE
Pressure 63 BAR
Temperature -20°C to 180°C
Actuation Lockable Lever

Description:

Model	Size (BSP)	Orifice (mm)	Media Pressure	Media Temperature	Torque (NM)
BLS3L2B-L-RT	1/4	9.5	Vacuum (29" Hg) to 63 Bar (10 Bar Steam)	-20°C to 180°C	8
BLS3L3B-L-RT	3/8	11	Vacuum (29" Hg) to 63 Bar (10 Bar Steam)	-20°C to 180°C	8
BLS3L4B-L-RT	1/2	12	Vacuum (29" Hg) to 63 Bar (10 Bar Steam)	-20°C to 180°C	8
BLS3L5B-L-RT	3/4	15	Vacuum (29" Hg) to 63 Bar (10 Bar Steam)	-20°C to 180°C	9
BLS3L6B-L-RT	1	20	Vacuum (29" Hg) to 63 Bar (10 Bar Steam)	-20°C to 180°C	15
BLS3L7B-L-RT	1 ¼	25	Vacuum (29" Hg) to 63 Bar (10 Bar Steam)	-20°C to 180°C	20
BLS3L8B-L-RT	1 ½	32	Vacuum (29" Hg) to 63 Bar (10 Bar Steam)	-20°C to 180°C	30
BLS3L9B-L-RT	2	40	Vacuum (29" Hg) to 63 Bar (10 Bar Steam)	-20°C to 180°C	45
BLS3L10B-L-RT	2 ½	49	Vacuum (29" Hg) to 63 Bar (10 Bar Steam)	-20°C to 180°C	50
BLS3L11B-L-RT	3	60	Vacuum (29" Hg) to 63 Bar (10 Bar Steam)	-20°C to 180°C	80

For T port change the ‘L’ to a ‘T’.

3 way stainless steel ball valve lockable lever

3 way Stainless Steel Ball Valve Pressure vs Temperature

L Port	T Port

Dimensions:

3 way Stainless Steel Ball Valve Dimensions

DN	Size	d	L	H	W	ISO5211	h	F	A	J	L1	Kg
8	1/4"	9.5	75	66	130	F03/F04	36.8	37.5	57.5	9	17	0.7
10	3/8"	11	75	66	130	F03/F04	36.8	37.5	57.5	9	17	0.67
15	1/2"	12	75	66	130	F03/F04	36.8	37.5	57.5	9	17	0.63
20	3/4"	15	85	72	161	F04/F05	41.2	42.5	65.5	11	19.5	0.94
25	1"	20	100	77	161	F04/F05	46.5	50	79	11	22	1.39
32	1-1/4"	25	122	92	203	F05/F07	56	61	97	14	23.5	2.91
40	1-1/2"	32	131	96	203	F05/F07	60	65.5	106.5	14	25	3.66
50	2"	40	158	107	203	F05/F07	70.5	79	129	14	28	6.31
65	2-1/2"	49	178	135	254	F07/F10	95.5	89	145	17	30	8.95
80	3"	60	202	147	254	F07/F10	106	101	167	17	33	13.11
100	4"	75	246	160	310	F07/F10	119	123	203	17	39	22.1

All dimension in mm unless shown otherwise.

Construction:

3 way Stainless Steel Ball Valve Construction

Item	Part	Material	QTY
1	Cap	CF8M (1.4408)	3
2	Gasket	PTFE	3
3	Ball Seat	15%RPTFE	4
4	Ball	316	1
5	Body	CF8M (1.4408)	1
6	Stem	316	1
7	Thrust Washer	PTFE	1
8	O-Ring	VITON	1
9	Stem Packing	PTFE	1

Item	Part	Material	QTY
10	Stem Ring	316	1
11	Belleville Washer	304(301)	1
12	Nut	304	2
13	Plate Washer	304	1
14	Nut Stopper	304	1
15	Locking Device	304	1
16	Handle	304	1
17	Handle Sleeve	Plastic	1
18	Stop Pin	304	1

WARNING

These products are intended for use in industrial applications only. Do not use these products where pressures and temperatures can exceed those listed under ‘Technical Data’ and in our individual ‘Series’ data sheets. Before using these products with fluids other than these specified, for non-industrial applications, life-support systems, or other applications not within published specifications, consult Hawleys Engineering Solutions Pty Ltd. Through misuse, age, or malfunction, components used in industrial valve applications can fail in various modes. The system designer is warned to consider the failure modes of all component parts used in industrial valve applications and to provide adequate safeguards to prevent personal injury or damage to equipment in the event of such failure. System designers must provide a warning to the user in the system instructional manual if protection against a failure mode cannot be adequately provided. System designers and end users are cautioned to review specific warnings or specifications found in instruction sheets or labels packed or attached and shipped with the products. Our policy is one of continuous research and development. We therefore reserve the right to amend without notice the specifications given in this document or our individual ‘Series’ data sheets.

WARRANTY INFORMATION

All valve series and other products manufactured or distributed by Hawleys Engineering Solutions are warranted by Hawleys Engineering Solutions to be free of defects in material and workmanship for a period of 1 year from the date of purchase or as the manufacturer warrants. Hawleys Engineering Solutions obligation under this warranty is limited to repair or replacement of the defec1ive product or refund of the purchase price paid solely at the discretion of Hawleys Engineering Solutions and provided such defective product is returned to Hawleys Engineering Solutions freight prepaid and upon examination by Hawleys Engineering Solutions such product is found defective. This warranty shall be void in the event that the product has been subject to misuse, misapplication, improper maintenance, modification or tampering. This warranty is expressed in lieu of all other warranties, expressed or implied from Hawleys Engineering Solutions representatives or employees. Hawleys Engineering Solutions reserves the right to change Valve and Brochure specifications without notice.

Model	Size (BSP)	Orifice (mm)	Media Pressure	Media Temperature	Torque (NM)
BLS3L2B-L-RT	1/4	9.5	Vacuum (29" Hg) to 63 Bar (10 Bar Steam)	-20°C to 180°C	8
BLS3L3B-L-RT	3/8	11	Vacuum (29" Hg) to 63 Bar (10 Bar Steam)	-20°C to 180°C	8
BLS3L4B-L-RT	1/2	12	Vacuum (29" Hg) to 63 Bar (10 Bar Steam)	-20°C to 180°C	8
BLS3L5B-L-RT	3/4	15	Vacuum (29" Hg) to 63 Bar (10 Bar Steam)	-20°C to 180°C	9
BLS3L6B-L-RT	1	20	Vacuum (29" Hg) to 63 Bar (10 Bar Steam)	-20°C to 180°C	15
BLS3L7B-L-RT	1 ¼	25	Vacuum (29" Hg) to 63 Bar (10 Bar Steam)	-20°C to 180°C	20
BLS3L8B-L-RT	1 ½	32	Vacuum (29" Hg) to 63 Bar (10 Bar Steam)	-20°C to 180°C	30
BLS3L9B-L-RT	2	40	Vacuum (29" Hg) to 63 Bar (10 Bar Steam)	-20°C to 180°C	45
BLS3L10B-L-RT	2 ½	49	Vacuum (29" Hg) to 63 Bar (10 Bar Steam)	-20°C to 180°C	50
BLS3L11B-L-RT	3	60	Vacuum (29" Hg) to 63 Bar (10 Bar Steam)	-20°C to 180°C	80

For T port change the ‘L’ to a ‘T’.

L Port	T Port

Size 1/4" to 3" BSP
Body 316 Stainless Steel
Seat Reinfoced PTFE
Pressure 63 BAR
Temperature -20°C to 180°C
Actuation Lockable Lever

DN	Size	d	L	H	W	ISO5211	h	F	A	J	L1	Kg
8	1/4"	9.5	75	66	130	F03/F04	36.8	37.5	57.5	9	17	0.7
10	3/8"	11	75	66	130	F03/F04	36.8	37.5	57.5	9	17	0.67
15	1/2"	12	75	66	130	F03/F04	36.8	37.5	57.5	9	17	0.63
20	3/4"	15	85	72	161	F04/F05	41.2	42.5	65.5	11	19.5	0.94
25	1"	20	100	77	161	F04/F05	46.5	50	79	11	22	1.39
32	1-1/4"	25	122	92	203	F05/F07	56	61	97	14	23.5	2.91
40	1-1/2"	32	131	96	203	F05/F07	60	65.5	106.5	14	25	3.66
50	2"	40	158	107	203	F05/F07	70.5	79	129	14	28	6.31
65	2-1/2"	49	178	135	254	F07/F10	95.5	89	145	17	30	8.95
80	3"	60	202	147	254	F07/F10	106	101	167	17	33	13.11
100	4"	75	246	160	310	F07/F10	119	123	203	17	39	22.1

All dimension in mm unless shown otherwise.

Item	Part	Material	QTY
1	Cap	CF8M (1.4408)	3
2	Gasket	PTFE	3
3	Ball Seat	15%RPTFE	4
4	Ball	316	1
5	Body	CF8M (1.4408)	1
6	Stem	316	1
7	Thrust Washer	PTFE	1
8	O-Ring	VITON	1
9	Stem Packing	PTFE	1

Item	Part	Material	QTY
10	Stem Ring	316	1
11	Belleville Washer	304(301)	1
12	Nut	304	2
13	Plate Washer	304	1
14	Nut Stopper	304	1
15	Locking Device	304	1
16	Handle	304	1
17	Handle Sleeve	Plastic	1
18	Stop Pin	304	1
