SKU: BLS3FA

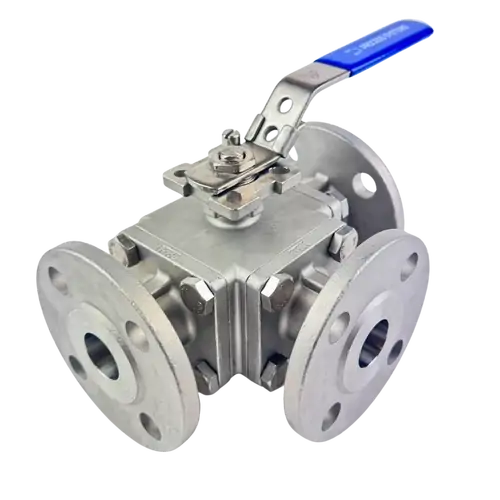

Flanged 3 Way Stainless Steel

From $176.00

Inc GST
In Stock
Make an Enquiry

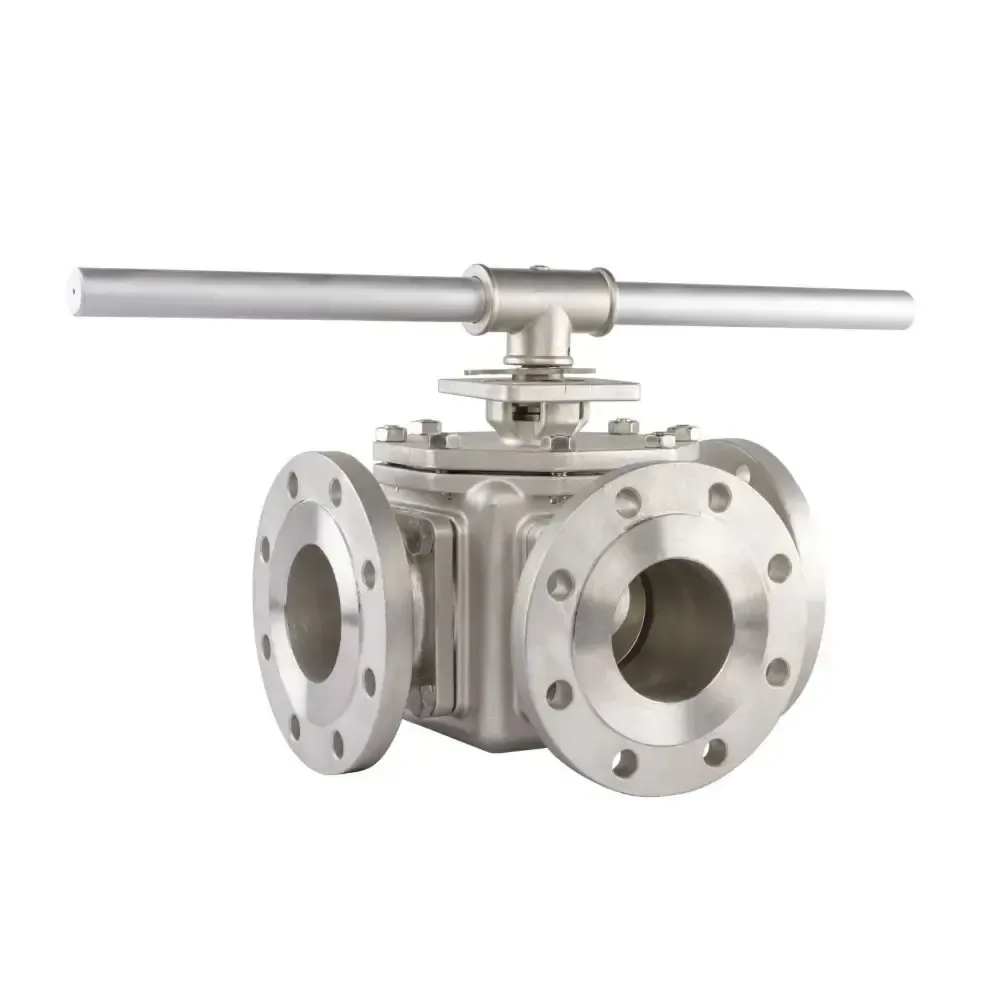

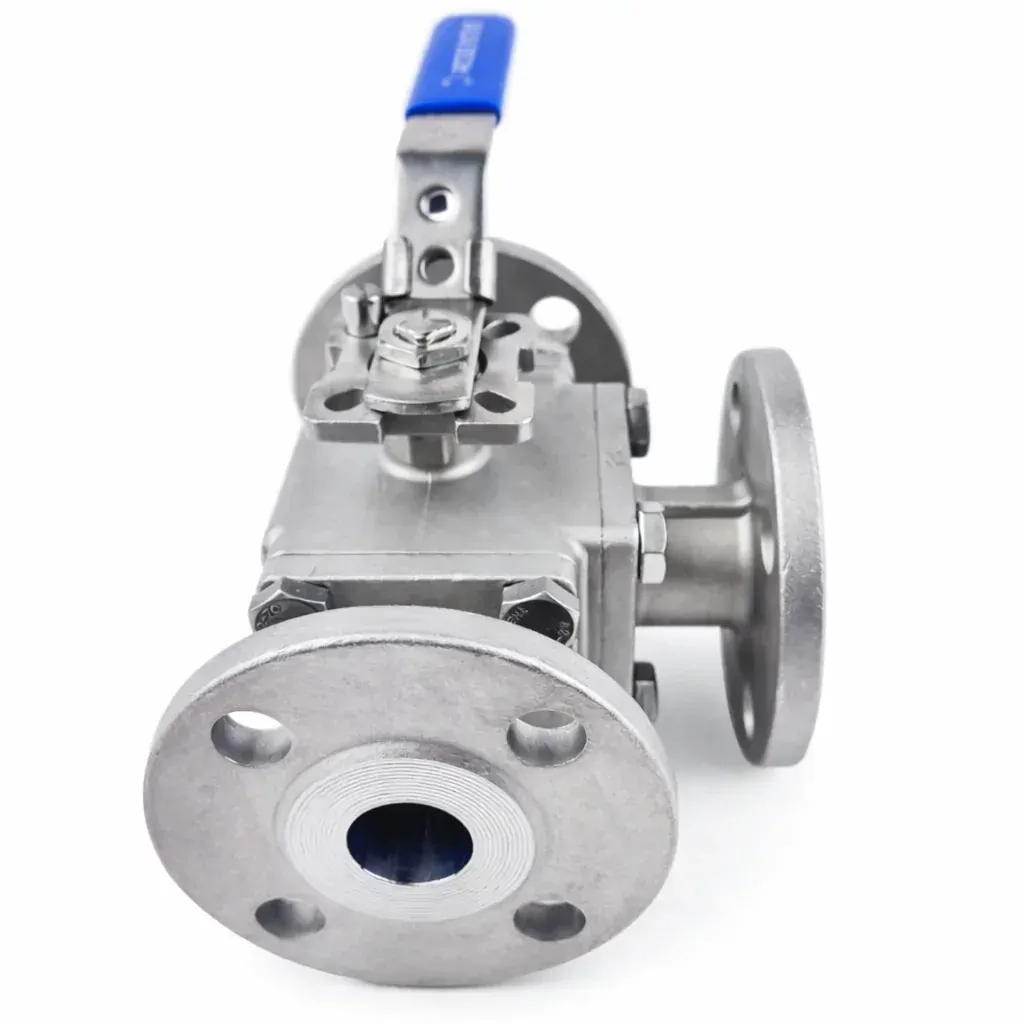

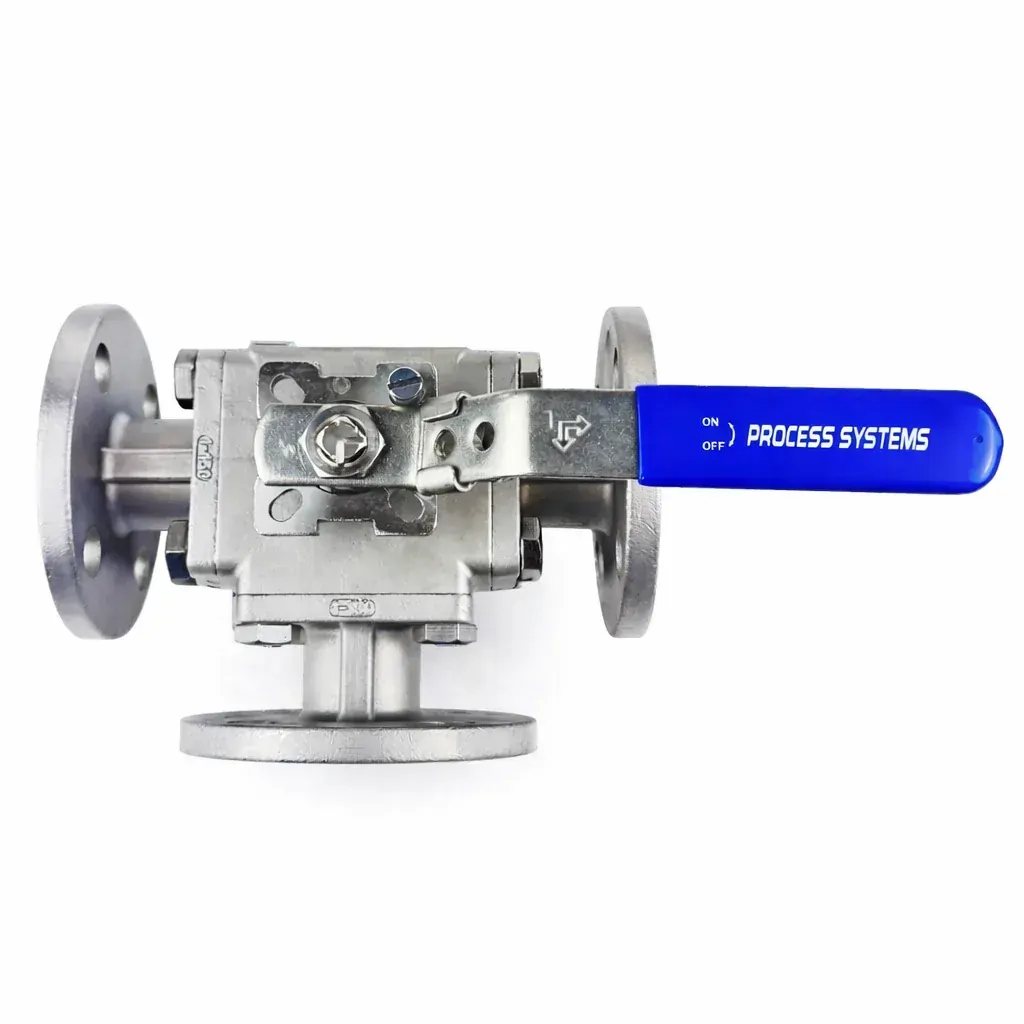

316 Stainless Steel 3 Way Ball valve with full bore and ANSI 150 Flanged end connections. This high performance valve is suitable for many applications such as the water, chemical, petrochemical, marine and general industries. With an ISO pad and Lockable Lever (Up to 2", Above 2" T Bar handle), this makes this valve a versitile fit for many applications, whether by Manual or Actuator / Gearbox.

  • L & T Port Configurations (Full Bore)
  • ANSI 150 Flanged End Connections

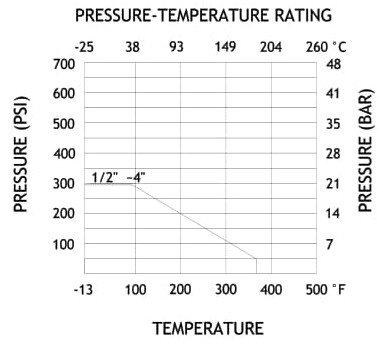

  • Reinforced PTFE Seats suitable for a wide range of media and temperatures up to 180°C (Refer to Pressure Temperature Curve and Material Data sheets for Chemical Compatibility)
  • Self Adjusting Stem Packing by the use of Belleville washers which assist with temperature fluctuations and vibrations.
  • ISO5211 Mouting pad with holes pre drilled to Metric sizes to support a range of actuators
  • Vented design on the Neck of the Valve allows for a reduction in thermal transfer from the valve to the actuator
Model DN (mm) L port CV T port CV (Through) T port CV (Branch) Media Pressure Media Temperature Torque (Nm)
BLS3L4FA-L-RT 15 6 10 5 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C 9
BLS3L5FA-L-RT 20 15 21 13 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C 13
BLS3L6FA-L-RT 25 27 36 22 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C 18
BLS3L7FA-L-RT 32 28 58 25 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C 31
BLS3L8FA-L-RT 40 65 90 55 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C 48
BLS3L9FA-L-RT 50 120 175 100 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C 70
BLS3L10FA-L-RT 65 175 235 149 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C 98
BLS3L11FA-L-RT 80 300 450 270 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C 128
BLS3L12FA-L-RT 100 353 800 475 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C 185

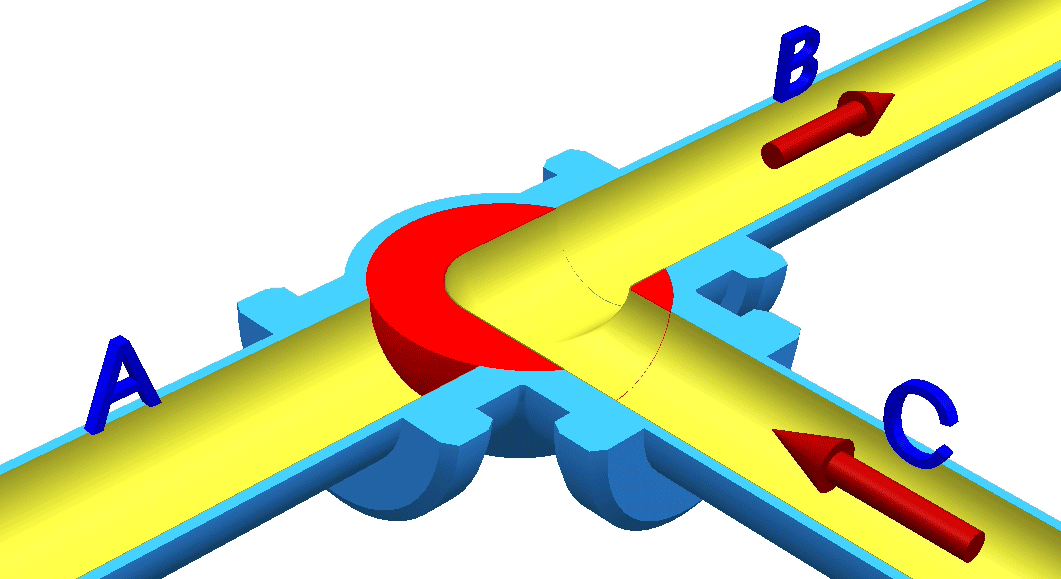

L Port T Port

Size d L D D1 D2 b f H W C ISO5211 Z- Ød1 h s
1/2" 15 152 89 60.5 35 11 2 77 130 9 F03/F04 4-15 48 42.6
3/4" 20 167 98 70 43 11 2 84 161 11 F04/F05 4-15 53 50.4
1" 25 180 108 79.5 51 12 2 93 163 11 F04/F05 4-15 58.5 50.4
1-1/4" 32 190 117 89 64 13 2 113 209 14 F05/F07 4-15 71 66.5
1-1/2" 40 212 127 98.5 73 15 2 121 209 14 F05/F07 4-15 77.5 66.5
2" 49 230 152 120.5 92 16 2 126 209 14 F05/F07 4-19 85 66.5
2-1/2" 62 290 178 139.5 105 18 2 175 450 17 F07/F10 4-19 110 93.6
3" 75 310 190 152.5 127 19 2 188 500 17 F07/F10 4-19 122.5 93.6
4" 99 350 229 190.5 157 24 2 211 550 17 F07/F10 8-19 145.5 93.6

All dimensions in mm unless specified otherwise

Item Parts Material Qty
1 Cap CF8M 3
2 Bolt SS304 12
3 Body Gasket PTFE 3
4 Body Gasket CF8M 1
5 Ball SS316 1
6 Ball Seat R-PTFE(15%) 4
7 Stem SS316 1
8 Thrust Washer PTFE 1
9 O-Ring Viton 1
10 Stem Packing PTFE 1
Item Parts Material Qty
11 Packing Ring SS304 1
12 Bellevile Washer SS301 2
13 Nut Stopper SS304 1
14 Plate Washer SS304 1
15 Nut SS304 2
16 Lock Device SS304 1
17 Handle SS304 1
18 Plastic Cover Plastic 1
19 Stop Pin SS304 1



Size 15mm to 100mm
Body 316 Stainless Steel
Seat RPTFE
Pressure 20 BAR @ ambient
Temperature -10°C to 180°C
Actuation Lockable Lever or Gear Box

Others Also Bought

BLS3FA

Flanged 3 Way Stainless Steel

Features:

Size 15mm to 100mm
Body 316 Stainless Steel
Seat RPTFE
Pressure 20 BAR @ ambient
Temperature -10°C to 180°C
Actuation Lockable Lever or Gear Box

Description:

316 Stainless Steel 3 Way Ball valve with full bore and ANSI 150 Flanged end connections. This high performance valve is suitable for many applications such as the water, chemical, petrochemical, marine and general industries. With an ISO pad and Lockable Lever (Up to 2", Above 2" T Bar handle), this makes this valve a versitile fit for many applications, whether by Manual or Actuator / Gearbox.

  • L & T Port Configurations (Full Bore)
  • ANSI 150 Flanged End Connections
  • Reinforced PTFE Seats suitable for a wide range of media and temperatures up to 180°C (Refer to Pressure Temperature Curve and Material Data sheets for Chemical Compatibility)
  • Self Adjusting Stem Packing by the use of Belleville washers which assist with temperature fluctuations and vibrations.
  • ISO5211 Mouting pad with holes pre drilled to Metric sizes to support a range of actuators
  • Vented design on the Neck of the Valve allows for a reduction in thermal transfer from the valve to the actuator
Model DN (mm) L port CV T port CV (Through) T port CV (Branch) Media Pressure Media Temperature Torque (Nm)
BLS3L4FA-L-RT 15 6 10 5 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C 9
BLS3L5FA-L-RT 20 15 21 13 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C 13
BLS3L6FA-L-RT 25 27 36 22 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C 18
BLS3L7FA-L-RT 32 28 58 25 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C 31
BLS3L8FA-L-RT 40 65 90 55 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C 48
BLS3L9FA-L-RT 50 120 175 100 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C 70
BLS3L10FA-L-RT 65 175 235 149 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C 98
BLS3L11FA-L-RT 80 300 450 270 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C 128
BLS3L12FA-L-RT 100 353 800 475 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C 185



L Port T Port

.

Flanged 3 Way Stainless Steel

BLS3FA

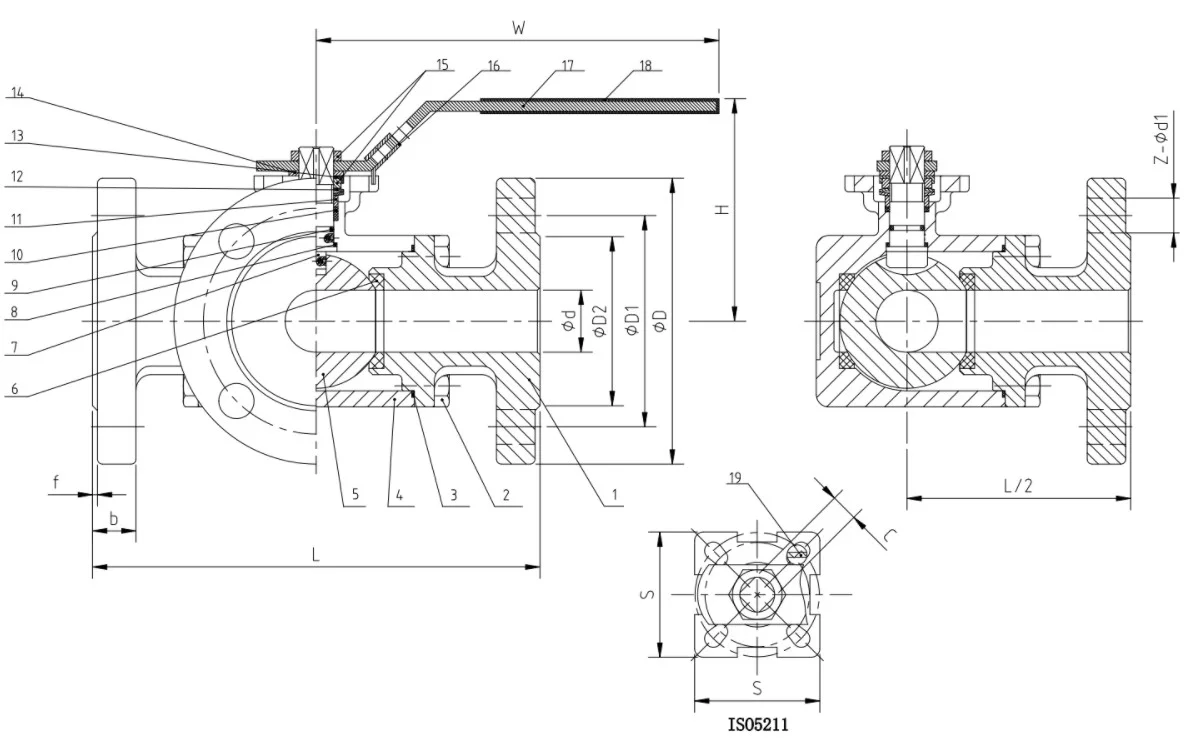

Dimensions:

Size d L D D1 D2 b f H W C ISO5211 Z- Ød1 h s
1/2" 15 152 89 60.5 35 11 2 77 130 9 F03/F04 4-15 48 42.6
3/4" 20 167 98 70 43 11 2 84 161 11 F04/F05 4-15 53 50.4
1" 25 180 108 79.5 51 12 2 93 163 11 F04/F05 4-15 58.5 50.4
1-1/4" 32 190 117 89 64 13 2 113 209 14 F05/F07 4-15 71 66.5
1-1/2" 40 212 127 98.5 73 15 2 121 209 14 F05/F07 4-15 77.5 66.5
2" 49 230 152 120.5 92 16 2 126 209 14 F05/F07 4-19 85 66.5
2-1/2" 62 290 178 139.5 105 18 2 175 450 17 F07/F10 4-19 110 93.6
3" 75 310 190 152.5 127 19 2 188 500 17 F07/F10 4-19 122.5 93.6
4" 99 350 229 190.5 157 24 2 211 550 17 F07/F10 8-19 145.5 93.6

All dimensions in mm unless specified otherwise

.

Flanged 3 Way Stainless Steel

BLS3FA

Construction:

Item Parts Material Qty
1 Cap CF8M 3
2 Bolt SS304 12
3 Body Gasket PTFE 3
4 Body Gasket CF8M 1
5 Ball SS316 1
6 Ball Seat R-PTFE(15%) 4
7 Stem SS316 1
8 Thrust Washer PTFE 1
9 O-Ring Viton 1
10 Stem Packing PTFE 1
Item Parts Material Qty
11 Packing Ring SS304 1
12 Bellevile Washer SS301 2
13 Nut Stopper SS304 1
14 Plate Washer SS304 1
15 Nut SS304 2
16 Lock Device SS304 1
17 Handle SS304 1
18 Plastic Cover Plastic 1
19 Stop Pin SS304 1



WARNING

These products are intended for use in industrial applications only. Do not use these products where pressures and temperatures can exceed those listed under ‘Technical Data’ and in our individual ‘Series’ data sheets. Before using these products with fluids other than these specified, for non-industrial applications, life-support systems, or other applications not within published specifications, consult Hawleys Through misuse, age, or malfunction, components used in industrial valve applications can fail in various modes. The system designer is warned to consider the failure modes of all component parts used in industrial valve applications and to provide adequate safeguards to prevent personal injury or damage to equipment in the event of such failure. System designers must provide a warning to the user in the system instructional manual if protection against a failure mode cannot be adequately provided. System designers and end users are cautioned to review specific warnings or specifications found in instruction sheets or labels packed or attached and shipped with the products. Our policy is one of continuous research and development. We therefore reserve the right to amend without notice the specifications given in this document or our individual ‘Series’ data sheets.

WARRANTY INFORMATION

All valve series and other products manufactured or distributed by Hawleys are warranted by Hawleys to be free of defects in material and workmanship for a period of 1 year from the date of purchase or as the manufacturer warrants. Hawleys obligation under this warranty is limited to repair or replacement of the defec1ive product or refund of the purchase price paid solely at the discretion of Hawleys and provided such defective product is returned to Hawleys freight prepaid and upon examination by Hawleys such product is found defective. This warranty shall be void in the event that the product has been subject to misuse, misapplication, improper maintenance, modification or tampering. This warranty is expressed in lieu of all other warranties, expressed or implied from Hawleys representatives or employees. Hawleys reserves the right to change Valve and Brochure specifications without notice.
