SKU: PGT

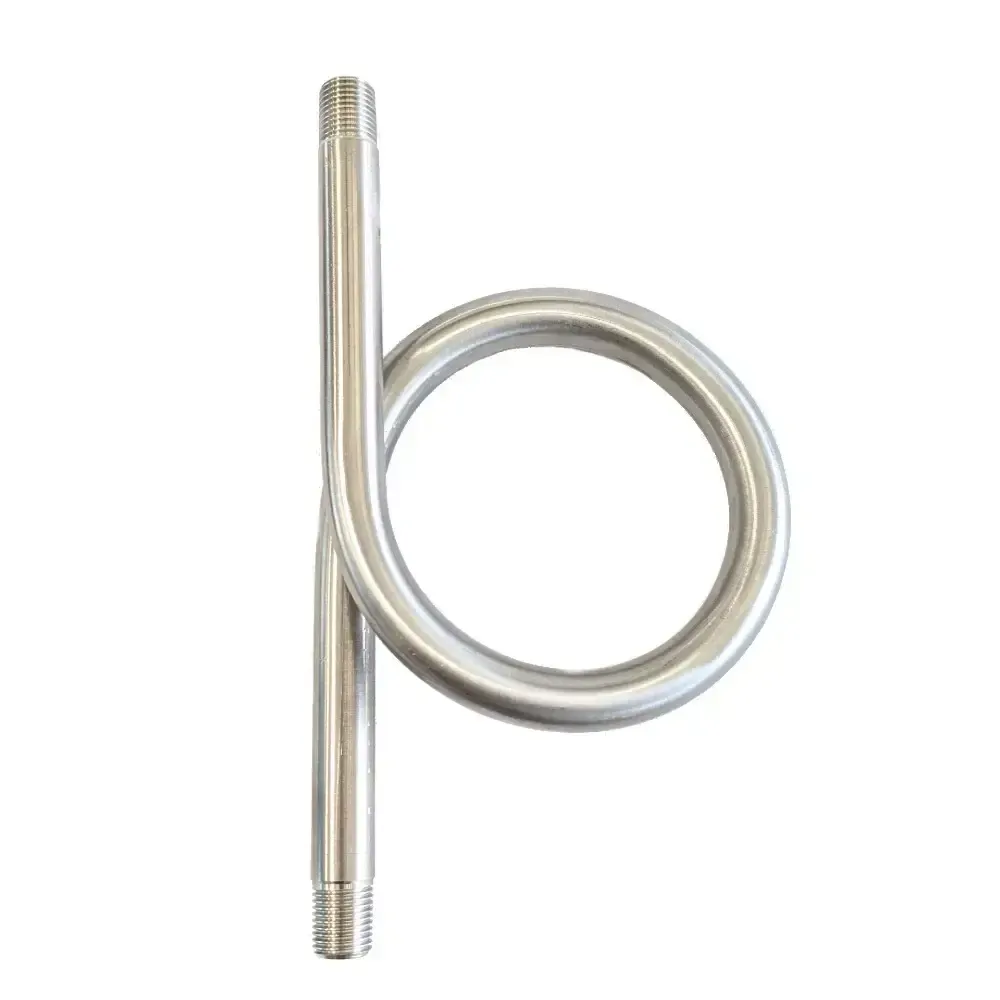

Stainless Steel Pigtail Syphon

From $44.00

Inc GST
In Stock
Make an Enquiry

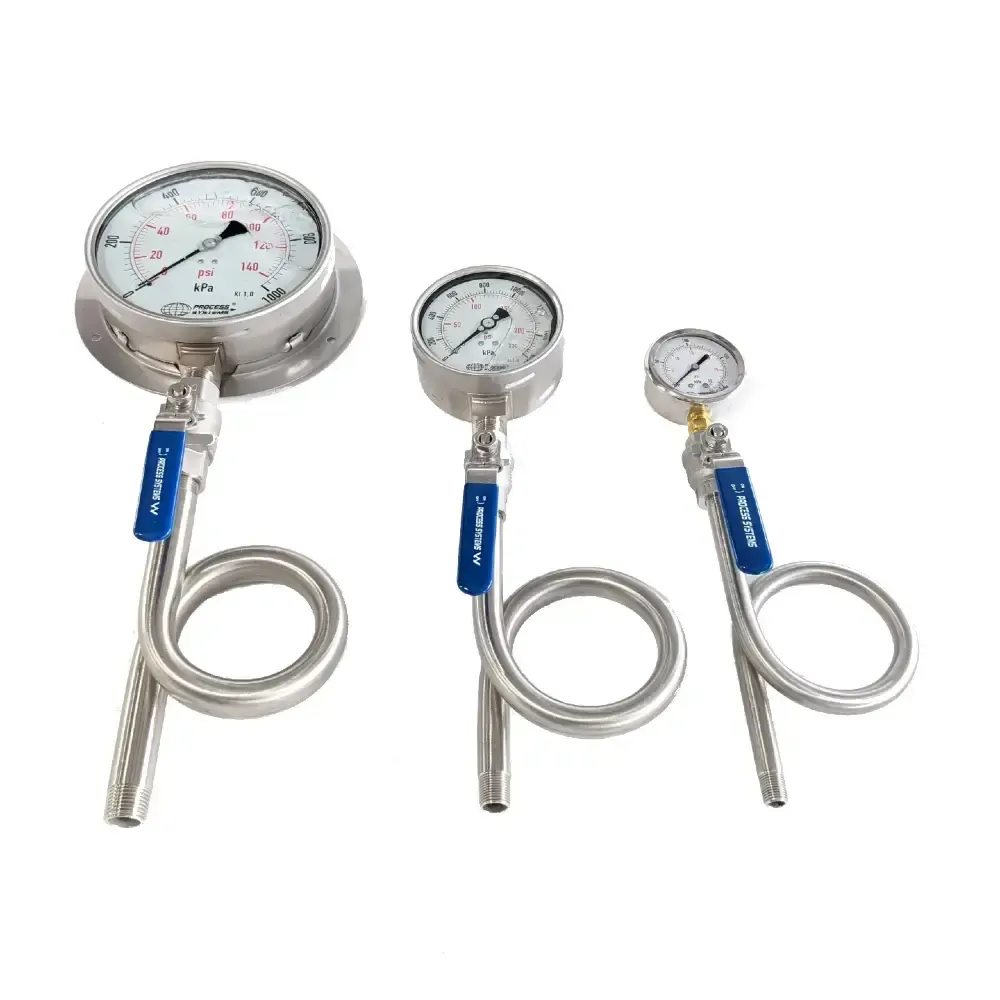

316L Stainless Steel Pigtail Syphone made out of schedule 80 pipe. Ideal for use on steam lines where a pressure gauge is needed. The pigtail syphon will protect the gauge from excessive heat by condensate forming in the bend of the pigtail.

Model Size Construction
PGT-02 1/4" BSPT Schedule 80 316L pipe
PGT-03 3/8" BSPT Schedule 80 316L pipe
PGT-04 1/2" NPT (will also accept BSP) Schedule 80 316L pipe

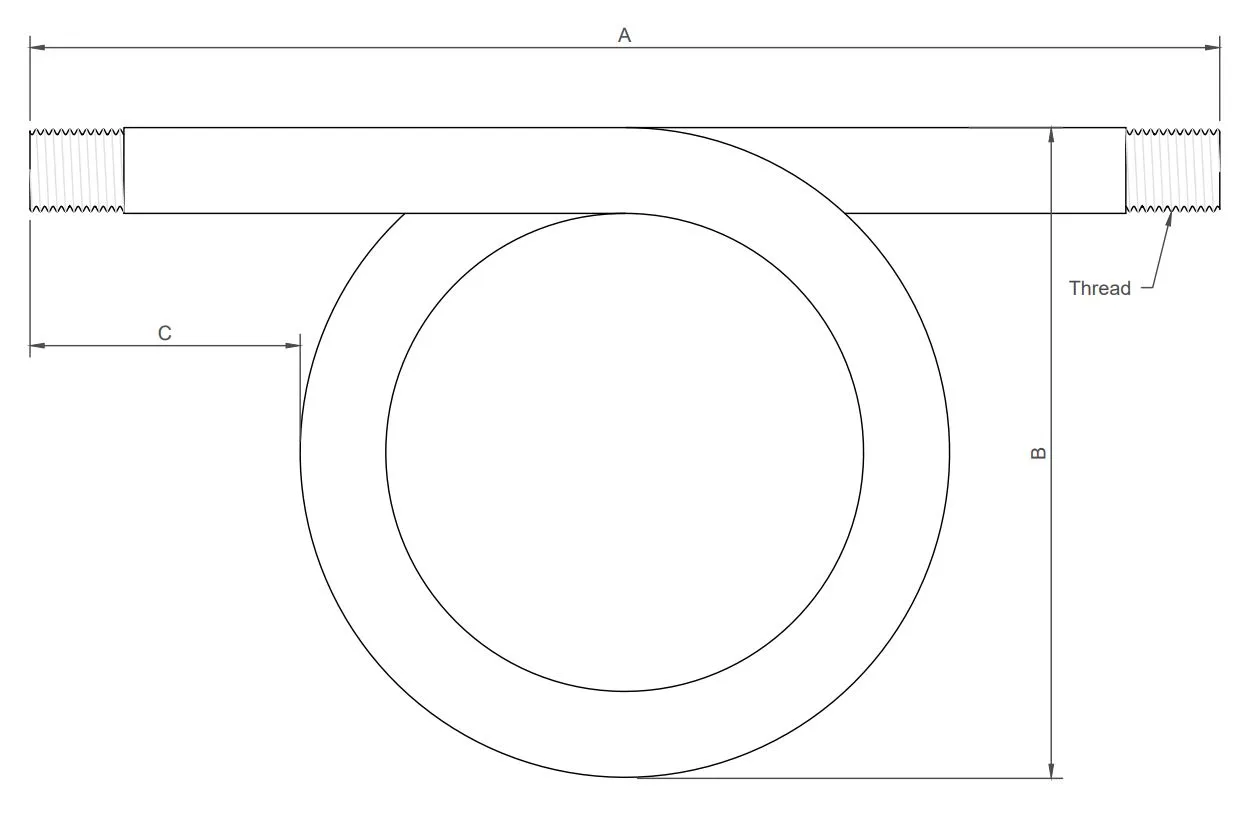

Model Thread A B C
PGT-02 1/4" BSPT 190 105 44
PGT-03 3/8" BSPT 190 110 42
PGT-04 1/2" NPT (Will Accept BSP*) 190 115 40

All dimensions in mm. *1/2" NPT & BSPT interchangable for low pressure applications.

Size 1/4" to 1/2"
Body 316L Stainless Steel
Function Pigtail Syphon
