SKU: BLSFSR

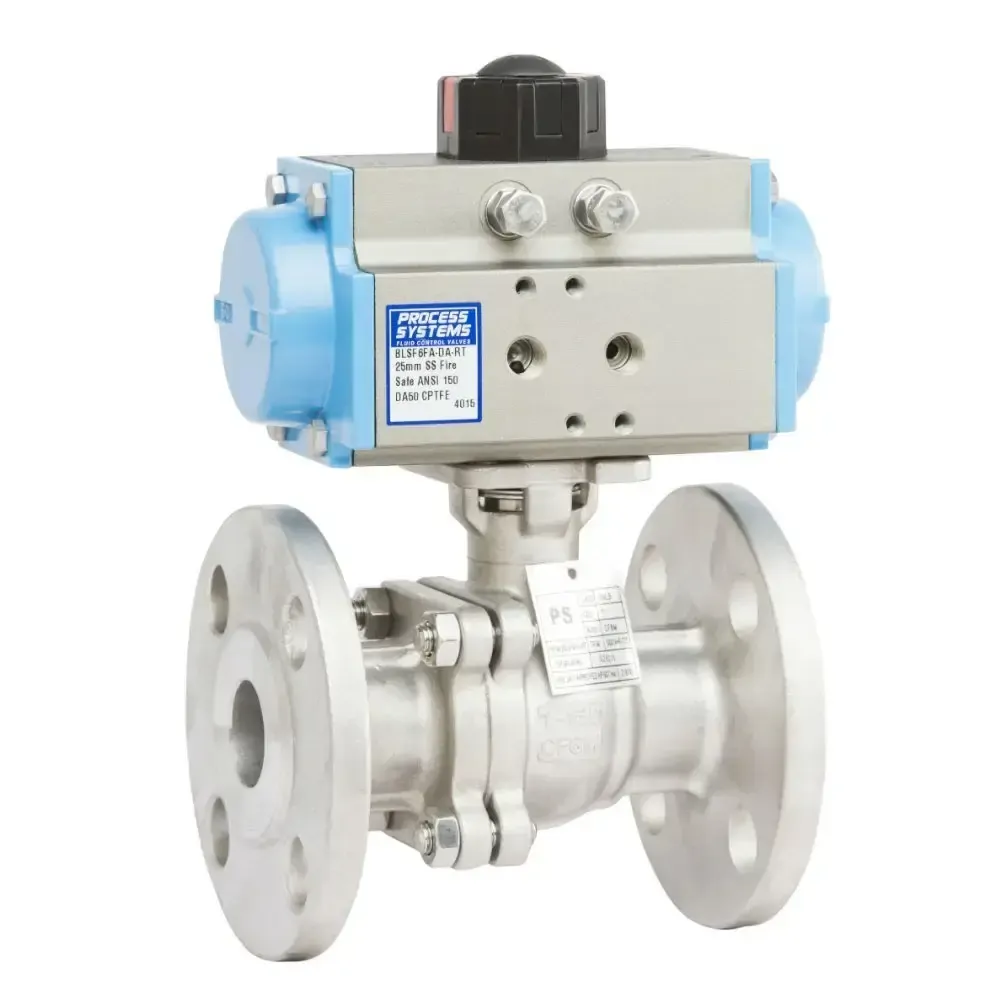

ANSI 150 Stainless Steel Flanged Spring Return Fire Safe Ball Valve

From $264.00

Inc GST
In Stock
Make an Enquiry

316 Stainless Steel 2 Piece Firesafe Ball valve with full bore and ANSI 150 Flanged end connections. This high performance valve is suitable for many applications such as the water, chemical, petrochemical, marine, steam and general industries. Fitted with an Anodized Aluminium Spring Return (Single Acting) Rack and Pinion Pnuematic Actuator (304SS option available - contact Sales).

  • ANSI 150 Flanged End Connections
  • Firesafe Approved API607 Sixth Edition (Certificate Number 230679)
  • Rack and Pinion Actuator with Namur Mouting interfaces (For Solenoid & Limit Switch) and visual indicator
  • Spring Return Actuator can be configured with a Fail Close or Fail Open position
  • Design & Manufactured to ANSI B16.34, Face to Face complies with ANSI B16.10, Flanged Ends to ANSI B16.5, Inspection & Testing in accordance with API598
  • Reinforced PTFE Seats suitable for a wide range of media and temperatures up to 180°C (Refer to Pressure Temperature Curve and Material Data sheets for Chemical Compatibility). 50% Stainless Steel & 50% PTFE seats available as an option for higher temperature or steam service (Not Firesafe Approved with 50-50 Seats).
  • Self Adjusting Stem Packing by the use of Belleville washers which assist with temperature fluctuations and vibrations.
  • ISO5211 Mouting pad with holes pre drilled to Metric sizes to support a range of actuators
  • Vented design on the Neck of the Valve allows for a reduction in thermal transfer from the valve to the actuator
Model Size (mm) Actuator Media Pressure Media Temperature Actuator Pressure Actuator Port Size
BLSF54FA-SR-RT 15 SR50 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLSF55FA-SR-RT 20 SR63 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLSF56FA-SR-RT 25 SR63 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLSF57FA-SR-RT 32 SR75 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLSF58FA-SR-RT 40 SR75 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLSF59FA-SR-RT 50 SR88 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLSF510FA-SR-RT 63 SR100 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4"
BLSF511FA-SR-RT 80 SR115 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4"
BLSF512FA-SR-RT 100 SR145 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4"
BLSF513FA-SR-RT 125 SR160 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4"
BLSF514FA-SR-RT 150 SR180 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4"
BLSF515FA-SR-RT 200 SR200 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4"
BLSF516FA-SR-RT 250 SR270 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4"

For Sprung Open the ‘5’ in the product code changes to a ‘6’.

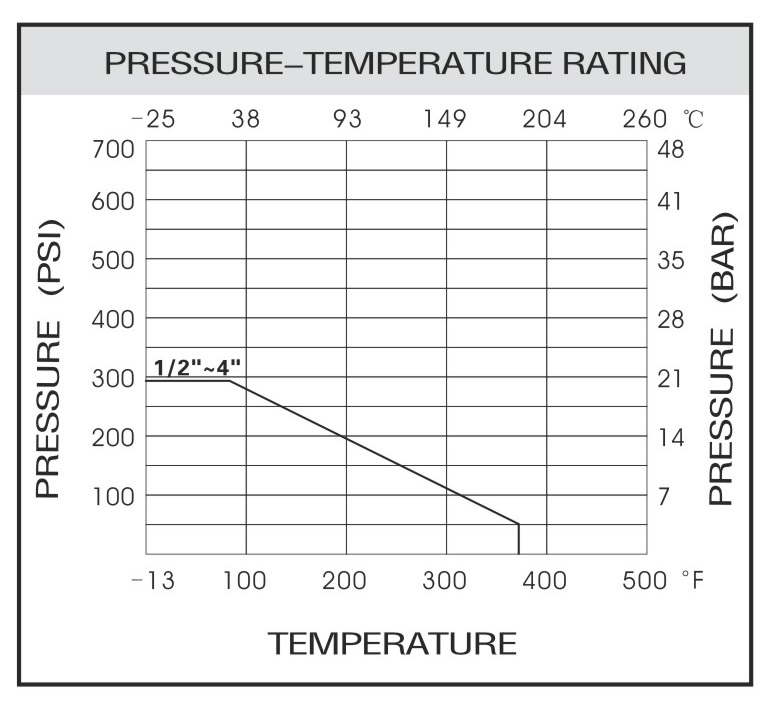

Flanged Spring Return ANSI 150 Pressure vs Temperature

Double Acting Flanged Fire Safe Stainless Steel Ball Valve

Model Size (mm) Actuator Ød L f b Z-Ød1 ØD ØD1 ØD2 h J K P
BLSF54FA-SR-RT 15 SR50 15 108 2 11 4-Ø15 89 60.5 35 48 90 138 1/8"
BLSF55FA-SR-RT 20 SR63 20 117 2 11 4-Ø15 98 70 43 53 100 162 1/8"
BLSF56FA-SR-RT 25 SR63 25 127 2 12 4-Ø15 108 79.5 51 58.5 100 162 1/8"
BLSF57FA-SR-RT 32 SR75 32 140 2 13 4-Ø15 117 89 64 71 117 208 1/8"
BLSF58FA-SR-RT 40 SR75 40 165 2 15 4-Ø15 127 98.5 73 76.5 117 208 1/8"
BLSF59FA-SR-RT 50 SR88 50 178 2 16 4-Ø19 152 120.05 92 85 136 245 1/8"
BLSF510FA-SR-RT 65 SR100 65 190 2 18 4-Ø19 178 139.5 105 110 142 266 1/8"
BLSF511FA-SR-RT 80 SR115 80 203 2 19 4-Ø19 190 152.5 127 122.5 172 310 1/4"
BLSF512FA-SR-RT 100 SR125 100 229 2 24 8-Ø19 229 190.5 157 145.5 184 340 1/4"
BLSF513FA-SR-RT 125 SR145 125 356 2 24 8-Ø19 254 216 186 185 209 401 1/4"
BLSF514FA-SR-RT 150 SR180 150 394 2 26 8-Ø22 279 241.5 216 202.5 252 482 1/4"
BLSF515FA-SR-RT 200 SR200 200 457 2 29 8-Ø22 343 298.5 270 257 274 532 1/4"

All dimensions in mm unless shown otherwise.

Double Acting Flanged Fire Safe Stainless Steel Ball Valve

Item Description Material
1 Cap CF8M
2 Bolt SS304
3 Body Gasket Pure Graphite
4 Body CF8M
5 Ball SS316
6 Ball Seat R-PTFE(15%)
7 Stem SS316
Item Description Material
8 Thrust Washer PTFE
9 O-Ring Viton
10 Stem Packing Pure Graphite
11 Packing Ring SS304
12 Belleville Washer SS301
13 Nut Stopper SS304
14 Nut SS304
15 Pnuematic Actuator Anodized Aluminium



Size 15mm to 250mm
Body 316 Stainless Steel
Seat PTFE
Pressure 150 pound
Temperature -20°C to 180°C
Actuation Spring Return Pneumatic
Fire Safe API607 Approved

BLSFSR

ANSI 150 Stainless Steel Flanged Spring Return Fire Safe Ball Valve

Features:

Size 15mm to 250mm
Body 316 Stainless Steel
Seat PTFE
Pressure 150 pound
Temperature -20°C to 180°C
Actuation Spring Return Pneumatic
Fire Safe API607 Approved

Description:

316 Stainless Steel 2 Piece Firesafe Ball valve with full bore and ANSI 150 Flanged end connections. This high performance valve is suitable for many applications such as the water, chemical, petrochemical, marine, steam and general industries. Fitted with an Anodized Aluminium Spring Return (Single Acting) Rack and Pinion Pnuematic Actuator (304SS option available - contact Sales).

  • ANSI 150 Flanged End Connections
  • Firesafe Approved API607 Sixth Edition (Certificate Number 230679)
  • Rack and Pinion Actuator with Namur Mouting interfaces (For Solenoid & Limit Switch) and visual indicator
  • Spring Return Actuator can be configured with a Fail Close or Fail Open position
  • Design & Manufactured to ANSI B16.34, Face to Face complies with ANSI B16.10, Flanged Ends to ANSI B16.5, Inspection & Testing in accordance with API598
  • Reinforced PTFE Seats suitable for a wide range of media and temperatures up to 180°C (Refer to Pressure Temperature Curve and Material Data sheets for Chemical Compatibility). 50% Stainless Steel & 50% PTFE seats available as an option for higher temperature or steam service (Not Firesafe Approved with 50-50 Seats).
  • Self Adjusting Stem Packing by the use of Belleville washers which assist with temperature fluctuations and vibrations.
  • ISO5211 Mouting pad with holes pre drilled to Metric sizes to support a range of actuators
  • Vented design on the Neck of the Valve allows for a reduction in thermal transfer from the valve to the actuator
Model Size (mm) Actuator Media Pressure Media Temperature Actuator Pressure Actuator Port Size
BLSF54FA-SR-RT 15 SR50 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLSF55FA-SR-RT 20 SR63 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLSF56FA-SR-RT 25 SR63 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLSF57FA-SR-RT 32 SR75 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLSF58FA-SR-RT 40 SR75 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLSF59FA-SR-RT 50 SR88 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLSF510FA-SR-RT 63 SR100 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4"
BLSF511FA-SR-RT 80 SR115 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4"
BLSF512FA-SR-RT 100 SR145 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4"
BLSF513FA-SR-RT 125 SR160 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4"
BLSF514FA-SR-RT 150 SR180 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4"
BLSF515FA-SR-RT 200 SR200 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4"
BLSF516FA-SR-RT 250 SR270 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4"

For Sprung Open the ‘5’ in the product code changes to a ‘6’.

Flanged Spring Return ANSI 150 Pressure vs Temperature
.

ANSI 150 Stainless Steel Flanged Spring Return Fire Safe Ball Valve

BLSFSR

Dimensions:

Double Acting Flanged Fire Safe Stainless Steel Ball Valve

Model Size (mm) Actuator Ød L f b Z-Ød1 ØD ØD1 ØD2 h J K P
BLSF54FA-SR-RT 15 SR50 15 108 2 11 4-Ø15 89 60.5 35 48 90 138 1/8"
BLSF55FA-SR-RT 20 SR63 20 117 2 11 4-Ø15 98 70 43 53 100 162 1/8"
BLSF56FA-SR-RT 25 SR63 25 127 2 12 4-Ø15 108 79.5 51 58.5 100 162 1/8"
BLSF57FA-SR-RT 32 SR75 32 140 2 13 4-Ø15 117 89 64 71 117 208 1/8"
BLSF58FA-SR-RT 40 SR75 40 165 2 15 4-Ø15 127 98.5 73 76.5 117 208 1/8"
BLSF59FA-SR-RT 50 SR88 50 178 2 16 4-Ø19 152 120.05 92 85 136 245 1/8"
BLSF510FA-SR-RT 65 SR100 65 190 2 18 4-Ø19 178 139.5 105 110 142 266 1/8"
BLSF511FA-SR-RT 80 SR115 80 203 2 19 4-Ø19 190 152.5 127 122.5 172 310 1/4"
BLSF512FA-SR-RT 100 SR125 100 229 2 24 8-Ø19 229 190.5 157 145.5 184 340 1/4"
BLSF513FA-SR-RT 125 SR145 125 356 2 24 8-Ø19 254 216 186 185 209 401 1/4"
BLSF514FA-SR-RT 150 SR180 150 394 2 26 8-Ø22 279 241.5 216 202.5 252 482 1/4"
BLSF515FA-SR-RT 200 SR200 200 457 2 29 8-Ø22 343 298.5 270 257 274 532 1/4"

All dimensions in mm unless shown otherwise.

.

ANSI 150 Stainless Steel Flanged Spring Return Fire Safe Ball Valve

BLSFSR

Construction:

Double Acting Flanged Fire Safe Stainless Steel Ball Valve

Item Description Material
1 Cap CF8M
2 Bolt SS304
3 Body Gasket Pure Graphite
4 Body CF8M
5 Ball SS316
6 Ball Seat R-PTFE(15%)
7 Stem SS316
Item Description Material
8 Thrust Washer PTFE
9 O-Ring Viton
10 Stem Packing Pure Graphite
11 Packing Ring SS304
12 Belleville Washer SS301
13 Nut Stopper SS304
14 Nut SS304
15 Pnuematic Actuator Anodized Aluminium
