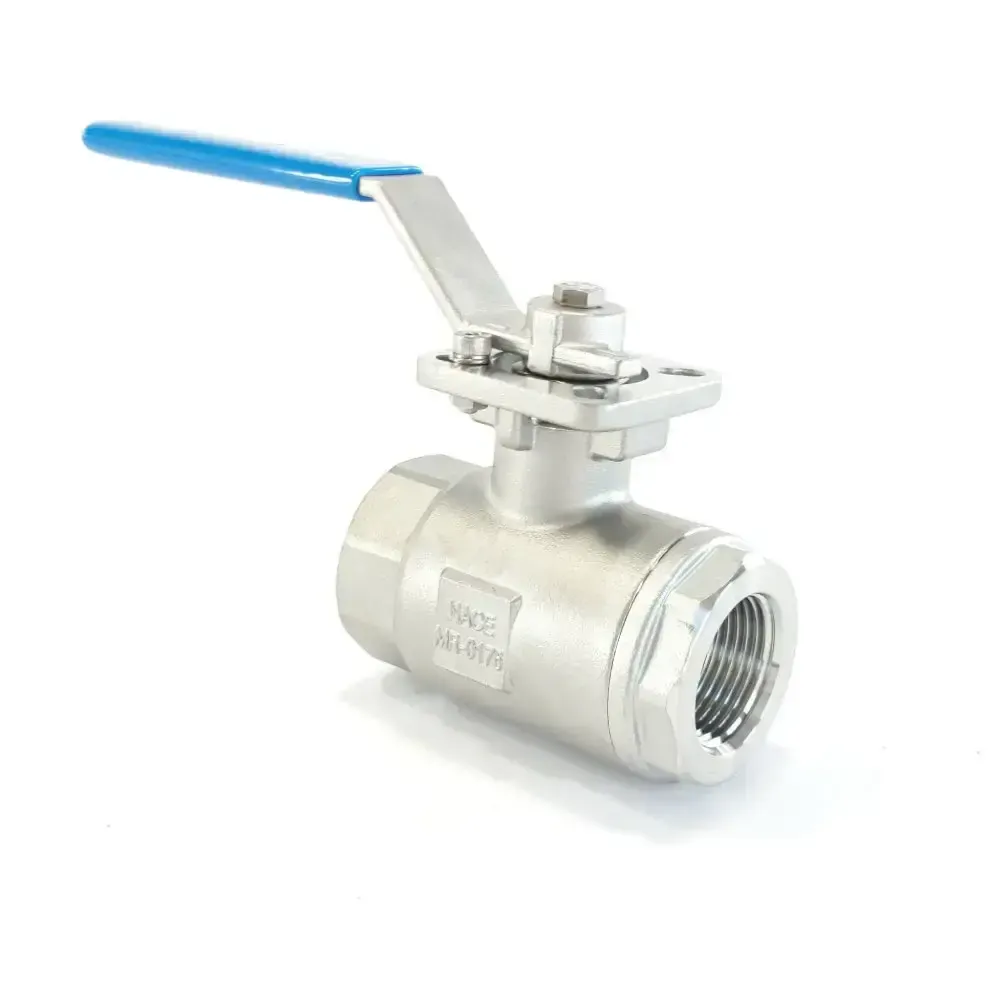

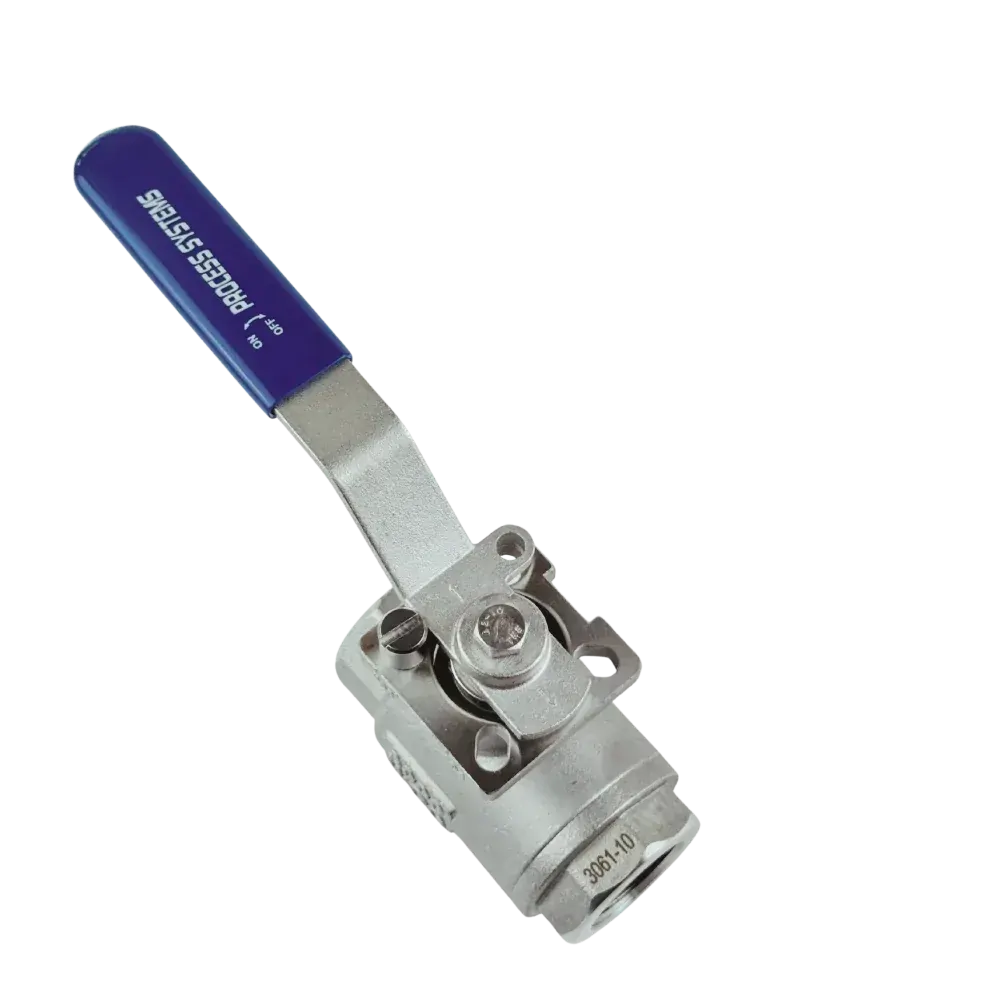

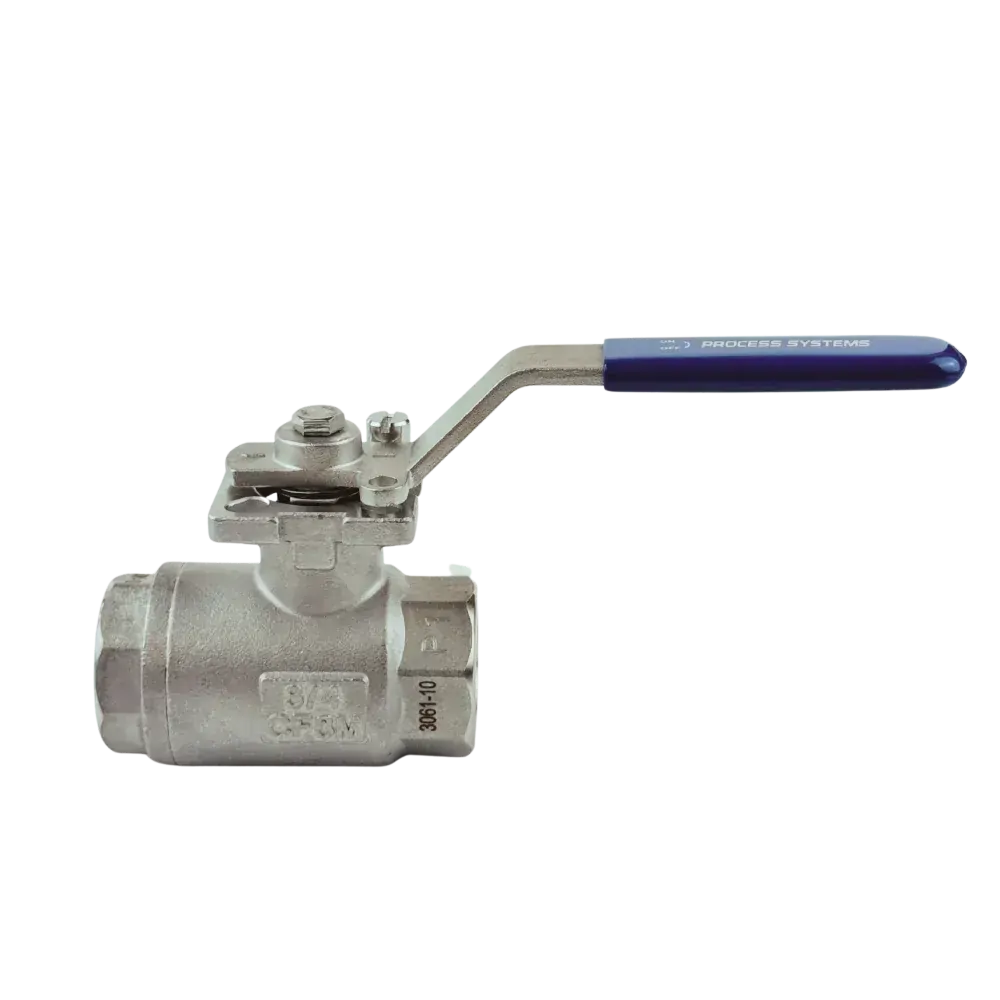

Series BLSHP high performance 316 stainless steel ball valves are specifically designed for high pressure applications. Delrin seats enable pressures up to 204 BAR or 3000 psi at 38°C. Comes with lockable lever operation. Typical applications include water blasting, chemical injection, boiler feedwater and agricultural spraying. Threads conform to ISO 7.1 Sealing Threads.

Model	Size(BSP)	Orifice Size (mm)	CV	Media Pressure	Media Temperature	Torque (NM)
BLSHP2B-L-D	1/4	8	5.3	0 to 200 BAR	40°C	9
BLSHP3B-L-D	3/8	10	8	0 to 200 BAR	40°C	9
BLSHP4B-L-D	1/2	12	19	0 to 200 BAR	40°C	12
BLSHP5B-L-D	3/4	17	35	0 to 200 BAR	40°C	14
BLSHP6B-L-D	1	22	50	0 to 200 BAR	40°C	19
BLSHP8B-L-D	1 ½	35	180	0 to 200 BAR	40°C	41
BLSHP9B-L-D	2	35	210	0 to 200 BAR	40°C	41

Size 1/4" to 2" BSP
Body 316 Stainless Steel
Seat Delrin
Pressure 200 BAR
Temperature Ambient
Actuation Lockable Lever

Item	Part Name	Material	Qty
1	Body	CF8M	1
2	End Cap	CF8M	1
3	Ball	CF8M	1
4	Anti Static Stem	SS316	1
5	Ball Seat	Delrin	2
6	Body Seal	PTFE	1
7	Thrust Washer	PTFE	1
8	Stem Packing	PTFE	1
8A	O-ring	Viton	1
9	Thrust Washer	50%SS 50%PTFE	1
10	Stem Nut	SS304	1
11	Lock SAddle	SS304	1
12	Handle	SS304	1
13	Stop Bolt	SS304	1
14	Stop Nut	SS304	1
15	Stop Washer	SS304	1
16	Handle Bolt	SS304	1
17	Handle Sleeve	Vinyl	1

Size	⌀ID	A	B	C	□E	⬡F	G	h	H	L
1/4"	9.6	F03	F04	126	9	25.9	41	8	72	75
3/8"	9.6	F03	F04	126	9	25.9	41	8	72	75
1/2"	12.7	F03	F04	126	9	32.6	41	8	72	75
3/4"	17.5	F03	F04	126	9	38.4	43.8	8	75	81
1"	22.1	F04	F05	156	11	47.2	53.5	10	87	91
1-1/2"	34.7	F05	F07	181	14	66.2	75.2	13	114	121
2"	34.7	F05	F07	181	14	82	75.2	13	114	145

All dimensions in mm unless specified

DATA SHEET

BLSHP

High Pressure Manual Ball Valve

Features:

Size 1/4" to 2" BSP
Body 316 Stainless Steel
Seat Delrin
Pressure 200 BAR
Temperature Ambient
Actuation Lockable Lever

Description:

Model	Size(BSP)	Orifice Size (mm)	CV	Media Pressure	Media Temperature	Torque (NM)
BLSHP2B-L-D	1/4	8	5.3	0 to 200 BAR	40°C	9
BLSHP3B-L-D	3/8	10	8	0 to 200 BAR	40°C	9
BLSHP4B-L-D	1/2	12	19	0 to 200 BAR	40°C	12
BLSHP5B-L-D	3/4	17	35	0 to 200 BAR	40°C	14
BLSHP6B-L-D	1	22	50	0 to 200 BAR	40°C	19
BLSHP8B-L-D	1 ½	35	180	0 to 200 BAR	40°C	41
BLSHP9B-L-D	2	35	210	0 to 200 BAR	40°C	41

Dimensions:

Size	⌀ID	A	B	C	□E	⬡F	G	h	H	L
1/4"	9.6	F03	F04	126	9	25.9	41	8	72	75
3/8"	9.6	F03	F04	126	9	25.9	41	8	72	75
1/2"	12.7	F03	F04	126	9	32.6	41	8	72	75
3/4"	17.5	F03	F04	126	9	38.4	43.8	8	75	81
1"	22.1	F04	F05	156	11	47.2	53.5	10	87	91
1-1/2"	34.7	F05	F07	181	14	66.2	75.2	13	114	121
2"	34.7	F05	F07	181	14	82	75.2	13	114	145

All dimensions in mm unless specified

Construction:

Item	Part Name	Material	Qty
1	Body	CF8M	1
2	End Cap	CF8M	1
3	Ball	CF8M	1
4	Anti Static Stem	SS316	1
5	Ball Seat	Delrin	2
6	Body Seal	PTFE	1
7	Thrust Washer	PTFE	1
8	Stem Packing	PTFE	1
8A	O-ring	Viton	1
9	Thrust Washer	50%SS 50%PTFE	1
10	Stem Nut	SS304	1
11	Lock SAddle	SS304	1
12	Handle	SS304	1
13	Stop Bolt	SS304	1
14	Stop Nut	SS304	1
15	Stop Washer	SS304	1
16	Handle Bolt	SS304	1
17	Handle Sleeve	Vinyl	1

WARNING

These products are intended for use in industrial applications only. Do not use these products where pressures and temperatures can exceed those listed under ‘Technical Data’ and in our individual ‘Series’ data sheets. Before using these products with fluids other than these specified, for non-industrial applications, life-support systems, or other applications not within published specifications, consult Hawleys Engineering Solutions Pty Ltd. Through misuse, age, or malfunction, components used in industrial valve applications can fail in various modes. The system designer is warned to consider the failure modes of all component parts used in industrial valve applications and to provide adequate safeguards to prevent personal injury or damage to equipment in the event of such failure. System designers must provide a warning to the user in the system instructional manual if protection against a failure mode cannot be adequately provided. System designers and end users are cautioned to review specific warnings or specifications found in instruction sheets or labels packed or attached and shipped with the products. Our policy is one of continuous research and development. We therefore reserve the right to amend without notice the specifications given in this document or our individual ‘Series’ data sheets.

WARRANTY INFORMATION

All valve series and other products manufactured or distributed by Hawleys Engineering Solutions are warranted by Hawleys Engineering Solutions to be free of defects in material and workmanship for a period of 1 year from the date of purchase or as the manufacturer warrants. Hawleys Engineering Solutions obligation under this warranty is limited to repair or replacement of the defec1ive product or refund of the purchase price paid solely at the discretion of Hawleys Engineering Solutions and provided such defective product is returned to Hawleys Engineering Solutions freight prepaid and upon examination by Hawleys Engineering Solutions such product is found defective. This warranty shall be void in the event that the product has been subject to misuse, misapplication, improper maintenance, modification or tampering. This warranty is expressed in lieu of all other warranties, expressed or implied from Hawleys Engineering Solutions representatives or employees. Hawleys Engineering Solutions reserves the right to change Valve and Brochure specifications without notice.

Model	Size(BSP)	Orifice Size (mm)	CV	Media Pressure	Media Temperature	Torque (NM)
BLSHP2B-L-D	1/4	8	5.3	0 to 200 BAR	40°C	9
BLSHP3B-L-D	3/8	10	8	0 to 200 BAR	40°C	9
BLSHP4B-L-D	1/2	12	19	0 to 200 BAR	40°C	12
BLSHP5B-L-D	3/4	17	35	0 to 200 BAR	40°C	14
BLSHP6B-L-D	1	22	50	0 to 200 BAR	40°C	19
BLSHP8B-L-D	1 ½	35	180	0 to 200 BAR	40°C	41
BLSHP9B-L-D	2	35	210	0 to 200 BAR	40°C	41

Size 1/4" to 2" BSP
Body 316 Stainless Steel
Seat Delrin
Pressure 200 BAR
Temperature Ambient
Actuation Lockable Lever

Size	⌀ID	A	B	C	□E	⬡F	G	h	H	L
1/4"	9.6	F03	F04	126	9	25.9	41	8	72	75
3/8"	9.6	F03	F04	126	9	25.9	41	8	72	75
1/2"	12.7	F03	F04	126	9	32.6	41	8	72	75
3/4"	17.5	F03	F04	126	9	38.4	43.8	8	75	81
1"	22.1	F04	F05	156	11	47.2	53.5	10	87	91
1-1/2"	34.7	F05	F07	181	14	66.2	75.2	13	114	121
2"	34.7	F05	F07	181	14	82	75.2	13	114	145

All dimensions in mm unless specified

Item	Part Name	Material	Qty
1	Body	CF8M	1
2	End Cap	CF8M	1
3	Ball	CF8M	1
4	Anti Static Stem	SS316	1
5	Ball Seat	Delrin	2
6	Body Seal	PTFE	1
7	Thrust Washer	PTFE	1
8	Stem Packing	PTFE	1
8A	O-ring	Viton	1
9	Thrust Washer	50%SS 50%PTFE	1
10	Stem Nut	SS304	1
11	Lock SAddle	SS304	1
12	Handle	SS304	1
13	Stop Bolt	SS304	1
14	Stop Nut	SS304	1
15	Stop Washer	SS304	1
16	Handle Bolt	SS304	1
17	Handle Sleeve	Vinyl	1
