Features:
Size 50mm to 300mm
Body Stainless Steel
Seat Metal
Pressure Range 0 to 20 BAR
Operation Handwheel rising stem

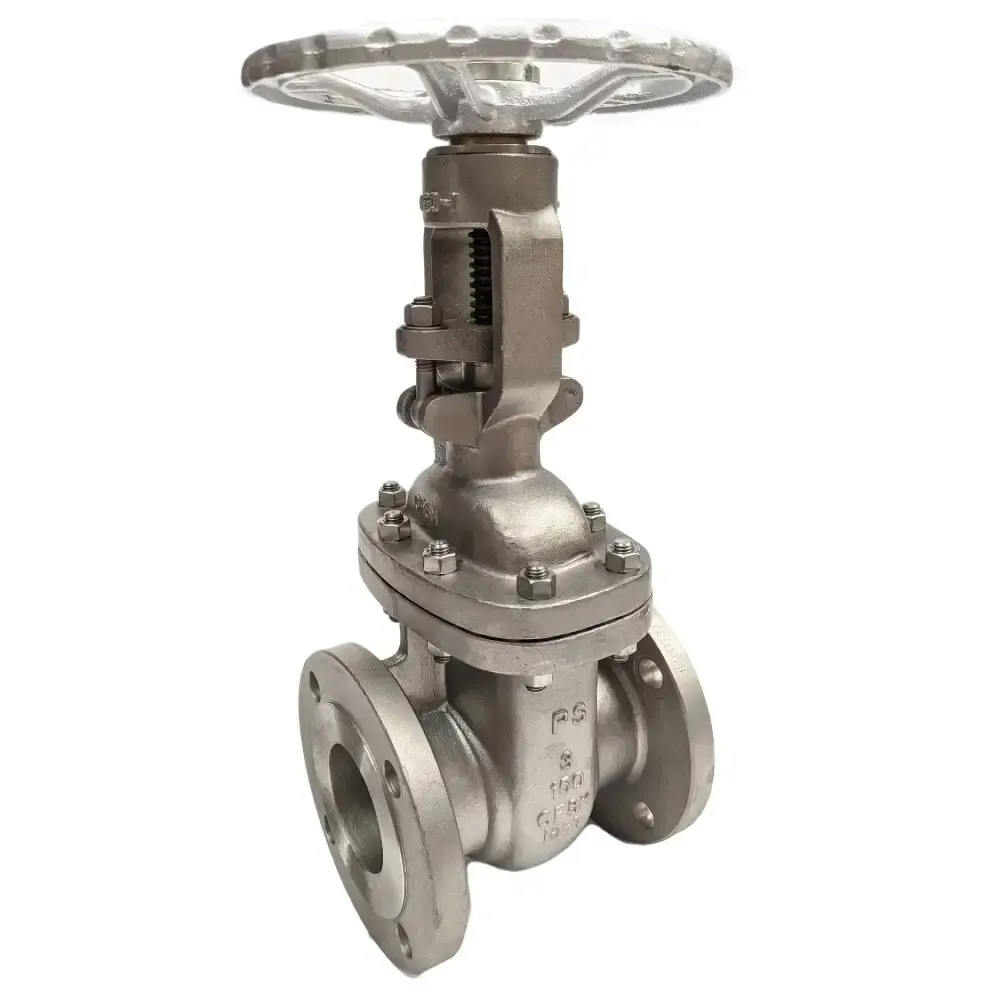

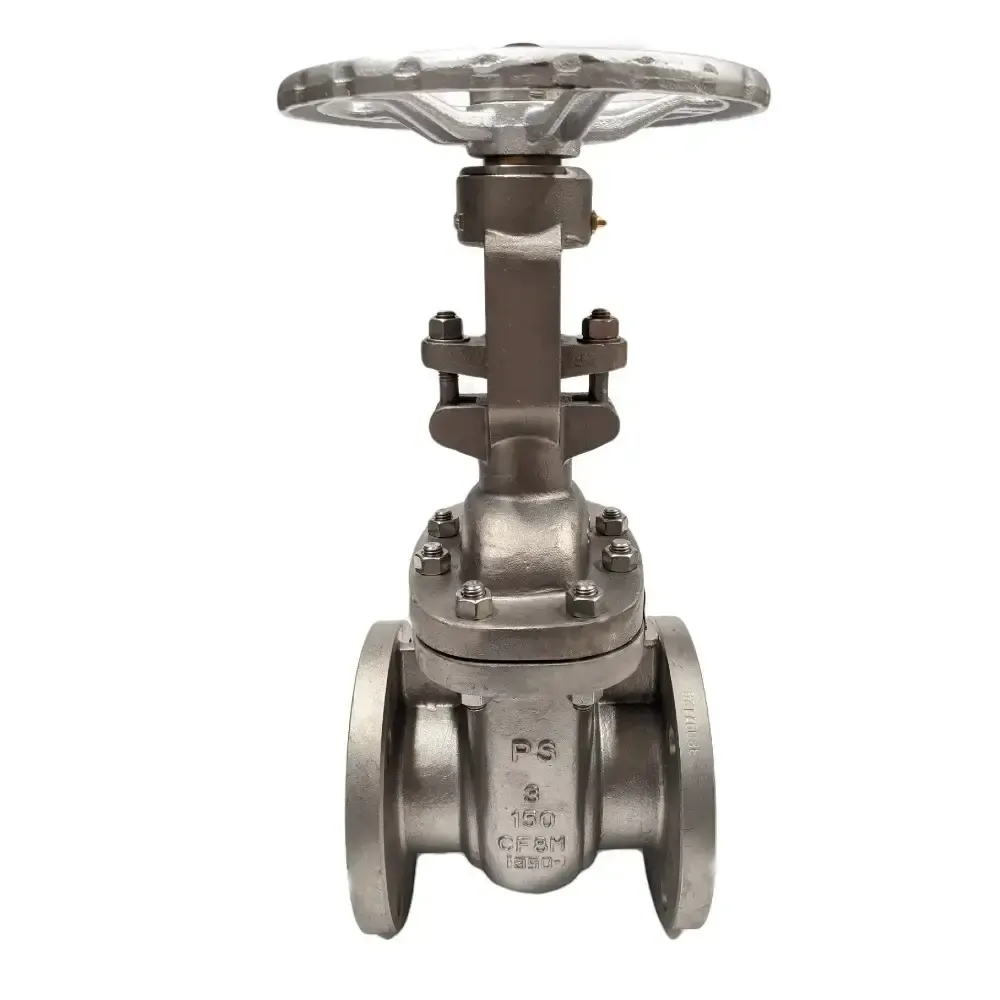

The GVSF Series of Gate Valves is a 316 Stainless Steel Rising Stem ANSI 150 flanged Gate Valve. The full Stainless Steel Seat and Wedge make this valve suitable for a range of applications from Air, Water, Oil, Steam & Some Acids. Due to the Metal to Metal seat, at lower pressures the seat will not be bubble tight and is possible for seepage to occur. Designed to API603, Face to Face to ASME B16.5 and Tested to API598. The body of the valve also features a cast in heat number for batch tracing and Mill Certificates.
Model | Size (mm) | Media Pressure | Media Temperature | Weight (kg) |
---|---|---|---|---|
GVSF-050 | 50 | 1964 kPa @ Ambient Conditions | 260°C @ 1171 kPa | 15 |
GVSF-065 | 65 | 1964 kPa @ Ambient Conditions | 260°C @ 1171 kPa | 21 |
GVSF-080 | 80 | 1964 kPa @ Ambient Conditions | 260°C @ 1171 kPa | 28 |
GVSF-100 | 100 | 1964 kPa @ Ambient Conditions | 260°C @ 1171 kPa | 35 |
GVSF-125 | 125 | 1964 kPa @ Ambient Conditions | 260°C @ 1171 kPa | 46 |
GVSF-150 | 150 | 1964 kPa @ Ambient Conditions | 260°C @ 1171 kPa | 58 |
GVSF-200 | 200 | 1964 kPa @ Ambient Conditions | 260°C @ 1171 kPa | 95 |
GVSF-250 | 250 | 1964 kPa @ Ambient Conditions | 260°C @ 1171 kPa | 155 |
GVSF-300 | 300 | 1964 kPa @ Ambient Conditions | 260°C @ 1171 kPa | 167 |

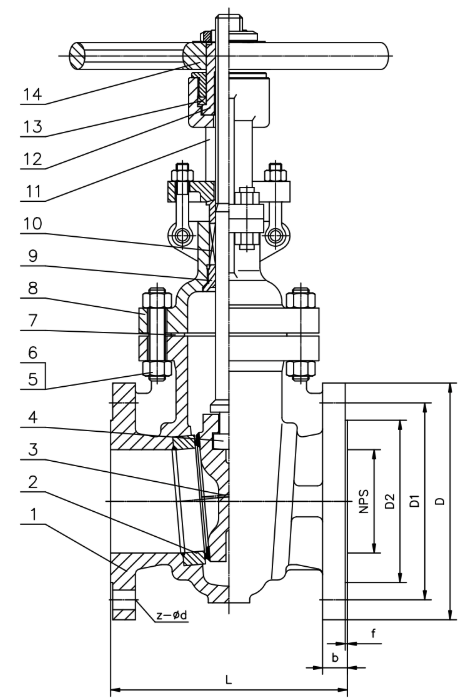

Model | NPS | L | D | D1 | D2 | b | f | z-d |
---|---|---|---|---|---|---|---|---|
GVSF-050 | 50 | 178 | 150 | 120.7 | 92.1 | 16.3 | 2 | 4-19 |
GVSF-065 | 65 | 191 | 180 | 139.7 | 104.8 | 17.9 | 2 | 4-19 |
GVSF-080 | 80 | 203 | 190 | 152.4 | 127 | 19.5 | 2 | 4-19 |
GVSF-100 | 100 | 229 | 230 | 190.5 | 157.2 | 24.3 | 2 | 8-19 |
GVSF-150 | 150 | 267 | 280 | 241.3 | 215.9 | 25.9 | 2 | 8-22 |
GVSF-200 | 200 | 292 | 345 | 298.5 | 269.9 | 29 | 2 | 8-22 |
GVSF-250 | 250 | 330 | 405 | 362 | 323.8 | 30.6 | 2 | 12-26 |
GVSF-300 | 300 | 356 | 485 | 431.8 | 381 | 32.2 | 2 | 12-26 |
Dimensions in mm unless shown otherwise.
Number | Item | Material |
---|---|---|
1 | Body | ASTM A351-CF8M |
2 | Seat | Integral |
3 | Wedge Disc | ASTM A351-CF8M |
4 | Stem | ASTM A182-F316 |
5 | Bonnet Bolt | ASTM A193 Gr.B8 |
6 | Bonnet Bolt Nut | ASTM A194 Gr.8 |
7 | Gasket | FLEXIBLE GRAPHITE/316 |
8 | Bonnet | ASTM A351-CF8M |
9 | Back Seat Bushing | Integral |
10 | Packing | FLEXIBLE GRAPHITE |
11 | Yoke | ASTM A351-CF8M |
12 | Stem Nut | Al-Bronze |
13 | Axletree | E51100 |
14 | Handwheel | CAST IRON |
