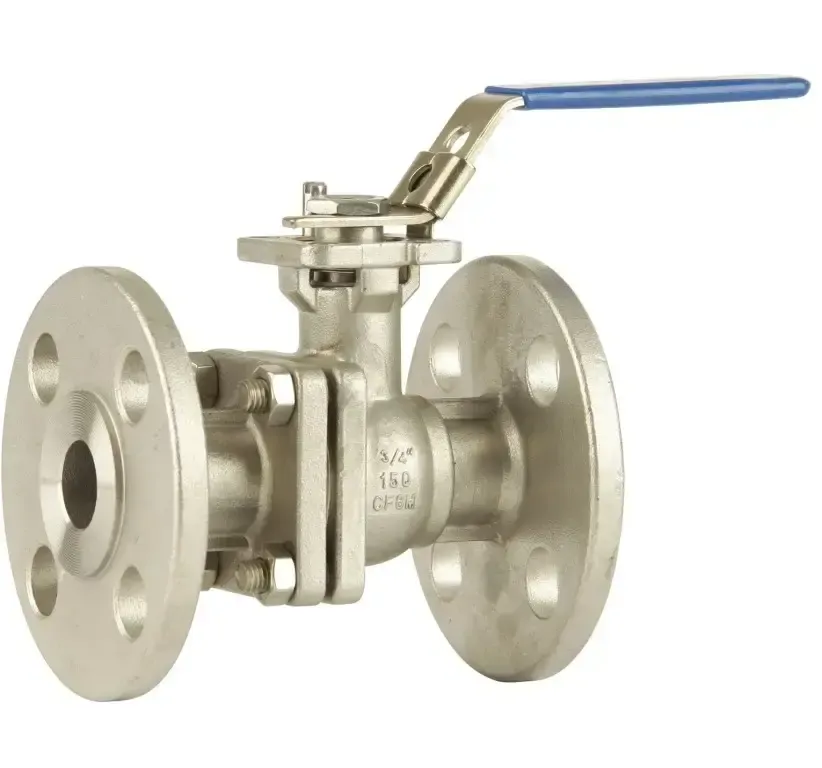

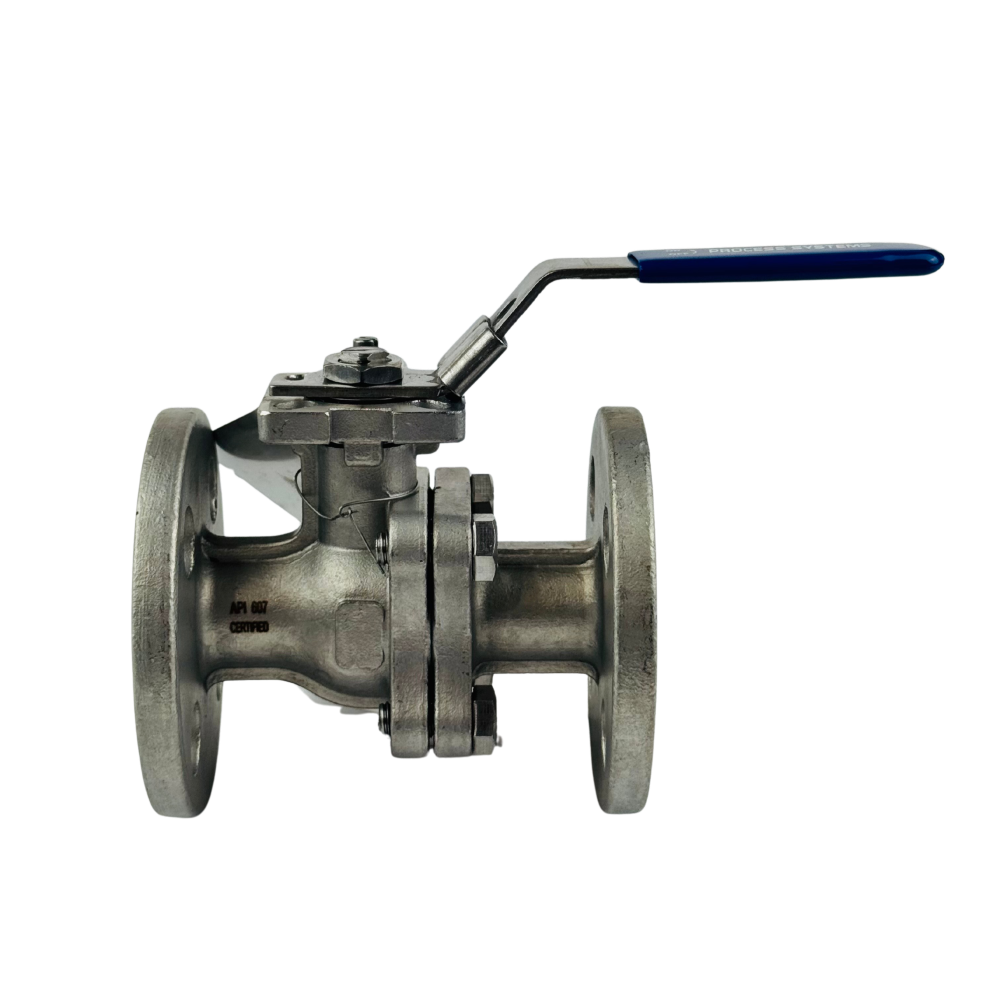

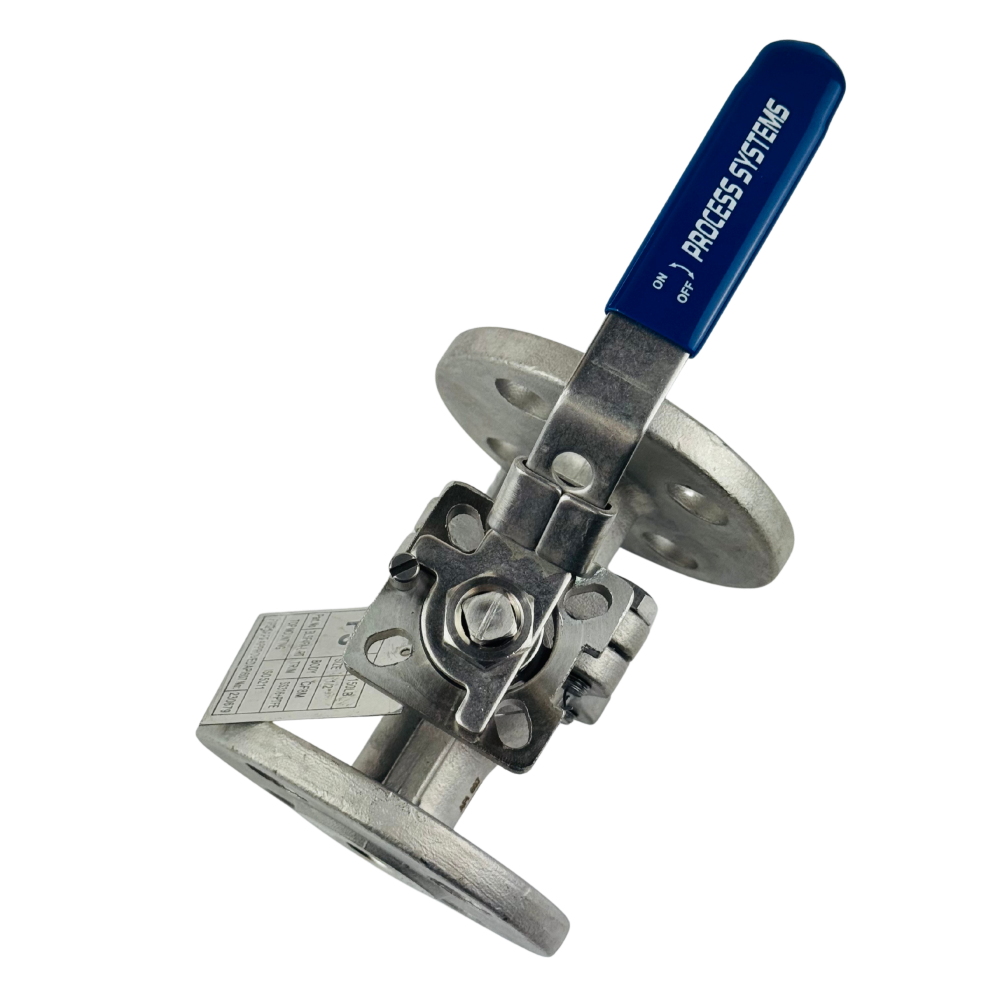

ANSI 150 Stainless Steel Flanged Fire Safe Ball Valve

From $115.50

Inc GST
In Stock
Make an Enquiry

316 Stainless Steel 2 Piece Firesafe Ball valve with full bore and ANSI 150 Flanged end connections. This high performance valve is suitable for many applications such as the water, chemical, petrochemical, marine, steam and general industries. With an ISO pad and Lockable Lever, this makes this valve a versitile fit for many applications, whether by Manual Lever or Actuator / Gearbox.

  • ANSI 150 Flanged End Connections
  • Firesafe Approved API607 Sixth Edition (Certificate Number 230679)
  • Design & Manufactured to ANSI B16.34, Face to Face complies with ANSI B16.10, Flanged Ends to ANSI B16.5, Inspection & Testing in accordance with API598
  • Reinforced PTFE Seats suitable for a wide range of media and temperatures up to 180°C (Refer to Pressure Temperature Curve and Material Data sheets for Chemical Compatibility). 50% Stainless Steel & 50% PTFE seats available as an option for higher temperature or steam service (Not Firesafe Approved with 50-50 Seats).
  • Self Adjusting Stem Packing by the use of Belleville washers which assist with temperature fluctuations and vibrations.
  • ISO5211 Mouting pad with holes pre drilled to Metric sizes to support a range of actuators
  • Vented design on the Neck of the Valve allows for a reduction in thermal transfer from the valve to the actuator
Model Size (mm) Media Pressure Media Temperature Torque (Nm)
BLSF4FA-L-RT 15 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 5
BLSF5FA-L-RT 20 Vacuum (29" Hg)to 20 BAR (10 BAR Steam) -20°C to 180°C 8
BLSF6FA-L-RT 25 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 10
BLSF7FA-L-RT 32 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 14
BLSF8FA-L-RT 40 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 18
BLSF9FA-L-RT 50 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 25
BLSF10FA-L-RT 63 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 48
BLSF11FA-L-RT 80 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 75
BLSF12FA-L-RT 100 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 150
BLSF13FA-L-RT 125 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 200
BLSF14FA-L-RT 150 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 300
BLSF15FA-L-RT 200 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 400
BLSF16FA-L-RT 250 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 1100
BLSF17FA-L-RT 300 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 1890

Stainless Steel Flanged Fire Safe Ball Valve

50mm to 100mm

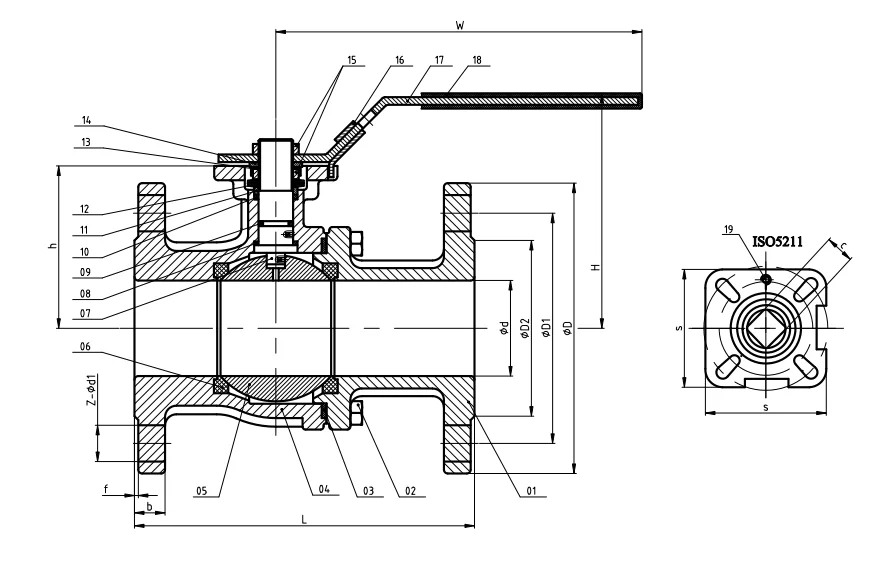

Stainless Steel ANSI150 flanged fire safe ball valve dimensions

Size d L D D1 D2 b f H W C ISO5211 Z-Ød1 h s Kgs
1/2" 15 108 89 60.5 35 11 2 82 117 9 F03/F04 4-15 48 42.6 1.48
3/4" 20 117 98 70 43 11 2 87 117 9 F03/F04 4-15 53 42.6 2.04
1" 25 127 108 79.5 51 12 2 90 164 11 F04/F05 4-15 58.5 50 2.86
1-1/4" 32 140 117 89 64 13 2 100 164 11 F04/F05 4-15 71 50 3.94
1-1/2" 40 165 127 98.5 73 15 2 116 203 14 F05/F07 4-15 76.5 64.5 5.94
2" 50 178 152 120.5 92 16 2 125 203 14 F05/F07 4-19 85 64.5 7.61
2-1/2" 65 190 178 139.5 105 18 2 164 255 17 F07/F10 4-19 110 93.6 13.2
3" 80 203 190 152.5 127 19 2 174 255 17 F07/F10 4-19 122.5 93.6 17.1
4" 100 229 229 190.5 157 24 2 200 302 17 F07/F10 8-19 145.5 93.6 29.2
5" 125 356 254 216 186 24 2 258 600 22 F10/F12 8-18 185 114 42
6" 150 394 279 241.5 216 26 2 276 600 22 F10/F12 8-22 202.5 114 82
8" 200 457 343 298.5 270 29 2 350 800 27 F12/F14 8-22 257 131 140

ANSI150 Flange Fire Safe Stainless Steel Ball Valve Dimensions

50mm to 100mm

Stainless Steel Fire Safe Ball Valve ANSI 150 Construction

Item Part Material Qty
1 Cap 1.4408 (CF8M) 1
2 Bolt SS304 4(8)
3 Body Gasket Pure Graphite 1
4 Body 1.4408 (CF8M) 1
5 Ball SS316 1
6 Ball Seat R-PTFE (15%) 2
7 Stem SS316 1
8 Thrust Washer Pure PTFE 1
9 O-ring Viton 1
10 Stem Packing Pure Graphite 1
11 Packing Ring SS304 1
12 Bellevlle Washer SS301 2
13 Nut Stopper SS304 1
14 Plate Washer SS304 1
15 Nut SS304 2
16 Lock Device SS304 1
17 Handle SS304 1
18 Plastic Cover Plastic 1
19 Stop Pin SS304 1

125mm to 200mm

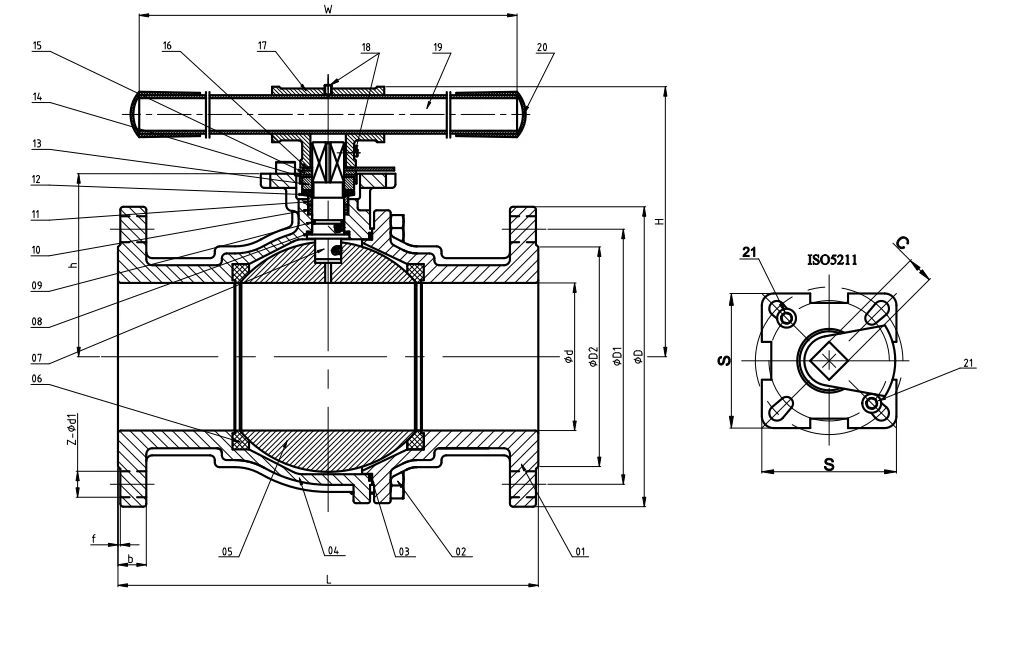

ANSI 150 flanged Stainless Steel Fire Safe Ball Valve Construction

Item Part Material Qty
1 Cap 1.4408 (CF8M) 1
2 Bolt SS304 8
3 Body Gasket Pure Graphite 1
4 Body 1.4408 (CF8M) 1
5 Ball SS316 1
6 Ball Seat Pure PTFE 2
7 Stem SS316 1
8 Thrust Washer Pure PTFE 1
9 O-ring Viton 1
10 Stem Packing Pure Graphite 1
11 Packing Ring SS304 1
12 Bellevlle Washer SS301 2
13 Nut SS304 1
14 Nut Stopper SS304 1
15 Plate Washer SS304 1
16 Lock Device SS304 1
17 Sleeve CF8M 1
18 Jackscrew SS304 2
19 Handle Galvanized Pipe 1
20 Plastic Cover Plastic 1
21 Stop Pin SS304 2

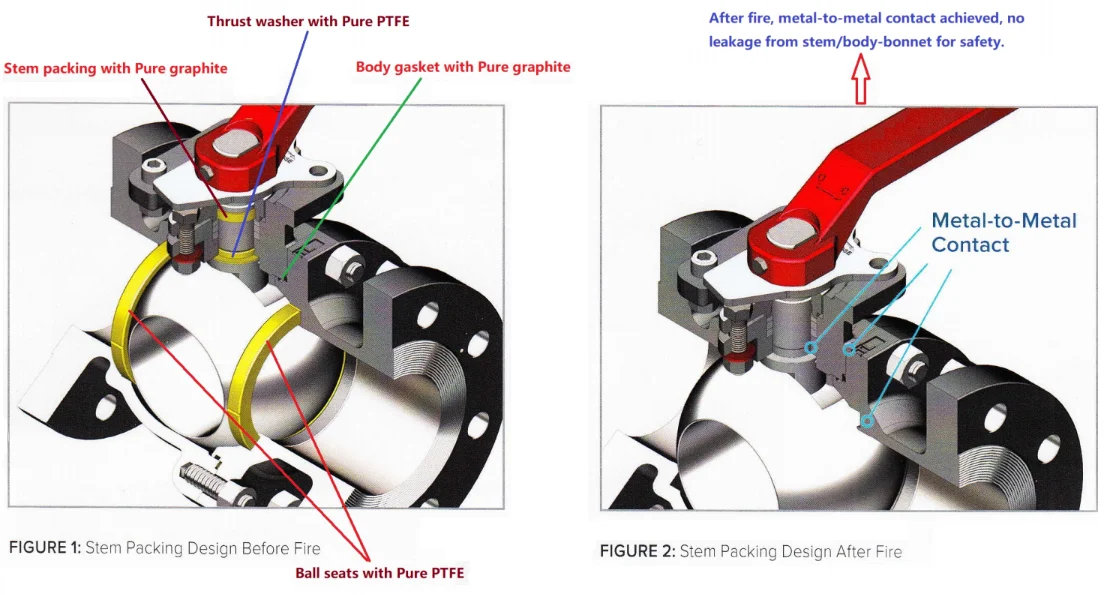

Cast Steel Fire Safe Ball Valve Design

Size 15mm to 300mm
Body 316 Stainless Steel
Seat PTFE
Pressure 150 pound
Temperature -20°C to 180°C
Actuation Lockable Lever or Gear Box
Fire Safe API607 Approved

Others Also Bought

BLSF

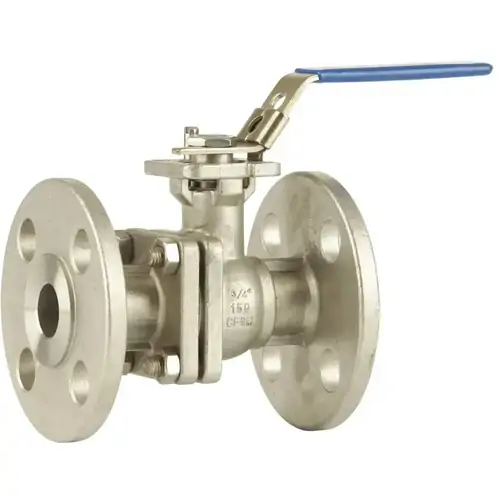

ANSI 150 Stainless Steel Flanged Fire Safe Ball Valve

Features:

Size 15mm to 300mm
Body 316 Stainless Steel
Seat PTFE
Pressure 150 pound
Temperature -20°C to 180°C
Actuation Lockable Lever or Gear Box
Fire Safe API607 Approved

Description:

316 Stainless Steel 2 Piece Firesafe Ball valve with full bore and ANSI 150 Flanged end connections. This high performance valve is suitable for many applications such as the water, chemical, petrochemical, marine, steam and general industries. With an ISO pad and Lockable Lever, this makes this valve a versitile fit for many applications, whether by Manual Lever or Actuator / Gearbox.

  • ANSI 150 Flanged End Connections
  • Firesafe Approved API607 Sixth Edition (Certificate Number 230679)
  • Design & Manufactured to ANSI B16.34, Face to Face complies with ANSI B16.10, Flanged Ends to ANSI B16.5, Inspection & Testing in accordance with API598
  • Reinforced PTFE Seats suitable for a wide range of media and temperatures up to 180°C (Refer to Pressure Temperature Curve and Material Data sheets for Chemical Compatibility). 50% Stainless Steel & 50% PTFE seats available as an option for higher temperature or steam service (Not Firesafe Approved with 50-50 Seats).
  • Self Adjusting Stem Packing by the use of Belleville washers which assist with temperature fluctuations and vibrations.
  • ISO5211 Mouting pad with holes pre drilled to Metric sizes to support a range of actuators
  • Vented design on the Neck of the Valve allows for a reduction in thermal transfer from the valve to the actuator
Model Size (mm) Media Pressure Media Temperature Torque (Nm)
BLSF4FA-L-RT 15 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 5
BLSF5FA-L-RT 20 Vacuum (29" Hg)to 20 BAR (10 BAR Steam) -20°C to 180°C 8
BLSF6FA-L-RT 25 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 10
BLSF7FA-L-RT 32 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 14
BLSF8FA-L-RT 40 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 18
BLSF9FA-L-RT 50 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 25
BLSF10FA-L-RT 63 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 48
BLSF11FA-L-RT 80 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 75
BLSF12FA-L-RT 100 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 150
BLSF13FA-L-RT 125 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 200
BLSF14FA-L-RT 150 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 300
BLSF15FA-L-RT 200 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 400
BLSF16FA-L-RT 250 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 1100
BLSF17FA-L-RT 300 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 1890

Stainless Steel Flanged Fire Safe Ball Valve

.

ANSI 150 Stainless Steel Flanged Fire Safe Ball Valve

BLSF

Dimensions:

50mm to 100mm

Stainless Steel ANSI150 flanged fire safe ball valve dimensions

Size d L D D1 D2 b f H W C ISO5211 Z-Ød1 h s Kgs
1/2" 15 108 89 60.5 35 11 2 82 117 9 F03/F04 4-15 48 42.6 1.48
3/4" 20 117 98 70 43 11 2 87 117 9 F03/F04 4-15 53 42.6 2.04
1" 25 127 108 79.5 51 12 2 90 164 11 F04/F05 4-15 58.5 50 2.86
1-1/4" 32 140 117 89 64 13 2 100 164 11 F04/F05 4-15 71 50 3.94
1-1/2" 40 165 127 98.5 73 15 2 116 203 14 F05/F07 4-15 76.5 64.5 5.94
2" 50 178 152 120.5 92 16 2 125 203 14 F05/F07 4-19 85 64.5 7.61
2-1/2" 65 190 178 139.5 105 18 2 164 255 17 F07/F10 4-19 110 93.6 13.2
3" 80 203 190 152.5 127 19 2 174 255 17 F07/F10 4-19 122.5 93.6 17.1
4" 100 229 229 190.5 157 24 2 200 302 17 F07/F10 8-19 145.5 93.6 29.2
5" 125 356 254 216 186 24 2 258 600 22 F10/F12 8-18 185 114 42
6" 150 394 279 241.5 216 26 2 276 600 22 F10/F12 8-22 202.5 114 82
8" 200 457 343 298.5 270 29 2 350 800 27 F12/F14 8-22 257 131 140

ANSI150 Flange Fire Safe Stainless Steel Ball Valve Dimensions

.

ANSI 150 Stainless Steel Flanged Fire Safe Ball Valve

BLSF

Construction:

50mm to 100mm

Stainless Steel Fire Safe Ball Valve ANSI 150 Construction

Item Part Material Qty
1 Cap 1.4408 (CF8M) 1
2 Bolt SS304 4(8)
3 Body Gasket Pure Graphite 1
4 Body 1.4408 (CF8M) 1
5 Ball SS316 1
6 Ball Seat R-PTFE (15%) 2
7 Stem SS316 1
8 Thrust Washer Pure PTFE 1
9 O-ring Viton 1
10 Stem Packing Pure Graphite 1
11 Packing Ring SS304 1
12 Bellevlle Washer SS301 2
13 Nut Stopper SS304 1
14 Plate Washer SS304 1
15 Nut SS304 2
16 Lock Device SS304 1
17 Handle SS304 1
18 Plastic Cover Plastic 1
19 Stop Pin SS304 1

125mm to 200mm

ANSI 150 flanged Stainless Steel Fire Safe Ball Valve Construction

Item Part Material Qty
1 Cap 1.4408 (CF8M) 1
2 Bolt SS304 8
3 Body Gasket Pure Graphite 1
4 Body 1.4408 (CF8M) 1
5 Ball SS316 1
6 Ball Seat Pure PTFE 2
7 Stem SS316 1
8 Thrust Washer Pure PTFE 1
9 O-ring Viton 1
10 Stem Packing Pure Graphite 1
11 Packing Ring SS304 1
12 Bellevlle Washer SS301 2
13 Nut SS304 1
14 Nut Stopper SS304 1
15 Plate Washer SS304 1
16 Lock Device SS304 1
17 Sleeve CF8M 1
18 Jackscrew SS304 2
19 Handle Galvanized Pipe 1
20 Plastic Cover Plastic 1
21 Stop Pin SS304 2

Cast Steel Fire Safe Ball Valve Design
