Tanged Graphite With 316 Stainless Steel

From $176.00

In Stock
Make an Enquiry

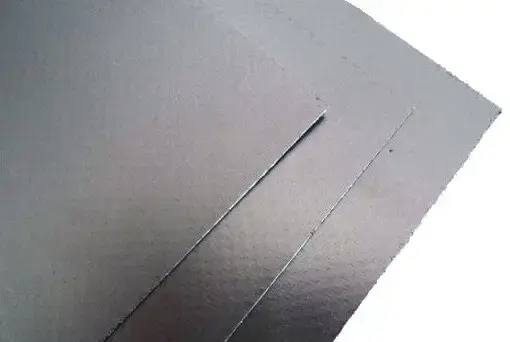

These sheets are made from flexible graphite laminated to tanged 316 stainless steel. They are ideal for high temperature applications and have excellent resistance to steam and most chemicals.

Item Standard Value
Max Pressure   60 Bar
Ph Range   0 to 14
Temperature Range in Oxidizing Media   -200°C to 450°C
Temperature Range in Non Oxidizing Media   -200°C to 800°C
Stability Under Compressive Strength DIN 52913 >48 N/mm²
Compressibility ASTM F36A-66 30% to 40%
Recovery ASTM F36A-66 15% to 30%
Gas Permeability DN353 <0.8 cm²/min
Sealibility Nitrogen Gas F-37B 60 ml/hr
Sealing Constants "m" factor ASTM 2.5
Sealing Constants "y" stress ASTM 4000psi

Sheet Size 1000mm x 1000mm
Thickness 1.5mm & 3.0mm
Temperature Limit -200°C ~ 450°C
Pressure  60 Bar
Application  Steam & Most Chemicals

  • What is Tanged Graphite Material?

    A Tanged Graphite is a gasket material that is made out of Graphite with a 316 Stainless Steel tang through it. This combination gives the gasket characteristics including strength, temperature and chemical resistance.

  • How does a Tanged Graphite Sealing Material Work?

    This works by the Tanged Graphite forming a softer sealing layer between two hard surfaces which allows a seal to form. Tanged Graphite is not the softest sealing material available but is considered softer than other metallic gaskets such as spiral wounds. This will allow an easier seal as the material is more workable.

  • What Thickness Tanged Graphite should I choose?

    This really comes down to two factors; what is the condition of the current flange faces and what is the user preference. As a general rule of thumb you should go with the thinner gasket (within reason) as it will actually handle a higher pressure. This can seem counterintuitive but there is less of the gasket material in contact with the media so more is retained by the two flange faces. However if the flange faces are pitted or a little uneven you should pick a thicker gasket as it will need more material to work into these spaces to allow a better seal. Also some users have a preference of thickness to work with. If in doubt we usually recommend a 1.5mm flange thickness for Tanged Graphite.

  • How long will my Tanged Graphite material last?

    This really depends upon the environment, media, temperature and pressure where the gasket is installed. However, Tanged Graphite has a very long life time. It may be reused if it hasn't bound to the surface of the flange which sometimes can happen depending upon the temperature and pressure of the media.

  • What are typical uses of Tanged Graphite Gasket Material?

    These have a very wide range of use cases however they are very popular on steam and boiler systems. They can be used in a multitude of other cases especially where there is a high temperature media. Inner Ring Gaskets are mostly used on flanges where there is a raised face and the ring gasket will seal on this.

  • How do I install Tanged Graphite?

    The two mating surfaces which the Tanged Graphite will form the seal between need to be thoroughly cleaned to make sure there is no dirt or debris on the faces. The Tanged Graphite sheet will then need to be cut to size to form the seal between the two faces. This material is not the easiest to work with however it can be cut with tin snips manually. Once this is achieved and the surfaces look clean the two ends can be bought together with the Tanged Graphite forming the middle seal. Once this is achieved the pipe/flange bolts can be tightened in a diagonal direction to ensure an even sealing pressure is achieved.

  • How long will my product take to get to me?

    This depends upon where you are based and the freight method chosen. If the express freight option is selected it is usually next day delivery to metropolitan areas in Australia for under 5kg. If free freight has been selected it will go by road freight which can be anywhere from 1 to 10 days depending upon your location. It usually averages 3 days.

  • What warranty do I get?

    This gasket material does not have a warranty per ce as it really depends upon the application and installation of the material. The good news is we have very strict quality controls and all Tanged Graphite is inspected so there are rarely any issues. It is also made from 100% pure graphite and 316L Stainless Steel so it is a very high quality construction.
