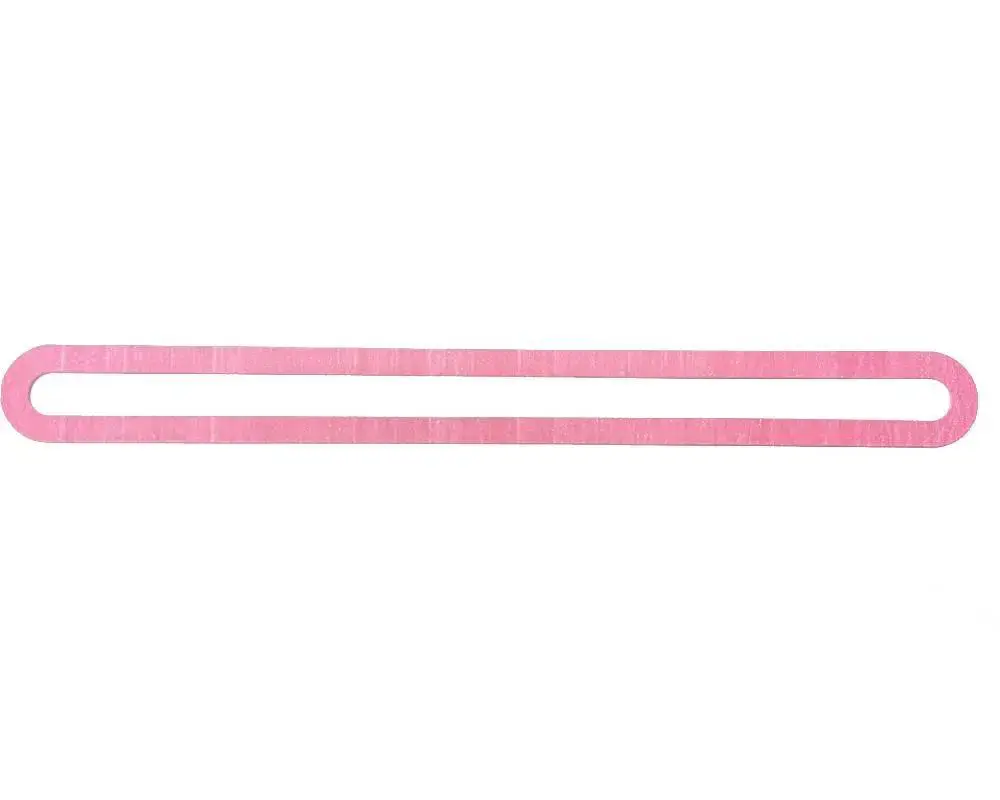

Cushion gasket forms the seal between the front of the reflex or transaparent level gauge and the glass. The same gasket fits both styles and is only differentiated by its type (Type A or B) and its size number (sizes 0 to 9). These are cut on our CNC machine so have a very quick turnaround.



Size Number Length Width Type A Width Type B Thickness
0 95mm 30mm 34mm 1.5mm
1 115mm 30mm 34mm 1.5mm
2 140mm 30mm 34mm 1.5mm
3 165mm 30mm 34mm 1.5mm
4 190mm 30mm 34mm 1.5mm
5 220mm 30mm 34mm 1.5mm
6 250mm 30mm 34mm 1.5mm
7 280mm 30mm 34mm 1.5mm
8 320mm 30mm 34mm 1.5mm
9 340mm 30mm 34mm 1.5mm

Sizes 0 to 9
Suits Reflex & Transaprent Gauge Glass
Types A & B

.

DATA SHEET

Cushion gasket forms the seal between the front of the reflex or transaparent level gauge and the glass. The same gasket fits both styles and is only differentiated by its type (Type A or B) and its size number (sizes 0 to 9). These are cut on our CNC machine so have a very quick turnaround.



Size Number Length Width Type A Width Type B Thickness
0 95mm 30mm 34mm 1.5mm
1 115mm 30mm 34mm 1.5mm
2 140mm 30mm 34mm 1.5mm
3 165mm 30mm 34mm 1.5mm
4 190mm 30mm 34mm 1.5mm
5 220mm 30mm 34mm 1.5mm
6 250mm 30mm 34mm 1.5mm
7 280mm 30mm 34mm 1.5mm
8 320mm 30mm 34mm 1.5mm
9 340mm 30mm 34mm 1.5mm

Sizes 0 to 9
Suits Reflex & Transaprent Gauge Glass
Types A & B
