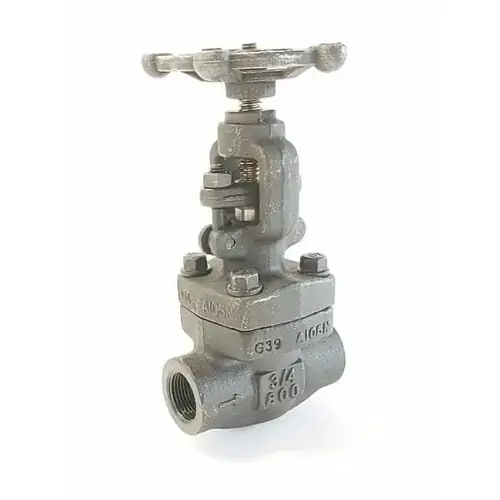

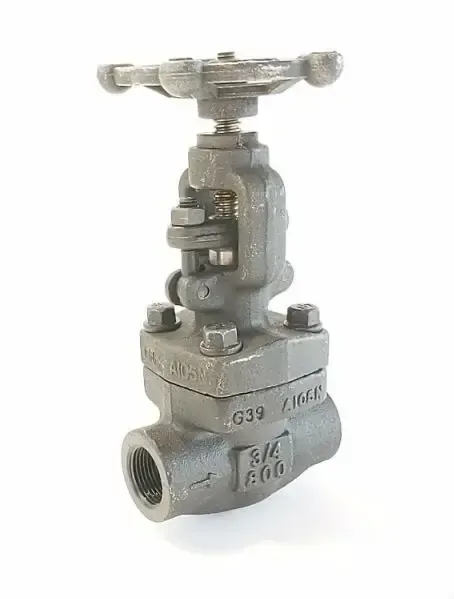

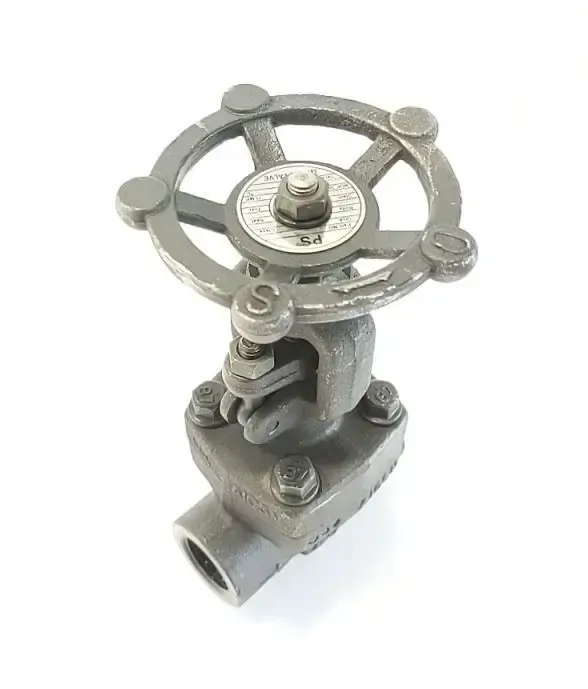

Robust Class 800 A105 Forged Steel Globe Valve from 1/2" to 2" NPT with rising stem manual hand wheel. For pressures up to 136 Bar depending upon temperature (see chart below) and media type.Suitable for use across Petrochemical, Steam, Mining and Industrial applications. Designed to API602 with NPT ends to ASME B1.20.1 and tested to API598.

Model Size (NPT) Design Pressure Media Temperature Weight (kg)
GLF8-04 1/2" 13.62 MPa @ -29°C ~ 35°C 454°C @ 5.5 MPa 2.28
GLF8-05 3/4" 2.37
GLF8-06 1" 4.3
GLF8-07 1 1/4" 5.75
GLF8-08 1 1/2" 7.8
GLF8-09 2" 12.5

Size 1/2" to 2" NPT
Body Forged Steel
Seat 13Cr reinforced steel
Pressure 136 Bar

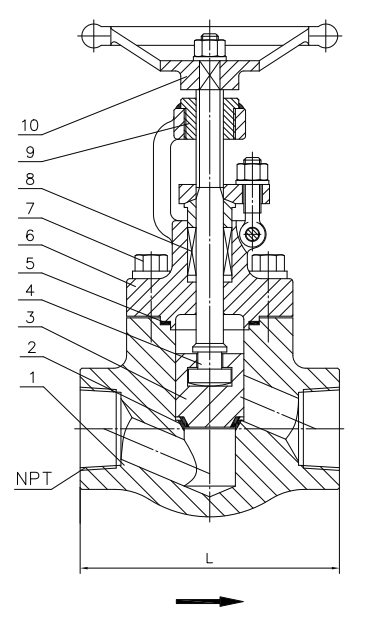

Class 800 Globe Valve Construction

Number Part Name Material
1 Body ASTM A105
2 Seat Deposited 13Cr
3 Disc ASTM A276-420
4 Stem ASTM A276-410
5 Gasket Flexible Graphite/304
6 Bonnet ASTM A105
7 Bonnet Bolt ASTM A193 Gr.B7
8 Packing Flexible Graphite
9 Stem Nut 1045
10 Handwheel ASTM A197

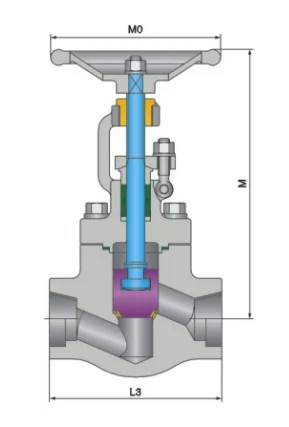

Class 800 Forged Steel Globe Valve Dimensions

Model Size (NPT) L M M0
GLF8-04 1/2" 79 164 100
GLF8-05 3/4" 92 164 100
GLF8-06 1" 111 203 125
GLF8-07 1 1/4" 120 224 160
GLF8-08 1 1/2" 152 260 160
GLF8-09 2" 172 300 180

All dimensions in mm unless shown otherwise.

.
