Features:
Size 1/2" to 2" BSP
Body Bronze
Seat 316 Stainless Steel
Pressure Range 2 to 20 Bar
Temperature -20°C to 180°C
Feature Closed Cap

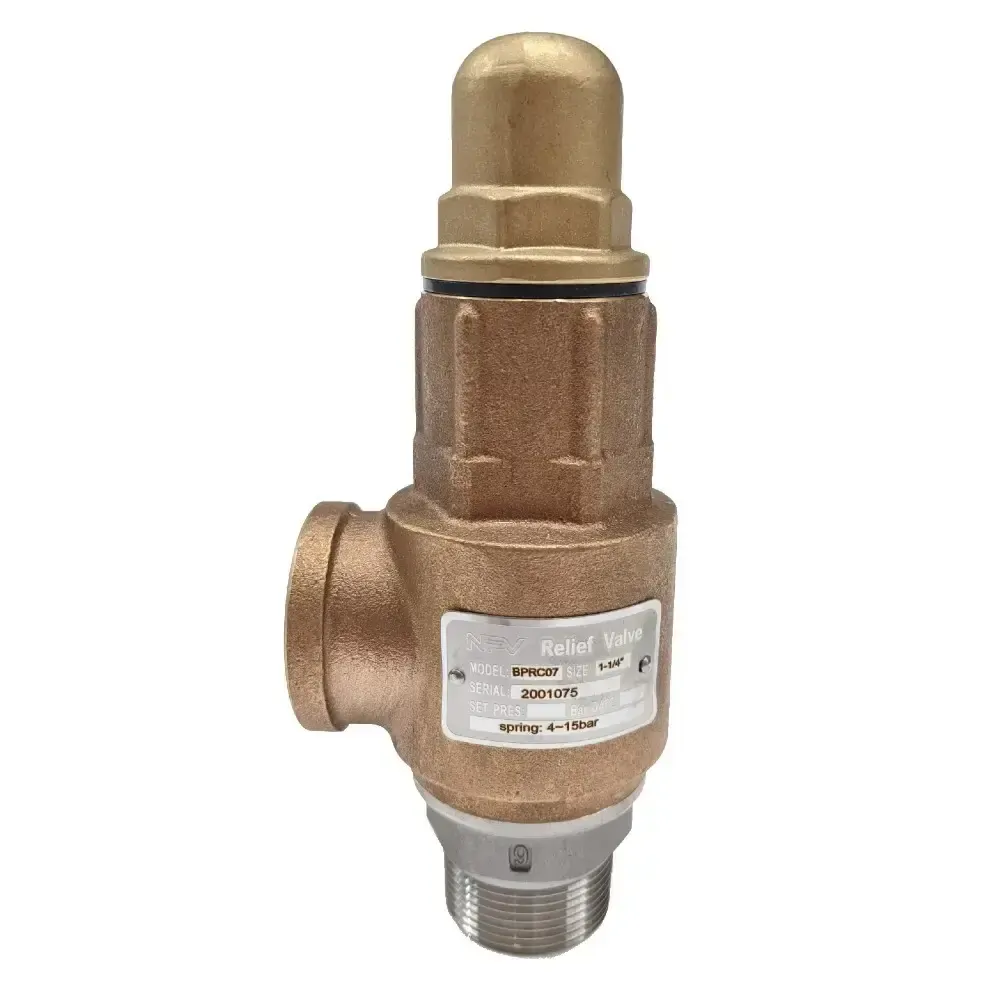

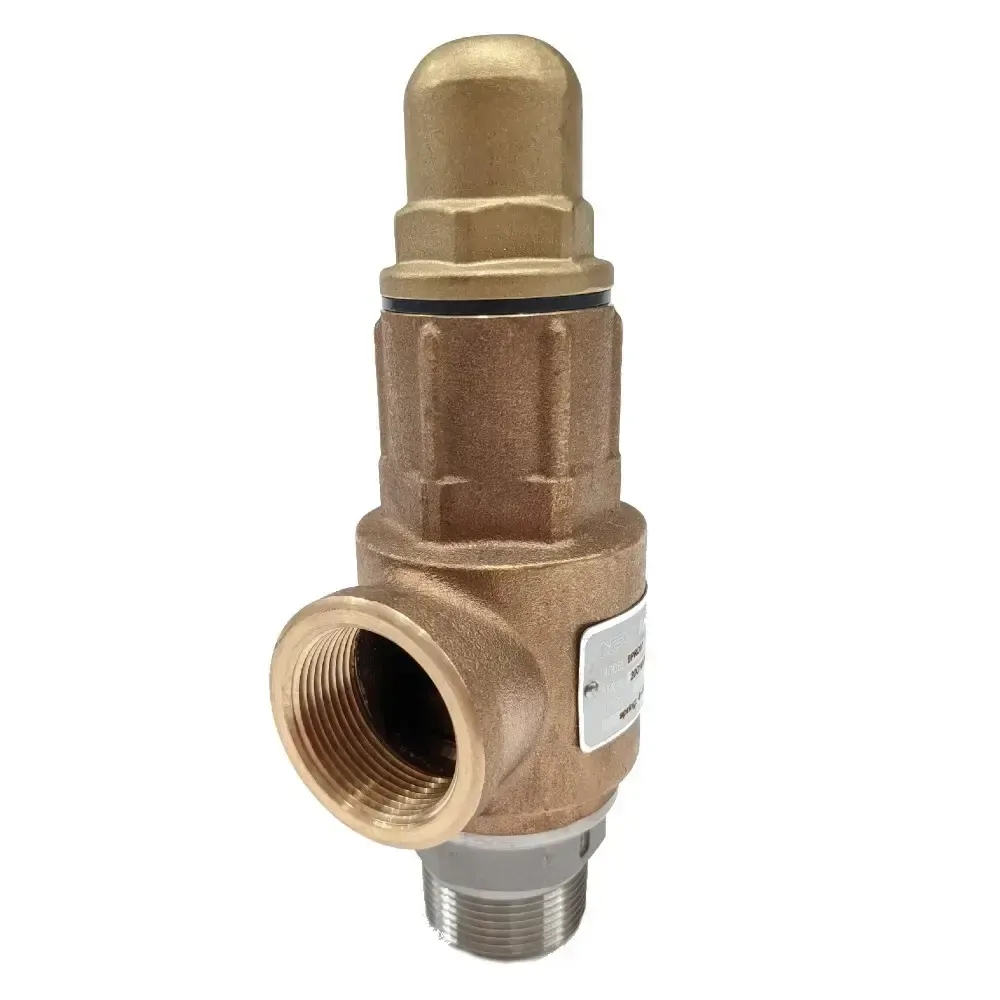

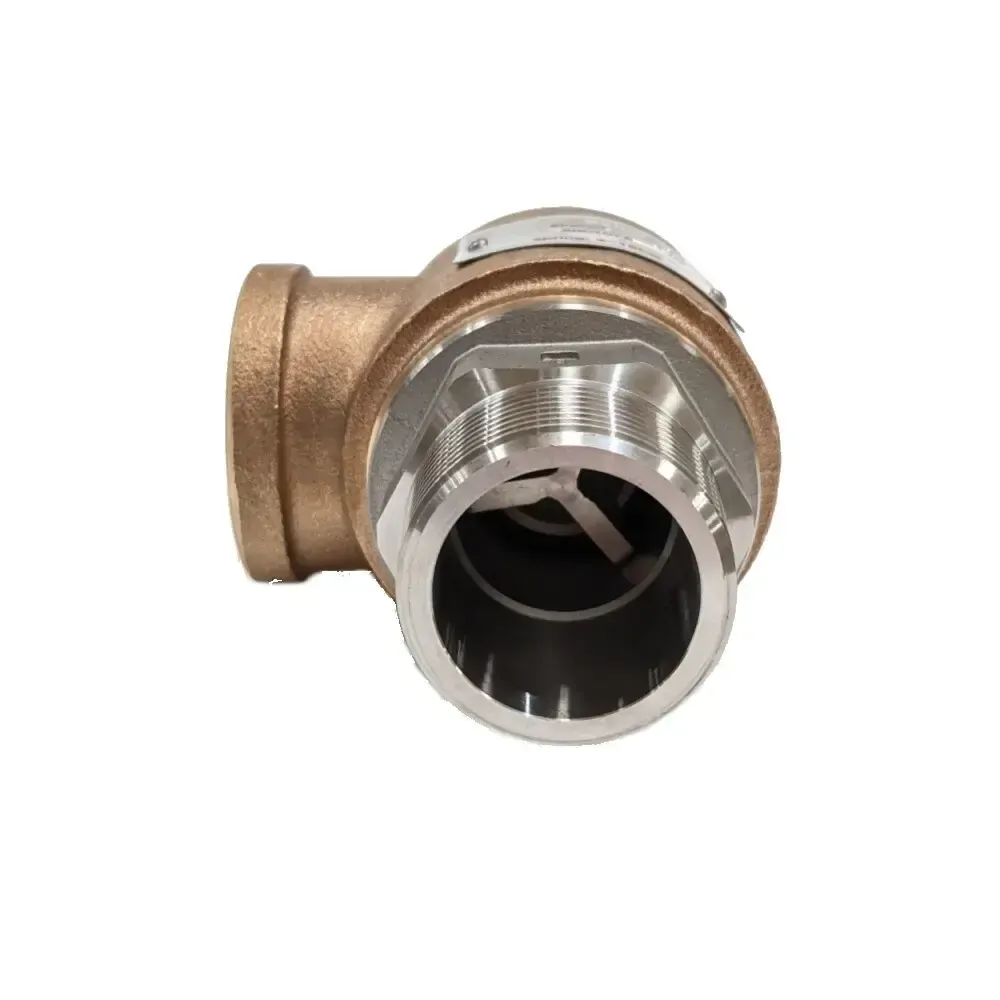

The BPRC Series of Pressure Relief Valves are a Bronze Closed Cap style valve with 316 Stainless Steel Entry and Internals. The Reinforced PTFE seat with 316 Stainless Steel internals gives this relief valve a wide range of applications. These valves are available as BSP threaded with equal inlet to outlet ports. The relieving pressure is easily adjustable by turning up or down the setting nut under the top cap. Closed Cap relief valves are generally preferred for liquid applications and where the media needs to be contained within the valve. Please note this relief valve is for general applications only and not intended for use as a Safety Relief Valve.
Model | Inlet Size (Male BSPT) | Outlet Size (Female BSPP) | Temperature Range |
---|---|---|---|
BPRC04-* | 1/2" | 1/2" | -20°C to 180°C |
BPRC05-* | 3/4" | 3/4" | -20°C to 180°C |
BPRC06-* | 1" | 1" | -20°C to 180°C |
BPRC07-* | 1-1/4" | 1-1/4" | -20°C to 180°C |
BPRC08-* | 1-1/2" | 1-1/2" | -20°C to 180°C |
BPRC09-* | 2" | 2" | -20°C to 180°C |
*Setting range selectable
Capacity charts for the above models can be found here for the following Applications: Steam Air Water
Model | Inlet Size (Male BSPT) | Outlet Size (Female BSPP) | D | L1 | L2 | H |
---|---|---|---|---|---|---|
BRPC04-* | 1/2" | 1/2" | 13 | 31 | 48 | 135 |
BRPC05-* | 3/4" | 3/4" | 19 | 35 | 55 | 144 |
BRPC06-* | 1" | 1" | 25 | 39.5 | 65 | 175 |
BRPC07-* | 1-1/4" | 1-1/4" | 31.5 | 50.5 | 75 | 197 |
BRPC08-* | 1-1/2" | 1-1/2" | 37 | 59 | 86 | 224 |
BRPC09-* | 2" | 2" | 47 | 67 | 100 | 257 |
All dimensions in mm unless specified otherwise
Item No. | Description | Material |
---|---|---|
1 | Cap | CW617N |
2 | Adjusting Screw | SS304 |
3 | Nut | SS304 |
4 | Gasket Ring | PTFE |
5 | Spindle | SS304 |
6 | Spring | SS304 |
7 | Valve Body | Bronze |
Item No. | Description | Material |
---|---|---|
8 | Spring Seat | SS304 |
9 | Disc | SS304 |
10 | Gasket | PTFE |
11 | Buffer | SS304 |
12 | Gasket Ring | PTFE |
13 | Valve Seat | SS304 |
Size 1/2" to 2" BSP
Body Bronze
Seat 316 Stainless Steel
Pressure Range 2 to 20 Bar
Temperature -20°C to 180°C
Feature Closed Cap
Size 1/2" to 2" BSP
Body Bronze
Seat 316 Stainless Steel
Pressure Range 2 to 20 Bar
Temperature -20°C to 180°C
Feature Closed Cap
The BPRC Series of Pressure Relief Valves are a Bronze Closed Cap style valve with 316 Stainless Steel Entry and Internals. The Reinforced PTFE seat with 316 Stainless Steel internals gives this relief valve a wide range of applications. These valves are available as BSP threaded with equal inlet to outlet ports. The relieving pressure is easily adjustable by turning up or down the setting nut under the top cap. Closed Cap relief valves are generally preferred for liquid applications and where the media needs to be contained within the valve. Please note this relief valve is for general applications only and not intended for use as a Safety Relief Valve.
Model | Inlet Size (Male BSPT) | Outlet Size (Female BSPP) | Temperature Range |
---|---|---|---|
BPRC04-* | 1/2" | 1/2" | -20°C to 180°C |
BPRC05-* | 3/4" | 3/4" | -20°C to 180°C |
BPRC06-* | 1" | 1" | -20°C to 180°C |
BPRC07-* | 1-1/4" | 1-1/4" | -20°C to 180°C |
BPRC08-* | 1-1/2" | 1-1/2" | -20°C to 180°C |
BPRC09-* | 2" | 2" | -20°C to 180°C |
*Setting range selectable
Capacity charts for the above models can be found here for the following Applications: Steam Air Water
Model | Inlet Size (Male BSPT) | Outlet Size (Female BSPP) | D | L1 | L2 | H |
---|---|---|---|---|---|---|
BRPC04-* | 1/2" | 1/2" | 13 | 31 | 48 | 135 |
BRPC05-* | 3/4" | 3/4" | 19 | 35 | 55 | 144 |
BRPC06-* | 1" | 1" | 25 | 39.5 | 65 | 175 |
BRPC07-* | 1-1/4" | 1-1/4" | 31.5 | 50.5 | 75 | 197 |
BRPC08-* | 1-1/2" | 1-1/2" | 37 | 59 | 86 | 224 |
BRPC09-* | 2" | 2" | 47 | 67 | 100 | 257 |
All dimensions in mm unless specified otherwise
Item No. | Description | Material |
---|---|---|
1 | Cap | CW617N |
2 | Adjusting Screw | SS304 |
3 | Nut | SS304 |
4 | Gasket Ring | PTFE |
5 | Spindle | SS304 |
6 | Spring | SS304 |
7 | Valve Body | Bronze |
Item No. | Description | Material |
---|---|---|
8 | Spring Seat | SS304 |
9 | Disc | SS304 |
10 | Gasket | PTFE |
11 | Buffer | SS304 |
12 | Gasket Ring | PTFE |
13 | Valve Seat | SS304 |
