Stainless Steel High Temperature Normally Closed Solenoid Valve

From $357.50

Inc GST
In Stock
Make an Enquiry

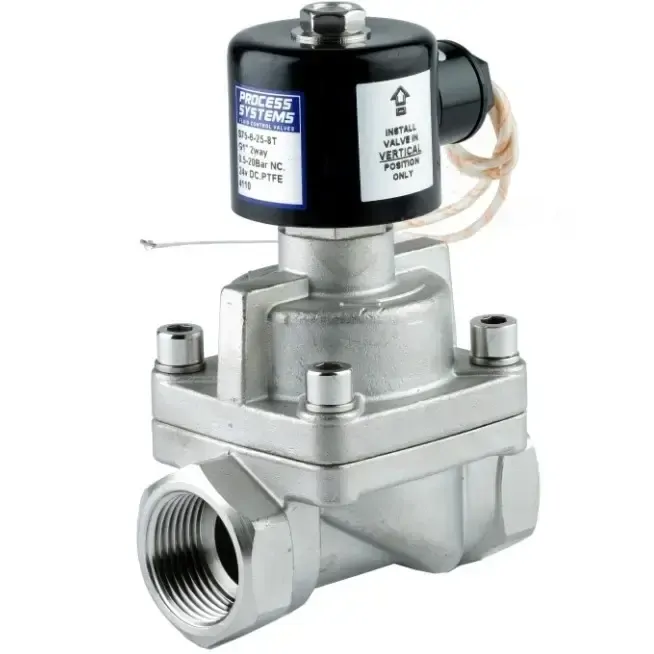

The S75 series of solenoids are a 304 Stainless Steel high flow / high pressure normally closed solenoid valve. These valves operated via a piston and have teflon seals, making this valve suitable for steam (up to 10 Bar) and higher temperature applications. This valve can be supplied with a Flying Lead coil or a DIN Plug coil and will handle fluids up to 50 centistokes viscosity. The PTFE seat in this valve is a hard PTFE which is likely at low pressures / temperatures to allow some seepage and not form a bubble tight seal. This valve is a differential style valve which requires a minimum inlet pressure to actuate.Typical applications include laundry equipment, hospitals, steam curing beds, boilers and general industry. Thread conform to ISO7.1 Sealing Threads.

Model Port Size (BSP) Orifice ømm CV Pressure (BAR) Media Temperature Coil Specifications
S75-4-15-*T 1/2 15 4.5 0.5 to 20 -10°C to 180°C SC-N16-*
DIN Plug
24 Watts
24 Volt Amps
100% ED
Class H Insulation
IP65
S75-5-20-*T 3/4 20 9.3 0.5 to 20 -10°C to 180°C
S75-6-25-*T 1 25 13.2 0.5 to 20 -10°C to 180°C
S75-7-35-*T 1 ¼ 35 26 0.5 to 20 -10°C to 180°C
S75-8-35-*T 1 ½ 35 26 0.5 to 20 -10°C to 180°C
S75-9-50-*T 2 50 48 0.5 to 20 -10°C to 180°C
S75-4-15-*TF 1/2 15 4.5 0.5 to 20 -10°C to 180°C SC-H2
Flying Leads
25 watts
33 Volt Amps
100% ED
Class H Insulation
IP54
S75-5-20-*TF 3/4 20 9.3 0.5 to 20 -10°C to 180°C
S75-6-25-*TF 1 25 13.2 0.5 to 20 -10°C to 180°C
S75-7-35-*TF 1 ¼ 35 26 0.5 to 20 -10°C to 180°C
S75-8-35-*TF 1 ½ 35 26 0.5 to 20 -10°C to 180°C
S75-9-50-*TF 2 50 48 0.5 to 20 -10°C to 180°C

Please note this valve will only handle steam to 10 BAR.

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC

Stainless Steel Normally Closed Differential High Temperature Solenoid Valve

Model A B C D E F G (BSP) H Weight Kg
S75-3-15-*T 75 52 129 52 45 41 3/8 14.5 1.65
S75-4-15-*T 75 52 129 52 45 41 1/2 14.5 1.65
S75-5-20-*T 85 60 141 52 45 41 3/4 18 2.13
S75-6-25-*T 100 70 148 52 45 41 1 23 2.35
S75-7-35-*T 120 90 168 52 45 41 1 1/4 33 3.85
S75-8-35-*T 120 90 168 52 45 41 1 1/2 33 3.30
S75-9-50-*T 150 122 203 52 45 41 2 40.5 7.35

All dimensions in mm unless otherwise shown.

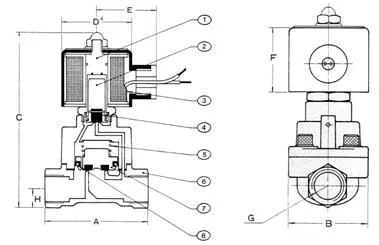

Stainless Steel Normally Closed Differential High Temperature Solenoid Valve

Item Article Material
1 Armature Stainless Steel 304
2 Plunger Stainless Steel 304
3 Coil Brass Wire
4 Plunger Seat Teflon
5 Spring Stainless Steel 304
6 Valve Body Stainless Steel 304
7 Piston Stainless Steel 304
8 Leak proof & Piston Ring Teflon



Size 1/2" to 2" BSP
Function Normally Closed (power to open)
Valve Operation Servo Assisted
Body 304 Stainless Steel
Seat PTFE
Pressure Range 0.5 to 20 BAR (10 BAR Steam)
Media Steam & High Pressure Air / Oil Media

Others Also Bought

S75

Stainless Steel High Temperature Normally Closed Solenoid Valve

Features:

Size 1/2" to 2" BSP
Function Normally Closed (power to open)
Valve Operation Servo Assisted
Body 304 Stainless Steel
Seat PTFE
Pressure Range 0.5 to 20 BAR (10 BAR Steam)
Media Steam & High Pressure Air / Oil Media

Description:

The S75 series of solenoids are a 304 Stainless Steel high flow / high pressure normally closed solenoid valve. These valves operated via a piston and have teflon seals, making this valve suitable for steam (up to 10 Bar) and higher temperature applications. This valve can be supplied with a Flying Lead coil or a DIN Plug coil and will handle fluids up to 50 centistokes viscosity. The PTFE seat in this valve is a hard PTFE which is likely at low pressures / temperatures to allow some seepage and not form a bubble tight seal. This valve is a differential style valve which requires a minimum inlet pressure to actuate.Typical applications include laundry equipment, hospitals, steam curing beds, boilers and general industry. Thread conform to ISO7.1 Sealing Threads.

Model Port Size (BSP) Orifice ømm CV Pressure (BAR) Media Temperature Coil Specifications
S75-4-15-*T 1/2 15 4.5 0.5 to 20 -10°C to 180°C SC-N16-*
DIN Plug
24 Watts
24 Volt Amps
100% ED
Class H Insulation
IP65
S75-5-20-*T 3/4 20 9.3 0.5 to 20 -10°C to 180°C
S75-6-25-*T 1 25 13.2 0.5 to 20 -10°C to 180°C
S75-7-35-*T 1 ¼ 35 26 0.5 to 20 -10°C to 180°C
S75-8-35-*T 1 ½ 35 26 0.5 to 20 -10°C to 180°C
S75-9-50-*T 2 50 48 0.5 to 20 -10°C to 180°C
S75-4-15-*TF 1/2 15 4.5 0.5 to 20 -10°C to 180°C SC-H2
Flying Leads
25 watts
33 Volt Amps
100% ED
Class H Insulation
IP54
S75-5-20-*TF 3/4 20 9.3 0.5 to 20 -10°C to 180°C
S75-6-25-*TF 1 25 13.2 0.5 to 20 -10°C to 180°C
S75-7-35-*TF 1 ¼ 35 26 0.5 to 20 -10°C to 180°C
S75-8-35-*TF 1 ½ 35 26 0.5 to 20 -10°C to 180°C
S75-9-50-*TF 2 50 48 0.5 to 20 -10°C to 180°C

Please note this valve will only handle steam to 10 BAR.

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC

.

Stainless Steel High Temperature Normally Closed Solenoid Valve

S75

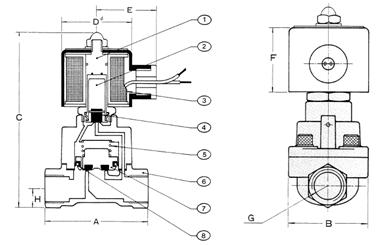

Dimensions:

Stainless Steel Normally Closed Differential High Temperature Solenoid Valve

Model A B C D E F G (BSP) H Weight Kg
S75-3-15-*T 75 52 129 52 45 41 3/8 14.5 1.65
S75-4-15-*T 75 52 129 52 45 41 1/2 14.5 1.65
S75-5-20-*T 85 60 141 52 45 41 3/4 18 2.13
S75-6-25-*T 100 70 148 52 45 41 1 23 2.35
S75-7-35-*T 120 90 168 52 45 41 1 1/4 33 3.85
S75-8-35-*T 120 90 168 52 45 41 1 1/2 33 3.30
S75-9-50-*T 150 122 203 52 45 41 2 40.5 7.35

All dimensions in mm unless otherwise shown.

.

Stainless Steel High Temperature Normally Closed Solenoid Valve

S75

Construction:

Stainless Steel Normally Closed Differential High Temperature Solenoid Valve

Item Article Material
1 Armature Stainless Steel 304
2 Plunger Stainless Steel 304
3 Coil Brass Wire
4 Plunger Seat Teflon
5 Spring Stainless Steel 304
6 Valve Body Stainless Steel 304
7 Piston Stainless Steel 304
8 Leak proof & Piston Ring Teflon
