Features:
Size 1/2" to 2" BSP
Body 316 Stainless Steel
Seat Stainless Steel
Pressure Range 0 to 13 BAR

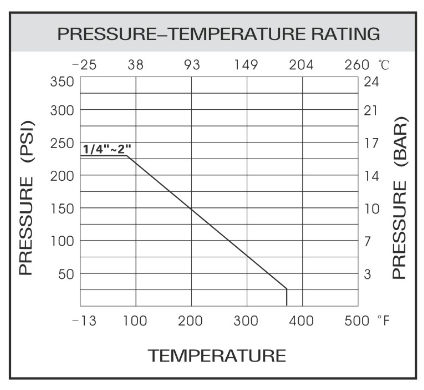

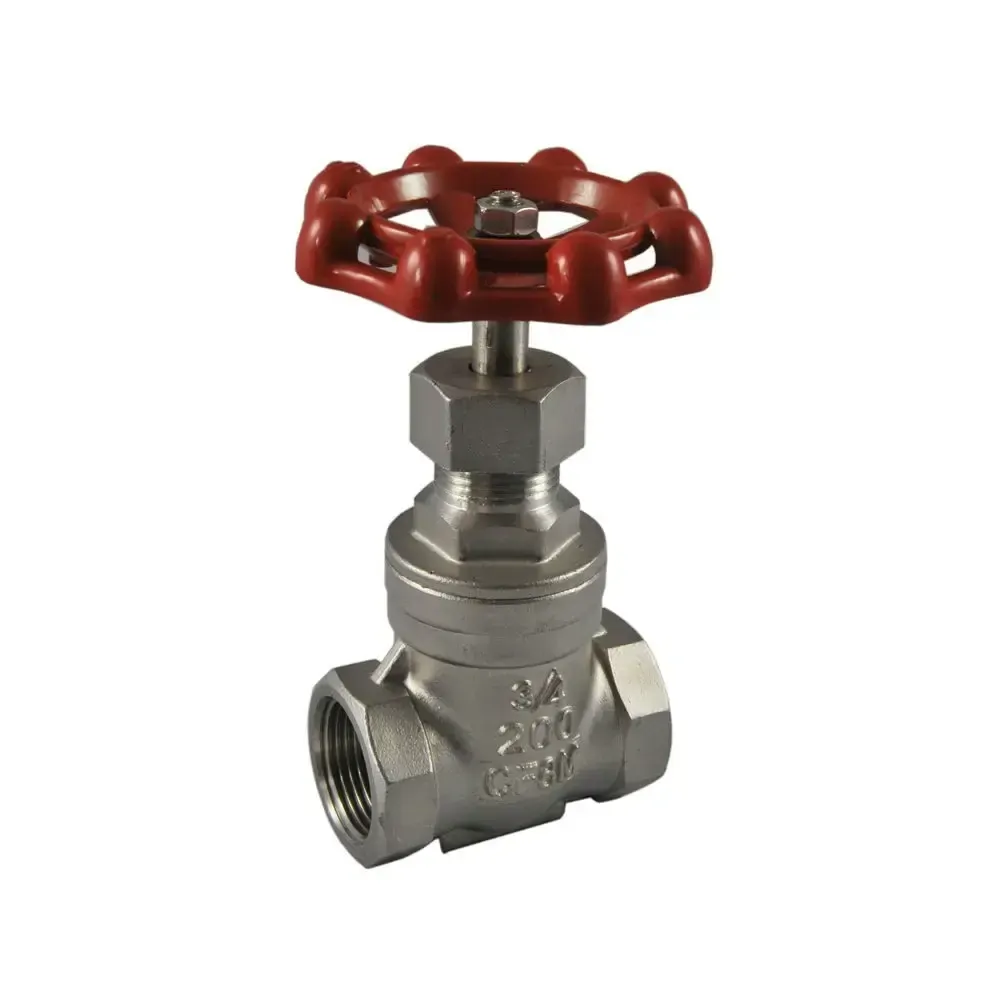

The GVS series of Gate Valves is a BSP threaded 316 Stainless Steel bodied valve with an Aluminium Handle. The all stainless steel construction of the valve gives it a suitability for a wide range of industry and media uses including water, gas, oil, steam (refer to pressure temperature curve below) and some acids. This valve is robust and simple to install, use and maintain. Designed to ANSI B16.34 and Tested to API598.
Model | BSP | DN (mm) | Pressure Range | Media Temp | Weight (kg) |
---|---|---|---|---|---|
GVS-04 | ½” | 15 | 0 to 13 BAR | 0 to 180°C | 0.45 |
GVS-05 | ¾” | 20 | 0 to 13 BAR | 0 to 180°C | 0.55 |
GVS-06 | 1” | 25 | 0 to 13 BAR | 0 to 180°C | 0.7 |
GVS-07 | 1 ¼” | 32 | 0 to 13 BAR | 0 to 180°C | 1 |
GVS-08 | 1 ½” | 40 | 0 to 13 BAR | 0 to 180°C | 1.3 |
GVS-09 | 2” | 50 | 0 to 13 BAR | 0 to 180°C | 1.8 |

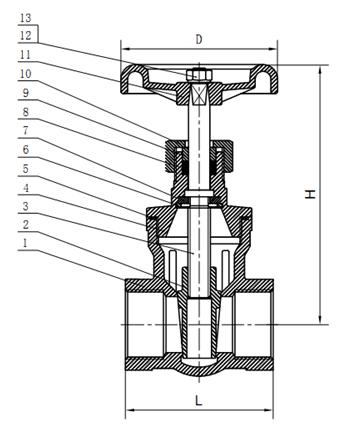

Model | Size | DN | L | H | D |
---|---|---|---|---|---|
GVS-04 | ½” | 15 | 55 | 95 | 62 |
GVS-05 | ¾” | 20 | 61 | 100 | 72 |
GVS-06 | 1” | 25 | 68 | 105 | 72 |
GVS-07 | 1 ¼” | 32 | 72 | 125 | 78 |
GVS-08 | 1 ½” | 40 | 79 | 145 | 95 |
GVS-09 | 2” | 50 | 87 | 165 | 95 |
All dimensions in mm unless shown otherwise.
Number | Name | Material |
---|---|---|
1 | Body | ASTM A351 CF8M |
2 | Disc | ASTM A351 CF8M |
3 | Stem | ASTM A276 316 |
4 | Bonnet | ASTM A351 CF8M |
5 | Body Gasket | PTFE |
6 | Snap Ring | ASTM A276 316 |
7 | Washer | ASTM A276 316 |
8 | Packing | PTFE |
9 | Packing Sleeve | ASTM A276 304 |
10 | Packing Gland | ASTM A351 CF8M |
11 | Hand Wheel | Aluminium Alloy |
12 | Nut | ASTM A194-B8M |
13 | Plain Washer | ASTM A276 304 |
