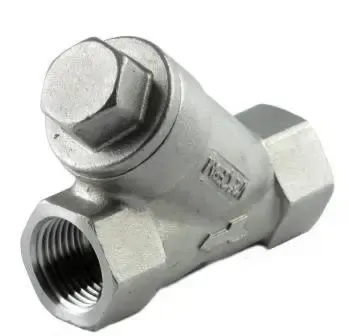

316 Stainless Steel Y strainer for media up to 54 BAR. Features a 1mm stainless steel mesh screen on a 60 degree angle to effectively remove suspended particles. Great for screening a line before a control valve or too stop contaminates spreading further down your line and potentially damaging property.

Model	Size	DN (mm)	Media Pressure	Media Temperature
YSS-04	½”	15	0 to 54 BAR	-20°C to 180°C
YSS-05	¾”	20	0 to 54 BAR	-20°C to 180°C
YSS-06	1”	25	0 to 54 BAR	-20°C to 180°C
YSS-07	1 ¼”	32	0 to 54 BAR	-20°C to 180°C
YSS-08	1 ½”	40	0 to 54 BAR	-20°C to 180°C
YSS-09	2”	50	0 to 54 BAR	-20°C to 180°C

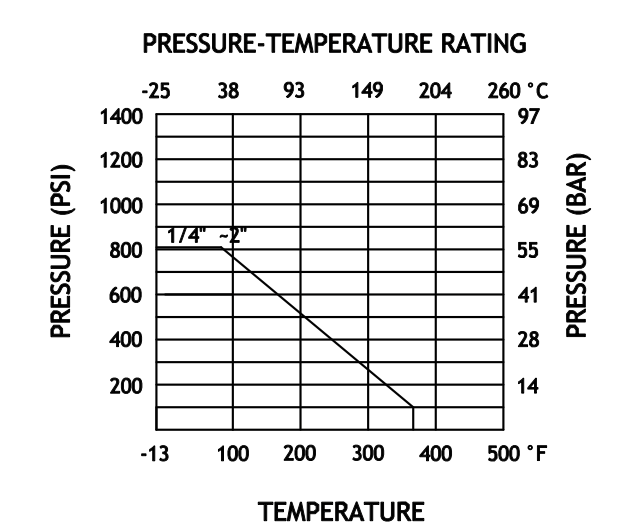

Threaded Stainless Steel Y Strainer Pressure vs Temperature

Size 1/2" to 2" BSP
Body 316 Stainless Steel
Mesh Stainless Steel
Pressure Range 0 to 54 BAR
Factory Accredited CE, ISO 9001

Threaded Stainless Steel Y Strainer

Number	Name	Material
1	Body	CF8M
2	Screen	SS316
3	Body Gasket	PTFE
4	Cap	CF8M

Threaded Stainless Steel Y Strainer

Model	Size	L	H	d	d1	W	Weight (kg)
YSS-04	½”	64	45	15	1	2	0.21
YSS-05	¾”	80	52	20	1	2	0.38
YSS-06	1”	90	68	25	1	2	0.67
YSS-07	1 ¼”	106	70	32	1	2	0.7
YSS-08	1 ½”	119	80	38	1	2	1.1
YSS-09	2”	140	98	50	1	2	1.8

All dimensions in mm unless shown otherwise.

DATA SHEET

YSS

Stainless Steel Y Strainer

Features:

Size 1/2" to 2" BSP
Body 316 Stainless Steel
Mesh Stainless Steel
Pressure Range 0 to 54 BAR
Factory Accredited CE, ISO 9001

Description:

Model	Size	DN (mm)	Media Pressure	Media Temperature
YSS-04	½”	15	0 to 54 BAR	-20°C to 180°C
YSS-05	¾”	20	0 to 54 BAR	-20°C to 180°C
YSS-06	1”	25	0 to 54 BAR	-20°C to 180°C
YSS-07	1 ¼”	32	0 to 54 BAR	-20°C to 180°C
YSS-08	1 ½”	40	0 to 54 BAR	-20°C to 180°C
YSS-09	2”	50	0 to 54 BAR	-20°C to 180°C

Threaded Stainless Steel Y Strainer Pressure vs Temperature

Dimensions:

Threaded Stainless Steel Y Strainer

Model	Size	L	H	d	d1	W	Weight (kg)
YSS-04	½”	64	45	15	1	2	0.21
YSS-05	¾”	80	52	20	1	2	0.38
YSS-06	1”	90	68	25	1	2	0.67
YSS-07	1 ¼”	106	70	32	1	2	0.7
YSS-08	1 ½”	119	80	38	1	2	1.1
YSS-09	2”	140	98	50	1	2	1.8

All dimensions in mm unless shown otherwise.

Construction:

Threaded Stainless Steel Y Strainer

Number	Name	Material
1	Body	CF8M
2	Screen	SS316
3	Body Gasket	PTFE
4	Cap	CF8M

WARNING

These products are intended for use in industrial applications only. Do not use these products where pressures and temperatures can exceed those listed under ‘Technical Data’ and in our individual ‘Series’ data sheets. Before using these products with fluids other than these specified, for non-industrial applications, life-support systems, or other applications not within published specifications, consult Hawleys Engineering Solutions Pty Ltd. Through misuse, age, or malfunction, components used in industrial valve applications can fail in various modes. The system designer is warned to consider the failure modes of all component parts used in industrial valve applications and to provide adequate safeguards to prevent personal injury or damage to equipment in the event of such failure. System designers must provide a warning to the user in the system instructional manual if protection against a failure mode cannot be adequately provided. System designers and end users are cautioned to review specific warnings or specifications found in instruction sheets or labels packed or attached and shipped with the products. Our policy is one of continuous research and development. We therefore reserve the right to amend without notice the specifications given in this document or our individual ‘Series’ data sheets.

WARRANTY INFORMATION

All valve series and other products manufactured or distributed by Hawleys Engineering Solutions are warranted by Hawleys Engineering Solutions to be free of defects in material and workmanship for a period of 1 year from the date of purchase or as the manufacturer warrants. Hawleys Engineering Solutions obligation under this warranty is limited to repair or replacement of the defec1ive product or refund of the purchase price paid solely at the discretion of Hawleys Engineering Solutions and provided such defective product is returned to Hawleys Engineering Solutions freight prepaid and upon examination by Hawleys Engineering Solutions such product is found defective. This warranty shall be void in the event that the product has been subject to misuse, misapplication, improper maintenance, modification or tampering. This warranty is expressed in lieu of all other warranties, expressed or implied from Hawleys Engineering Solutions representatives or employees. Hawleys Engineering Solutions reserves the right to change Valve and Brochure specifications without notice.

Model	Size	DN (mm)	Media Pressure	Media Temperature
YSS-04	½”	15	0 to 54 BAR	-20°C to 180°C
YSS-05	¾”	20	0 to 54 BAR	-20°C to 180°C
YSS-06	1”	25	0 to 54 BAR	-20°C to 180°C
YSS-07	1 ¼”	32	0 to 54 BAR	-20°C to 180°C
YSS-08	1 ½”	40	0 to 54 BAR	-20°C to 180°C
YSS-09	2”	50	0 to 54 BAR	-20°C to 180°C

Threaded Stainless Steel Y Strainer Pressure vs Temperature

Size 1/2" to 2" BSP
Body 316 Stainless Steel
Mesh Stainless Steel
Pressure Range 0 to 54 BAR
Factory Accredited CE, ISO 9001

Model	Size	L	H	d	d1	W	Weight (kg)
YSS-04	½”	64	45	15	1	2	0.21
YSS-05	¾”	80	52	20	1	2	0.38
YSS-06	1”	90	68	25	1	2	0.67
YSS-07	1 ¼”	106	70	32	1	2	0.7
YSS-08	1 ½”	119	80	38	1	2	1.1
YSS-09	2”	140	98	50	1	2	1.8

All dimensions in mm unless shown otherwise.

Number	Name	Material
1	Body	CF8M
2	Screen	SS316
3	Body Gasket	PTFE
4	Cap	CF8M
