316 Stainless Steel ANSI 150 Flanged Y Strainer with stainless steel screen and fasteners.  -20°C to 260°C temperature range. 316 Stainless Steel and Graphite gasket allows for a wide range of media and temperatures. Typical applications include steam, water, brine and chemical.


Model DN (mm) Media Pressure Media Temperature Screen (MM)
YSSF-050 50 0 to 20 BAR -20°C to 260°C 0.6 x 1.2
YSSF-065 65 0 to 20 BAR -20°C to 260°C 0.6 x 1.2
YSSF-080 80 0 to 20 BAR -20°C to 260°C 0.6 x 1.2
YSSF-100 100 0 to 20 BAR -20°C to 260°C 0.6 x 1.2
YSSF-125 125 0 to 20 BAR -20°C to 260°C 1 x 1.5
YSSF-150 150 0 to 20 BAR -20°C to 260°C 1 x 1.5
YSSF-200 200 0 to 20 BAR -20°C to 260°C 1 x 1.5
YSSF-250 250 0 to 20 BAR -20°C to 260°C 2 x 2.5
YSSF-300 300 0 to 20 BAR -20°C to 260°C 2 x 2.5
YSSF-350 350 0 to 20 BAR -20°C to 260°C 2 x 2.5
YSSF-400 400 0 to 20 BAR -20°C to 260°C 2 x 2.5

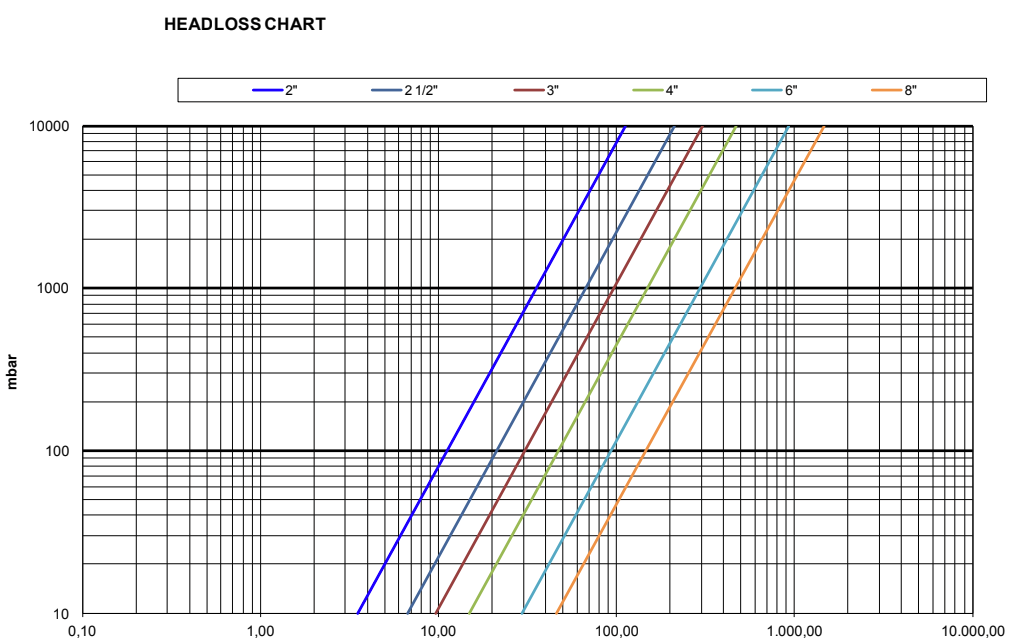

Stainless Steel Flanged Y Strainer Head Loss

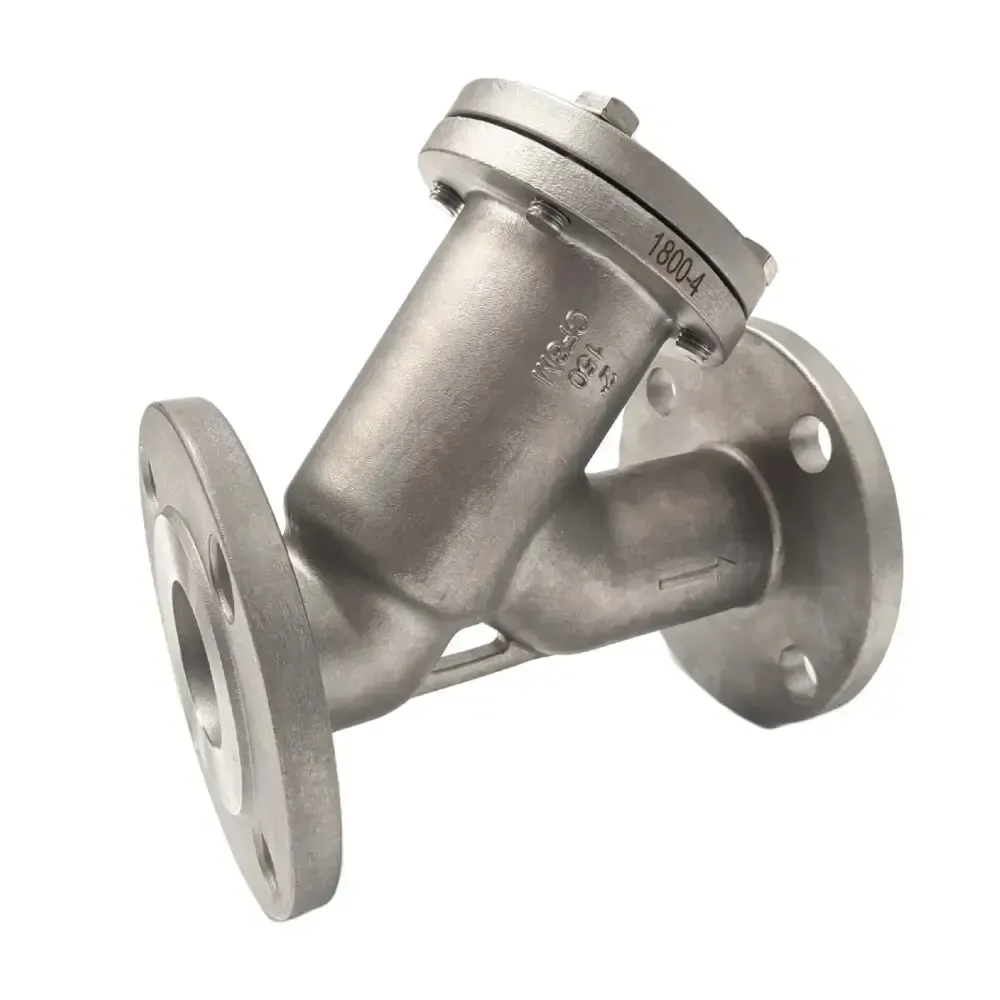

Stainless Steel Flanged Y Strainer

DN L D D1 D2 n-d b Plug
50 220 152 120.5 92 4-19 16 ½”
65 250 178 139.5 105 4-19 18 ½”
80 275 190 152.5 127 4-19 19 ½”
100 340 229 190.5 157 8-19 23.9 ½”
125 350 254 216.0 186 8-22 23.9 ½”
150 380 279 241.5 216 8-22 25.4 ½”
200 485 343 298.5 270 8-22 28.6 ½”
250 540 406 362.0 324 12-25 30.2 ½”
300 610 483 432.0 381 12-25 31.8 ½”
350 690 533 476.5 413 12-29 35.0 ½”
400 780 597 539.5 470 16-29 36.6 ½”

All dimensions in mm unless shown otherwise.

Stainless Steel Flanged Y Strainer

Number Item Material
1 Bolt ASTM A194 B8M
2 Bonnet ASTM A351 CF8M
3 Plug ASTM A276 316
4 Screen ASTM A276 316
5 Body Gasket 316 SS + Graphite
6 Body ASTM A351 CF8M

Size 50mm to 300mm
Body 316 Stainless Steel
Mesh 316 Stainless Steel
Pressure Range 0 to 20 BAR
Flanged ANSI 150
