SKU: BFL

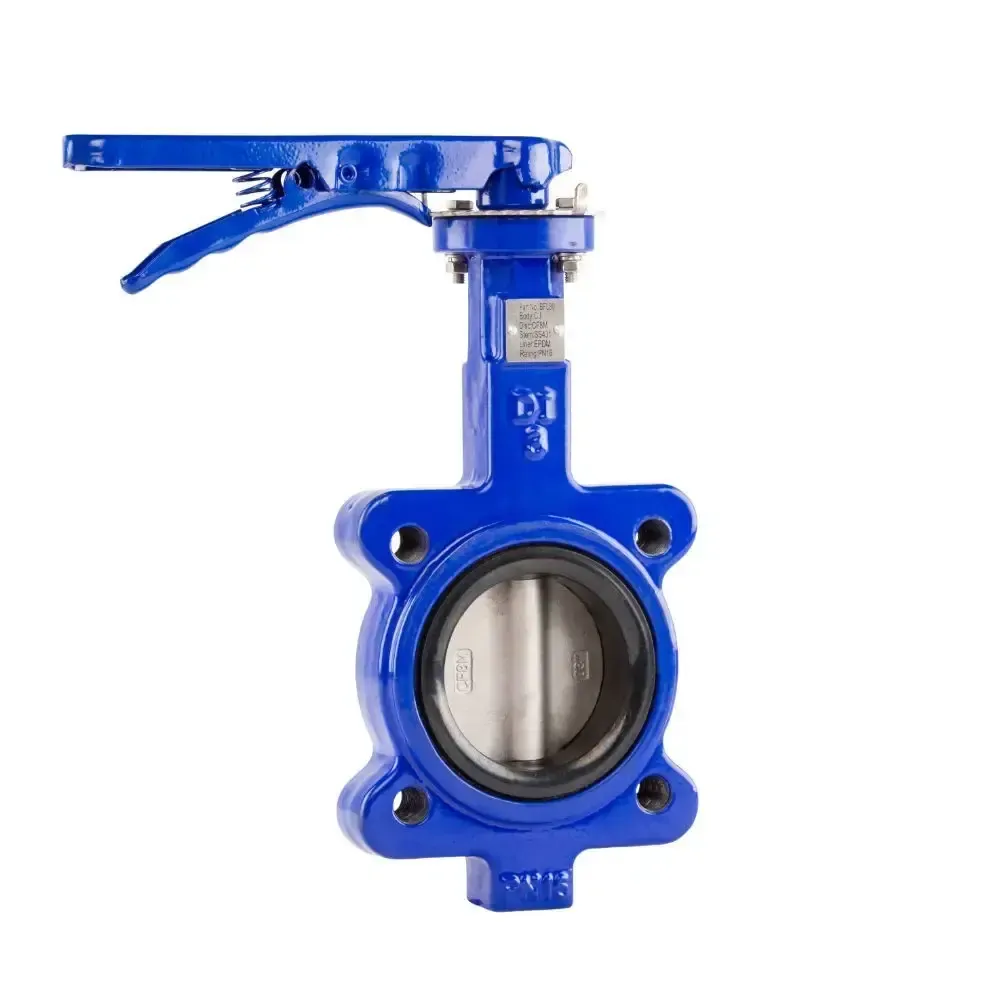

Lugged Ductile Iron Butterfly Valve

From $88.00

Inc GST
In Stock
Make an Enquiry

The BFL Series of Butterfly Valves is a fusion bonded epoxy coated Ductile Iron bodied valve with a 316SS Disc and EPDM seat (FKM and NBR available as option - Contact Sales). The lugged design is available to suit multiple flanges (AS2129 Table E, AS4087 PN16 / Table D, ANSI 150) and can be operated by the standard lever or actuator / gearbox. The seats are a unique bonded cartridge design that allows vacuum to be run through the valve, allows renewal of the seat and gives a longer lifespan to the seat. This valve is suitable for a wide range of general and watermark water applications such as water trucks, cement hoppers, irrigation and other industrial applications.

  • Ductile Iron Body (FBE Coated) with 316SS Disc & EPDM Seat (optional seats available)
  • Lockable Lever & Notch Plate
  • ISO5211 Pad allows for actuators or gearboxes to be fitted. Extension Shafts can also be fitted for use in pits etc (Contact Sales)
  • Lugged variants in AS2129 Table E, AS4087 PN16 / Table D or ANSI 150
  • Designed and Manufactured in accordance with API609, Inspected and Tested in accordance with API598
  • Watermark Approved (License Number WMK26314) (Contact Sales if required for application)
  • Valves above 600mm can be produced, Contact Sales for details
Model Size (mm) Pressure Range Temperature Square drive size ISO Mtg Torque (Nm)
BFL50-L-E 50 Vacuum to 16 Bar -20°C to 90°C (40°C Potable) 9mm F05 12.5
BFL65-L-E 65 Vacuum to 16 Bar -20°C to 90°C (40°C Potable) 9mm F05 16.5
BFL80-L-E 80 Vacuum to 16 Bar -20°C to 90°C (40°C Potable) 9mm F05 24
BFL100-L-E 100 Vacuum to 16 Bar -20°C to 90°C (40°C Potable) 11mm F07 41
BFL125-L-E 125 Vacuum to 16 Bar -20°C to 90°C (40°C Potable) 14mm F07 56
BFL150-L-E 150 Vacuum to 16 Bar -20°C to 90°C (40°C Potable) 14mm F07 95
BFL200-L-E 200 Vacuum to 16 Bar -20°C to 90°C (40°C Potable) 17mm F10 185
BFL250-L-E 250 Vacuum to 16 Bar -20°C to 90°C (40°C Potable) 22mm F10 290
BFL300-L-E 300 Vacuum to 16 Bar -20°C to 90°C (40°C Potable) 22mm F10 340
BFL350-G-E 350 Vacuum to 10 Bar -20°C to 90°C (40°C Potable) 22mm F10 824
BFL400-G-E 400 Vacuum to 10 Bar -20°C to 90°C (40°C Potable) 22mm F14 1073
BFL450-G-E 450 Vacuum to 10 Bar -20°C to 90°C (40°C Potable) 27mm F14 1602
BFL500-G-E 500 Vacuum to 10 Bar -20°C to 90°C (40°C Potable) 27mm F14 1953
BFL600-G-E 600 Vacuum to 10 Bar -20°C to 90°C (40°C Potable) 36mm F16 3561

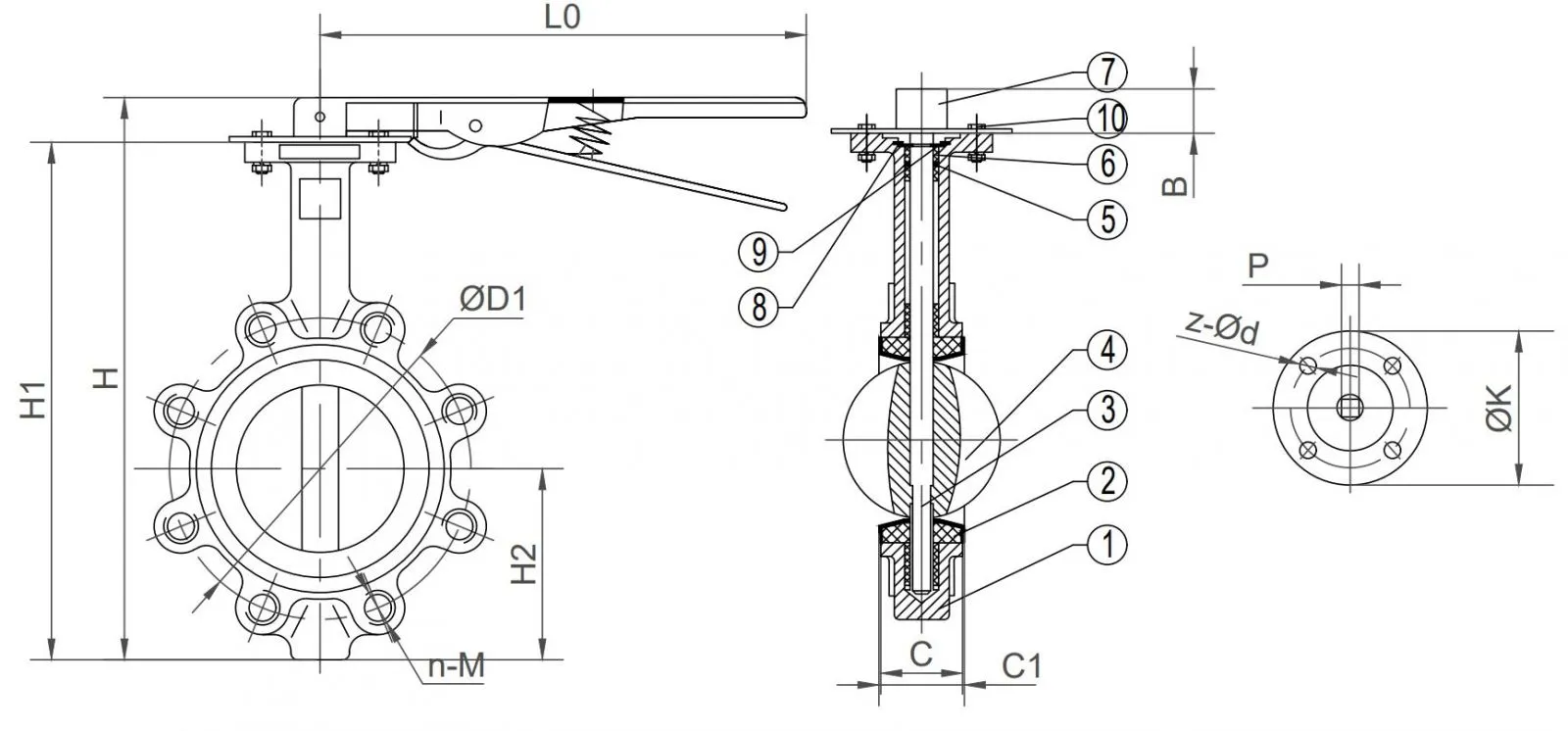

Sizes 50mm to 300mm

Model Size (DN) H H1 H2 C C1 B L0 P AS4087 PN16 AS2129 Table E ANSI 150 ØK ISO pad
D1 n-M D1 n-M D1 n-M
BFL50-L-E 50 255 225 70 42 46.1 30 262 9 114 4-M16 114 4-M16 120.5 4-5/8" 77 F05
BFL65-L-E 65 275 245 77 44.7 49.1 30 262 9 127 4-M16 127 4-M16 139.5 4-5/8" 77 F05
BFL80-L-E 80 291 261 87 45.2 18.4 30 262 9 146 4-M16 146 4-M16 152.5 4-5/8" 77 F05
BFL100-L-E 100 335 305 112 52.1 55.3 30 262 11 178 4-M16 178 8-M16 190.5 8-5/8" 90 F07
BFL125-L-E 125 362 332 128 54.4 58.8 30 262 14 210 8-M16 210 8-M16 216 8-3/4" 90 F07
BFL150-L-E 150 391 361 143 55.8 59.1 30 262 14 235 8-M16 235 8-M20 241.5 8-3/4" 90 F07
BFL200-L-E 200 463 423 173 60.6 64.1 40 348 17 292 8-M16 292 8-M20 298.5 8-3/4" 125 F10
BFL250-L-E 250 539 499 210 65.6 71.8 40 510 22 356 8-M20 356 12-M20 362 12-7/8" 125 F10
BFL300-L-E 300 618 578 244 76.9 81 40 510 22 406 12-M20 406 12-M24 432 12-7/8" 125 F10

C dimension relates to body thickness & C1 relates to seat thickness.

All dimensions in mm unless shown otherwise.

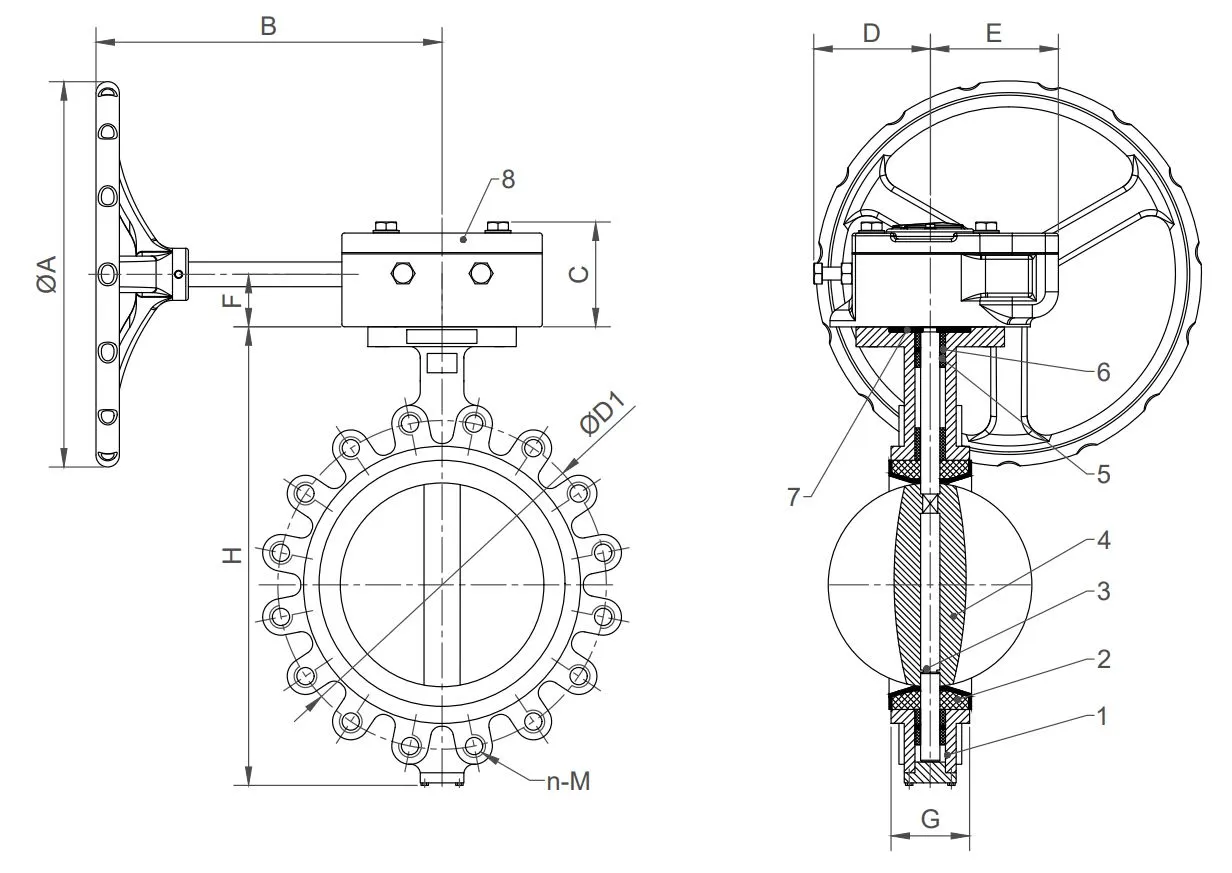

Sizes 350mm to 600mm

Model Size (DN) Gearbox ØA B C D E F G H L AS2129 Table E
D1 n-M
BFL350-G-E 350 GB3 300 266 80.3 89.5 98.5 41 76.5 635 45 470 12-M24
BFL400-G-E 400 GB4 350 330.5 110.7 107.5 120 49 86.5 709 51.2 521 12-M24
BFL450-G-E 450 GB4 350 330.5 110.7 107.5 120 49 105.6 750 51.2 584 16-M24
BFL500-G-E 500 GB4 350 330.5 110.7 107.5 120 49 131.8 841 64.2 641 16-M24
BFL600-G-E 600 GB5 400 327.5 119.1 112.7 160 55 152 1021 70.2 756 16-M30

All dimensions in mm unless shown otherwise

Sizes 50mm to 300mm

Item Part Material Grade Build & Test Standard
1 Body Ductile Iron (FBE Coated) AS1831500-7 ASTM A536
2 Seat EPDM 70 IRHD -
3 Shaft Stainless Steel SS431 ASTM A370
4 Disc Stainless Steel CF8M ASTM A370
5 Bushing Polymers PTFE -
6 O Ring NBR 70 IRHD -
7 Handle Ductile Iron (FBE Coated) AS1831500-7 ASTM A536
8 Circlip Stainless Steel SS316 ASTM A370
9 Card Stainless Steel SS316 ASTM A370
10 Bolts & Nuts Stainless Steel A4-70 -

Sizes 350mm to 600mm

Item Part Material Grade Build & Test Standard
1 Body Ductile Iron (FBE Coated) AS1831500-7 ASTM A536
2 Seat EPDM 70 IRHD -
3 Shaft Stainless Steel SS431 ASTM A370
4 Disc Stainless Steel CF8M ASTM A370
5 Bushing Polymers PTFE -
6 O Ring NBR 70 IRHD -
7 Card Stainless Steel SS316 ASTM A370
8 Gearbox Cast Iron

Size 50mm to 600mm
Body FBE Coated Ductile Iron
Seat EPDM
Disc 316 Stainless Steel
Pressure Up to 16 BAR (depending upon size)
Actuation Lever or Gearbox

BFL

Lugged Ductile Iron Butterfly Valve

Features:

Size 50mm to 600mm
Body FBE Coated Ductile Iron
Seat EPDM
Disc 316 Stainless Steel
Pressure Up to 16 BAR (depending upon size)
Actuation Lever or Gearbox

Description:

The BFL Series of Butterfly Valves is a fusion bonded epoxy coated Ductile Iron bodied valve with a 316SS Disc and EPDM seat (FKM and NBR available as option - Contact Sales). The lugged design is available to suit multiple flanges (AS2129 Table E, AS4087 PN16 / Table D, ANSI 150) and can be operated by the standard lever or actuator / gearbox. The seats are a unique bonded cartridge design that allows vacuum to be run through the valve, allows renewal of the seat and gives a longer lifespan to the seat. This valve is suitable for a wide range of general and watermark water applications such as water trucks, cement hoppers, irrigation and other industrial applications.

  • Ductile Iron Body (FBE Coated) with 316SS Disc & EPDM Seat (optional seats available)
  • Lockable Lever & Notch Plate
  • ISO5211 Pad allows for actuators or gearboxes to be fitted. Extension Shafts can also be fitted for use in pits etc (Contact Sales)
  • Lugged variants in AS2129 Table E, AS4087 PN16 / Table D or ANSI 150
  • Designed and Manufactured in accordance with API609, Inspected and Tested in accordance with API598
  • Watermark Approved (License Number WMK26314) (Contact Sales if required for application)
  • Valves above 600mm can be produced, Contact Sales for details
Model Size (mm) Pressure Range Temperature Square drive size ISO Mtg Torque (Nm)
BFL50-L-E 50 Vacuum to 16 Bar -20°C to 90°C (40°C Potable) 9mm F05 12.5
BFL65-L-E 65 Vacuum to 16 Bar -20°C to 90°C (40°C Potable) 9mm F05 16.5
BFL80-L-E 80 Vacuum to 16 Bar -20°C to 90°C (40°C Potable) 9mm F05 24
BFL100-L-E 100 Vacuum to 16 Bar -20°C to 90°C (40°C Potable) 11mm F07 41
BFL125-L-E 125 Vacuum to 16 Bar -20°C to 90°C (40°C Potable) 14mm F07 56
BFL150-L-E 150 Vacuum to 16 Bar -20°C to 90°C (40°C Potable) 14mm F07 95
BFL200-L-E 200 Vacuum to 16 Bar -20°C to 90°C (40°C Potable) 17mm F10 185
BFL250-L-E 250 Vacuum to 16 Bar -20°C to 90°C (40°C Potable) 22mm F10 290
BFL300-L-E 300 Vacuum to 16 Bar -20°C to 90°C (40°C Potable) 22mm F10 340
BFL350-G-E 350 Vacuum to 10 Bar -20°C to 90°C (40°C Potable) 22mm F10 824
BFL400-G-E 400 Vacuum to 10 Bar -20°C to 90°C (40°C Potable) 22mm F14 1073
BFL450-G-E 450 Vacuum to 10 Bar -20°C to 90°C (40°C Potable) 27mm F14 1602
BFL500-G-E 500 Vacuum to 10 Bar -20°C to 90°C (40°C Potable) 27mm F14 1953
BFL600-G-E 600 Vacuum to 10 Bar -20°C to 90°C (40°C Potable) 36mm F16 3561
.

Lugged Ductile Iron Butterfly Valve

BFL

Dimensions:

Sizes 50mm to 300mm

Model Size (DN) H H1 H2 C C1 B L0 P AS4087 PN16 AS2129 Table E ANSI 150 ØK ISO pad
D1 n-M D1 n-M D1 n-M
BFL50-L-E 50 255 225 70 42 46.1 30 262 9 114 4-M16 114 4-M16 120.5 4-5/8" 77 F05
BFL65-L-E 65 275 245 77 44.7 49.1 30 262 9 127 4-M16 127 4-M16 139.5 4-5/8" 77 F05
BFL80-L-E 80 291 261 87 45.2 18.4 30 262 9 146 4-M16 146 4-M16 152.5 4-5/8" 77 F05
BFL100-L-E 100 335 305 112 52.1 55.3 30 262 11 178 4-M16 178 8-M16 190.5 8-5/8" 90 F07
BFL125-L-E 125 362 332 128 54.4 58.8 30 262 14 210 8-M16 210 8-M16 216 8-3/4" 90 F07
BFL150-L-E 150 391 361 143 55.8 59.1 30 262 14 235 8-M16 235 8-M20 241.5 8-3/4" 90 F07
BFL200-L-E 200 463 423 173 60.6 64.1 40 348 17 292 8-M16 292 8-M20 298.5 8-3/4" 125 F10
BFL250-L-E 250 539 499 210 65.6 71.8 40 510 22 356 8-M20 356 12-M20 362 12-7/8" 125 F10
BFL300-L-E 300 618 578 244 76.9 81 40 510 22 406 12-M20 406 12-M24 432 12-7/8" 125 F10

C dimension relates to body thickness & C1 relates to seat thickness.

All dimensions in mm unless shown otherwise.

Sizes 350mm to 600mm

Model Size (DN) Gearbox ØA B C D E F G H L AS2129 Table E
D1 n-M
BFL350-G-E 350 GB3 300 266 80.3 89.5 98.5 41 76.5 635 45 470 12-M24
BFL400-G-E 400 GB4 350 330.5 110.7 107.5 120 49 86.5 709 51.2 521 12-M24
BFL450-G-E 450 GB4 350 330.5 110.7 107.5 120 49 105.6 750 51.2 584 16-M24
BFL500-G-E 500 GB4 350 330.5 110.7 107.5 120 49 131.8 841 64.2 641 16-M24
BFL600-G-E 600 GB5 400 327.5 119.1 112.7 160 55 152 1021 70.2 756 16-M30

All dimensions in mm unless shown otherwise

.

Lugged Ductile Iron Butterfly Valve

BFL

Construction:

Sizes 50mm to 300mm

Item Part Material Grade Build & Test Standard
1 Body Ductile Iron (FBE Coated) AS1831500-7 ASTM A536
2 Seat EPDM 70 IRHD -
3 Shaft Stainless Steel SS431 ASTM A370
4 Disc Stainless Steel CF8M ASTM A370
5 Bushing Polymers PTFE -
6 O Ring NBR 70 IRHD -
7 Handle Ductile Iron (FBE Coated) AS1831500-7 ASTM A536
8 Circlip Stainless Steel SS316 ASTM A370
9 Card Stainless Steel SS316 ASTM A370
10 Bolts & Nuts Stainless Steel A4-70 -

Sizes 350mm to 600mm

Item Part Material Grade Build & Test Standard
1 Body Ductile Iron (FBE Coated) AS1831500-7 ASTM A536
2 Seat EPDM 70 IRHD -
3 Shaft Stainless Steel SS431 ASTM A370
4 Disc Stainless Steel CF8M ASTM A370
5 Bushing Polymers PTFE -
6 O Ring NBR 70 IRHD -
7 Card Stainless Steel SS316 ASTM A370
8 Gearbox Cast Iron
