SKU: BLSHPDA

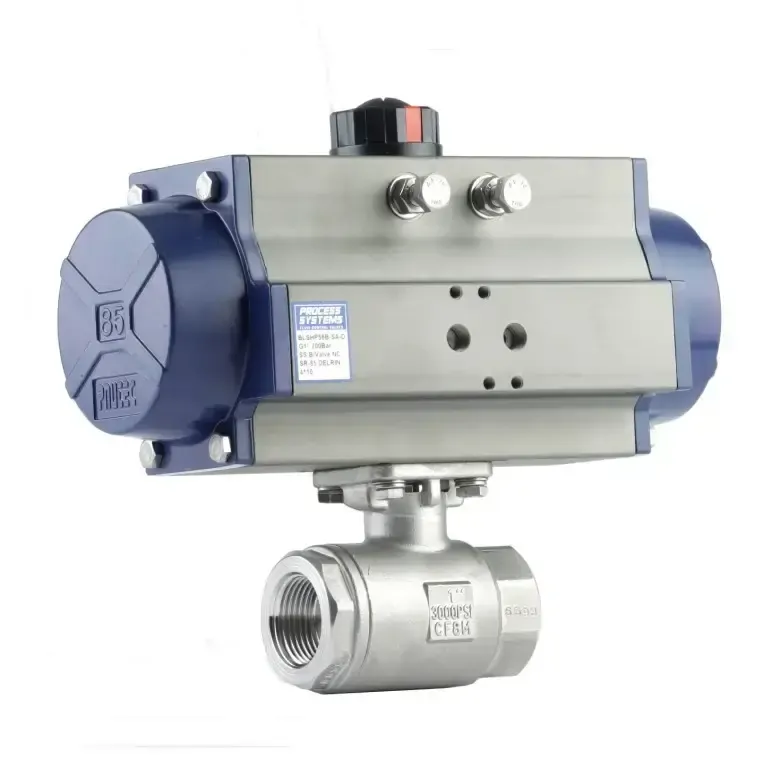

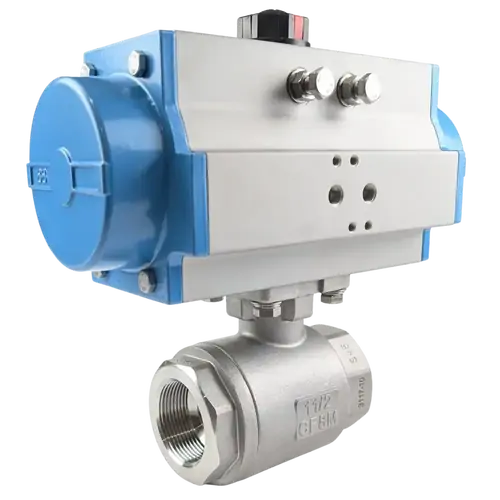

High Pressure Double Acting Ball Valve

From $302.50

Inc GST
Sold Out
Make an Enquiry

Series BLSHP high performance 316 stainless steel ball valves are specifically designed for high pressure applications. Delrin seats enable pressures up to 204 BAR or 3000 psi at 38°C. Comes with double acting anodised aluminium actuator with visual indicator. Typical applications include water blasting, chemical injection, boiler feedwater and agricultural spraying. Threads conform to ISO 7.1 Sealing Threads.

Model Size(BSP) Orifice Size (mm) Actuator Media Pressure Media Temperature Actuator Pressure Actuator Port Size
BLSHP2B-DA-D 1/4 8 DA50 0 to 200 BAR 40°C @ 200 BAR 6 to 8 BAR 1/8"
BLSHP3B-DA-D 3/8 10 DA50 0 to 200 BAR 40°C @ 200 BAR 6 to 8 BAR 1/8"
BLSHP4B-DA-D 1/2 12 DA50 0 to 200 BAR 40°C @ 200 BAR 6 to 8 BAR 1/8"
BLSHP5B-DA-D 3/4 17 DA63 0 to 200 BAR 40°C @ 200 BAR 6 to 8 BAR 1/8"
BLSHP6B-DA-D 1 22 DA63 0 to 200 BAR 40°C @ 200 BAR 6 to 8 BAR 1/8"
BLSHP8B-DA-D 1 ½ 35 DA88 0 to 200 BAR 40°C @ 200 BAR 6 to 8 BAR 1/8"
BLSHP9B-DA-D 2 35 DA88 0 to 200 BAR 40°C @ 200 BAR 6 to 8 BAR 1/8"

High Pressure Double Acting Stainless Steel Ball Valve

Size A B D Actuator Q R
1/4 9.7 75 41 DA50 90 140
3/8 9.7 75 41 DA50 90 140
1/2 12.7 75 41 DA50 90 140
3/4 17.5 81 43.8 DA63 100 162
1 22.1 91 53.5 DA63 100 162
1 ½ 34.7 121 75.2 DA88 129 238
2 34.7 145 75.2 DA88 129 238

High Pressure Double Acting Stainless Steel Ball Valve

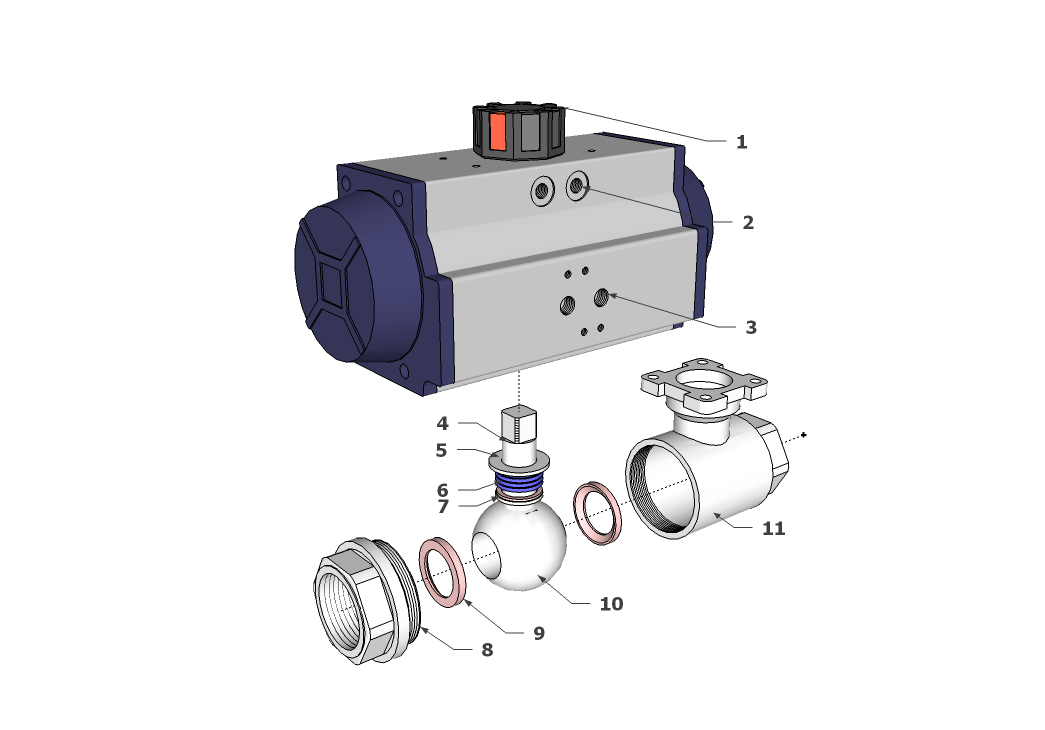

Number Part Material
1 Visual Indicator UV Stabilized Thermoplastic
2 Stops Stainless Steel
3 Inlet Ports/Namur Interface Anodised Aluminium
4 Drive 316 Stainless Steel
5 Chevron Seals Delrin
6 Backing O-Ring Viton
7 Thrust Washer Delrin
8 End Piece 316 Stainless Steel
9 Seat Delrin
10 Ball 316 Stainless Steel
11 Body 316 Stainless Steel

Size 1/4" to 2" BSP
Body 316 Stainless Steel
Seat Delrin
Pressure  200 BAR
Temperature Ambient
Actuation Double Acting Pneumatic

.
.
