SKU: GEI

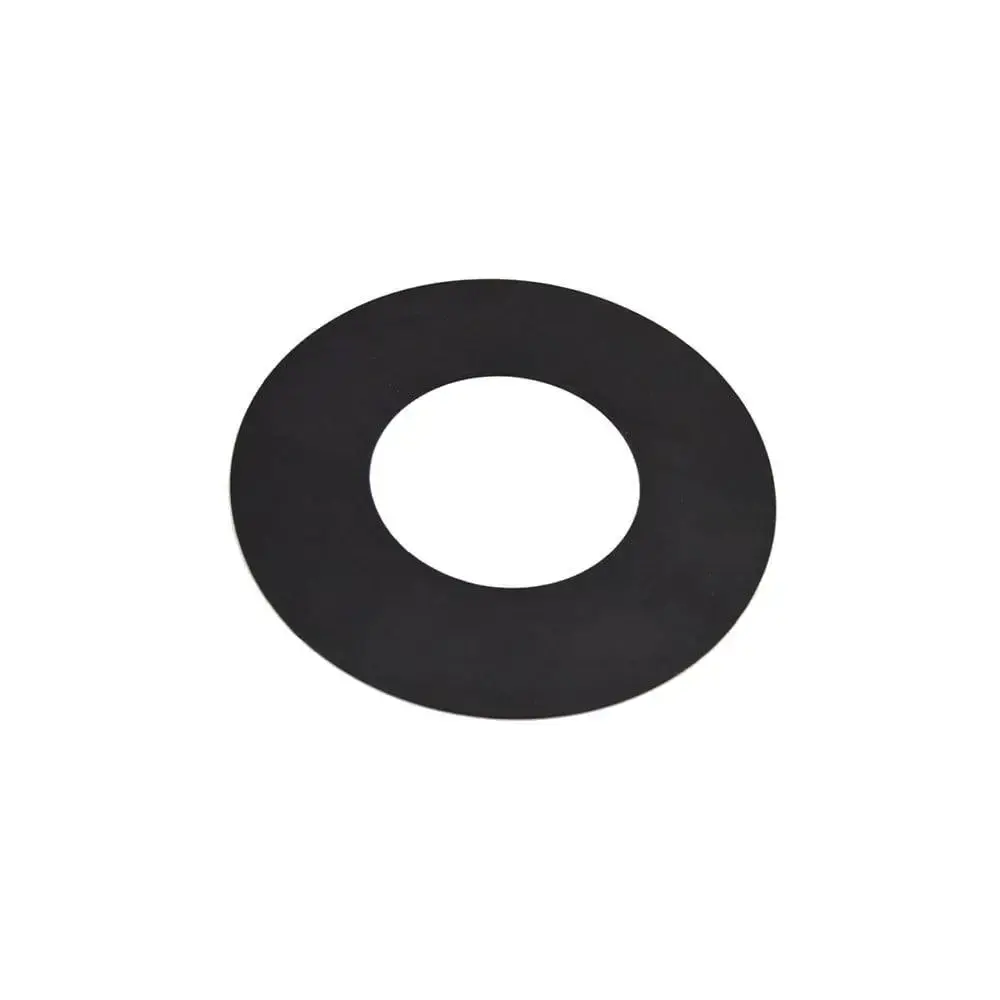

Engineered Compressed Graphite Inner Ring (Inner Bolt Circle) Gasket

From $7.04

Inc GST
In Stock
Make an Enquiry

Hawleysflex non asbestos Inner Bold Circle gaskets (also known as ring gaskets) are made from a mix of Kevlar, Graphite, NBR and synthetic fibers formed under high temperature and pressure. It has great strength, pressure and temperature ratings. It wont chip and flake like normal graphite sheeting. This is the perfect all round gasket material as it can handle such a wide range of temperatures, pressure and media. If there is one gasket material to use if you are not sure this would be the one as it has such a wide range of uses. These are cut to order on our CNC machine to achieve a rapid turnaround (should be despatched the same day as you order). If you need instructions on how to best install a gasket please see here.

Density 160+/-0.1
Temperature 200°C
Max Pressure 80 Bar
Ph Range 2~13
Compressibility ASTM F36 7~17
Recovery ASTM F36 ≥45%
Horizontal Tensile Strength ASTM F152 7 N/mm²
Oil Resistance @ 150°C Thickness increase ≥5%
Weight increase ≥10%
Variation of Tensile Strength ASTM F152 -20% N/mm²
Leakage Rate ASTM F-37 0.001 cm³/s
Igition Loss JB/T 6628 ≥8%
Stress Relaxation DIN52913 ≥10 N/mm²

Thickness 1.5mm & 3.0mm
Temperature Limit 200°C
Max Pressure 100 Bar
Application  Industrial Services, Petrochemical, General Purpose

Others Also Bought

GEI

Engineered Compressed Graphite Inner Ring Gasket

Features:

Thickness 1.5mm & 3.0mm
Temperature Limit 200°C
Max Pressure 100 Bar
Application  Industrial Services, Petrochemical, General Purpose

Description:

Hawleysflex non asbestos Inner Bold Circle gaskets (also known as ring gaskets) are made from a mix of Kevlar, Graphite, NBR and synthetic fibers formed under high temperature and pressure. It has great strength, pressure and temperature ratings. It wont chip and flake like normal graphite sheeting. This is the perfect all round gasket material as it can handle such a wide range of temperatures, pressure and media. If there is one gasket material to use if you are not sure this would be the one as it has such a wide range of uses. These are cut to order on our CNC machine to achieve a rapid turnaround (should be despatched the same day as you order). If you need instructions on how to best install a gasket please see here.

Density 160+/-0.1
Temperature 200°C
Max Pressure 80 Bar
Ph Range 2~13
Compressibility ASTM F36 7~17
Recovery ASTM F36 ≥45%
Horizontal Tensile Strength ASTM F152 7 N/mm²
Oil Resistance @ 150°C Thickness increase ≥5%
Weight increase ≥10%
Variation of Tensile Strength ASTM F152 -20% N/mm²
Leakage Rate ASTM F-37 0.001 cm³/s
Igition Loss JB/T 6628 ≥8%
Stress Relaxation DIN52913 ≥10 N/mm²

WARNING

These products are intended for use in industrial applications only. Do not use these products where pressures and temperatures can exceed those listed under ‘Technical Data’ and in our individual ‘Series’ data sheets. Before using these products with fluids other than these specified, for non-industrial applications, life-support systems, or other applications not within published specifications, consult Hawleys Through misuse, age, or malfunction, components used in industrial valve applications can fail in various modes. The system designer is warned to consider the failure modes of all component parts used in industrial valve applications and to provide adequate safeguards to prevent personal injury or damage to equipment in the event of such failure. System designers must provide a warning to the user in the system instructional manual if protection against a failure mode cannot be adequately provided. System designers and end users are cautioned to review specific warnings or specifications found in instruction sheets or labels packed or attached and shipped with the products. Our policy is one of continuous research and development. We therefore reserve the right to amend without notice the specifications given in this document or our individual ‘Series’ data sheets.

WARRANTY INFORMATION

All valve series and other products manufactured or distributed by Hawleys are warranted by Hawleys to be free of defects in material and workmanship for a period of 1 year from the date of purchase or as the manufacturer warrants. Hawleys obligation under this warranty is limited to repair or replacement of the defec1ive product or refund of the purchase price paid solely at the discretion of Hawleys and provided such defective product is returned to Hawleys freight prepaid and upon examination by Hawleys such product is found defective. This warranty shall be void in the event that the product has been subject to misuse, misapplication, improper maintenance, modification or tampering. This warranty is expressed in lieu of all other warranties, expressed or implied from Hawleys representatives or employees. Hawleys reserves the right to change Valve and Brochure specifications without notice.

.
