Features:
Thickness 1.5mm & 3.0mm
Temperature Limit 400°C
Max Pressure 100 Bar
Application Industrial Services, Steam, High Temperature, Petrochemical, General Purpose

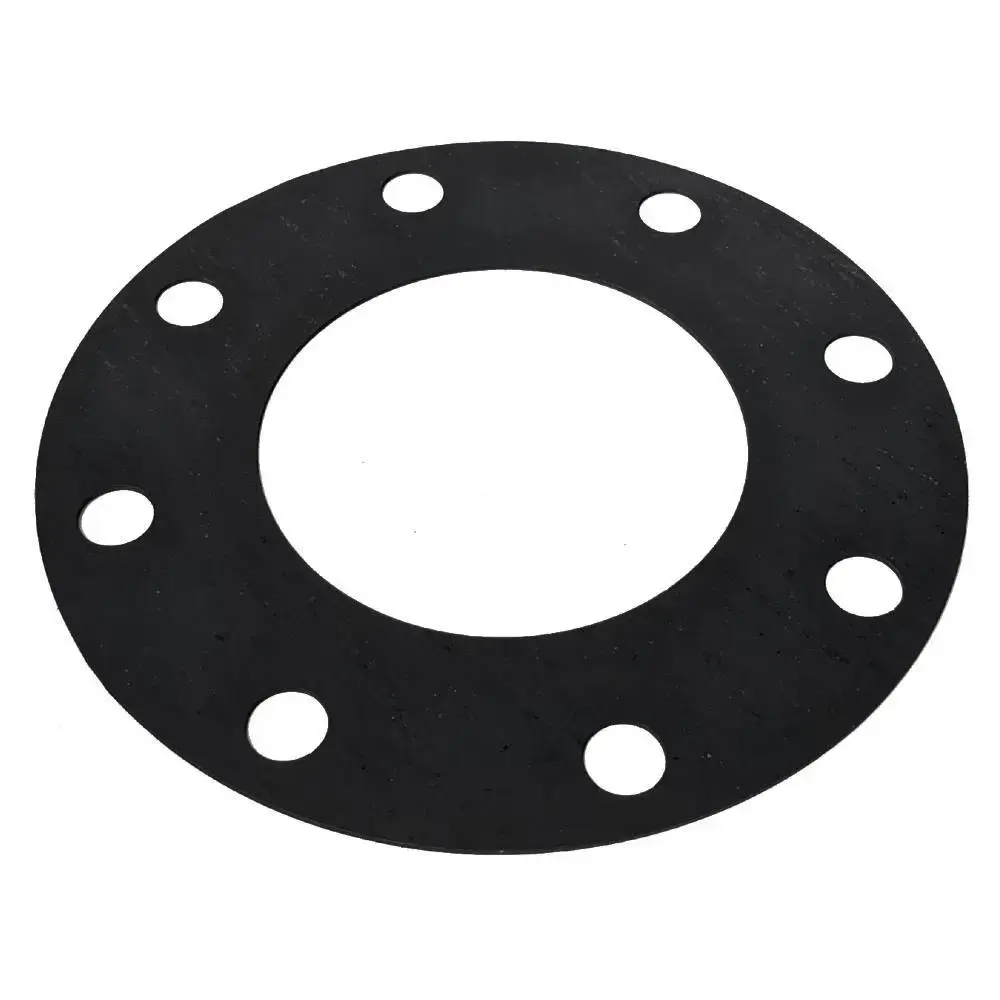

Engineered Compressed Graphite Full Face Gasket
SKU: GEF
Inc GST
In Stock
$8.80
FREE Shipping for orders over $100
Hawleysflex non asbestos full face gaskets are made from a mix of Kevlar, Graphite, NBR and synthetic fibers formed under high temperature and pressure. It has great strength, pressure and temperature ratings. It wont chip and flake like normal graphite sheeting. This is the perfect all round gasket material as it can handle such a wide range of temperatures, pressure and media. If there is one gasket material to use if you are not sure this would be the one as it has such a wide range of uses. These are cut to order on our CNC machine to achieve a rapid turnaround (should be despatched the same day as you order).
| Density | 160+/-0.1 | |
|---|---|---|
| Temperature | 400°C | |
| Max Pressure | 100 Bar | |
| Ph Range | 2~13 | |
| Compressibility ASTM F36 | 7~17 | |
| Recovery ASTM F36 | ≥45% | |
| Horizontal Tensile Strength ASTM F152 | 7 N/mm² | |
| Oil Resistance @ 150°C | Thickness increase | ≥5% |
| Weight increase | ≥10% | |
| Variation of Tensile Strength ASTM F152 | -20% N/mm² | |
| Leakage Rate ASTM F-37 | 0.001 cm³/s | |
| Igition Loss JB/T 6628 | ≥8% | |
| Stress Relaxation DIN52913 | ≥10 N/mm² | |
Thickness 1.5mm & 3.0mm
Temperature Limit 400°C
Max Pressure 100 Bar
Application Industrial Services, Steam, High Temperature, Petrochemical, General Purpose
.
GEF
Engineered Compressed Graphite Full Face Gasket
Description:
Hawleysflex non asbestos full face gaskets are made from a mix of Kevlar, Graphite, NBR and synthetic fibers formed under high temperature and pressure. It has great strength, pressure and temperature ratings. It wont chip and flake like normal graphite sheeting. This is the perfect all round gasket material as it can handle such a wide range of temperatures, pressure and media. If there is one gasket material to use if you are not sure this would be the one as it has such a wide range of uses. These are cut to order on our CNC machine to achieve a rapid turnaround (should be despatched the same day as you order).
| Density | 160+/-0.1 | |
|---|---|---|
| Temperature | 400°C | |
| Max Pressure | 100 Bar | |
| Ph Range | 2~13 | |
| Compressibility ASTM F36 | 7~17 | |
| Recovery ASTM F36 | ≥45% | |
| Horizontal Tensile Strength ASTM F152 | 7 N/mm² | |
| Oil Resistance @ 150°C | Thickness increase | ≥5% |
| Weight increase | ≥10% | |
| Variation of Tensile Strength ASTM F152 | -20% N/mm² | |
| Leakage Rate ASTM F-37 | 0.001 cm³/s | |
| Igition Loss JB/T 6628 | ≥8% | |
| Stress Relaxation DIN52913 | ≥10 N/mm² | |
Hawleysflex non asbestos full face gaskets are made from a mix of Kevlar, Graphite, NBR and synthetic fibers formed under high temperature and pressure. It has great strength, pressure and temperature ratings. It wont chip and flake like normal graphite sheeting. This is the perfect all round gasket material as it can handle such a wide range of temperatures, pressure and media. If there is one gasket material to use if you are not sure this would be the one as it has such a wide range of uses. These are cut to order on our CNC machine to achieve a rapid turnaround (should be despatched the same day as you order).
| Density | 160+/-0.1 | |
|---|---|---|
| Temperature | 400°C | |
| Max Pressure | 100 Bar | |
| Ph Range | 2~13 | |
| Compressibility ASTM F36 | 7~17 | |
| Recovery ASTM F36 | ≥45% | |
| Horizontal Tensile Strength ASTM F152 | 7 N/mm² | |
| Oil Resistance @ 150°C | Thickness increase | ≥5% |
| Weight increase | ≥10% | |
| Variation of Tensile Strength ASTM F152 | -20% N/mm² | |
| Leakage Rate ASTM F-37 | 0.001 cm³/s | |
| Igition Loss JB/T 6628 | ≥8% | |
| Stress Relaxation DIN52913 | ≥10 N/mm² | |
Thickness 1.5mm & 3.0mm
Temperature Limit 400°C
Max Pressure 100 Bar
Application Industrial Services, Steam, High Temperature, Petrochemical, General Purpose
