Gasket Installation Procedures

A Guide to Successful Gasket Installation

Successfully sealing a flanged connection is dependent upon all components of a well-designed flange system working well together. This document provides a guide to maintenance operators, engineers, and fitters to help with successful gasket installation and assembly of bolted flange connections.

Tools Required

Specific tools are required for cleaning and tensioning fasteners. Additionally, always use standard safety equipment and follow good safety practices. Acquire the following equipment prior to installation:

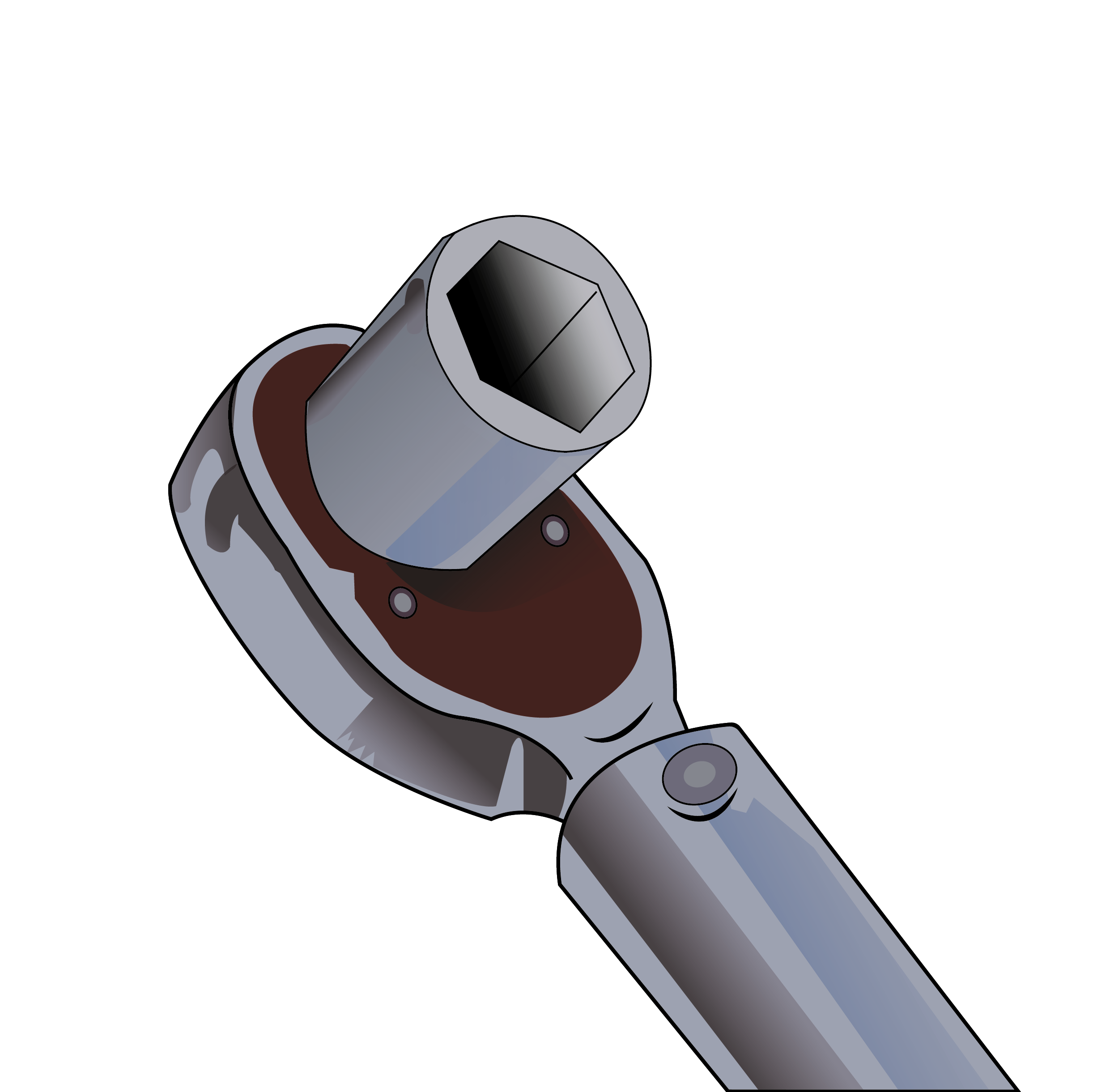

  • Calibrated torque wrench, hydraulic or other tensioner

  • Wire brush (brass if possible)

  • Relevant PPE

  • Lubricant

  • Other plant-specified equipment

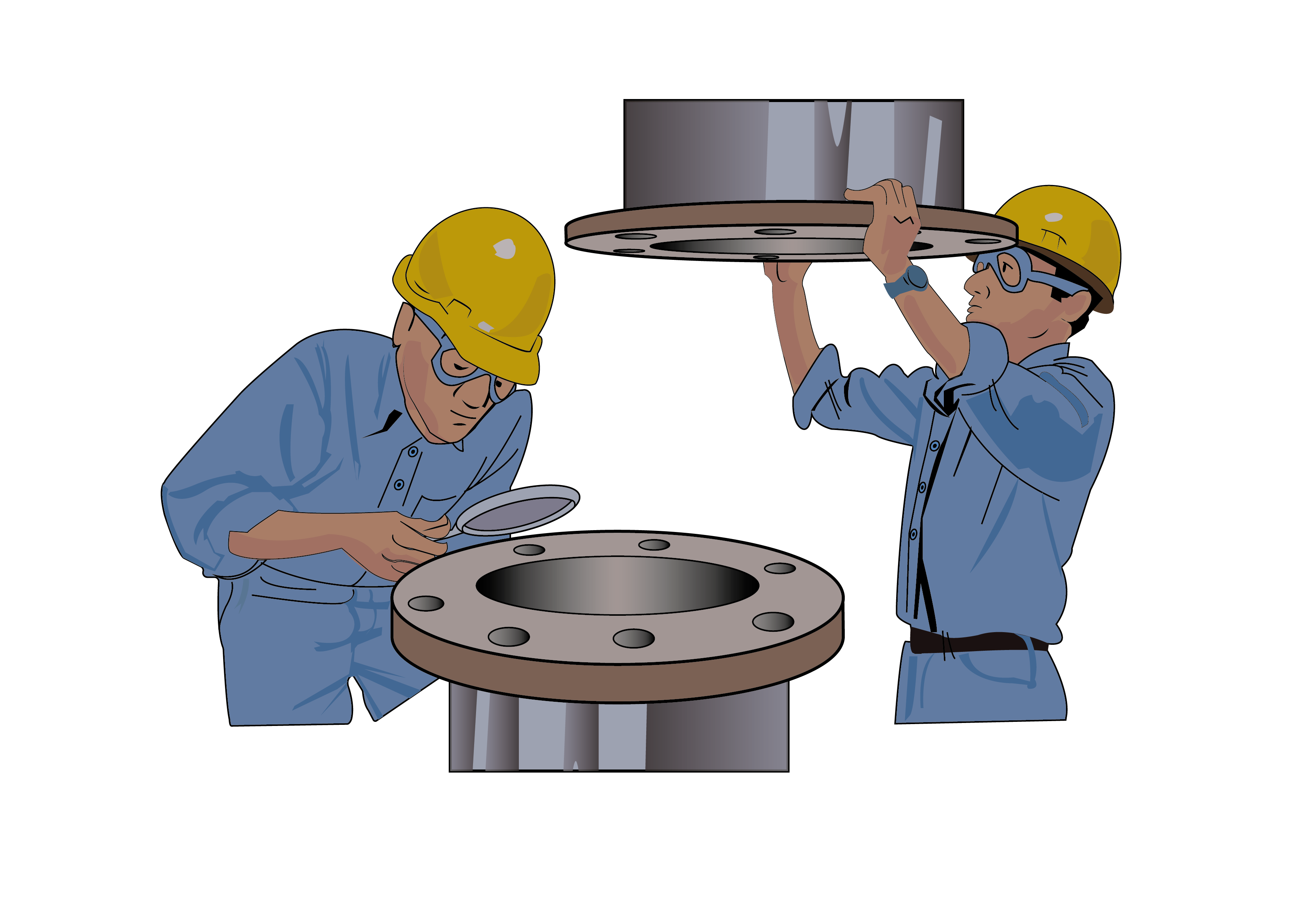

Clean and examine
  • Remove all foreign material and debris from the seating surfaces, fasteners (bolts or studs), nuts and washers.

  • Examine fasteners (bolts and studs), nuts and washers for defects such as burrs or cracks.

  • Examine flange surfaces for warping, radial scores, heavy tool marks, or anything prohibiting proper gasket seating.

  • Replace components if found to be defective.

Align flanges
  • Align flange faces and bolt holes without using excessive force.

  • Report any misalignment.

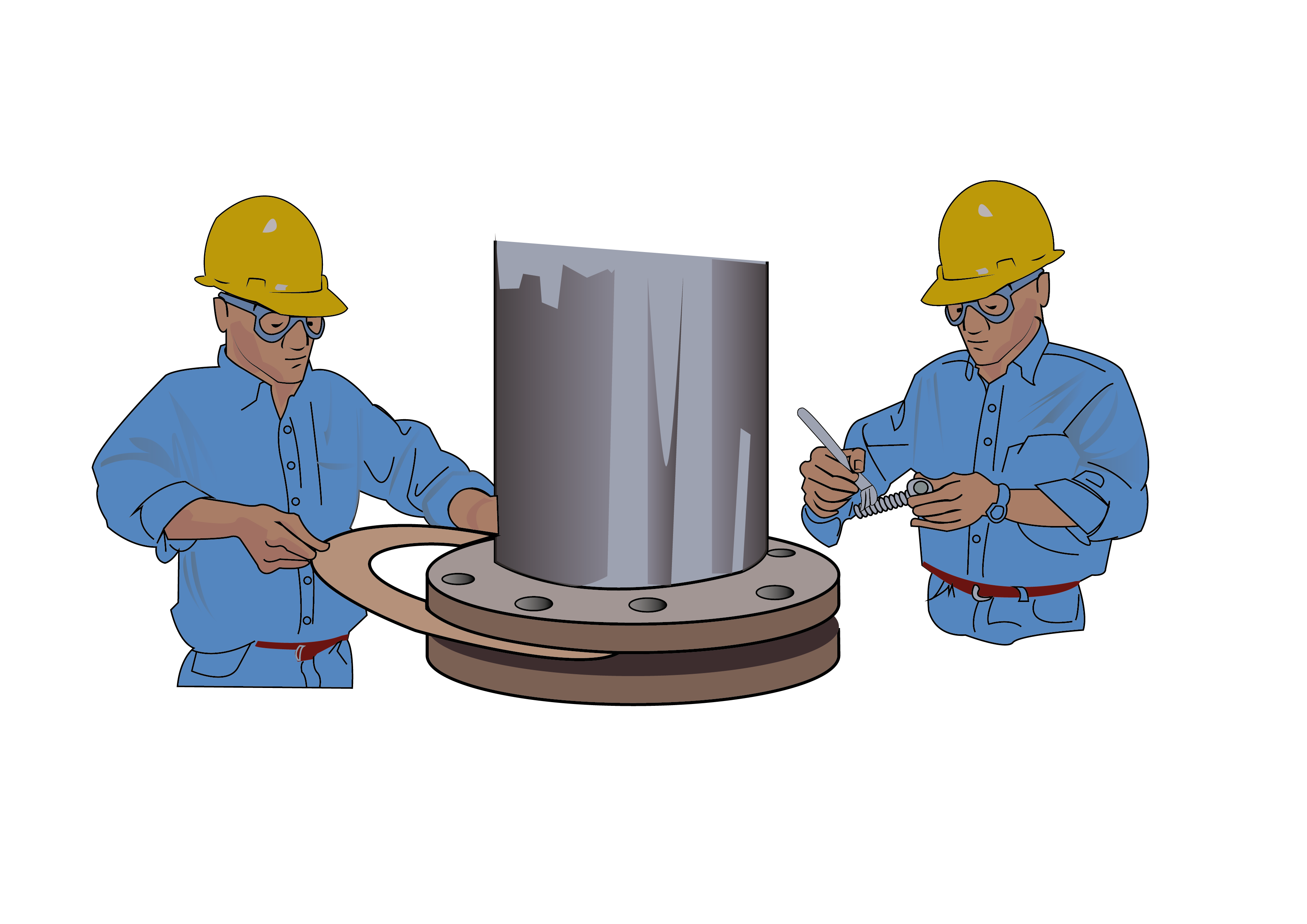

Install gasket
  • Ensure gasket is the specified size and material

  • Examine the gasket to make sure it is free of defects.

  • Carefully insert gasket between flanges.

  • Make sure the gasket is centered between the flanges.

  • Do not use jointing compounds or release agents on the gasket or seating surfaces unless specified by the gasket manufacturer.

  • Bring flanges together, ensuring the gasket isn't pinched or damaged.

Lubricate load-bearing surfaces
  • Use only specified or approved lubricants.

  • Liberally apply lubricant uniformly to all thread, nut, and washer load-bearing surfaces.

  • Ensure lubricant doesn't contaminate either flange or gasket face.

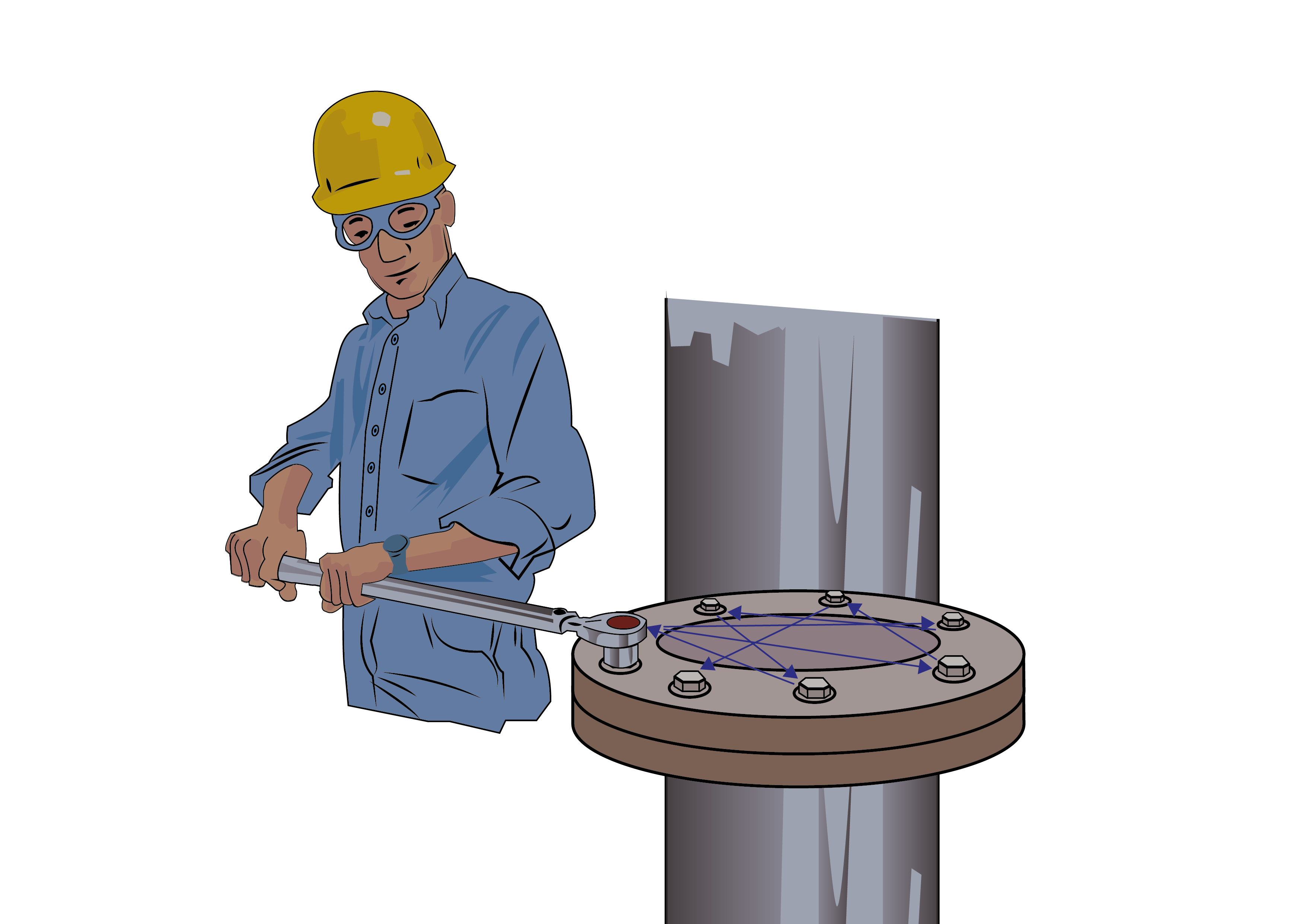

Install and tighten bolts
  • Always use proper tools: calibrated torque wrench or other controlled tensioning device.

  • Consult your gasket manufacturer and/or engineering department for guidance on torque specification.

  • Always torque nuts in a cross bolt tightening pattern.

  • Tighten the nuts in multiple steps:

    • Step 1 - Tighten all nuts initially by hand. (Larger bolts may require a small hand wrench.)

    • Step 2 - Torque each nut to approximately 30% of full torque.

    • Step 3 - Torque the nuts to approximately 60% of full torque.

    • Step 4 - Torque each nut to full torque, again using the cross bolt tightening pattern. (Large-diameter flanges may require additional tightening passes.)

    • Step 5 - Apply at least one final full torque to all nuts in a clockwise direction until all torque is uniform. (Large-diameter flanges may require additional tightening passes.)

Retightening
  • Caution:Consult your gasket manufacturer and/or engineering department for guidance and recommendations on retightening.

  • Do not retorque elastomer-based, asbestos-free gaskets after they have been exposed to elevated temperatures unless otherwise specified.

  • Retorque fasteners exposed to aggressive thermal cycling.

  • All retorquing should performed at ambient temperature and atmospheric pressure.
