Ductile Iron Electric Butterfly Valve

From $599.50

Inc GST
In Stock
Make an Enquiry

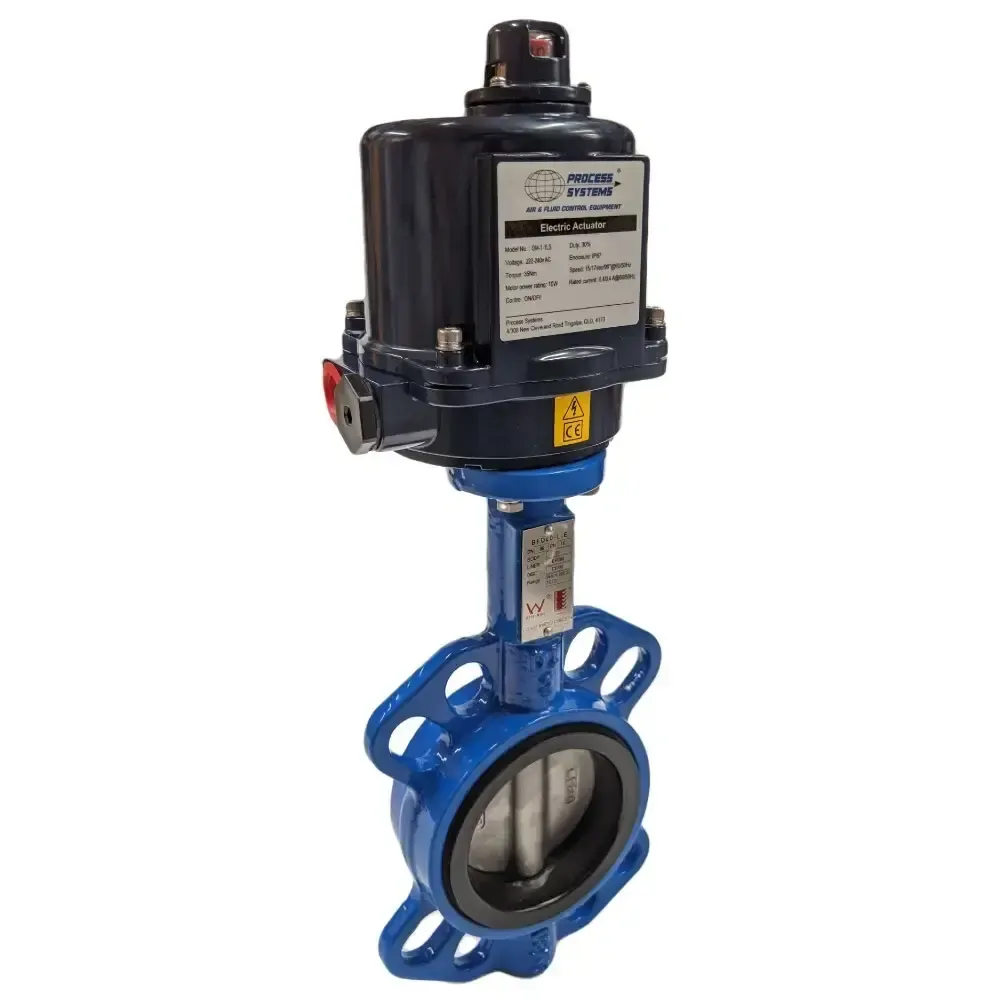

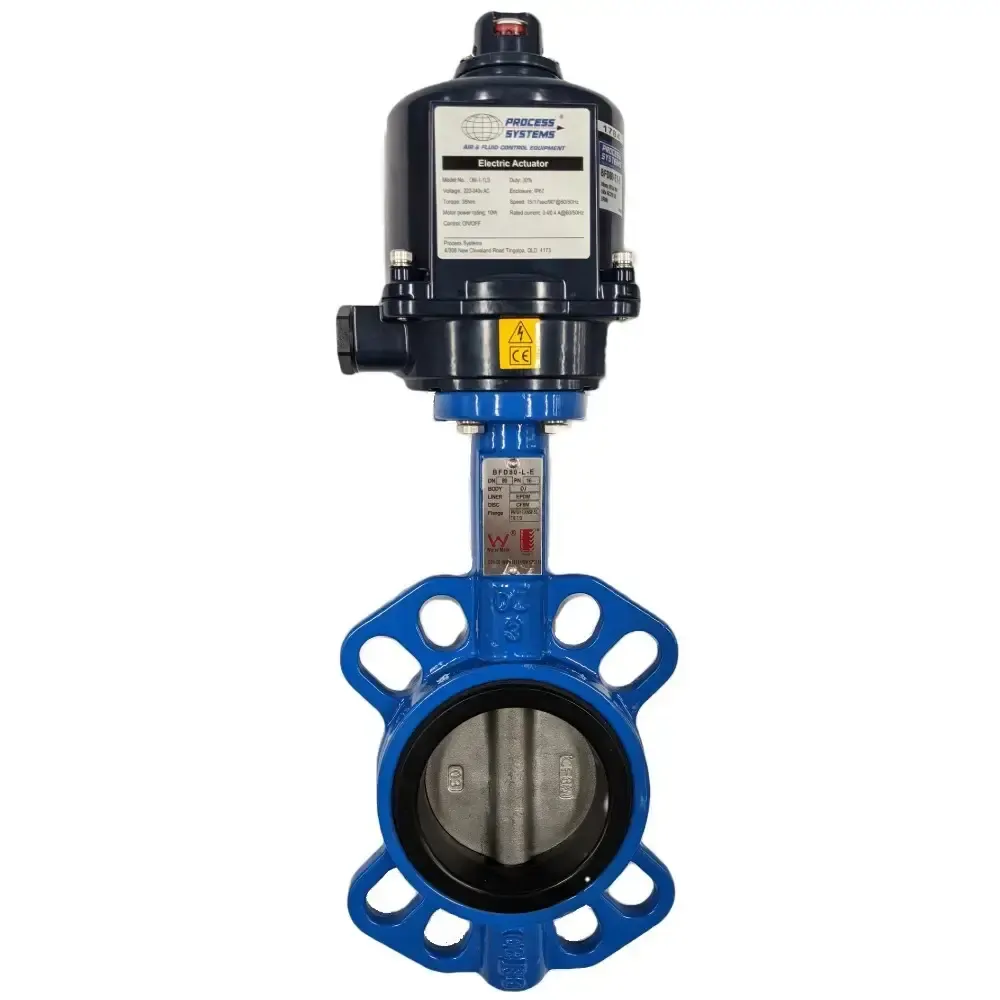

The BFD Series of Butterfly Valves is a fusion bonded epoxy coated Ductile Iron bodied valve with a 316SS Disc and EPDM seat (FKM and NBR available as option - Contact Sales). The wafer design allows for this valve to fit all standard flanges and is coupled with a Powder Coated Die Cast Aluminium Electric Actuator (Other Electric Actuator options include Modulating, Explosion Proof, Spring Return & Stainless Steel Housing - Contact Sales for options). The seats are a unique bonded cartridge design that allows vacuum to be run through the valve, allows renewal of the seat and gives a longer lifespan to the seat. This valve is suitable for a wide range of general and watermark water applications such as water trucks, cement hoppers, irrigation and other industrial applications.

  • Ductile Iron Body (FBE Coated) with 316SS Disc & EPDM Seat (optional seats available)
  • IP67 Quarter Turn Electric Actuator with M20x1.5 Cable Glands, Visual Indicator, Manual Override and additional limit switches as standard
  • Wafer type suits all standard flanges. Extension Shafts can also be fitted for use in pits etc (Contact Sales)
  • Designed and Manufactured in accordance with API609, Inspected and Tested in accordance with API598
  • Watermark Approved (License Number WMK26314) (Contact Sales if required for application)
  • Valves above 600mm can be produced, Contact Sales for details
Model Size (mm) Actuator Media Pressure Media Temperature Manual Override
BFD50-E*-E 50 0M-1 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) Spanner Drive
BFD65-E*-E 65 0M-1 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) Spanner Drive
BFD80-E*-E 80 0M-1 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) Spanner Drive
BFD100-E*-E 100 0M-A Vacuum to 16 BAR -20°C to 90°C (40°C Potable) Allen Key
BFD125-E*-E 125 0M-A Vacuum to 16 BAR -20°C to 90°C (40°C Potable) Allen Key
BFD150-E*-E 150 0M-2 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) Handwheel
BFD200-E*-E 200 0M-3 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) Handwheel
BFD250-E*-E 250 0M-4 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) Handwheel
BFD300-E*-E 300 0M-5 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) Handwheel
BFD350-E*-E 350 0M-6 Vacuum to 10 BAR -20°C to 90°C (40°C Potable) Handwheel
BFD400-E*-E 400 0M-7 Vacuum to 10 BAR -20°C to 90°C (40°C Potable) Handwheel
BFD450-E*-E 450 0M-8 Vacuum to 10 BAR -20°C to 90°C (40°C Potable) Handwheel
BFD500-E*-E 500 0M-9 Vacuum to 10 BAR -20°C to 90°C (40°C Potable) Handwheel
BFD600-E*-E 600 0M-11 Vacuum to 10 BAR -20°C to 90°C (40°C Potable) Handwheel

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC.

For sizes over 600mm or different seat material please contact us.

Model DN Actuator A B C C1 H1 H2 AS2129 Table D AS2129 Table E ANSI150
ØD1 n-Ød1 ØD1 n-Ød1 ØD1 n-Ød1
BFD50-E*-E 50 0M-1 108 155 42 46.1 225 70 114 4-18 114 4-18 120.5 4-19
BFD65-E*-E 65 0M-1 108 155 44.7 49.1 245 77 127 4-18 127 4-18 139.5 4-19
BFD80-E*-E 80 0M-1 108 155 45.2 48.4 261 87 146 4-18 146 4-18 152.5 4-19
BFD100-E*-E 100 0M-A 108 200 52.1 55.3 305 112 178 4-18 178 4(8)-18 190.5 4(8)-19
BFD125-E*-E 125 0M-A 108 200 54.4 58.8 332 128 210 4(8)-18 210 4(8)-18 216 4(8)-22
BFD150-E*-E 150 0M-2 200 290 55.8 59.1 361 143 235 4(8)-18 235 4(8)-22 241.5 4(8)-22
BFD200-E*-E 200 0M-3 200 290 60.6 64.1 423 173 292 4(8)-18 292 4(8)-22 298.5 4(8)-22
BFD250-E*-E 250 0M-4 234 315 65.6 71.8 499 210 356 4(8)-22 356 4(12)-22 362 4(12)-25
BFD300-E*-E 300 0M-5 234 315 76.9 81 578 244 406 4(12)-22 406 4(12)-26 432 4(12)-25
BFD350-E*-E 350 0M-6 234 315 76.5 79.5 635 267 470 4(12)-26 470 4(12)-26 476 4(12)-29
BFD400-E*-E 400 0M-7 234 420 86.5 90 697 297 521 4(12)-26 521 4(12)-26 539.5 4(16)-29
BFD450-E*-E 450 0M-8 260 590 105.6 109 737 315 584 4(12)-26 584 4(12)-26 578 4(16)-32
BFD500-E*-E 500 0M-9 260 590 131.8 135 840 360 641 4(16)-26 641 4(16)-26 635 4(20)-32
BFD600-E*-E 600 0M-11 260 590 152 156 1006 444 756 4(16)-30 756 4(16)-33 749.5 4(20)-35

All dimensions in mm unless specified otherwise

Item Description Material
1 Body Ductile Iron (Fusion Bonded Epoxy Coated)
2 Seat EPDM
3 Shaft SS431
4 Disc CF8M
5 Bushing PTFE
6 O Ring NBR
  Electric Actuator Powder Coated Aluminium

Size 50mm to 600mm
Body FBE Coated Ductile Iron
Seat EPDM
Disc 316 Stainless Steel
Pressure Up to 16 BAR (depending upon size)
Actuation Electric

BFDE

Ductile Iron Electric Butterfly Valve

Features:

Size 50mm to 600mm
Body FBE Coated Ductile Iron
Seat EPDM
Disc 316 Stainless Steel
Pressure Up to 16 BAR (depending upon size)
Actuation Electric

Description:

The BFD Series of Butterfly Valves is a fusion bonded epoxy coated Ductile Iron bodied valve with a 316SS Disc and EPDM seat (FKM and NBR available as option - Contact Sales). The wafer design allows for this valve to fit all standard flanges and is coupled with a Powder Coated Die Cast Aluminium Electric Actuator (Other Electric Actuator options include Modulating, Explosion Proof, Spring Return & Stainless Steel Housing - Contact Sales for options). The seats are a unique bonded cartridge design that allows vacuum to be run through the valve, allows renewal of the seat and gives a longer lifespan to the seat. This valve is suitable for a wide range of general and watermark water applications such as water trucks, cement hoppers, irrigation and other industrial applications.

  • Ductile Iron Body (FBE Coated) with 316SS Disc & EPDM Seat (optional seats available)
  • IP67 Quarter Turn Electric Actuator with M20x1.5 Cable Glands, Visual Indicator, Manual Override and additional limit switches as standard
  • Wafer type suits all standard flanges. Extension Shafts can also be fitted for use in pits etc (Contact Sales)
  • Designed and Manufactured in accordance with API609, Inspected and Tested in accordance with API598
  • Watermark Approved (License Number WMK26314) (Contact Sales if required for application)
  • Valves above 600mm can be produced, Contact Sales for details
Model Size (mm) Actuator Media Pressure Media Temperature Manual Override
BFD50-E*-E 50 0M-1 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) Spanner Drive
BFD65-E*-E 65 0M-1 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) Spanner Drive
BFD80-E*-E 80 0M-1 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) Spanner Drive
BFD100-E*-E 100 0M-A Vacuum to 16 BAR -20°C to 90°C (40°C Potable) Allen Key
BFD125-E*-E 125 0M-A Vacuum to 16 BAR -20°C to 90°C (40°C Potable) Allen Key
BFD150-E*-E 150 0M-2 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) Handwheel
BFD200-E*-E 200 0M-3 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) Handwheel
BFD250-E*-E 250 0M-4 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) Handwheel
BFD300-E*-E 300 0M-5 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) Handwheel
BFD350-E*-E 350 0M-6 Vacuum to 10 BAR -20°C to 90°C (40°C Potable) Handwheel
BFD400-E*-E 400 0M-7 Vacuum to 10 BAR -20°C to 90°C (40°C Potable) Handwheel
BFD450-E*-E 450 0M-8 Vacuum to 10 BAR -20°C to 90°C (40°C Potable) Handwheel
BFD500-E*-E 500 0M-9 Vacuum to 10 BAR -20°C to 90°C (40°C Potable) Handwheel
BFD600-E*-E 600 0M-11 Vacuum to 10 BAR -20°C to 90°C (40°C Potable) Handwheel

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC.

For sizes over 600mm or different seat material please contact us.

.

Ductile Iron Electric Butterfly Valve

BFDE

Dimensions:

Model DN Actuator A B C C1 H1 H2 AS2129 Table D AS2129 Table E ANSI150
ØD1 n-Ød1 ØD1 n-Ød1 ØD1 n-Ød1
BFD50-E*-E 50 0M-1 108 155 42 46.1 225 70 114 4-18 114 4-18 120.5 4-19
BFD65-E*-E 65 0M-1 108 155 44.7 49.1 245 77 127 4-18 127 4-18 139.5 4-19
BFD80-E*-E 80 0M-1 108 155 45.2 48.4 261 87 146 4-18 146 4-18 152.5 4-19
BFD100-E*-E 100 0M-A 108 200 52.1 55.3 305 112 178 4-18 178 4(8)-18 190.5 4(8)-19
BFD125-E*-E 125 0M-A 108 200 54.4 58.8 332 128 210 4(8)-18 210 4(8)-18 216 4(8)-22
BFD150-E*-E 150 0M-2 200 290 55.8 59.1 361 143 235 4(8)-18 235 4(8)-22 241.5 4(8)-22
BFD200-E*-E 200 0M-3 200 290 60.6 64.1 423 173 292 4(8)-18 292 4(8)-22 298.5 4(8)-22
BFD250-E*-E 250 0M-4 234 315 65.6 71.8 499 210 356 4(8)-22 356 4(12)-22 362 4(12)-25
BFD300-E*-E 300 0M-5 234 315 76.9 81 578 244 406 4(12)-22 406 4(12)-26 432 4(12)-25
BFD350-E*-E 350 0M-6 234 315 76.5 79.5 635 267 470 4(12)-26 470 4(12)-26 476 4(12)-29
BFD400-E*-E 400 0M-7 234 420 86.5 90 697 297 521 4(12)-26 521 4(12)-26 539.5 4(16)-29
BFD450-E*-E 450 0M-8 260 590 105.6 109 737 315 584 4(12)-26 584 4(12)-26 578 4(16)-32
BFD500-E*-E 500 0M-9 260 590 131.8 135 840 360 641 4(16)-26 641 4(16)-26 635 4(20)-32
BFD600-E*-E 600 0M-11 260 590 152 156 1006 444 756 4(16)-30 756 4(16)-33 749.5 4(20)-35

All dimensions in mm unless specified otherwise

.

Ductile Iron Electric Butterfly Valve

BFDE

Construction:

Item Description Material
1 Body Ductile Iron (Fusion Bonded Epoxy Coated)
2 Seat EPDM
3 Shaft SS431
4 Disc CF8M
5 Bushing PTFE
6 O Ring NBR
  Electric Actuator Powder Coated Aluminium
