Features:
Size 1/2" to 1" BSPT
Body Broze
Pressure Range 0 to 10 BAR
Temperature Various
| Application | Water | Steam |
|---|---|

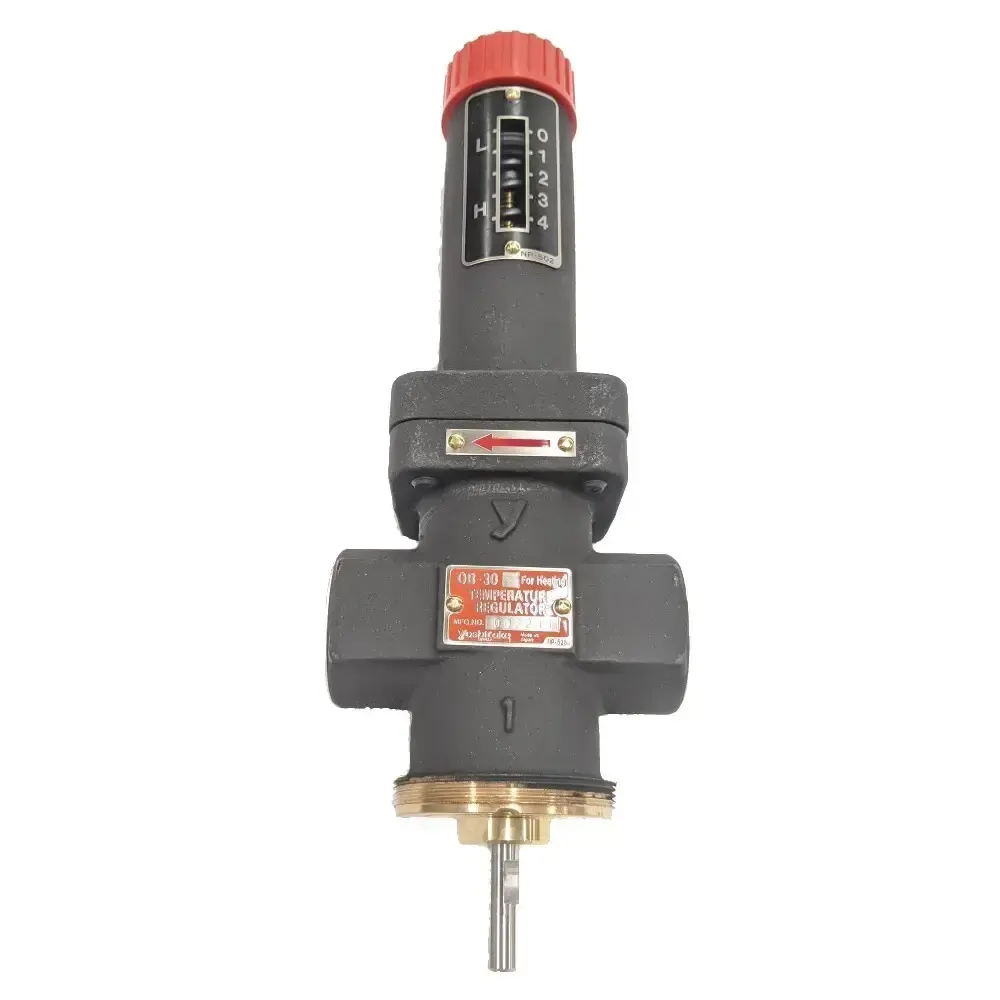

| Type | External Pressurized Bellows Temperature Regulator |
| Max Pressure | 10 Bar (17 Bar for water) |
| Temperature | 185°C |
| Connection | BSPT (ISO 7.1) |
| Max Bulb Pressure | 10 Bar |
| Set Point Range | 0~35°C| 25~70°C| 40~100°C| 60~130°C| 70~150°C |
| Max Temperature for Bulb | Upper set point + 40°C |
| Body | Bronze |
| Valve Disc | PTFE |
| Valve Seat | Stainless Steel |
| Bulb | Copper (Nickel Chrome Plated) |

| Model | d | L | H1 | H | Weight (kg) |
|---|---|---|---|---|---|
| OB-30-04 | 1/2" | 75 | 130 | 318.5 | 2.7 |
| OB-30-05 | 3/4" | 80 | 130 | 318.5 | 2.8 |
| OB-30-06 | 1" | 90 | 130 | 318.5 | 3 |

| Item | Description | Material |
|---|---|---|
| 1 | Body | Bronze |
| 2 | Spring Chamber | Bronze |
| 3 | Disc | PTFE |
| 4 | Valve | Brass |
| 5 | Valve Seat | Stainless Steel |
| 6 | Balance Bellows | Phosphor Bronze |
| 7 | Spindle | Stainless Steel |
| 8 | Collar | Brass |
| 9 | Nut | Brass |
| 10 & 11 | Guide | Brass |
| 12 | Spring | Alloy Steel |
| 13 | Spring Plate | Cast Iron |
| 14 | Spring Plate | Brass |
| Item | Description | Material |
|---|---|---|
| 15 | Adjusting Screw | Carbon Steel |
| 16 | Washer | Stainless Steel |
| 17 | Handle | Resin |
| 18 | Screw | Steel |
| 19 | Washer | Steel |
| 20 | Bellows Follower | Brass |
| 21 | Bellows | Phosphor Bronze |
| 22 | Ring | Brass |
| 23 | Gasket | PTFE |
| 24 | Cap | Resin |
| 25 | Bolt | Carbon Steel |
| 26, 27 & 28 | Name Plate | Stainless Steel |
| 29 | Label | Polyester |
