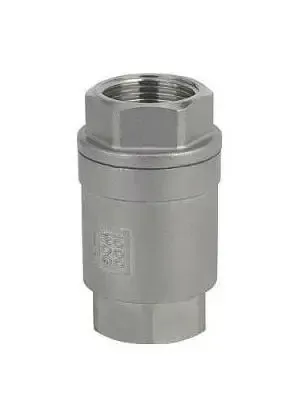

2 piece Stainless Steel Check Valve

From $22.00

Inc GST
In Stock
Make an Enquiry

316 Stainless Steel 2 piece BSP threaded in line lift check valve. Suitable for a wide range of media including steam, water and oil. Please bear in mind that this is a metal to metal seat so a bubble tight seal will not be formed at lower pressures. Can be installed in any orientation as it has a spring backing. Great for a simple backflow/backpressure preventer where stainless steel is required.

Model Size (BSP) DN Pressure Range Temperature Weight (KG) CV Cracking Pressure (kPa)
ICS-04 1/2" 15 0 to 63 BAR -20°C to 180°C 0.25 13 4 ~ 6
ICS-05 3/4" 20 0 to 63 BAR -20°C to 180°C 0.3 32 3 ~ 5
ICS-06 1" 25 0 to 63 BAR -20°C to 180°C 0.5 67 3 ~ 5
ICS-07 1 1/4" 32 0 to 63 BAR -20°C to 180°C 0.8 115 2.8 ~ 3.5
ICS-08 1 1/2" 40 0 to 63 BAR -20°C to 180°C 1.1 183 2.5 ~ 3.5
ICS-09 2" 50 0 to 63 BAR -20°C to 180°C 1.5 365 2.5 ~ 3

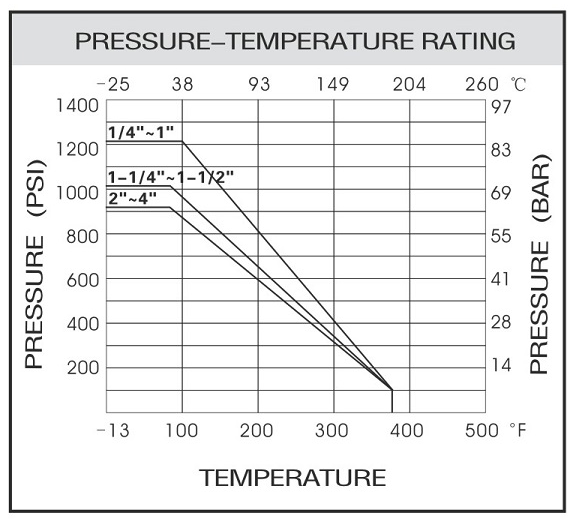

Stainless Steel 2 piece inline check valve temperature vs pressure

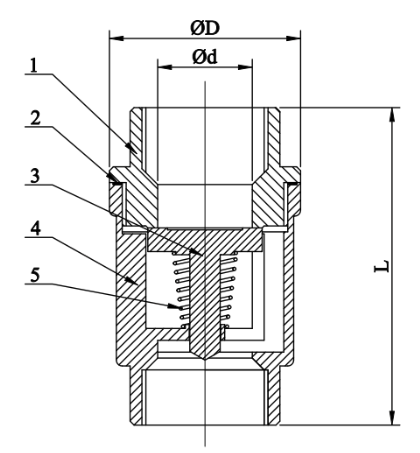

2 piece Stainless Steel In Line Check Valve

Model Size d D L Kgs
ICS-04 1/2" 15 37 56 0.21
ICS-05 3/4" 20 42 63 0.29
ICS-06 1" 25 48 74 0.4
ICS-07 1 1/4" 30 58 81 0.65
ICS-08 1 1/2" 38 70 91 0.98
ICS-09 2" 47 82 97 1.4

All dimensions in mm unless shown otherwise.

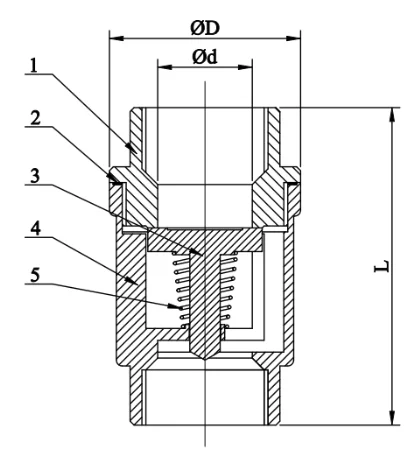

2 piece Stainless Steel In Line Check Valve

Number Part Material
1 Cap ASTM A351 CF8M
2 Body Gasket PTFE
3 Disc ASTM A351 CF8M
4 Body ASTM A351 CF8M
5 Spring 316 SS

Size 1/2" to 2" BSP
Body 316 Stainless Steel
Seat Metal
Pressure Range 0 to 63 BAR
Temperature 0 to 180°C
