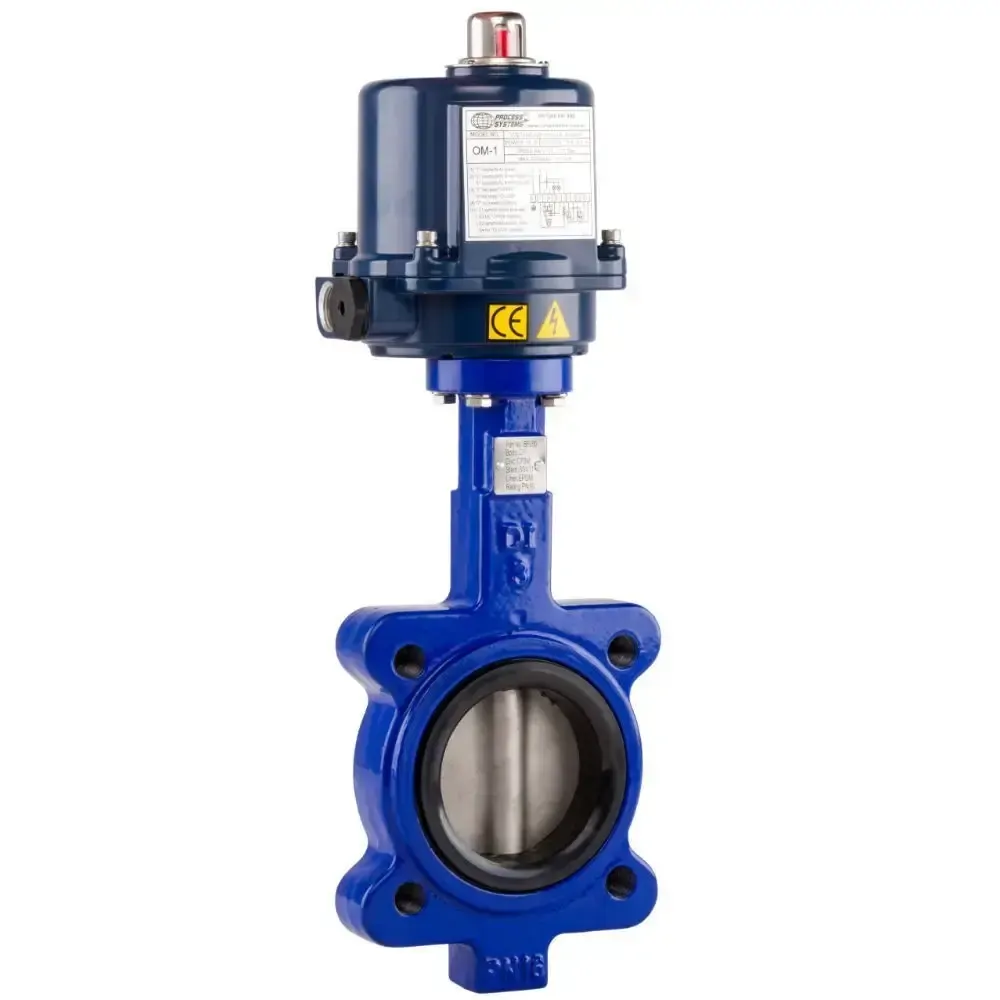

Lugged Ductile Iron Electric Butterfly Valve

From $605.00

Inc GST
In Stock
Make an Enquiry

The BFL Series of Butterfly Valves is a fusion bonded epoxy coated Ductile Iron bodied valve with a 316SS Disc and EPDM seat (FKM and NBR available as option - Contact Sales). The lugged design is available to suit multiple flanges (AS2129 Table E, AS4087 PN16 / Table D, ANSI 150) and is coupled with a Powder Coated Die Cast Aluminium Electric Actuator (Other Electric Actuator options include Modulating, Explosion Proof, Spring Return & Stainless Steel Housing - Contact Sales for options). The seats are a unique bonded cartridge design that allows vacuum to be run through the valve, allows renewal of the seat and gives a longer lifespan to the seat. This valve is suitable for a wide range of general and watermark water applications such as water trucks, cement hoppers, irrigation and other industrial applications.

  • Ductile Iron Body (FBE Coated) with 316SS Disc & EPDM Seat (optional seats available)
  • IP67 Quarter Turn Electric Actuator with M20x1.5 Cable Glands, Visual Indicator, Manual Override and additional limit switches as standard
  • Lugged variants in AS2129 Table E, AS4087 PN16 / Table D or ANSI 150. Extension Shafts can also be fitted for use in pits etc (Contact Sales)
  • Designed and Manufactured in accordance with API609, Inspected and Tested in accordance with API598
  • Watermark Approved (License Number WMK26314) (Contact Sales if required for application)
  • Valves above 600mm can be produced, Contact Sales for details
Model Size (mm) Actuator Media Pressure Media Temperature
BFL50-E*-E 50 0M-1 Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFL65-E*-E 65 0M-1 Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFL80-E*-E 80 0M-1 Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFL100-E*-E 100 0M-A Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFL125-E*-E 125 0M-A Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFL150-E*-E 150 0M-2 Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFL200-E*-E 200 0M-3 Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFL250-E*-E 250 0M-4 Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFL300-E*-E 300 0M-5 Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFL350-E*-E 350 0M-6 Vacuum to 10 BAR -20°C to 90°C (40°C Potable)
BFL400-E*-E 400 0M-7 Vacuum to 10 BAR -20°C to 90°C (40°C Potable)
BFL450-E*-E 450 0M-8 Vacuum to 10 BAR -20°C to 90°C (40°C Potable)
BFL500-E*-E 500 0M-9 Vacuum to 10 BAR -20°C to 90°C (40°C Potable)
BFL600-E*-E 600 0M-11 Vacuum to 10 BAR -20°C to 90°C (40°C Potable)

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC

Electric Actuator Lugged Butterfly Valve

DN Actuator A D1 H1 H2 H3 L M
50 0M-1 108 114 80 161 155 43 4-M16
65 0M-1 108 127 80 175 155 46 4-M16
80 0M-1 108 146 95 181 155 46 4-M16
100 0M-A 108 178 114 200 200 52 8-M16
125 0M-A 108 210 127 213 200 56 8-M16
150 0M-2 200 235 139 223 290 56 8-M20
200 0M-3 200 292 175 260 290 60 8-M20
250 0M-4 234 356 203 292 315 68 12-M20
300 0M-5 234 406 242 337 315 78 12-M24

All dimensions in mm unless shown otherwise.



Number Item Material
1 Body Fusion Bonded Epoxy Cast Iron
2 Seat Phenolic backed cartridge style EPDM
3 Disc 316 Stainless Steel
4 Shaft 416 Stainless Steel
5 Bushings PTFE
6 Stem Orings EPDM
7 Actuator Fastners 316 Stainless Steel
8 Electric Actuator Powder Coated Aluminium
9 Visual Indicator Perspex

Size 50mm to 600mm
Body FBE coated Cast Iron
Seat EPDM
Disc 316 Stainless Steel
Pressure Up to 16 BAR (depending upon size)
Actuation Electric

BFLE

Lugged Ductile Iron Electric Butterfly Valve

Features:

Size 50mm to 600mm
Body FBE coated Cast Iron
Seat EPDM
Disc 316 Stainless Steel
Pressure Up to 16 BAR (depending upon size)
Actuation Electric

Description:

The BFL Series of Butterfly Valves is a fusion bonded epoxy coated Ductile Iron bodied valve with a 316SS Disc and EPDM seat (FKM and NBR available as option - Contact Sales). The lugged design is available to suit multiple flanges (AS2129 Table E, AS4087 PN16 / Table D, ANSI 150) and is coupled with a Powder Coated Die Cast Aluminium Electric Actuator (Other Electric Actuator options include Modulating, Explosion Proof, Spring Return & Stainless Steel Housing - Contact Sales for options). The seats are a unique bonded cartridge design that allows vacuum to be run through the valve, allows renewal of the seat and gives a longer lifespan to the seat. This valve is suitable for a wide range of general and watermark water applications such as water trucks, cement hoppers, irrigation and other industrial applications.

  • Ductile Iron Body (FBE Coated) with 316SS Disc & EPDM Seat (optional seats available)
  • IP67 Quarter Turn Electric Actuator with M20x1.5 Cable Glands, Visual Indicator, Manual Override and additional limit switches as standard
  • Lugged variants in AS2129 Table E, AS4087 PN16 / Table D or ANSI 150. Extension Shafts can also be fitted for use in pits etc (Contact Sales)
  • Designed and Manufactured in accordance with API609, Inspected and Tested in accordance with API598
  • Watermark Approved (License Number WMK26314) (Contact Sales if required for application)
  • Valves above 600mm can be produced, Contact Sales for details
Model Size (mm) Actuator Media Pressure Media Temperature
BFL50-E*-E 50 0M-1 Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFL65-E*-E 65 0M-1 Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFL80-E*-E 80 0M-1 Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFL100-E*-E 100 0M-A Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFL125-E*-E 125 0M-A Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFL150-E*-E 150 0M-2 Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFL200-E*-E 200 0M-3 Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFL250-E*-E 250 0M-4 Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFL300-E*-E 300 0M-5 Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFL350-E*-E 350 0M-6 Vacuum to 10 BAR -20°C to 90°C (40°C Potable)
BFL400-E*-E 400 0M-7 Vacuum to 10 BAR -20°C to 90°C (40°C Potable)
BFL450-E*-E 450 0M-8 Vacuum to 10 BAR -20°C to 90°C (40°C Potable)
BFL500-E*-E 500 0M-9 Vacuum to 10 BAR -20°C to 90°C (40°C Potable)
BFL600-E*-E 600 0M-11 Vacuum to 10 BAR -20°C to 90°C (40°C Potable)

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC

.

Lugged Ductile Iron Electric Butterfly Valve

BFLE

Dimensions:

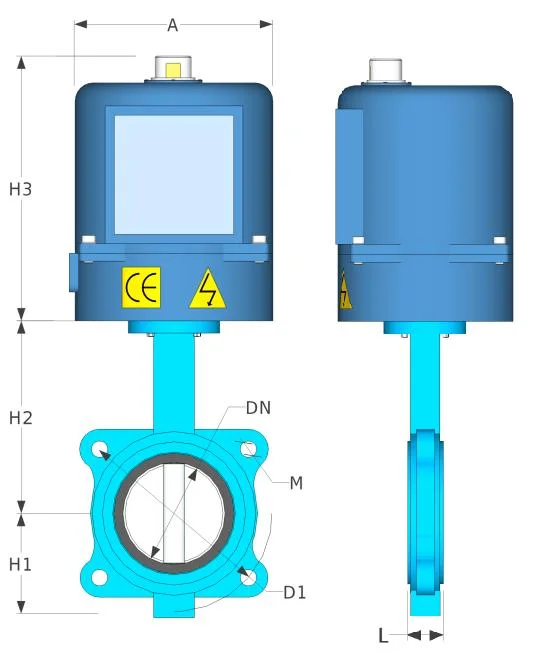

Electric Actuator Lugged Butterfly Valve

DN Actuator A D1 H1 H2 H3 L M
50 0M-1 108 114 80 161 155 43 4-M16
65 0M-1 108 127 80 175 155 46 4-M16
80 0M-1 108 146 95 181 155 46 4-M16
100 0M-A 108 178 114 200 200 52 8-M16
125 0M-A 108 210 127 213 200 56 8-M16
150 0M-2 200 235 139 223 290 56 8-M20
200 0M-3 200 292 175 260 290 60 8-M20
250 0M-4 234 356 203 292 315 68 12-M20
300 0M-5 234 406 242 337 315 78 12-M24

All dimensions in mm unless shown otherwise.

.

Lugged Ductile Iron Electric Butterfly Valve

BFLE

Construction:



Number Item Material
1 Body Fusion Bonded Epoxy Cast Iron
2 Seat Phenolic backed cartridge style EPDM
3 Disc 316 Stainless Steel
4 Shaft 416 Stainless Steel
5 Bushings PTFE
6 Stem Orings EPDM
7 Actuator Fastners 316 Stainless Steel
8 Electric Actuator Powder Coated Aluminium
9 Visual Indicator Perspex
