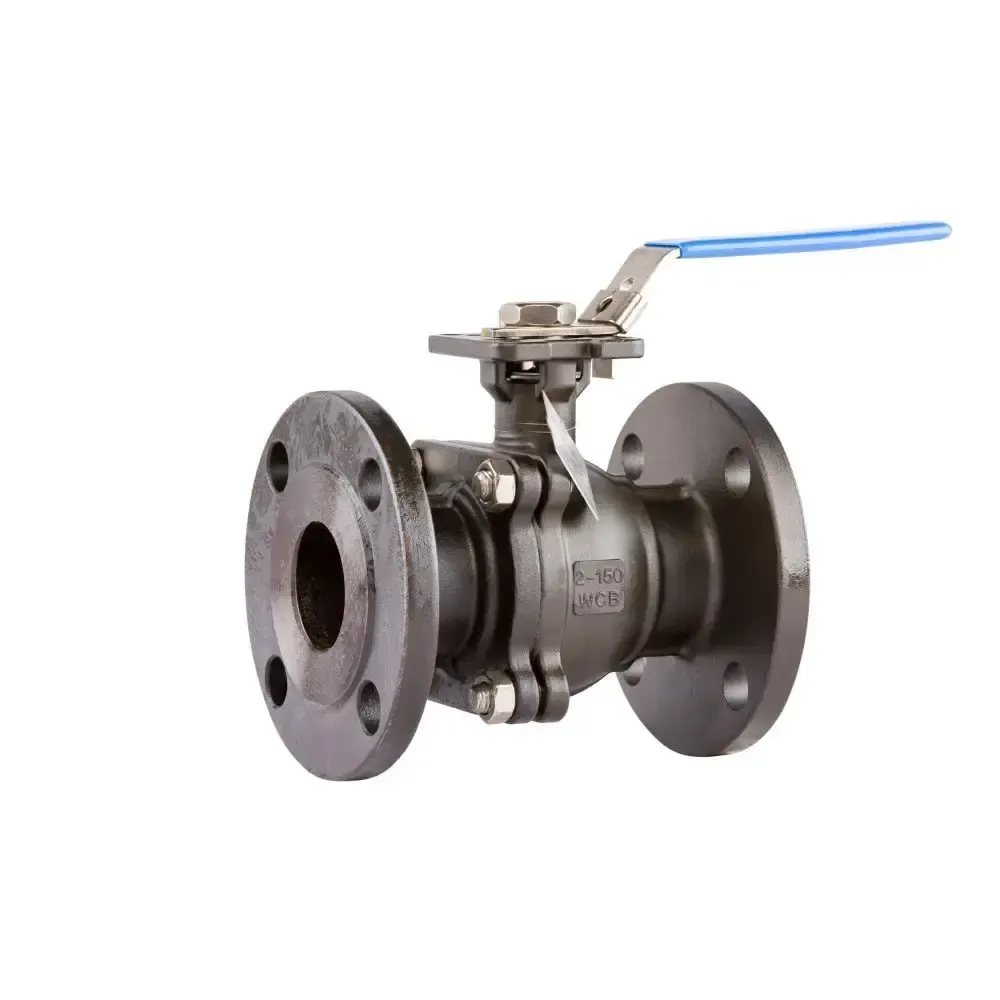

Two piece two way ANSI 150 flanged fire safe approved ball valve, lockable lever operation. Carbon Steel body, PTFE seats, FKM backing ring, live loaded packing and anti static device. Ball valve designed & manufactured to ANSI B16.34, face to face complies with ANSI B16.10, flange ends comply with ANSI B16.5 and testing and inspection according to API598. Firesafe Approved API607 Sixth Edition, Cert Number 249037. ISO5211 Mounting Pad allowing direct coupling of actuation. If you are using these on steam or other high temperature applications (above 120°C) and do not need the fire safe certification, we recommend going with a 50/50 stainless steel/ptfe seat to extend your valve life.

Model	Size (mm)	Media Pressure	Media Temperature	Torque (Nm)
BLCF4FA-L-RT	15	Vacuum (29" Hg) to 20 BAR (10 BAR Steam)	-20°C to 180°C	7
BLCF5FA-L-RT	20	Vacuum (29" Hg) to 20 BAR (10 BAR Steam)	-20°C to 180°C	10
BLCF6FA-L-RT	25	Vacuum (29" Hg) to 20 BAR (10 BAR Steam)	-20°C to 180°C	16
BLCF7FA-L-RT	32	Vacuum (29" Hg) to 20 BAR (10 BAR Steam)	-20°C to 180°C	24
BLCF8FA-L-RT	40	Vacuum (29" Hg) to 20 BAR (10 BAR Steam)	-20°C to 180°C	32
BLCF9FA-L-RT	50	Vacuum (29" Hg) to 20 BAR (10 BAR Steam)	-20°C to 180°C	48
BLCF10FA-L-RT	63	Vacuum (29" Hg) to 20 BAR (10 BAR Steam)	-20°C to 180°C	72
BLCF11FA-L-RT	80	Vacuum (29" Hg) to 20 BAR (10 BAR Steam)	-20°C to 180°C	90
BLCF12FA-L-RT	100	Vacuum (29" Hg) to 20 BAR (10 BAR Steam)	-20°C to 180°C	150
BLCF13FA-L-RT	125	Vacuum (29" Hg) to 20 BAR (10 BAR Steam)	-20°C to 180°C	320
BLCF14FA-L-RT	150	Vacuum (29" Hg) to 20 BAR (10 BAR Steam)	-20°C to 180°C	390
BLCF15FA-L-RT	200	Vacuum (29" Hg) to 20 BAR (10 BAR Steam)	-20°C to 180°C	560
BLCF16FA-L-RT	250	Vacuum (29" Hg) to 20 BAR (10 BAR Steam)	-20°C to 180°C	1100
BLCF17FA-L-RT	300	Vacuum (29" Hg) to 20 BAR (10 BAR Steam)	-20°C to 180°C	1890

Cast Steel Fire Safe Ball Valve

Size 15mm to 300mm
Body Carbon Steel
Seat PTFE
Pressure 150 pound
Temperature -20°C to 180°C
Actuation Lockable Lever or Gearbox
Fire Safe API607 6th E. Cert.

50mm to 100mm

Stainless Steel Fire Safe Ball Valve ANSI 150 Construction

Item	Part	Material	Qty
1	Cap	WCB	1
2	Bolt	SS304	4(8)
3	Body Gasket	Pure Graphite	1
4	Body	WCB	1
5	Ball	SS316	1
6	Ball Seat	Pure PTFE	2
7	Stem	SS316	1
8	Thrust Washer	Pure PTFE	1
9	O-ring	Viton	1
10	Stem Packing	Pure Graphite	1
11	Packing Ring	SS304	1
12	Belleville Washer	SS301	2
13	Nut Stopper	SS304	1
14	Plate Washer	SS304	1
15	Nut	SS304	2
16	Lock Device	SS304	1
17	Handle	SS304	1
18	Plastic Cover	Plastic	1
19	Stop Pin	SS304	1

125mm to 200mm

Item	Part	Material	Qty
1	Cap	WCB	1
2	Bolt	SS304	8
3	Body Gasket	Pure Graphite	1
4	Body	WCB	1
5	Ball	SS316	1
6	Ball Seat	Pure PTFE	2
7	Stem	SS316	1
8	Thrust Washer	Pure PTFE	1
9	O-ring	Viton	1
10	Stem Packing	Pure Graphite	1
11	Packing Ring	SS304	1
12	Belleville Washer	SS301	2
13	Nut	SS304	1
14	Nut Stopper	SS304	1
15	Plate Washer	SS304	1
16	Lock Device	SS304	1
17	Sleeve	CF8M	1
18	Jackscrew	SS304	2
19	Handle	Galvanized Pipe	1
20	Plastic Cover	Plastic	1
21	Stop Pin	SS304	2

Cast Steel Fire Safe Ball Valve Design

50mm to 100mm

Size	d	L	D	D1	D2	b	f	H	W	C	ISO5211	Z-Ød1	h	s	Kgs
1/2"	15	108	89	60.5	35	11	2	82	117	9	F03/F04	4-15	48	42.6	1.48
3/4"	20	117	98	70	43	11	2	87	117	9	F03/F04	4-15	53	42.6	2.04
1"	25	127	108	79.5	51	12	2	90	164	11	F04/F05	4-15	58.5	50	2.86
1-1/4"	32	140	117	89	64	13	2	100	164	11	F04/F05	4-15	71	50	3.94
1-1/2"	40	165	127	98.5	73	15	2	116	203	14	F05/F07	4-15	76.5	64.5	5.94
2"	50	178	152	120.5	92	16	2	125	203	14	F05/F07	4-19	85	64.5	7.61
2-1/2"	65	190	178	139.5	105	18	2	164	255	17	F07/F10	4-19	110	93.6	13.2
3"	80	203	190	152.5	127	19	2	174	255	17	F07/F10	4-19	122.5	93.6	17.1
4"	100	229	229	190.5	157	24	2	200	302	17	F07/F10	8-19	145.5	93.6	29.2
5"	125	356	254	216	186	24	2	258	600	22	F10/F12	8-18	185	114	42
6"	150	394	279	241.5	216	26	2	276	600	22	F10/F12	8-22	202.5	114	82
8"	200	457	343	298.5	270	29	2	350	800	27	F12/F14	8-22	257	131	140

ANSI150 Flange Fire Safe Stainless Steel Ball Valve Dimensions

DATA SHEET

BLCF

Cast Steel ANSI 150 Flanged Fire Safe Ball Valve

Features:

Size 15mm to 300mm
Body Carbon Steel
Seat PTFE
Pressure 150 pound
Temperature -20°C to 180°C
Actuation Lockable Lever or Gearbox
Fire Safe API607 6th E. Cert.

Description:

Model	Size (mm)	Media Pressure	Media Temperature	Torque (Nm)
BLCF4FA-L-RT	15	Vacuum (29" Hg) to 20 BAR (10 BAR Steam)	-20°C to 180°C	7
BLCF5FA-L-RT	20	Vacuum (29" Hg) to 20 BAR (10 BAR Steam)	-20°C to 180°C	10
BLCF6FA-L-RT	25	Vacuum (29" Hg) to 20 BAR (10 BAR Steam)	-20°C to 180°C	16
BLCF7FA-L-RT	32	Vacuum (29" Hg) to 20 BAR (10 BAR Steam)	-20°C to 180°C	24
BLCF8FA-L-RT	40	Vacuum (29" Hg) to 20 BAR (10 BAR Steam)	-20°C to 180°C	32
BLCF9FA-L-RT	50	Vacuum (29" Hg) to 20 BAR (10 BAR Steam)	-20°C to 180°C	48
BLCF10FA-L-RT	63	Vacuum (29" Hg) to 20 BAR (10 BAR Steam)	-20°C to 180°C	72
BLCF11FA-L-RT	80	Vacuum (29" Hg) to 20 BAR (10 BAR Steam)	-20°C to 180°C	90
BLCF12FA-L-RT	100	Vacuum (29" Hg) to 20 BAR (10 BAR Steam)	-20°C to 180°C	150
BLCF13FA-L-RT	125	Vacuum (29" Hg) to 20 BAR (10 BAR Steam)	-20°C to 180°C	320
BLCF14FA-L-RT	150	Vacuum (29" Hg) to 20 BAR (10 BAR Steam)	-20°C to 180°C	390
BLCF15FA-L-RT	200	Vacuum (29" Hg) to 20 BAR (10 BAR Steam)	-20°C to 180°C	560
BLCF16FA-L-RT	250	Vacuum (29" Hg) to 20 BAR (10 BAR Steam)	-20°C to 180°C	1100
BLCF17FA-L-RT	300	Vacuum (29" Hg) to 20 BAR (10 BAR Steam)	-20°C to 180°C	1890

Cast Steel Fire Safe Ball Valve

Dimensions:

50mm to 100mm

Size	d	L	D	D1	D2	b	f	H	W	C	ISO5211	Z-Ød1	h	s	Kgs
1/2"	15	108	89	60.5	35	11	2	82	117	9	F03/F04	4-15	48	42.6	1.48
3/4"	20	117	98	70	43	11	2	87	117	9	F03/F04	4-15	53	42.6	2.04
1"	25	127	108	79.5	51	12	2	90	164	11	F04/F05	4-15	58.5	50	2.86
1-1/4"	32	140	117	89	64	13	2	100	164	11	F04/F05	4-15	71	50	3.94
1-1/2"	40	165	127	98.5	73	15	2	116	203	14	F05/F07	4-15	76.5	64.5	5.94
2"	50	178	152	120.5	92	16	2	125	203	14	F05/F07	4-19	85	64.5	7.61
2-1/2"	65	190	178	139.5	105	18	2	164	255	17	F07/F10	4-19	110	93.6	13.2
3"	80	203	190	152.5	127	19	2	174	255	17	F07/F10	4-19	122.5	93.6	17.1
4"	100	229	229	190.5	157	24	2	200	302	17	F07/F10	8-19	145.5	93.6	29.2
5"	125	356	254	216	186	24	2	258	600	22	F10/F12	8-18	185	114	42
6"	150	394	279	241.5	216	26	2	276	600	22	F10/F12	8-22	202.5	114	82
8"	200	457	343	298.5	270	29	2	350	800	27	F12/F14	8-22	257	131	140

ANSI150 Flange Fire Safe Stainless Steel Ball Valve Dimensions

Construction:

50mm to 100mm

Stainless Steel Fire Safe Ball Valve ANSI 150 Construction

Item	Part	Material	Qty
1	Cap	WCB	1
2	Bolt	SS304	4(8)
3	Body Gasket	Pure Graphite	1
4	Body	WCB	1
5	Ball	SS316	1
6	Ball Seat	Pure PTFE	2
7	Stem	SS316	1
8	Thrust Washer	Pure PTFE	1
9	O-ring	Viton	1
10	Stem Packing	Pure Graphite	1
11	Packing Ring	SS304	1
12	Belleville Washer	SS301	2
13	Nut Stopper	SS304	1
14	Plate Washer	SS304	1
15	Nut	SS304	2
16	Lock Device	SS304	1
17	Handle	SS304	1
18	Plastic Cover	Plastic	1
19	Stop Pin	SS304	1

125mm to 200mm

Item	Part	Material	Qty
1	Cap	WCB	1
2	Bolt	SS304	8
3	Body Gasket	Pure Graphite	1
4	Body	WCB	1
5	Ball	SS316	1
6	Ball Seat	Pure PTFE	2
7	Stem	SS316	1
8	Thrust Washer	Pure PTFE	1
9	O-ring	Viton	1
10	Stem Packing	Pure Graphite	1
11	Packing Ring	SS304	1
12	Belleville Washer	SS301	2
13	Nut	SS304	1
14	Nut Stopper	SS304	1
15	Plate Washer	SS304	1
16	Lock Device	SS304	1
17	Sleeve	CF8M	1
18	Jackscrew	SS304	2
19	Handle	Galvanized Pipe	1
20	Plastic Cover	Plastic	1
21	Stop Pin	SS304	2

Cast Steel Fire Safe Ball Valve Design

WARNING

These products are intended for use in industrial applications only. Do not use these products where pressures and temperatures can exceed those listed under ‘Technical Data’ and in our individual ‘Series’ data sheets. Before using these products with fluids other than these specified, for non-industrial applications, life-support systems, or other applications not within published specifications, consult Hawleys Engineering Solutions Pty Ltd. Through misuse, age, or malfunction, components used in industrial valve applications can fail in various modes. The system designer is warned to consider the failure modes of all component parts used in industrial valve applications and to provide adequate safeguards to prevent personal injury or damage to equipment in the event of such failure. System designers must provide a warning to the user in the system instructional manual if protection against a failure mode cannot be adequately provided. System designers and end users are cautioned to review specific warnings or specifications found in instruction sheets or labels packed or attached and shipped with the products. Our policy is one of continuous research and development. We therefore reserve the right to amend without notice the specifications given in this document or our individual ‘Series’ data sheets.

WARRANTY INFORMATION

All valve series and other products manufactured or distributed by Hawleys Engineering Solutions are warranted by Hawleys Engineering Solutions to be free of defects in material and workmanship for a period of 1 year from the date of purchase or as the manufacturer warrants. Hawleys Engineering Solutions obligation under this warranty is limited to repair or replacement of the defec1ive product or refund of the purchase price paid solely at the discretion of Hawleys Engineering Solutions and provided such defective product is returned to Hawleys Engineering Solutions freight prepaid and upon examination by Hawleys Engineering Solutions such product is found defective. This warranty shall be void in the event that the product has been subject to misuse, misapplication, improper maintenance, modification or tampering. This warranty is expressed in lieu of all other warranties, expressed or implied from Hawleys Engineering Solutions representatives or employees. Hawleys Engineering Solutions reserves the right to change Valve and Brochure specifications without notice.

Model	Size (mm)	Media Pressure	Media Temperature	Torque (Nm)
BLCF4FA-L-RT	15	Vacuum (29" Hg) to 20 BAR (10 BAR Steam)	-20°C to 180°C	7
BLCF5FA-L-RT	20	Vacuum (29" Hg) to 20 BAR (10 BAR Steam)	-20°C to 180°C	10
BLCF6FA-L-RT	25	Vacuum (29" Hg) to 20 BAR (10 BAR Steam)	-20°C to 180°C	16
BLCF7FA-L-RT	32	Vacuum (29" Hg) to 20 BAR (10 BAR Steam)	-20°C to 180°C	24
BLCF8FA-L-RT	40	Vacuum (29" Hg) to 20 BAR (10 BAR Steam)	-20°C to 180°C	32
BLCF9FA-L-RT	50	Vacuum (29" Hg) to 20 BAR (10 BAR Steam)	-20°C to 180°C	48
BLCF10FA-L-RT	63	Vacuum (29" Hg) to 20 BAR (10 BAR Steam)	-20°C to 180°C	72
BLCF11FA-L-RT	80	Vacuum (29" Hg) to 20 BAR (10 BAR Steam)	-20°C to 180°C	90
BLCF12FA-L-RT	100	Vacuum (29" Hg) to 20 BAR (10 BAR Steam)	-20°C to 180°C	150
BLCF13FA-L-RT	125	Vacuum (29" Hg) to 20 BAR (10 BAR Steam)	-20°C to 180°C	320
BLCF14FA-L-RT	150	Vacuum (29" Hg) to 20 BAR (10 BAR Steam)	-20°C to 180°C	390
BLCF15FA-L-RT	200	Vacuum (29" Hg) to 20 BAR (10 BAR Steam)	-20°C to 180°C	560
BLCF16FA-L-RT	250	Vacuum (29" Hg) to 20 BAR (10 BAR Steam)	-20°C to 180°C	1100
BLCF17FA-L-RT	300	Vacuum (29" Hg) to 20 BAR (10 BAR Steam)	-20°C to 180°C	1890

Size 15mm to 300mm
Body Carbon Steel
Seat PTFE
Pressure 150 pound
Temperature -20°C to 180°C
Actuation Lockable Lever or Gearbox
Fire Safe API607 6th E. Cert.

50mm to 100mm

Size	d	L	D	D1	D2	b	f	H	W	C	ISO5211	Z-Ød1	h	s	Kgs
1/2"	15	108	89	60.5	35	11	2	82	117	9	F03/F04	4-15	48	42.6	1.48
3/4"	20	117	98	70	43	11	2	87	117	9	F03/F04	4-15	53	42.6	2.04
1"	25	127	108	79.5	51	12	2	90	164	11	F04/F05	4-15	58.5	50	2.86
1-1/4"	32	140	117	89	64	13	2	100	164	11	F04/F05	4-15	71	50	3.94
1-1/2"	40	165	127	98.5	73	15	2	116	203	14	F05/F07	4-15	76.5	64.5	5.94
2"	50	178	152	120.5	92	16	2	125	203	14	F05/F07	4-19	85	64.5	7.61
2-1/2"	65	190	178	139.5	105	18	2	164	255	17	F07/F10	4-19	110	93.6	13.2
3"	80	203	190	152.5	127	19	2	174	255	17	F07/F10	4-19	122.5	93.6	17.1
4"	100	229	229	190.5	157	24	2	200	302	17	F07/F10	8-19	145.5	93.6	29.2
5"	125	356	254	216	186	24	2	258	600	22	F10/F12	8-18	185	114	42
6"	150	394	279	241.5	216	26	2	276	600	22	F10/F12	8-22	202.5	114	82
8"	200	457	343	298.5	270	29	2	350	800	27	F12/F14	8-22	257	131	140

50mm to 100mm

Item	Part	Material	Qty
1	Cap	WCB	1
2	Bolt	SS304	4(8)
3	Body Gasket	Pure Graphite	1
4	Body	WCB	1
5	Ball	SS316	1
6	Ball Seat	Pure PTFE	2
7	Stem	SS316	1
8	Thrust Washer	Pure PTFE	1
9	O-ring	Viton	1
10	Stem Packing	Pure Graphite	1
11	Packing Ring	SS304	1
12	Belleville Washer	SS301	2
13	Nut Stopper	SS304	1
14	Plate Washer	SS304	1
15	Nut	SS304	2
16	Lock Device	SS304	1
17	Handle	SS304	1
18	Plastic Cover	Plastic	1
19	Stop Pin	SS304	1

125mm to 200mm

Item	Part	Material	Qty
1	Cap	WCB	1
2	Bolt	SS304	8
3	Body Gasket	Pure Graphite	1
4	Body	WCB	1
5	Ball	SS316	1
6	Ball Seat	Pure PTFE	2
7	Stem	SS316	1
8	Thrust Washer	Pure PTFE	1
9	O-ring	Viton	1
10	Stem Packing	Pure Graphite	1
11	Packing Ring	SS304	1
12	Belleville Washer	SS301	2
13	Nut	SS304	1
14	Nut Stopper	SS304	1
15	Plate Washer	SS304	1
16	Lock Device	SS304	1
17	Sleeve	CF8M	1
18	Jackscrew	SS304	2
19	Handle	Galvanized Pipe	1
20	Plastic Cover	Plastic	1
21	Stop Pin	SS304	2

Welcome to our website. If you continue to browse and use this website, you are agreeing to comply with and be bound by the following terms and conditions of use, which together with our privacy policy govern Hawleys Engineering Solutions’s relationship with you in relation to this website. If you disagree with any part of these terms and conditions, please do not use our website.

The term ‘Hawleys Engineering Solutions’ or ‘us’ or ‘we’ refers to the owner of the website whose registered office is 4 / 308 New Cleveland Road, Tingalpa, QLD, 4173, AU. Our ABN is 70641038119. The term ‘you’ refers to the user or viewer of our website.

The use of this website is subject to the following terms of use:

The content of the pages of this website is for your general information and use only. It is subject to change without notice.
Neither we nor any third parties provide any warranty or guarantee as to the accuracy, timeliness, performance, completeness or suitability of the information and materials found or offered on this website for any particular purpose. You acknowledge that such information and materials may contain inaccuracies or errors and we expressly exclude liability for any such inaccuracies or errors to the fullest extent permitted by law.
Your use of any information or materials on this website is entirely at your own risk, for which we shall not be liable. It shall be your own responsibility to ensure that any products, services or information available through this website meet your specific requirements.
This website contains material which is owned by or licensed to us. This material includes, but is not limited to, the design, layout, look, appearance and graphics. Reproduction is prohibited other than in accordance with the copyright notice, which forms part of these terms and conditions.
All trademarks reproduced in this website, which are not the property of, or licensed to the operator, are acknowledged on the website.
Unauthorised use of this website may give rise to a claim for damages and/or be a criminal offence.
From time to time, this website may also include links to other websites. These links are provided for your convenience to provide further information. They do not signify that we endorse the website(s). We have no responsibility for the content of the linked website(s).
Your use of this website and any dispute arising out of such use of the website is subject to the laws of Australia.

Cast Steel ANSI 150 Flanged Fire Safe Ball Valve

SKU: BLCF

FREE Shipping for orders over $100

50mm to 100mm

50mm to 100mm

BLCF

Cast Steel ANSI 150 Flanged Fire Safe Ball Valve

Features:

Description:

Dimensions:

50mm to 100mm

Construction:

50mm to 100mm

WARNING

WARRANTY INFORMATION

50mm to 100mm

50mm to 100mm

50mm to 100mm

50mm to 100mm

BLCF

Cast Steel ANSI 150 Flanged Fire Safe Ball Valve

Features:

Description:

Dimensions:

50mm to 100mm

Construction:

50mm to 100mm

WARNING

WARRANTY INFORMATION

Description

Features

Dimensions

50mm to 100mm

Construction

50mm to 100mm

Terms & Conditions

Privacy Policy
