Features:
Size 1/2" to 2" BSPT
Body Bronze
Application Water
Inlet Pressure Range 2 to 16 Bar
Outlet Pressure Range 0.5 to 5.5 BAR
Temperature 0°C to 80°C

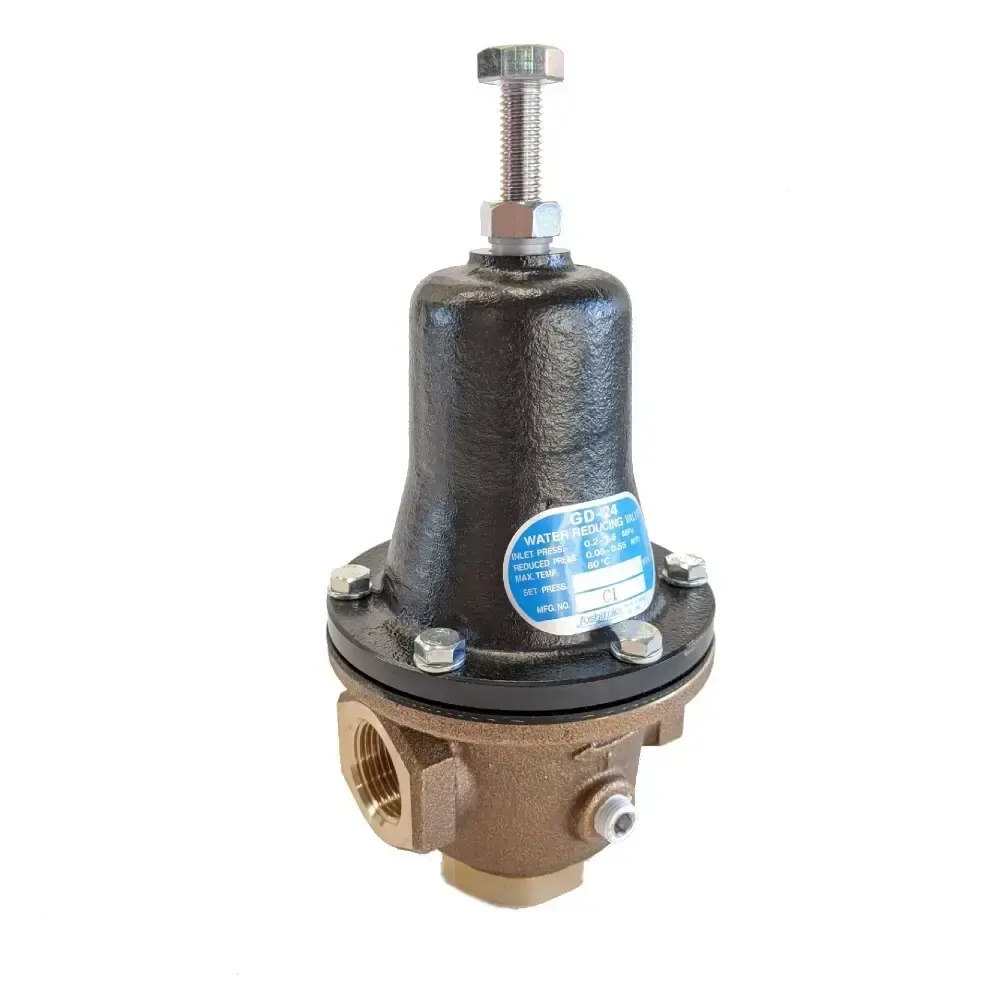

The GD-24 Series of Pressure Reducing Valves from Yoshitake are a small and compact Pressure Reducing Valve designed especially for Cold & Hot Water applications. All wetted parts are made from corrosion-resistant material to prevent rusty water downstream from the valve. This pressure reducing valve is direct acting and is a hanging type which allows this valve to have no sliding parts, meaning greater performance due to less wear on internal parts. The GD-24 has a closed structure which keeps the fluid contained within the valve, even if the diaphragm is damaged or broken. This valve is easliy installed in horizontal or vertical piping and can be run in parallel with multiple valves for a larger flow capacity. Maximum pressure reduction ratio of 10:1.
Application | Cold & hot water |
---|---|
Type | Direct-acting |
Inlet Pressure | 2 to 16 Bar |
Reduced Pressure | 0.5 to 5.5 Bar |
Connection | BSPT (ISO7.1 Rc) |
Temperature | 0 to 80°C |
Body | Bronze |
Valve & Seat | Brass & stainless steel |
Valve Disc | Urethane rubber |
Diaphragm | NBR |
Gauge Port | 1/8" Rc (Plugged, Gauge can be fitted - Not Supplied) |
Flow Rate capacity for Water (L/min)
DP (bar) | Connection Size - mm | |||||
---|---|---|---|---|---|---|
15 | 20 | 25 | 32 | 40 | 50 | |
0.5 | 15 | 20 | 30 | 40 | 70 | 100 |
0.7 | 18 | 24 | 36 | 48 | 84 | 120 |
1 | 22 | 29 | 44 | 59 | 103 | 147 |
1.7 | 30* | 38 | 57 | 76 | 132 | 189 |
3.4 | 40 | 53* | 80 | 107 | 187 | 268 |
5.2 | 49 | 66 | 98* | 131 | 231* | 328 |
6.9 | 57 | 76 | 114 | 151* | 265 | 378* |
8.6 | 63 | 85 | 127 | 169 | 296 | 423 |
10.3 | 70 | 93 | 139 | 185 | 325 | 464 |
12 | 75 | 100 | 150 | 200 | 351 | 501 |
13.8 | 80 | 107 | 161 | 214 | 375 | 535 |
* At values greater than this, flow rate in piping will exceed recommended flow velocity of 1 - 3 m/s.

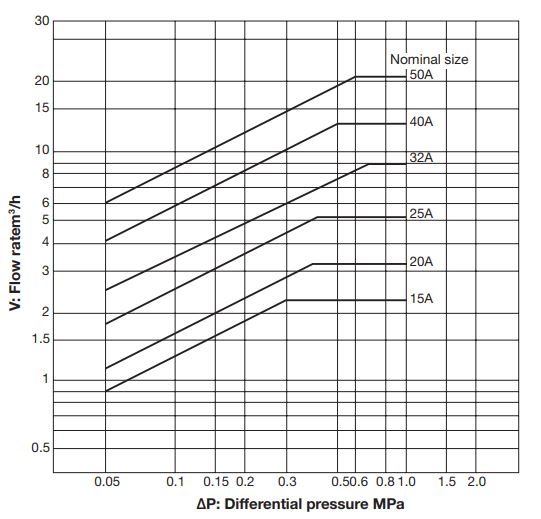

Size Selection Chart (For Water)

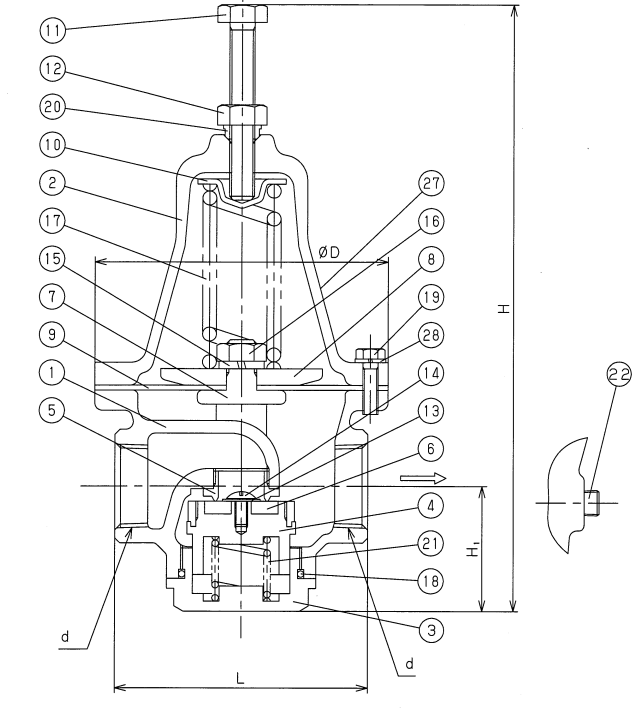

Size | d | L | H1 | H | D | Kg |
---|---|---|---|---|---|---|
15 | 1/2" BSPT | 80 | 41.5 | 193 | 90 | 1.8 |
20 | 3/4" BSPT | 90 | 45 | 210 | 100 | 2.4 |
25 | 1" BSPT | 100 | 50 | 230 | 116 | 3.3 |
32 | 1 1/4" BSPT | 120 | 60 | 265 | 120 | 4.7 |
40 | 1 1/2" BSPT | 150 | 62 | 315 | 165 | 8.2 |
50 | 2" BSPT | 185 | 73 | 365 | 190 | 14.3 |
All dimensions in mm unless shown otherwise.
Number | Part | Material | Grade |
---|---|---|---|
1 | Body | Bronze | CAC406 |
2 | Spring Chamber | Cast Iron | FC200 |
3 | Cap | Brass | C3604 |
4 | Valve | Brass | C3604 |
5 | Valve Seat | Stainless Steel | SUS304 |
6 | Disc | Urethane Rubber | |
7 | Suspensin Metal | Bronze | CAC406 |
8 | Diaphragm Shell | Cast Iron or Carbon Steel | FC200 or SPC |
9 | Diaphragm | NBR | NBR |
10 | Spring Plate | Carbon Steel | SPC |
11 | Adjusting Screw | Rolled Steel | SS400 |
12 | Lock Nut | Rolled Steel | SS400 |
Number | Part | Material | Grade |
---|---|---|---|
13 | Washer | Stainless Steel | SUS304 |
14 | Set Screw | Stainless Steel | SUS304 |
15 | Spring Lock Washer | Alloy Steel | SWRH |
16 | Nut | Brass | C3604 |
17 | Spring | Alloy Steel | SWOSC |
18 | Ring | NBR | NBR |
19 | Bolt | Rolled Steel | SS400 |
20 | Sealed Nut | Polypropylene | P.P |
21 | Spring | Stainless Steel | SUS304 |
22 | Plug ( 1/8" ) | Stainless Steel | SUS304 |
27 | Label | Polyester | |
28 | Spring Washer | Alloy Steel | SWRH |
