Brass Steam & Hi Temperature Normally Closed Solenoid Valve

From $308.00

Inc GST
In Stock
Make an Enquiry

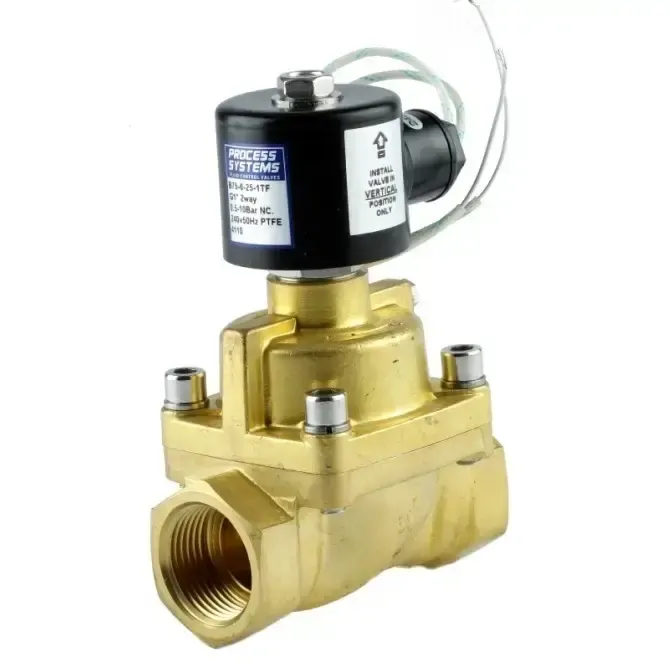

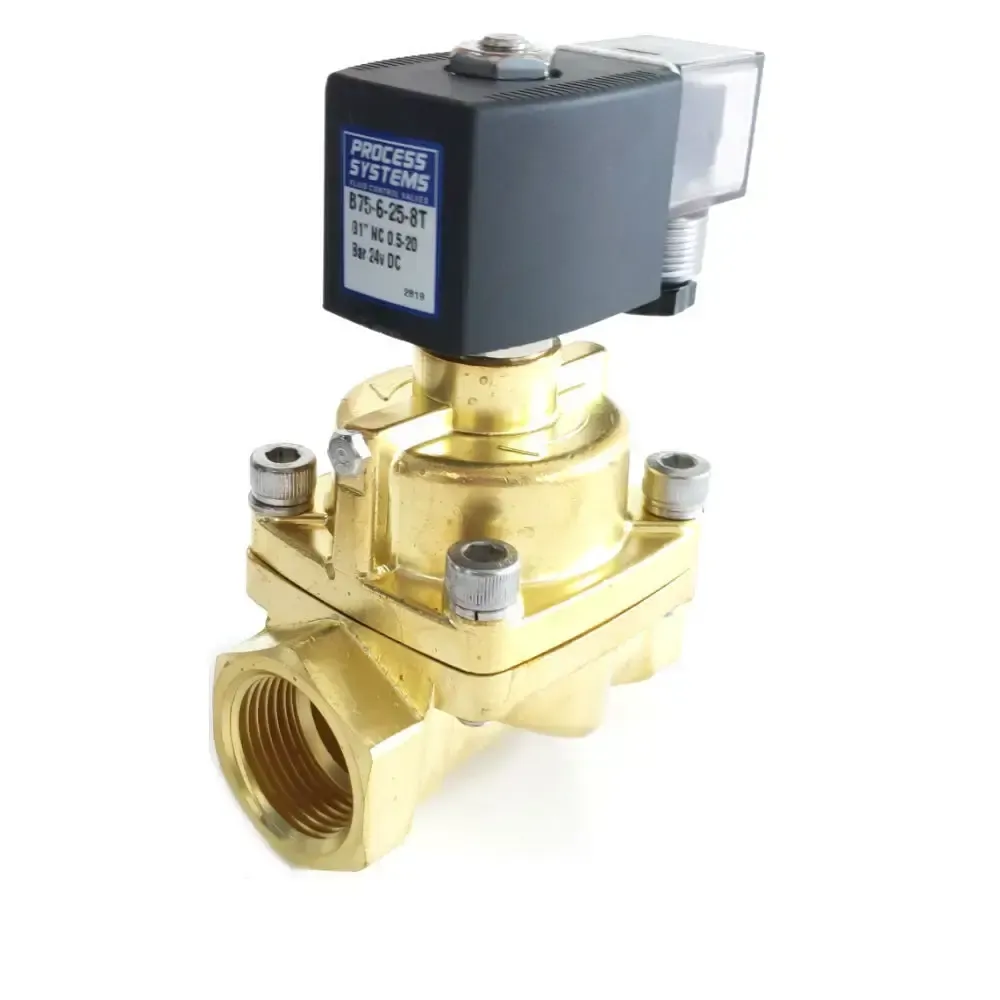

The B75 series of solenoids are a forged brass high flow / high pressure normally closed solenoid valve. These valves operated via a piston and have teflon seals, making this valve suitable for steam (up to 10 Bar) and higher temperature applications. This valve can be supplied with a Flying Lead coil or a DIN Plug coil and will handle fluids up to 50 centistokes viscosity. The PTFE seat in this valve is a hard PTFE which is likely at low pressures / temperatures to allow some seepage and not form a bubble tight seal. This valve is a differential style valve which requires a minimum inlet pressure to actuate.Typical applications include laundry equipment, hospitals, steam curing beds, boilers and general industry. Thread conform to ISO7.1 Sealing Threads.

Model Port Size (BSP) Orifice ømm CV Pressure (BAR) Media Temperature Coil Specifications
B75-3-15-*T 3/8 15 4.5 0.5 to 20 -10°C to 180°C SC-N16
DIN Plug
28 Watts
24 Volt Amps
100% ED
Class H Insulation
IP65
B75-4-15-*T 1/2 15 4.5 0.5 to 20 -10°C to 180°C
B75-5-20-*T 3/4 20 9.3 0.5 to 20 -10°C to 180°C
B75-6-25-*T 1 25 13.2 0.5 to 20 -10°C to 180°C
B75-7-35-*T 1 ¼ 35 26 0.5 to 20 -10°C to 180°C
B75-8-35-*T 1 ½ 35 26 0.5 to 20 -10°C to 180°C
B75-3-15-*TF 3/8 15 4.5 0.5 to 20 -10°C to 180°C SC-H2
Flying Leads
25 watts
33 Volt Amps
100% ED
Class H Insulation
IP54
B75-4-15-*TF 1/2 15 4.5 0.5 to 20 -10°C to 180°C
B75-5-20-*TF 3/4 20 9.3 0.5 to 20 -10°C to 180°C
B75-6-25-*TF 1 25 13.2 0.5 to 20 -10°C to 180°C
B75-7-35-*TF 1 ¼ 35 26 0.5 to 20 -10°C to 180°C
B75-8-35-*TF 1 ½ 35 26 0.5 to 20 -10°C to 180°C


*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC

Please note that this valve will only do steam to 10 BAR.

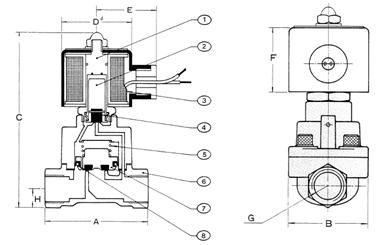

Brass Steam/High Temperature Solenoid Valve Dimensions

Model A B C D E F G (BSP) H Weight Kg
B75-3-15-*T 75 52 129 52 45 41 3/8 14.5 1.65
B75-4-15-*T 75 52 129 52 45 41 1/2 14.5 1.65
B75-5-20-*T 85 60 141 52 45 41 3/4 18 2.13
B75-6-25-*T 100 70 148 52 45 41 1 23 2.35
B75-7-35-*T 120 90 168 52 45 41 1 1/4 33 3.85
B75-8-35-*T 120 90 168 52 45 41 1 1/2 33 3.30
B75-9-50-*T 150 122 203 52 45 41 2 40.5 7.35

All dimensions in mm unless otherwise shown.



Brass High Temperature Solenoid Valve Construction

Item Article Material
1 Armature Stainless Steel 304
2 Plunger Stainless Steel 304
3 Coil Brass Wire
4 Plunger Seat Teflon
5 Spring Stainless Steel 304
6 Valve Body Brass Forged
7 Piston Brass
8 Leak proof & Piston Ring Teflon



Size 3/8" to 2" BSP
Function Normally Closed (power to open)
Valve Operation Servo Assisted
Body Brass
Seat PTFE
Pressure Range 0.5 to 20 BAR (10 BAR Steam)
Media Steam & High Pressure Air / Oil Media

Others Also Bought

B75

Brass Steam & Hi Temperature Normally Closed Solenoid Valve

Features:

Size 3/8" to 2" BSP
Function Normally Closed (power to open)
Valve Operation Servo Assisted
Body Brass
Seat PTFE
Pressure Range 0.5 to 20 BAR (10 BAR Steam)
Media Steam & High Pressure Air / Oil Media

Description:

The B75 series of solenoids are a forged brass high flow / high pressure normally closed solenoid valve. These valves operated via a piston and have teflon seals, making this valve suitable for steam (up to 10 Bar) and higher temperature applications. This valve can be supplied with a Flying Lead coil or a DIN Plug coil and will handle fluids up to 50 centistokes viscosity. The PTFE seat in this valve is a hard PTFE which is likely at low pressures / temperatures to allow some seepage and not form a bubble tight seal. This valve is a differential style valve which requires a minimum inlet pressure to actuate.Typical applications include laundry equipment, hospitals, steam curing beds, boilers and general industry. Thread conform to ISO7.1 Sealing Threads.

Model Port Size (BSP) Orifice ømm CV Pressure (BAR) Media Temperature Coil Specifications
B75-3-15-*T 3/8 15 4.5 0.5 to 20 -10°C to 180°C SC-N16
DIN Plug
28 Watts
24 Volt Amps
100% ED
Class H Insulation
IP65
B75-4-15-*T 1/2 15 4.5 0.5 to 20 -10°C to 180°C
B75-5-20-*T 3/4 20 9.3 0.5 to 20 -10°C to 180°C
B75-6-25-*T 1 25 13.2 0.5 to 20 -10°C to 180°C
B75-7-35-*T 1 ¼ 35 26 0.5 to 20 -10°C to 180°C
B75-8-35-*T 1 ½ 35 26 0.5 to 20 -10°C to 180°C
B75-3-15-*TF 3/8 15 4.5 0.5 to 20 -10°C to 180°C SC-H2
Flying Leads
25 watts
33 Volt Amps
100% ED
Class H Insulation
IP54
B75-4-15-*TF 1/2 15 4.5 0.5 to 20 -10°C to 180°C
B75-5-20-*TF 3/4 20 9.3 0.5 to 20 -10°C to 180°C
B75-6-25-*TF 1 25 13.2 0.5 to 20 -10°C to 180°C
B75-7-35-*TF 1 ¼ 35 26 0.5 to 20 -10°C to 180°C
B75-8-35-*TF 1 ½ 35 26 0.5 to 20 -10°C to 180°C


*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC

Please note that this valve will only do steam to 10 BAR.

.

Brass Steam & Hi Temperature Normally Closed Solenoid Valve

B75

Dimensions:

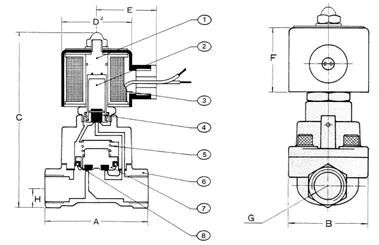

Brass Steam/High Temperature Solenoid Valve Dimensions

Model A B C D E F G (BSP) H Weight Kg
B75-3-15-*T 75 52 129 52 45 41 3/8 14.5 1.65
B75-4-15-*T 75 52 129 52 45 41 1/2 14.5 1.65
B75-5-20-*T 85 60 141 52 45 41 3/4 18 2.13
B75-6-25-*T 100 70 148 52 45 41 1 23 2.35
B75-7-35-*T 120 90 168 52 45 41 1 1/4 33 3.85
B75-8-35-*T 120 90 168 52 45 41 1 1/2 33 3.30
B75-9-50-*T 150 122 203 52 45 41 2 40.5 7.35

All dimensions in mm unless otherwise shown.



.

Brass Steam & Hi Temperature Normally Closed Solenoid Valve

B75

Construction:

Brass High Temperature Solenoid Valve Construction

Item Article Material
1 Armature Stainless Steel 304
2 Plunger Stainless Steel 304
3 Coil Brass Wire
4 Plunger Seat Teflon
5 Spring Stainless Steel 304
6 Valve Body Brass Forged
7 Piston Brass
8 Leak proof & Piston Ring Teflon
