SKU: S75T

Stainless Steel Very High Temperature Normally Closed Solenoid Valve

From $467.50

Inc GST
In Stock
Make an Enquiry

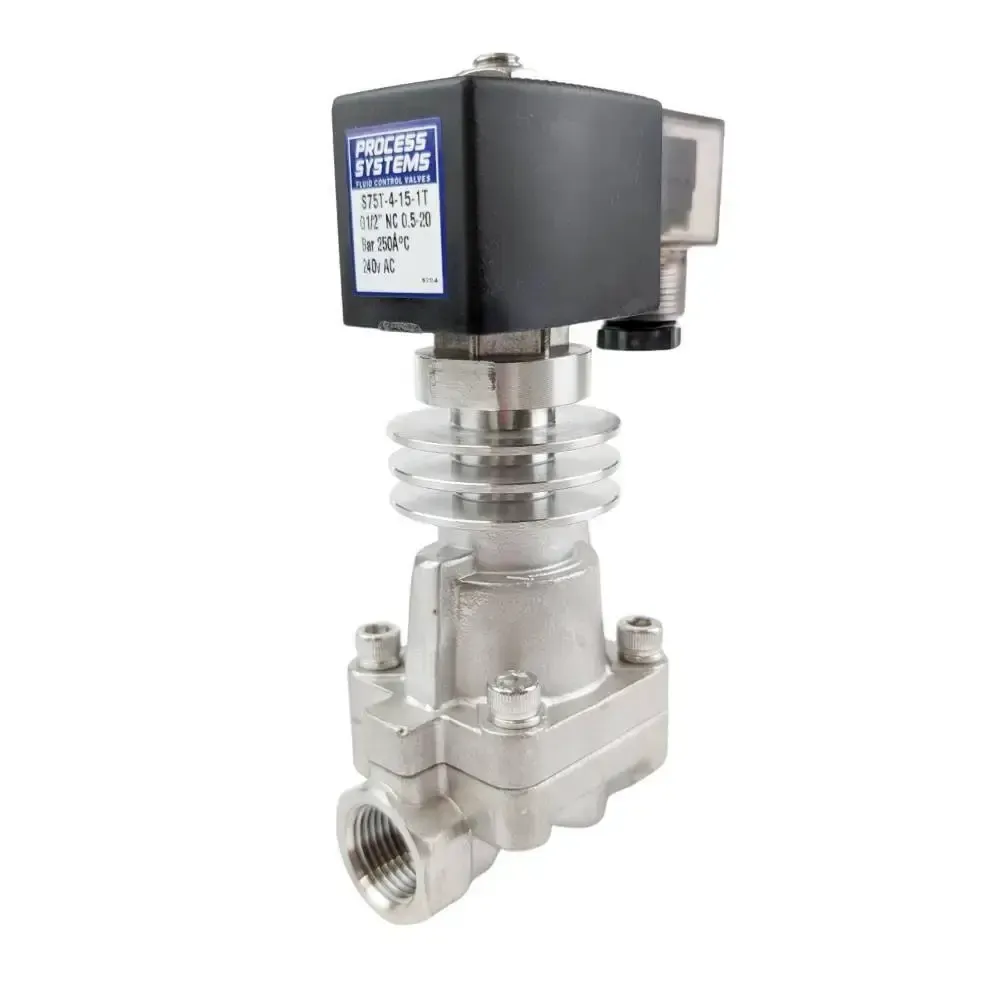

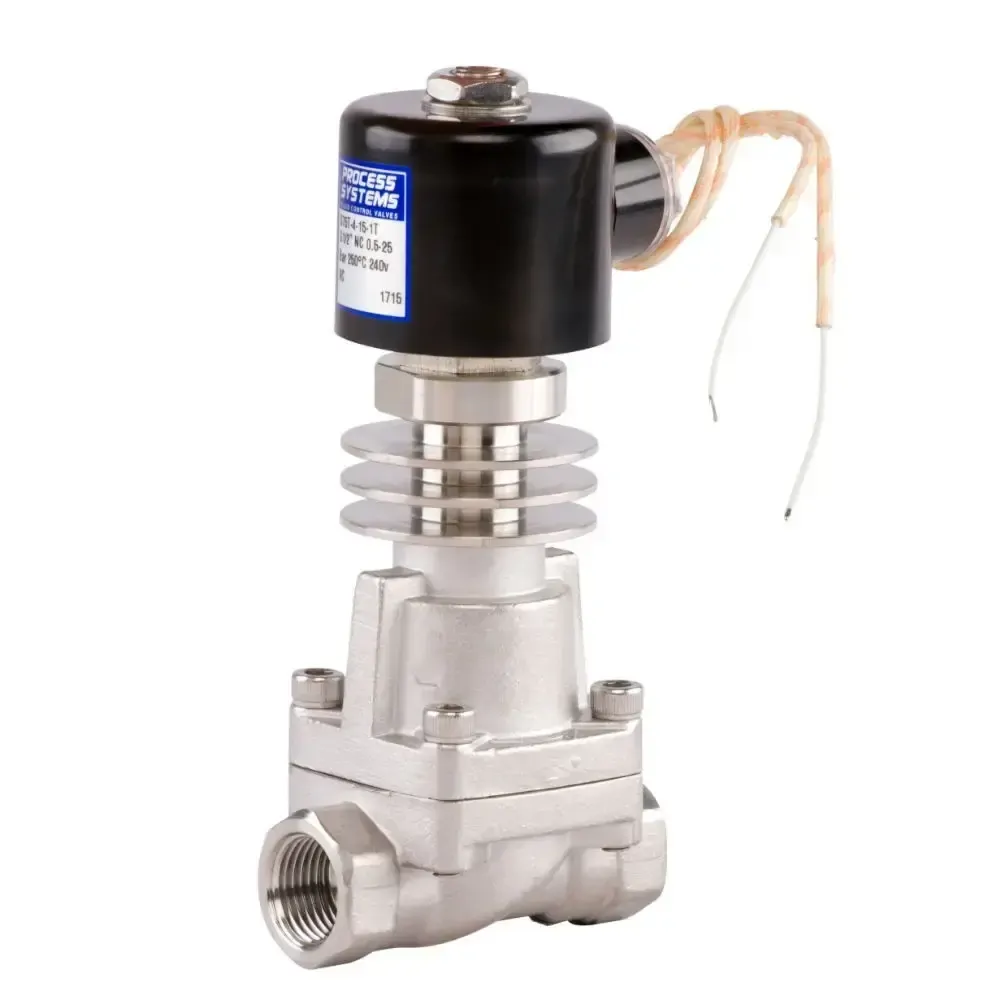

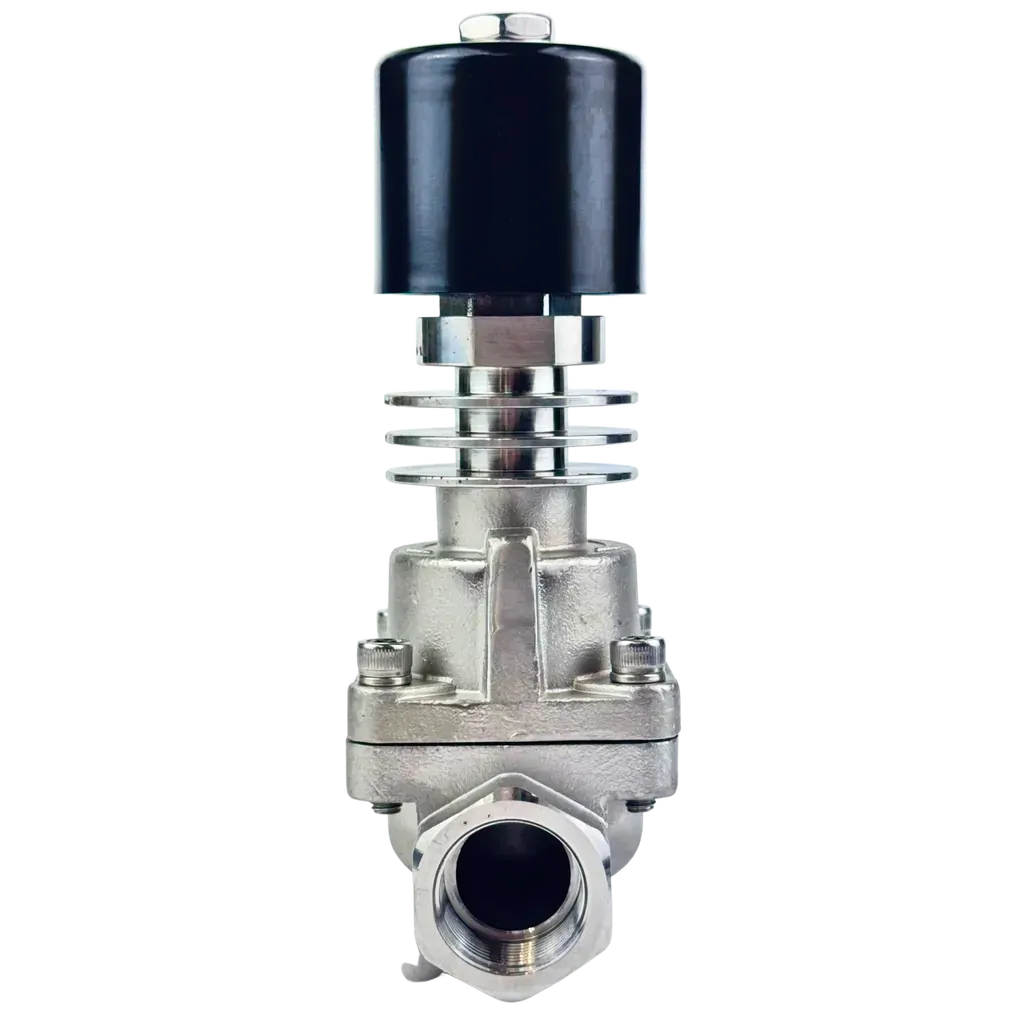

The S75 series of solenoids are a 304 Stainless Steel very high temperature normally closed solenoid valve. These valves operated via a piston and have teflon seals, making this valve suitable for steam and higher temperature applications (up to 25 Bar). This valve can be supplied with a Flying Lead coil or a DIN Plug coil and will handle fluids up to 50 centistokes viscosity. The PTFE seat in this valve is a hard PTFE which is likely at low pressures / temperatures to allow some seepage and not form a bubble tight seal. This valve is a differential style valve which requires a minimum inlet pressure to actuate.Typical applications include laundry equipment, hospitals, steam curing beds, boilers, hot oil and general industry. Thread conform to ISO7.1 Sealing Threads.

Model Port Size (BSP) Orifice ømm CV Media Temperature Pressure Steam Pressure Air/Oil Coil Specifications
S75T-4-15-*TF 1/2 15 4.5 -10°C to 225°C 0.5 to 25 BAR 0.5 to 25 BAR

SC-H2
33 Volt Amps
25 Watts
Class H Insulation
100% ED
IP54

S75T-5-20-*TF 3/4 20 9.3 -10°C to 225°C 0.5 to 25 BAR 0.5 to 25 BAR
S75T-6-25-*TF 1 25 13.2 -10°C to 225°C 0.5 to 25 BAR 0.5 to 25 BAR
S75T-8-35-*TF 1 ½ 35 26 -10°C to 225°C 0.5 to 25 BAR 0.5 to 25 BAR
S75T-9-50-*TF 2 50 48 -10°C to 225°C 0.5 to 25 BAR 0.5 to 25 BAR

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC

Stainless Steel Normally Closed Differential Very High Temperature Solenoid Valve

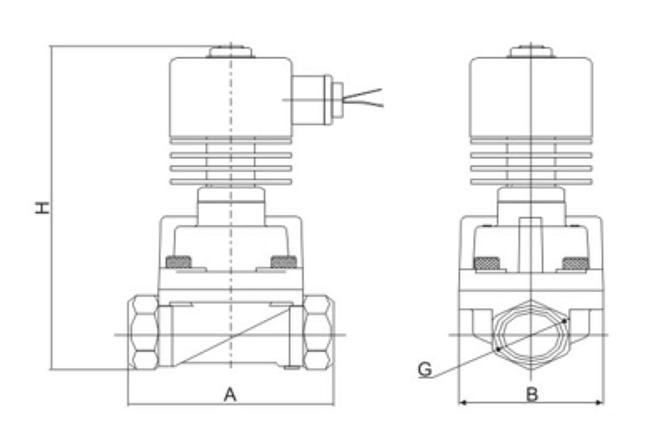

Model G (BSP) A B H Weight Kg
S75T-3-15-*T 3/8” 75 52 159 1.65
S75T-4-15-*T 1/2" 75 52 159 1.65
S75T-5-20-*T 3/4" 85 60 171 2.13
S75T-6-25-*T 1” 100 70 178 2.35
S75T-7-35-*T 1 ¼” 120 90 198 3.85
S75T-8-40-*T 1 ½” 120 90 198 3.30
S75T-9-50-*T 2” 150 110 220 7.35

All dimensions in mm unless shown otherwise.

Size 1/2" to 2" BSP
Function Normally Closed (power to open)
Valve Operation Servo Assisted
Body 304 Stainless Steel
Seat RPTFE
Pressure Range 0.5 to 25 BAR
Media Steam, Hot Oil

.
.
