SKU: TSD-42

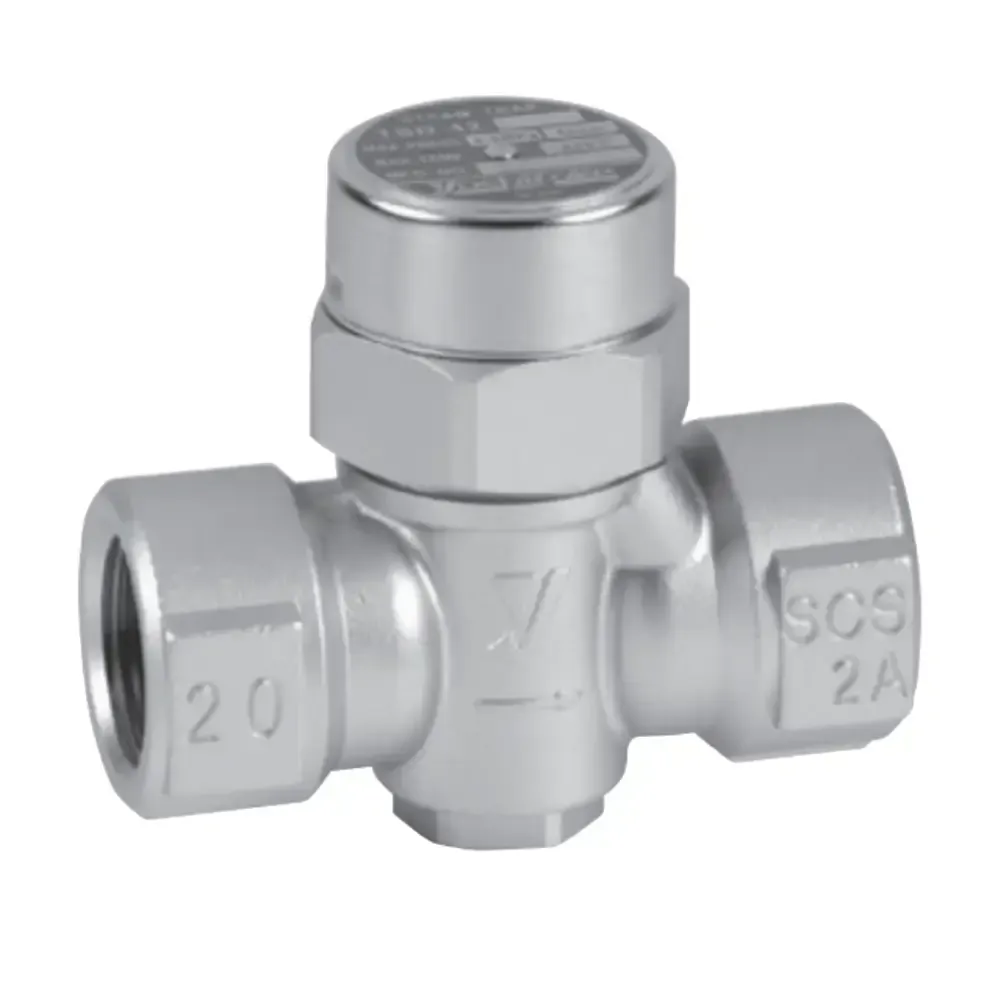

Stainless Steel Thermodynamic Steam Trap

From $264.00

Inc GST
In Stock
Make an Enquiry
  • Bi-metal ring eliminates air binding
  • Stable performance & superior durability
  • Integral Strainer to ensure longevity
  • High corrosion resistance
  • Made by Yoshitake Japan
Application Steam Condensate
Type Disc Type
Pressure 0.35 to 42 Bar
Temperature 0°C to 425°C
Connection BSPT (ISO 7.1)
Body Stainless Steel
Valve Stainless Steel (Heat treated)
Valve Seat Stainless Steel (Heat treated)

Model d (BSPT) L H H1 A
TSD-42-04 1/2" 78 72 23 32
TSD-42-05 3/4" 85 75 24 38
TSD-42-06 1" 95 82 27.5 45

All dimensions in mm unless specified otherwise

Item Description Material Qty
1 Body Cast Stainless Steel 1
2 Cap B Stainless Steel 1
3 Disc Stainless Steel 1
4 Ring Stainless Steel 1
5 Bi-Metal - 1
6 Strainer Stainless Steel 1
7 Gasket Stainless Steel 1
8 Strainer Cap Stainless Steel 1
9 Name Plate Aluminium 1
10 Rivet Stainless Steel 1

Size 1/2" to 1" BSPT
Body Stainless Steel
Pressure Range 0.35 to 42 BAR
Temperature 0°C to 425°C

.
.
