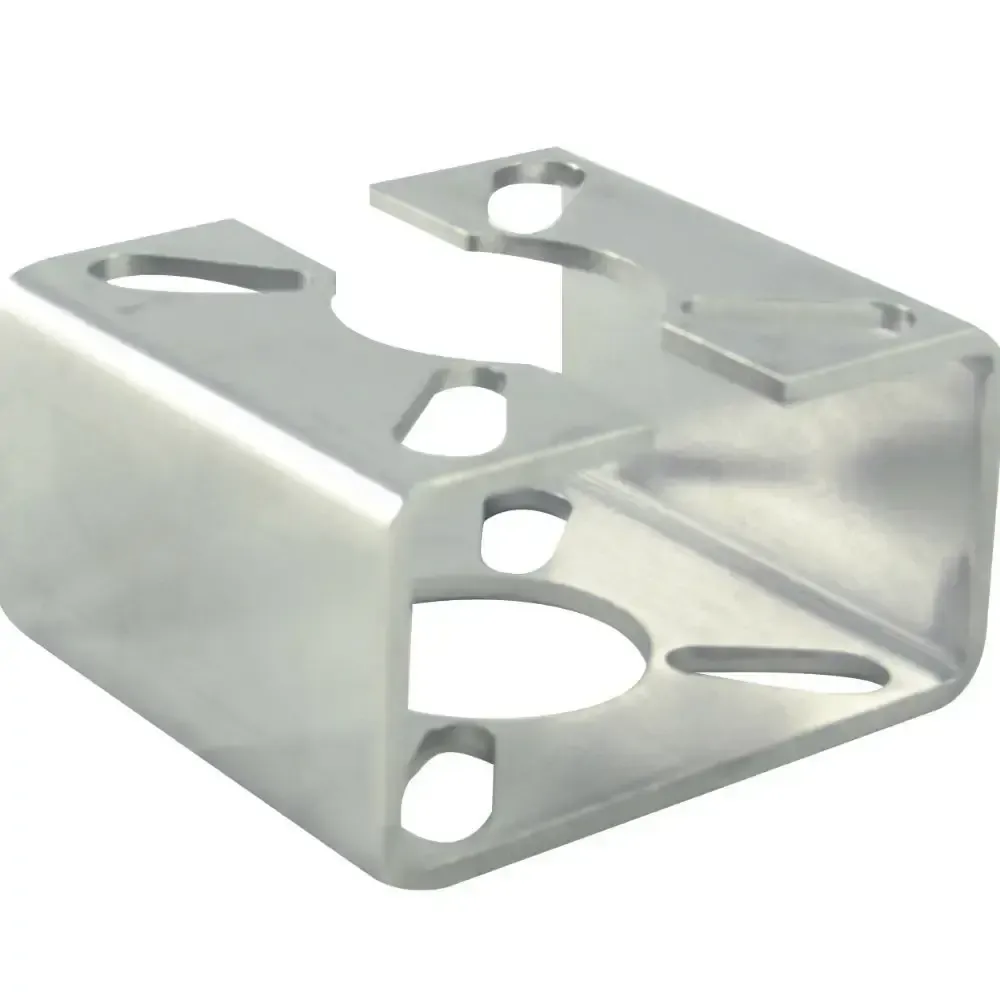

304 Stainless Steel Interface Bracket typically used to mount actuators onto ball and butterfly valves where direct coupling is not an option or not possible. For a reference table (measurements) on the ISO mounting interfaces please click here.

Model Adapting Interface
BKT1 F03/F04/F05
BKT2 F04/F05/F07
BKT3 F07/F10/F12
BKT4 F10/F12/F14
BKT5 F10/F12/F14/F16

Size F04 to F16
Body 304 Stainless Steel
Function Adaptor Brackets for Valves/Actuators

Model A B C ØD ØE F G ØH ØI
BKT1 57 50 38 36 50 3 12 6.5 7.5
BKT2 74.5 65 40 42 70 3 16 6.5 9.5
BKT3 125 110 70 70 125 4 30 9.5 15
BKT4 165 150 100 102 140 6 45 12 18.5
BKT5 195 180 140 102 165 8 45 12 22
.
