SKU: BLSHPE

High Pressure Electric Ball Valve

From $671.00

Inc GST
Sold Out
Make an Enquiry

Series BLSHP high performance 316 stainless steel ball valves are specifically designed for high pressure applications. Delrin seats enable pressures up to 204 BAR or 3000 psi at 38°C. Comes with an IP67 electric actuator with visual indicator and extra limit switches. Typical applications include water blasting, chemical injection, boiler feedwater and agricultural spraying. Threads conform to ISO 7.1 Sealing Threads. Please note that some models have the stand off bracket and some do not depending upon the valve mounting interface and torque required (some will be direct mount).

Model Size(BSP) Orifice Size (mm) Actuator Media Pressure Media Temperature
BLSHP2B-E*-D 1/4 8 0M-1 0 to 200 BAR 40°C @ 200 BAR
BLSHP3B-E*-D 3/8 10 0M-1 0 to 200 BAR 40°C @ 200 BAR
BLSHP4B-E*-D 1/2 12 0M-1 0 to 200 BAR 40°C @ 200 BAR
BLSHP5B-E*-D 3/4 17 0M-1 0 to 200 BAR 40°C @ 200 BAR
BLSHP6B-E*-D 1 22 0M-1 0 to 200 BAR 40°C @ 200 BAR
BLSHP8B-E*-D 1 ½ 35 0M-2 0 to 200 BAR 40°C @ 200 BAR
BLSHP9B-E*-D 2 35 0M-2 0 to 200 BAR 40°C @ 200 BAR

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC.

Electric High Pressure Ball Valve



Model DN Actuator B C D E F G
BLSHP2B-E*-D 8 0M-1 75   41 0 108 155
BLSHP3B-E*-D 10 0M-1 75   41 0 108 155
BLSHP4B-E*-D 15 0M-1 75   41 0 108 155
BLSHP5B-E*-D 20 0M-1 81   43.8 0 108 155
BLSHP6B-E*-D 25 0M-1 91   53.5 0 108 155
BLSHP8B-E*-D 40 0M-2 121   75.2 0 200 290
BLSHP9B-E*-D 50 0M-2 145   75.2 0 200 290

All dimensions in mm unless otherwise shown.

Electric High Pressure Ball Valve

Size 1/4" to 2" BSP
Body 316 Stainless Steel
Seat Delrin
Pressure  200 BAR
Temperature Ambient
Actuation Electric

Others Also Bought

BLSHPE

High Pressure Electric Ball Valve

Features:

Size 1/4" to 2" BSP
Body 316 Stainless Steel
Seat Delrin
Pressure  200 BAR
Temperature Ambient
Actuation Electric

Description:

Series BLSHP high performance 316 stainless steel ball valves are specifically designed for high pressure applications. Delrin seats enable pressures up to 204 BAR or 3000 psi at 38°C. Comes with an IP67 electric actuator with visual indicator and extra limit switches. Typical applications include water blasting, chemical injection, boiler feedwater and agricultural spraying. Threads conform to ISO 7.1 Sealing Threads. Please note that some models have the stand off bracket and some do not depending upon the valve mounting interface and torque required (some will be direct mount).

Model Size(BSP) Orifice Size (mm) Actuator Media Pressure Media Temperature
BLSHP2B-E*-D 1/4 8 0M-1 0 to 200 BAR 40°C @ 200 BAR
BLSHP3B-E*-D 3/8 10 0M-1 0 to 200 BAR 40°C @ 200 BAR
BLSHP4B-E*-D 1/2 12 0M-1 0 to 200 BAR 40°C @ 200 BAR
BLSHP5B-E*-D 3/4 17 0M-1 0 to 200 BAR 40°C @ 200 BAR
BLSHP6B-E*-D 1 22 0M-1 0 to 200 BAR 40°C @ 200 BAR
BLSHP8B-E*-D 1 ½ 35 0M-2 0 to 200 BAR 40°C @ 200 BAR
BLSHP9B-E*-D 2 35 0M-2 0 to 200 BAR 40°C @ 200 BAR

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC.

.

High Pressure Electric Ball Valve

BLSHPE

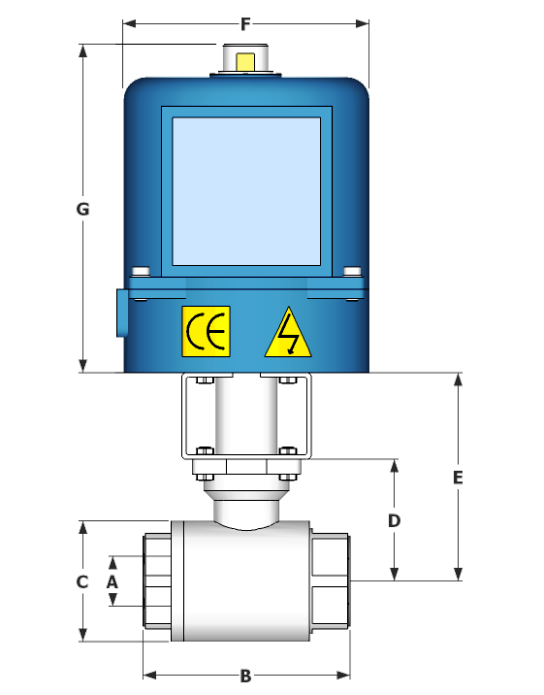

Dimensions:

Electric High Pressure Ball Valve



Model DN Actuator B C D E F G
BLSHP2B-E*-D 8 0M-1 75   41 0 108 155
BLSHP3B-E*-D 10 0M-1 75   41 0 108 155
BLSHP4B-E*-D 15 0M-1 75   41 0 108 155
BLSHP5B-E*-D 20 0M-1 81   43.8 0 108 155
BLSHP6B-E*-D 25 0M-1 91   53.5 0 108 155
BLSHP8B-E*-D 40 0M-2 121   75.2 0 200 290
BLSHP9B-E*-D 50 0M-2 145   75.2 0 200 290

All dimensions in mm unless otherwise shown.

.

High Pressure Electric Ball Valve

BLSHPE

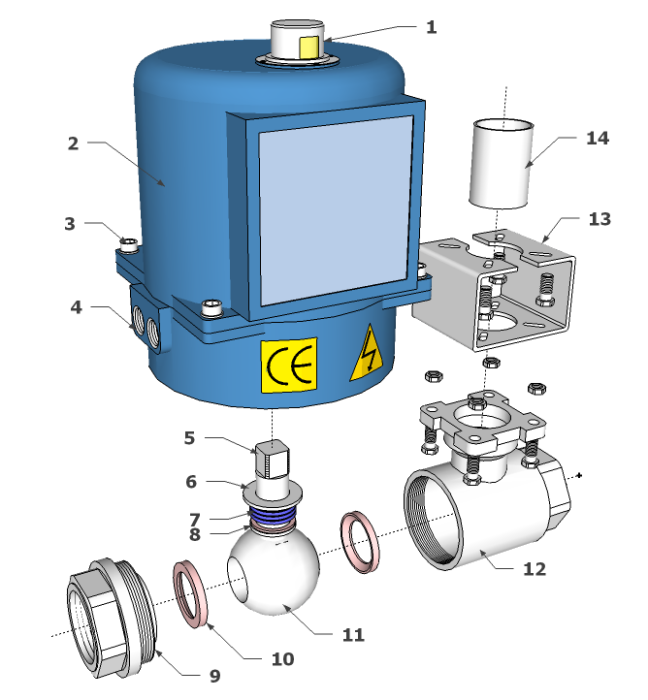

Construction:

Electric High Pressure Ball Valve

WARNING

These products are intended for use in industrial applications only. Do not use these products where pressures and temperatures can exceed those listed under ‘Technical Data’ and in our individual ‘Series’ data sheets. Before using these products with fluids other than these specified, for non-industrial applications, life-support systems, or other applications not within published specifications, consult Hawleys Through misuse, age, or malfunction, components used in industrial valve applications can fail in various modes. The system designer is warned to consider the failure modes of all component parts used in industrial valve applications and to provide adequate safeguards to prevent personal injury or damage to equipment in the event of such failure. System designers must provide a warning to the user in the system instructional manual if protection against a failure mode cannot be adequately provided. System designers and end users are cautioned to review specific warnings or specifications found in instruction sheets or labels packed or attached and shipped with the products. Our policy is one of continuous research and development. We therefore reserve the right to amend without notice the specifications given in this document or our individual ‘Series’ data sheets.

WARRANTY INFORMATION

All valve series and other products manufactured or distributed by Hawleys are warranted by Hawleys to be free of defects in material and workmanship for a period of 1 year from the date of purchase or as the manufacturer warrants. Hawleys obligation under this warranty is limited to repair or replacement of the defec1ive product or refund of the purchase price paid solely at the discretion of Hawleys and provided such defective product is returned to Hawleys freight prepaid and upon examination by Hawleys such product is found defective. This warranty shall be void in the event that the product has been subject to misuse, misapplication, improper maintenance, modification or tampering. This warranty is expressed in lieu of all other warranties, expressed or implied from Hawleys representatives or employees. Hawleys reserves the right to change Valve and Brochure specifications without notice.
