Features:
Size 1/2" to 2" NPT
Body Forged Steel
Seat Metal
Pressure Range 0 to 136 BAR

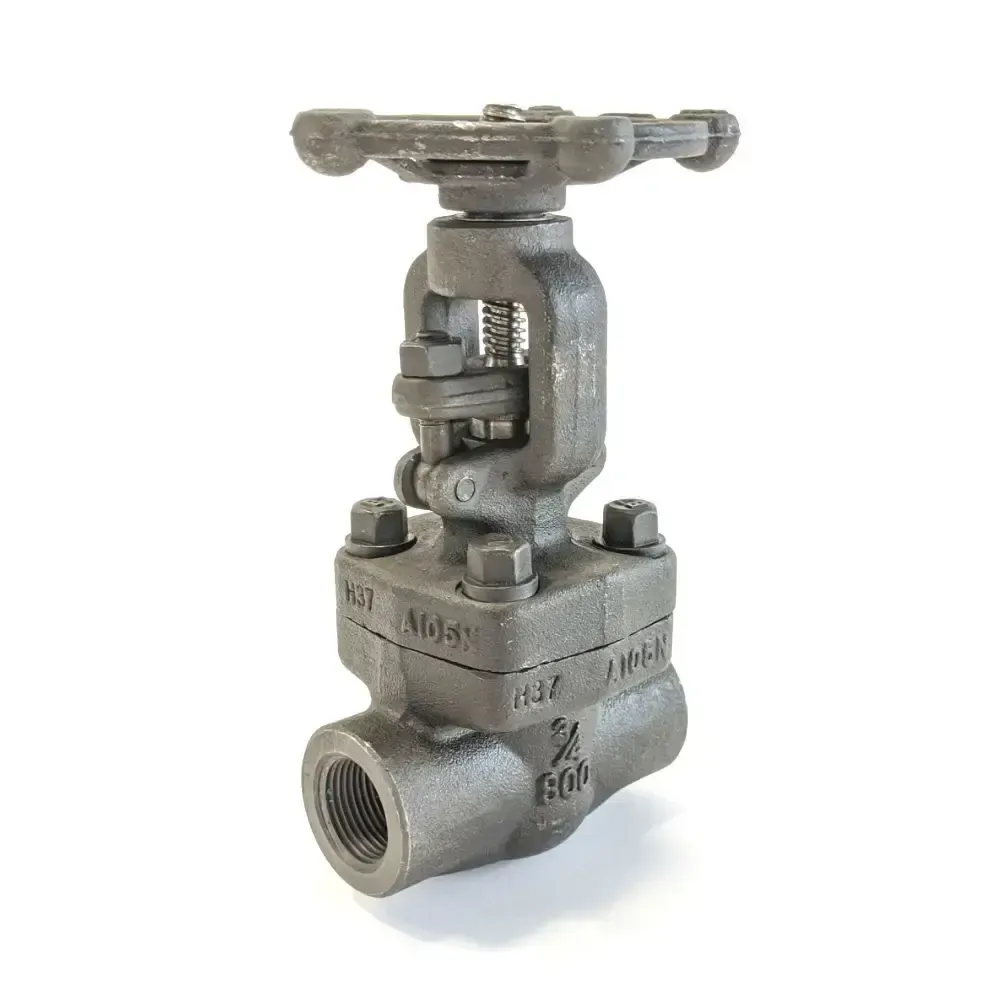

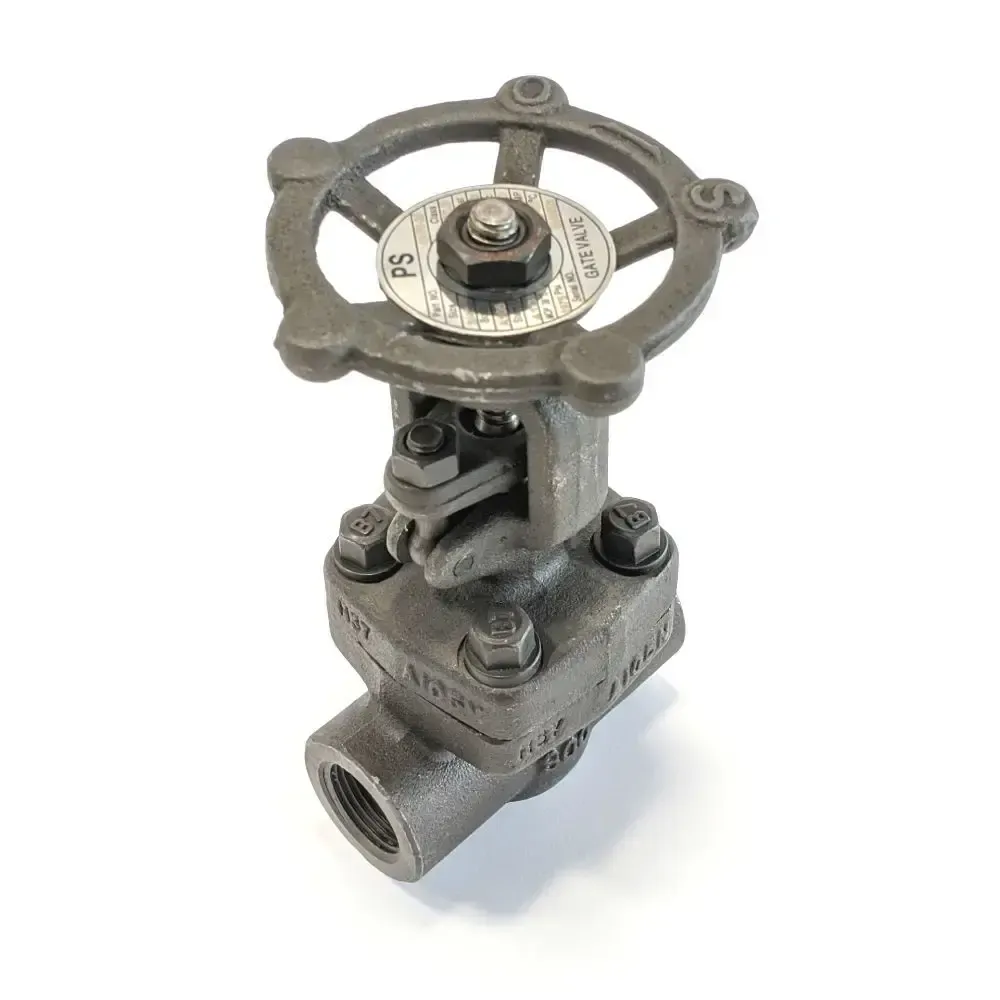

The GVF8 Series of Gate valves are a robust Class 800 A105 Forged Steel Gate Valve. As standard these valves are NPT threaded from 1/2" to 2" and are suitable for pressures up to 136 Bar depending on the media temperature (refer to Pressure Temperature chart below) and media type. Designed to API602 with NPT ends to AMSE B1.20.1 and tested to API598. These valves are suitable for a range of applications across the Petrochemical, Steam, Mining and General Industrial Industries.
Model | Size (NPT) | Design Pressure | Media Temperature | Weight (kg) |
---|---|---|---|---|
GVF8-04 | 1/2" | 13.62 MPa @ -29°C ~ 35°C | 454°C @ 5.5 MPa | 2.22 |
GVF8-05 | 3/4" | 2.39 | ||
GVF8-06 | 1" | 4.24 | ||
GVF8-07 | 1 1/4" | 5.7 | ||
GVF8-08 | 1 1/2" | 7.05 | ||
GVF8-09 | 2" | 10.9 |
Model | Size (NPT) | L | M | M0 |
---|---|---|---|---|
GVF8-04 | 1/2" | 79 | 155 | 100 |
GVF8-05 | 3/4" | 92 | 155 | 100 |
GVF8-06 | 1" | 111 | 176 | 125 |
GVF8-07 | 1 1/4" | 120 | 200 | 160 |
GVF8-08 | 1 1/2" | 120 | 220 | 160 |
GVF8-09 | 2" | 140 | 255 | 180 |
All dimensions in mm unless shown otherwise.

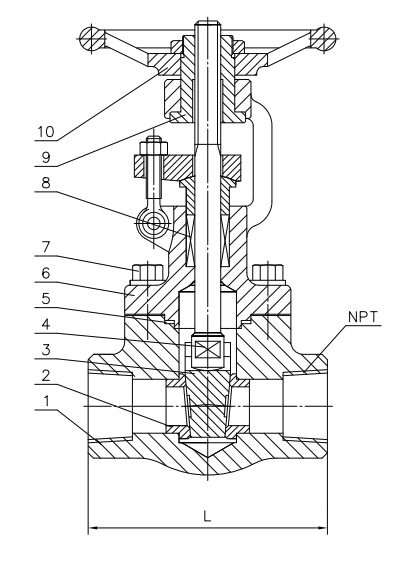

Number | Part Name | Material |
---|---|---|
1 | Body | ASTM A105 |
2 | Seat | ASTM A276-420 |
3 | Wedge Disc | ASTM A276-420 |
4 | Stem | ASTM A276-410 |
5 | Gasket | Flexible Graphite/304 |
6 | Bonnet | ASTM A105 |
7 | Bonnet Bolt | ASTM A193 Gr.B7 |
8 | Packing | Flexible Graphite |
9 | Stem Nut | 1045 |
10 | Handwheel | ASTM A197 |
