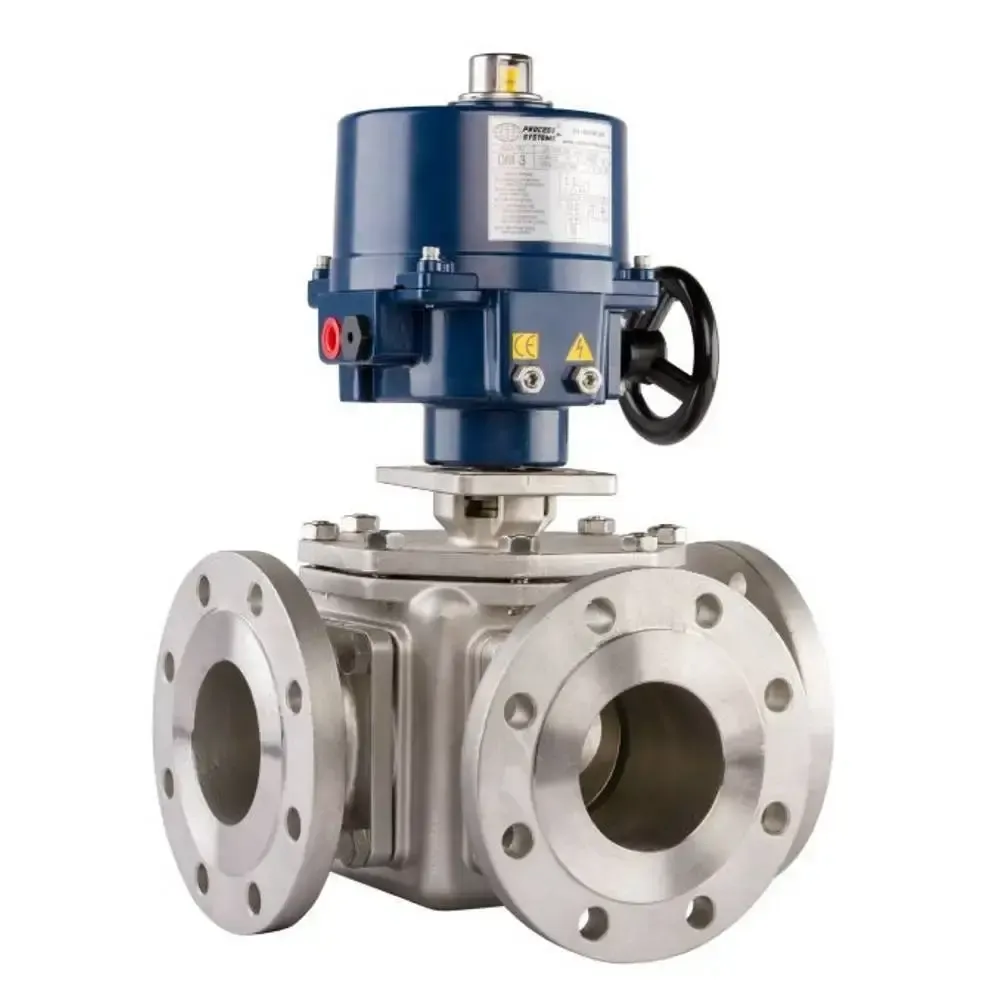

Flanged Electric 3 Way Stainless Steel

From $907.50

Inc GST
Sold Out
Make an Enquiry

316 Stainless Steel 3 Way Ball valve with full bore and ANSI 150 Flanged end connections. This high performance valve is suitable for many applications such as the water, chemical, petrochemical, marine and general industries. Fitted with a Powder Coated Die Cast Aluminium Electric Actuator (Other Electric Actuator options include Modulating, Explosion Proof, Spring Return & Stainless Steel Housing - Contact Sales for options).

  • L & T Port Configurations (Full Bore)
  • ANSI 150 Flanged End Connections
  • IP67 Quarter Turn Electric Actuator with M20x1.5 Cable Glands, Visual Indicator, Manual Override and additional limit switches as standard
  • Reinforced PTFE Seats suitable for a wide range of media and temperatures up to 180°C (Refer to Pressure Temperature Curve and Material Data sheets for Chemical Compatibility)
  • Self Adjusting Stem Packing by the use of Belleville washers which assist with temperature fluctuations and vibrations.
  • Vented design on the Neck of the Valve allows for a reduction in thermal transfer from the valve to the actuator
Model DN (mm) Actuator Media Pressure Media Temperature
BLS3L4FA-E*-RT 15 0M-1 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C
BLS3L5FA-E*-RT 20 0M-1 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C
BLS3L6FA-E*-RT 25 0M-1 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C
BLS3L7FA-E*-RT 32 0M-A Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C
BLS3L8FA-E*-RT 40 0M-2 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C
BLS3L9FA-E*-RT 50 0M-2 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C
BLS3L10FA-E*-RT 65 0M-3 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C
BLS3L11FA-E*-RT 80 0M-4 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C
BLS3L12FA-E*-RT 100 0M-4 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C

*Voltage Code 1 = 240v AC, 2 = 110v AC, 5 = 24v AC, 7 = 12v DC, 8 = 24v DC. Change the 'L' (L port) to a 'T' (T port) as required.

L Port T Port

Electric Flanged 3 way stainless steel ball valve

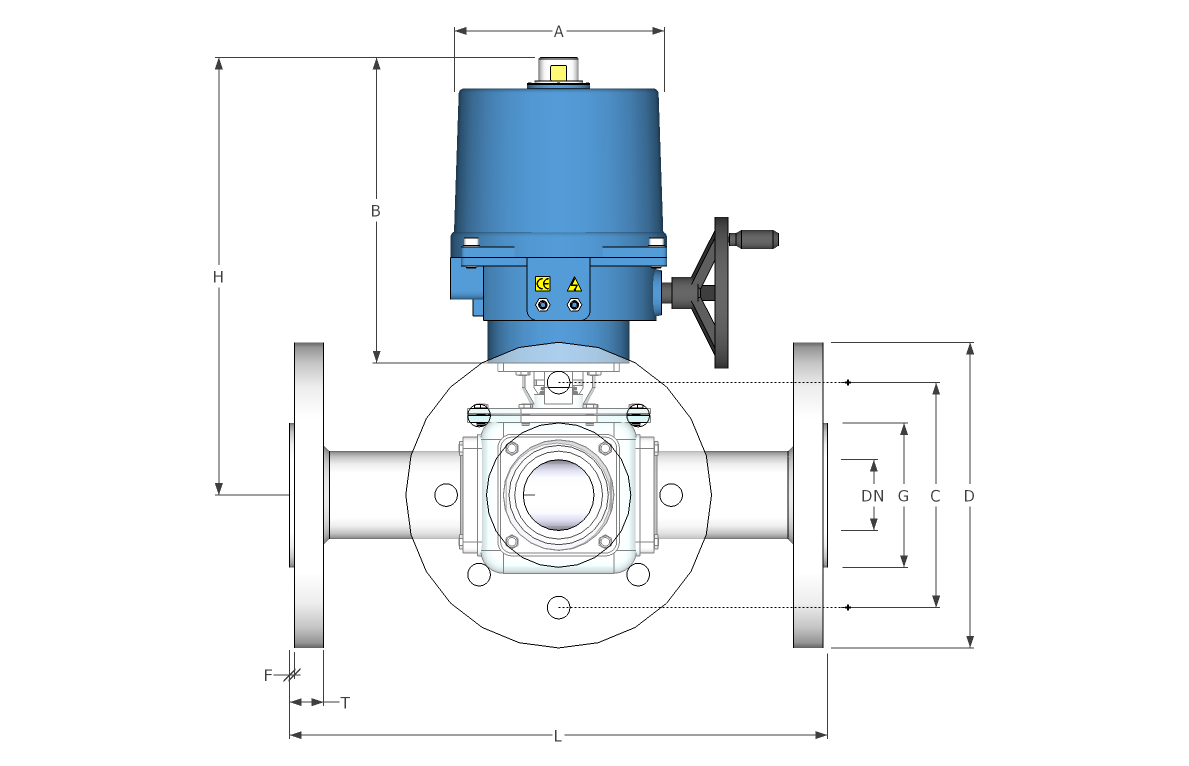

DN Actuator A B C D F G H L T
15 0M-1 108 155 60.5 89 2 35 199.5 152 11
20 0M-1 108 155 70 98 2 43 204 167 11
25 0M-1 108 155 79.5 108 2 51 209 180 12
32 0M-A 108 200 89 117 2 64 258.5 190 13
40 0M-2 200 290 98.5 127 2 73 353.5 212 15
50 0M-2 200 290 120.5 152 2 92 366 230 16
65 0M-3 200 290 139.5 178 2 105 379 290 18
80 0M-4 234 315 152.5 190.5 2 127 410.25 310 19
100 0M-4 234 315 190.5 229 2 157 429.5 350 24

All dimensions in mm unless shown otherwise.

Electric Stainless Steel 3 way flanged ball valve

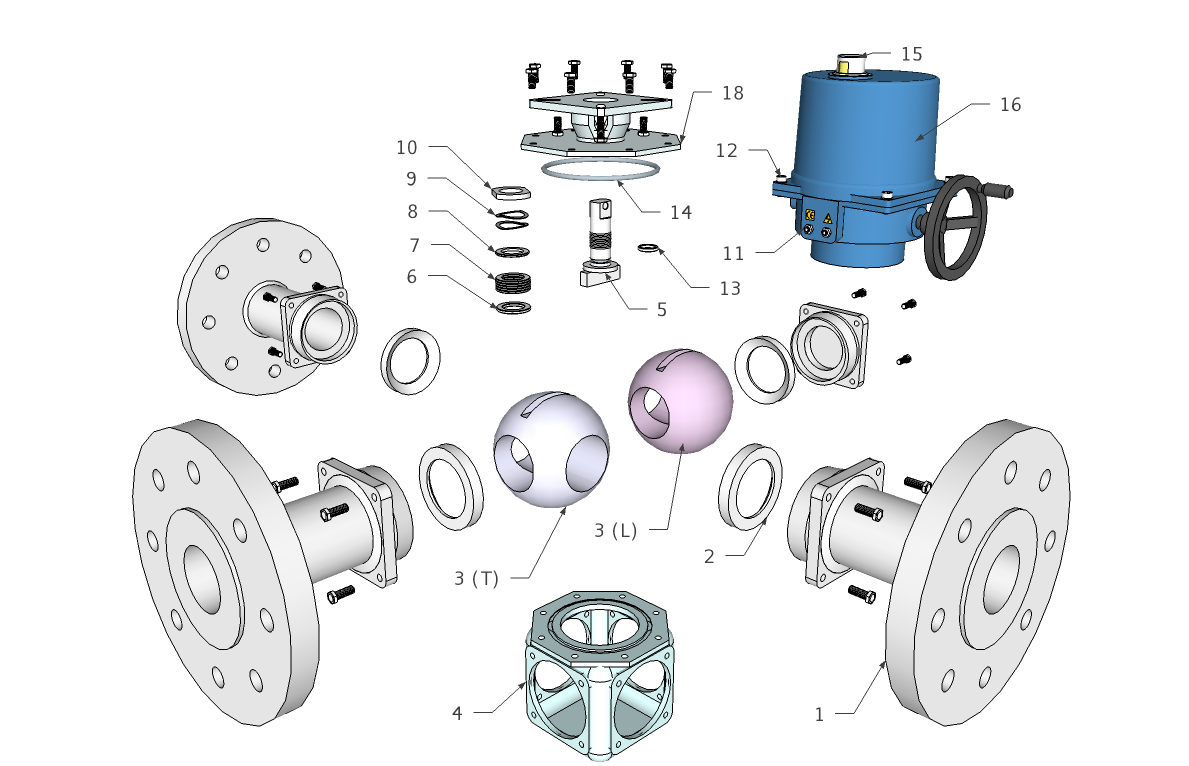

Number Item Material
1 Flanged End CF8M
2 Seat Reinforced PTFE
3 Ball ASTM A182 316
4 Body ASTM A351 CF8M
5 Shaft ASTM A276 316
6 Thrust Washer SS201
7 Chevron Packing PTFE
8 Shaft Seal Oring Viton
9 Belleville Washers SS201
10 Retaining Nut SS304
11 Conduit Entry Powder coated Aluminium
12 Screw SS316
13 Shaft Seal Viton
14 Cap Gasket PTFE
15 Indicator Metal/Polycarbonate
16 Actuator Body Powder coated Aluminium
18 Bonnet ASTM A351 CF8M

Size 15mm to 100mm
Body 316 Stainless Steel
Seat RPTFE
Pressure 20 BAR @ ambient
Temperature -10°C to 180°C
Actuation Electric

BLS3FAE

Flanged Electric 3 Way Stainless Steel

Features:

Size 15mm to 100mm
Body 316 Stainless Steel
Seat RPTFE
Pressure 20 BAR @ ambient
Temperature -10°C to 180°C
Actuation Electric

Description:

316 Stainless Steel 3 Way Ball valve with full bore and ANSI 150 Flanged end connections. This high performance valve is suitable for many applications such as the water, chemical, petrochemical, marine and general industries. Fitted with a Powder Coated Die Cast Aluminium Electric Actuator (Other Electric Actuator options include Modulating, Explosion Proof, Spring Return & Stainless Steel Housing - Contact Sales for options).

  • L & T Port Configurations (Full Bore)
  • ANSI 150 Flanged End Connections
  • IP67 Quarter Turn Electric Actuator with M20x1.5 Cable Glands, Visual Indicator, Manual Override and additional limit switches as standard
  • Reinforced PTFE Seats suitable for a wide range of media and temperatures up to 180°C (Refer to Pressure Temperature Curve and Material Data sheets for Chemical Compatibility)
  • Self Adjusting Stem Packing by the use of Belleville washers which assist with temperature fluctuations and vibrations.
  • Vented design on the Neck of the Valve allows for a reduction in thermal transfer from the valve to the actuator
Model DN (mm) Actuator Media Pressure Media Temperature
BLS3L4FA-E*-RT 15 0M-1 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C
BLS3L5FA-E*-RT 20 0M-1 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C
BLS3L6FA-E*-RT 25 0M-1 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C
BLS3L7FA-E*-RT 32 0M-A Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C
BLS3L8FA-E*-RT 40 0M-2 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C
BLS3L9FA-E*-RT 50 0M-2 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C
BLS3L10FA-E*-RT 65 0M-3 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C
BLS3L11FA-E*-RT 80 0M-4 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C
BLS3L12FA-E*-RT 100 0M-4 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C

*Voltage Code 1 = 240v AC, 2 = 110v AC, 5 = 24v AC, 7 = 12v DC, 8 = 24v DC. Change the 'L' (L port) to a 'T' (T port) as required.

L Port T Port
.

Flanged Electric 3 Way Stainless Steel

BLS3FAE

Dimensions:

Electric Flanged 3 way stainless steel ball valve

DN Actuator A B C D F G H L T
15 0M-1 108 155 60.5 89 2 35 199.5 152 11
20 0M-1 108 155 70 98 2 43 204 167 11
25 0M-1 108 155 79.5 108 2 51 209 180 12
32 0M-A 108 200 89 117 2 64 258.5 190 13
40 0M-2 200 290 98.5 127 2 73 353.5 212 15
50 0M-2 200 290 120.5 152 2 92 366 230 16
65 0M-3 200 290 139.5 178 2 105 379 290 18
80 0M-4 234 315 152.5 190.5 2 127 410.25 310 19
100 0M-4 234 315 190.5 229 2 157 429.5 350 24

All dimensions in mm unless shown otherwise.

.

Flanged Electric 3 Way Stainless Steel

BLS3FAE

Construction:

Electric Stainless Steel 3 way flanged ball valve

Number Item Material
1 Flanged End CF8M
2 Seat Reinforced PTFE
3 Ball ASTM A182 316
4 Body ASTM A351 CF8M
5 Shaft ASTM A276 316
6 Thrust Washer SS201
7 Chevron Packing PTFE
8 Shaft Seal Oring Viton
9 Belleville Washers SS201
10 Retaining Nut SS304
11 Conduit Entry Powder coated Aluminium
12 Screw SS316
13 Shaft Seal Viton
14 Cap Gasket PTFE
15 Indicator Metal/Polycarbonate
16 Actuator Body Powder coated Aluminium
18 Bonnet ASTM A351 CF8M
