Features:
Size 1/2" to 1" BSPT
Body Ductile Iron
Pressure Range 0.1 to 10 BAR
Temperature 0 to 90°C

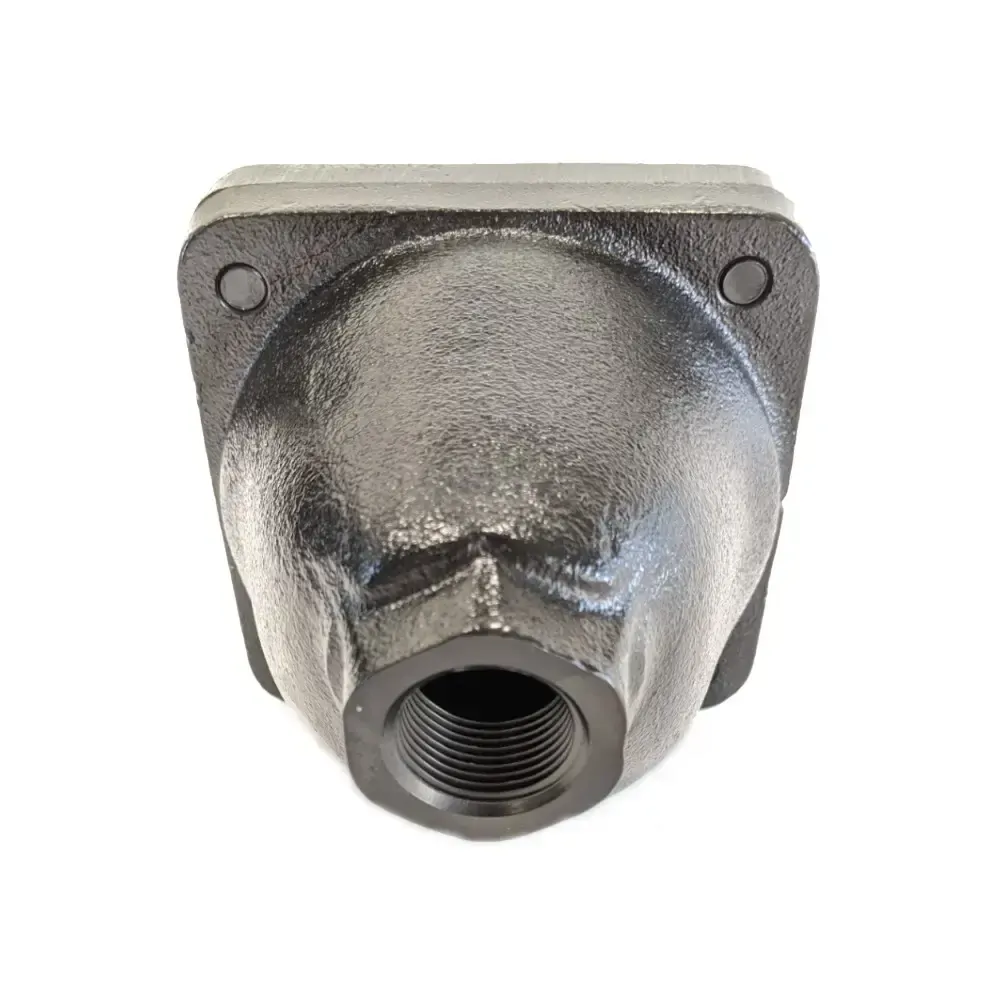

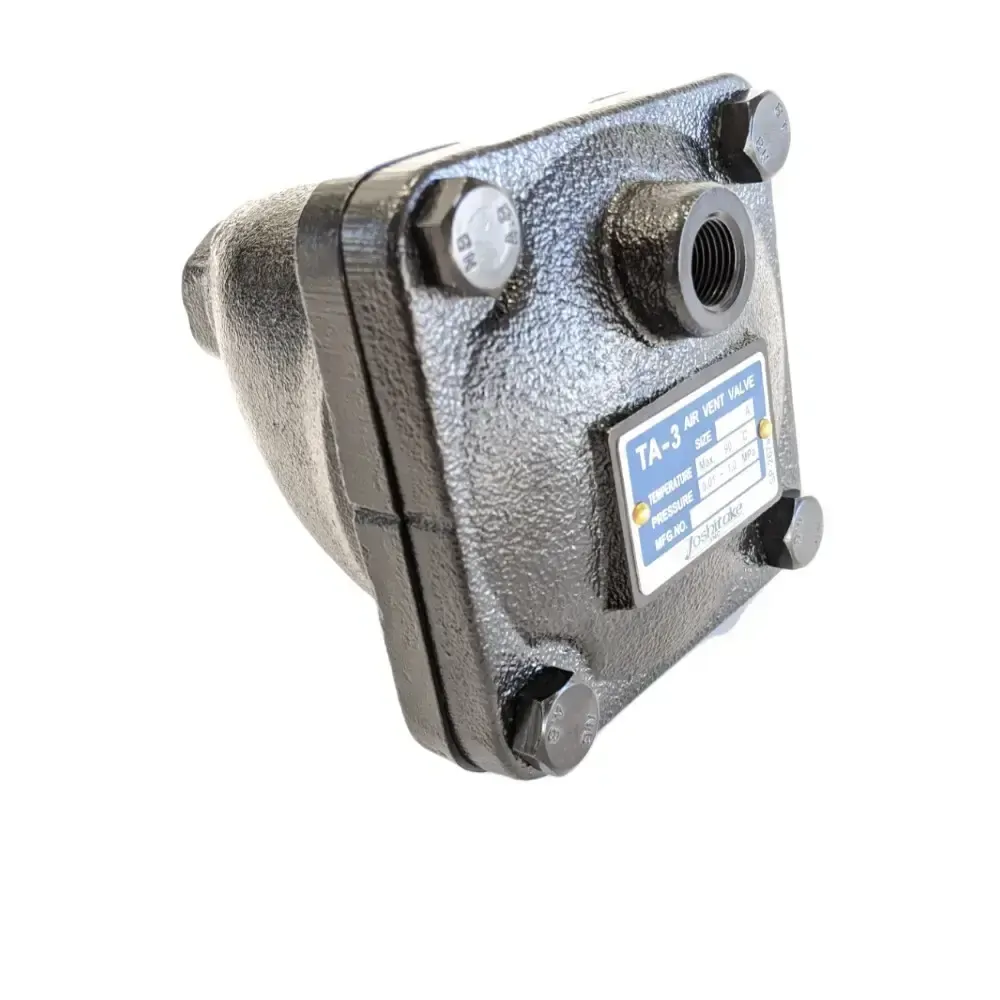

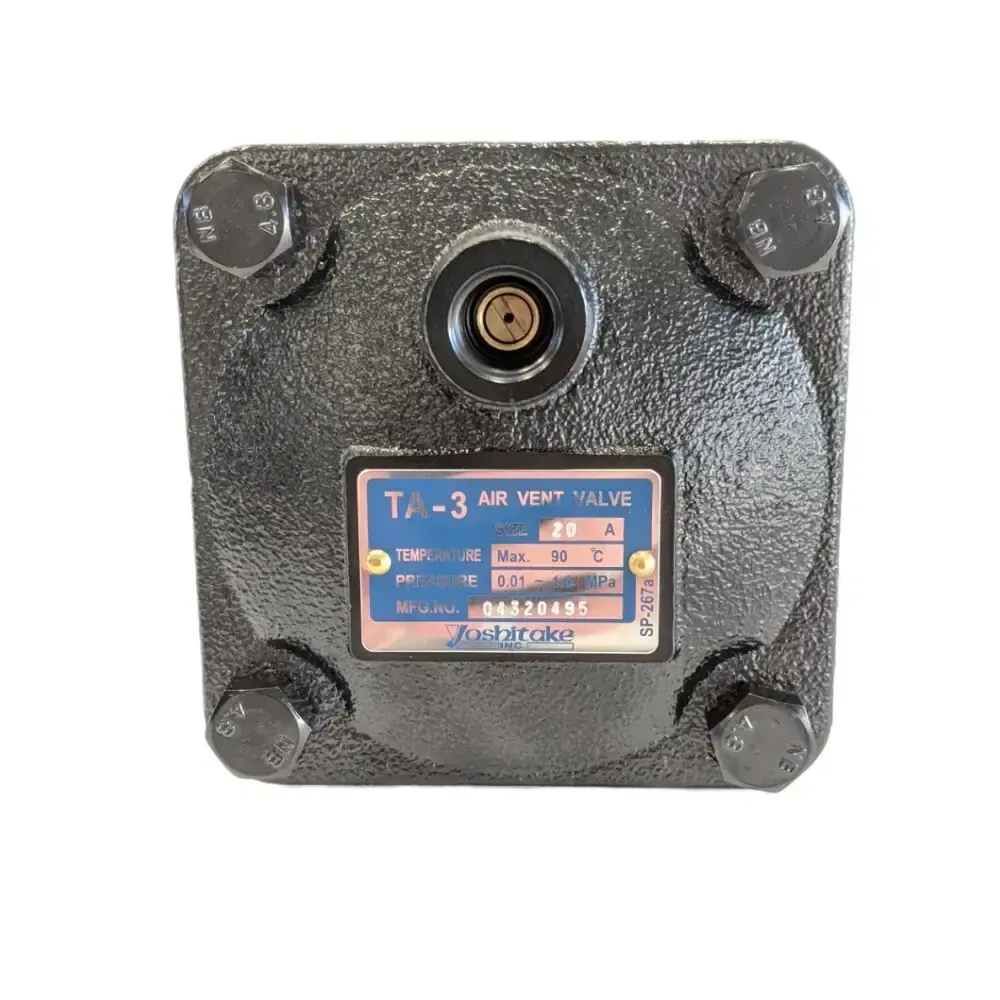

The TA-3 series Air Vent Valve from Yoshitake is designed to vent air from pipework. This is typical for systems on start up where there can be excess air in the pipework that needs to be vented. This Air Vent has a wide pressure range and suitable for media up to 90°C. The Stainless Steel float and Brass valve & seat ensure a tight seal and easy maintenance. The compact design also allows a large venting capacity.
Application | Water| Oil & compatible fluids (specific gravity of 0.8 or more) |
---|---|
Type | Air Vent |
Pressure | 0.1 to 10 Bar |
Temperature | 0°C to 90°C |
Connection | BSPT (ISO 7.1) |
Body | Ductile cast iron |
Valve | Brass |
Valve Seat | Brass (NBR disc) |
Float | Stainless Steel |
Size | D | C | H | Weight (kg) |
---|---|---|---|---|
15 | 1/2" | 114 | 139 | 2.72 |
20 | 3/4" | 114 | 139 | 2.72 |
25 | 1" | 114 | 143 | 2.88 |
32 | 1 1/4" | 114 | 143 | 2.88 |
All dimensions in mm unless shown otherwise.

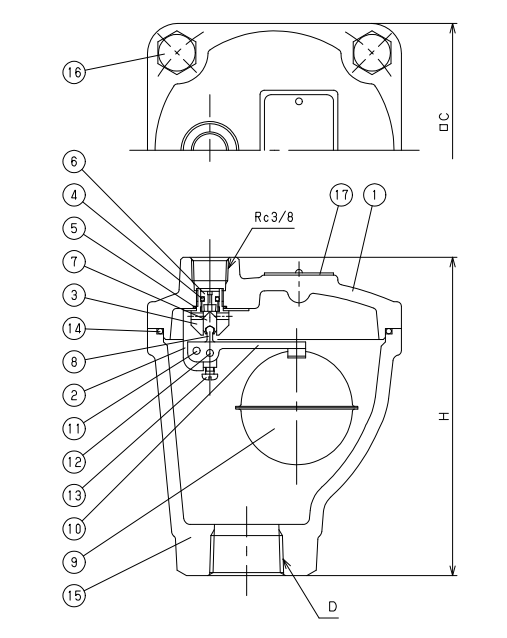

Number | Name | Material | Grade | QTY |
---|---|---|---|---|
1 | Cover | Ductile Cast Iron | FCD450 | 1 |
2 | Hanger | Stainless Steel | SUS304 | 1 |
3 | Valve Guide | Brass | C3604 | 1 |
4 | O Ring | NBR | NBR | 1 |
5 | O Ring | NBR | NBR | 1 |
6 | Valve Seat | Brass & NBR | C3604 & NBR | 1 |
7 | Valve | Brass | C3604 | 1 |
8 | Valve Joint | Brass | C3604 | 1 |
9 | Float | Stainless Steel | SUS304 | 1 |
10 | Arm | Stainless Steel | SUS304 | 1 |
11 | Pin | Stainless Steel | SUS304 | 1 |
12 | Pin | Stainless Steel | SUS304 | 1 |
13 | Set Screw | Stainless Steel | SUS304 | 1 |
14 | O Ring | NBR | NBR | 1 |
15 | Body | Ductile Cast Iron | FCD450 | 1 |
16 | Bolt | Rolled Steel | SS400 | 4 |
17 | Name Plate | Aluminium | A1050 | 1 |
