Double Flanged Electric Butterfly Valve

From $715.00

Inc GST
In Stock
Make an Enquiry

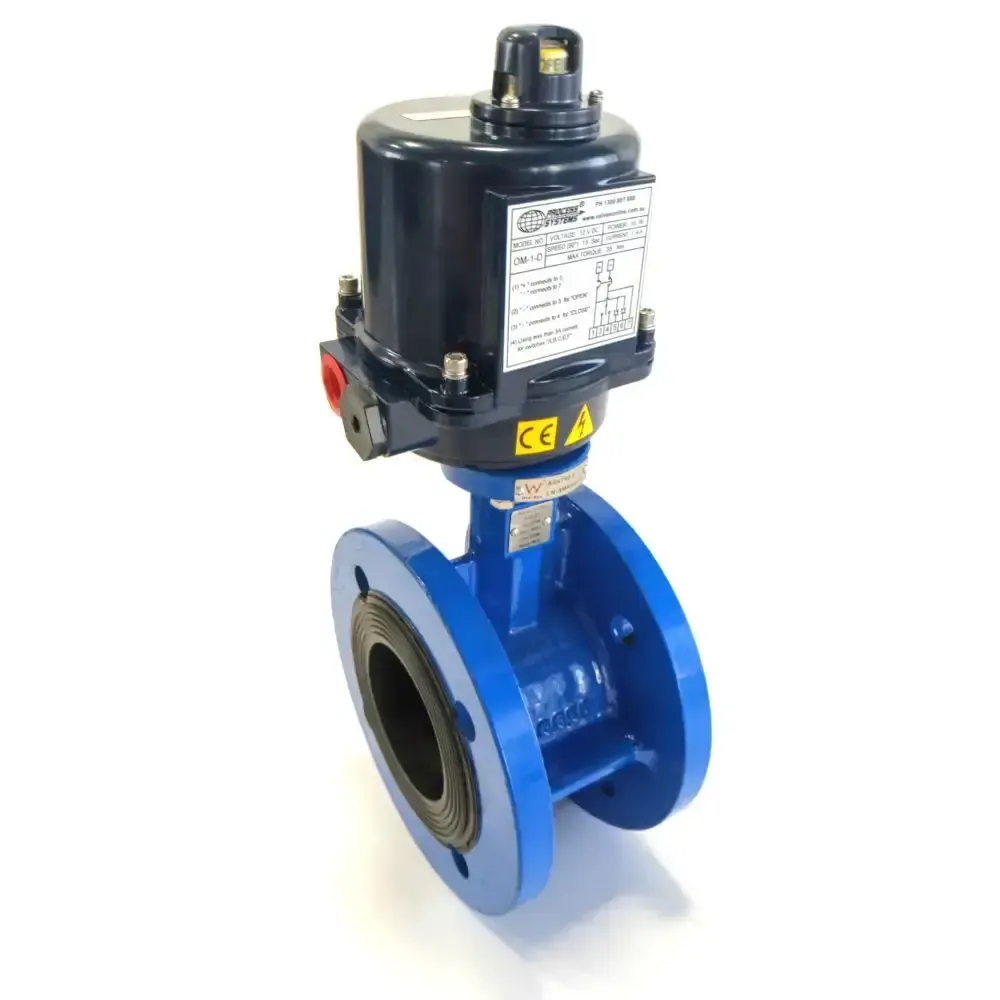

The BFDD Series of Butterfly Valves is a fusion bonded epoxy coated Ductile Iron bodied valve with a 316SS Disc and EPDM seat. This valve is doubled flanged to suit AS4087 PN16 / Table D and is coupled with a Powder Coated Die Cast Aluminium Electric Actuator (Other Electric Actuator options include Modulating, Explosion Proof, Spring Return & Stainless Steel Housing - Contact Sales for options).. The EPDM seat is vulcanised to the body of the valve which allows for vacuum to be run through the valve. A splined shaft is also used to eliminate common failure points with pinned shafts. Suitable for a wide range of general such as water trucks, cement hoppers, irrigation and other industrial applications.

  • Ductile Iron Body (FBE Coated) with 316SS Disc & EPDM Seat
  • IP67 Quarter Turn Electric Actuator with M20x1.5 Cable Glands, Visual Indicator, Manual Override and additional limit switches as standard
  • Extension Shafts can also be fitted for use in pits etc (Contact Sales)
  • Designed and Manufactured in accordance with API609, Inspected and Tested in accordance with API598
  • Watermark Approved (License Number WMK26520) (Contact Sales if required for application)
  • Valves above 600mm can be produced, Contact Sales for details
Model Size (mm) Actuator Media Pressure Media Temperature
BFDD50-E*-E 50 0M-1 Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFDD65-E*-E 65 0M-1 Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFDD80-E*-E 80 0M-1 Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFDD100-E*-E 100 0M-A Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFDD125-E*-E 125 0M-A Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFDD150-E*-E 150 0M-2 Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFDD200-E*-E 200 0M-3 Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFDD250-E*-E 250 0M-4 Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFDD300-E*-E 300 0M-5 Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFDD350-E*-E 350 0M-6 Vacuum to 10 BAR -20°C to 90°C (40°C Potable)
BFDD400-E*-E 400 0M-7 Vacuum to 10 BAR -20°C to 90°C (40°C Potable)
BFDD450-E*-E 450 0M-8 Vacuum to 10 BAR -20°C to 90°C (40°C Potable)
BFDD500-E*-E 500 0M-9 Vacuum to 10 BAR -20°C to 90°C (40°C Potable)
BFDD600-E*-E 600 0M-11 Vacuum to 10 BAR -20°C to 90°C (40°C Potable)

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC.

For sizes over 600mm please contact us.

DN Actuator C H ⌀PCD n ⌀d1 A B C
50 0M-1 108 203 114 4 18 106 153 -
65 0M-1 112 223 127 4 18 106 153 -
80 0M-1 114 245 146 4 18 106 153 -
100 0M-A 127 269 178 4 18 106 199 -
125 0M-A 140 295 210 8 18 106 199 -
150 0M-2 140 333 235 8 18 181 268 326
200 0M-3 152 375 292 8 18 181 268 326
250 0M-4 165 433 356 8 22 217 330 392
300 0M-5 178 503 406 12 22 217 330 392
350 0M-6 190 589 470 12 26 217 330 392
400 0M-7 216 640 521 12 26 217 419 347
450 0M-8 222 720 584 12 26 217 419 347
500 0M-9 229 785 641 16 26 261 566 449
600 0M-11 267 910 756 16 30 261 566 449

Size 50mm to 600mm
Body FBE coated Ductile Iron
Seat EPDM
Disc 316 Stainless Steel
Pressure Up to 16 BAR (depending upon size)
Actuation Electric

BFDDE

Ductile Iron Double Flanged Electric Butterfly Valve

Features:

Size 50mm to 600mm
Body FBE coated Ductile Iron
Seat EPDM
Disc 316 Stainless Steel
Pressure Up to 16 BAR (depending upon size)
Actuation Electric

Description:

The BFDD Series of Butterfly Valves is a fusion bonded epoxy coated Ductile Iron bodied valve with a 316SS Disc and EPDM seat. This valve is doubled flanged to suit AS4087 PN16 / Table D and is coupled with a Powder Coated Die Cast Aluminium Electric Actuator (Other Electric Actuator options include Modulating, Explosion Proof, Spring Return & Stainless Steel Housing - Contact Sales for options).. The EPDM seat is vulcanised to the body of the valve which allows for vacuum to be run through the valve. A splined shaft is also used to eliminate common failure points with pinned shafts. Suitable for a wide range of general such as water trucks, cement hoppers, irrigation and other industrial applications.

  • Ductile Iron Body (FBE Coated) with 316SS Disc & EPDM Seat
  • IP67 Quarter Turn Electric Actuator with M20x1.5 Cable Glands, Visual Indicator, Manual Override and additional limit switches as standard
  • Extension Shafts can also be fitted for use in pits etc (Contact Sales)
  • Designed and Manufactured in accordance with API609, Inspected and Tested in accordance with API598
  • Watermark Approved (License Number WMK26520) (Contact Sales if required for application)
  • Valves above 600mm can be produced, Contact Sales for details
Model Size (mm) Actuator Media Pressure Media Temperature
BFDD50-E*-E 50 0M-1 Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFDD65-E*-E 65 0M-1 Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFDD80-E*-E 80 0M-1 Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFDD100-E*-E 100 0M-A Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFDD125-E*-E 125 0M-A Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFDD150-E*-E 150 0M-2 Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFDD200-E*-E 200 0M-3 Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFDD250-E*-E 250 0M-4 Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFDD300-E*-E 300 0M-5 Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFDD350-E*-E 350 0M-6 Vacuum to 10 BAR -20°C to 90°C (40°C Potable)
BFDD400-E*-E 400 0M-7 Vacuum to 10 BAR -20°C to 90°C (40°C Potable)
BFDD450-E*-E 450 0M-8 Vacuum to 10 BAR -20°C to 90°C (40°C Potable)
BFDD500-E*-E 500 0M-9 Vacuum to 10 BAR -20°C to 90°C (40°C Potable)
BFDD600-E*-E 600 0M-11 Vacuum to 10 BAR -20°C to 90°C (40°C Potable)

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC.

For sizes over 600mm please contact us.

.

Ductile Iron Double Flanged Electric Butterfly Valve

BFDDE

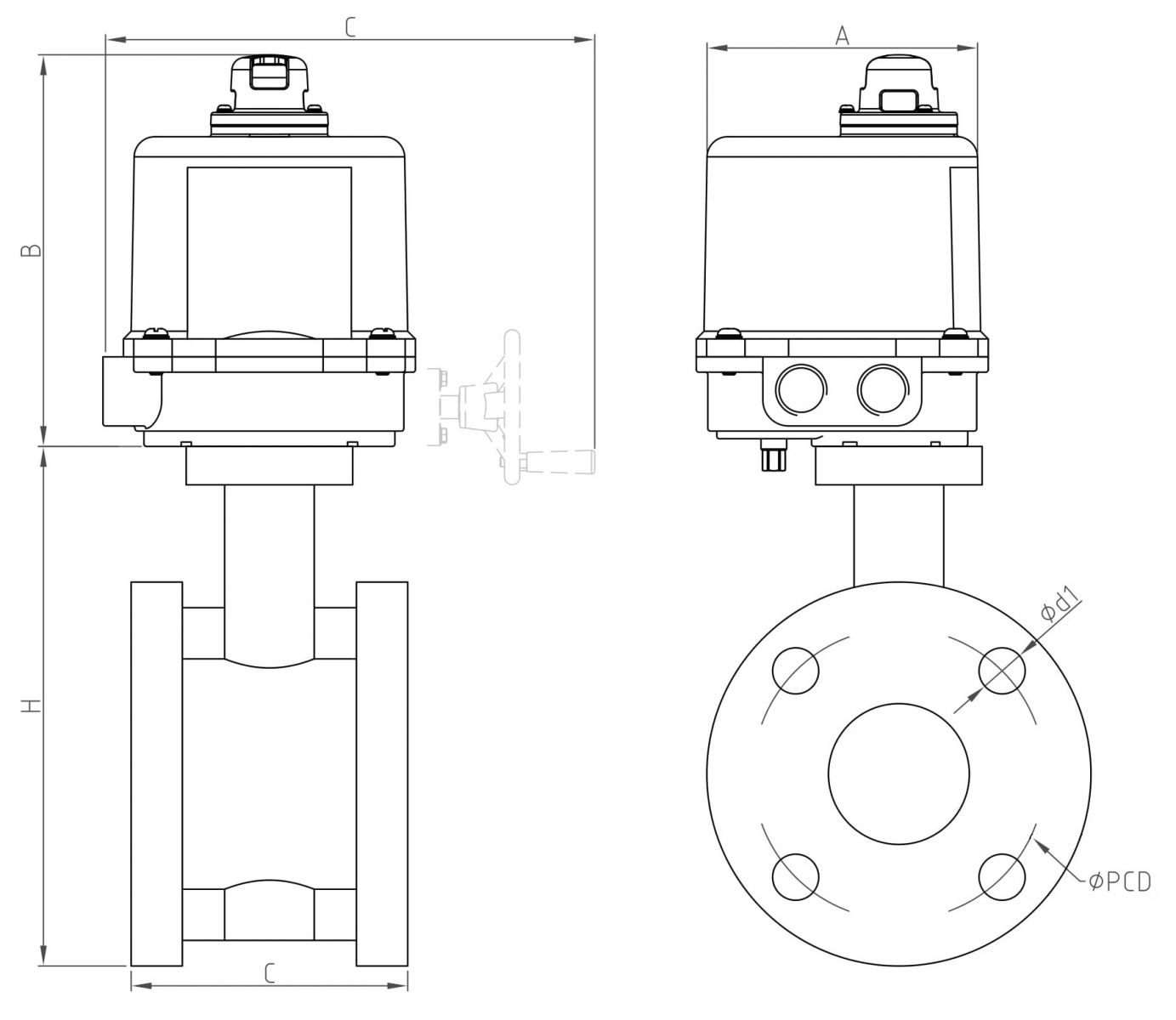

Dimensions:

DN Actuator C H ⌀PCD n ⌀d1 A B C
50 0M-1 108 203 114 4 18 106 153 -
65 0M-1 112 223 127 4 18 106 153 -
80 0M-1 114 245 146 4 18 106 153 -
100 0M-A 127 269 178 4 18 106 199 -
125 0M-A 140 295 210 8 18 106 199 -
150 0M-2 140 333 235 8 18 181 268 326
200 0M-3 152 375 292 8 18 181 268 326
250 0M-4 165 433 356 8 22 217 330 392
300 0M-5 178 503 406 12 22 217 330 392
350 0M-6 190 589 470 12 26 217 330 392
400 0M-7 216 640 521 12 26 217 419 347
450 0M-8 222 720 584 12 26 217 419 347
500 0M-9 229 785 641 16 26 261 566 449
600 0M-11 267 910 756 16 30 261 566 449
