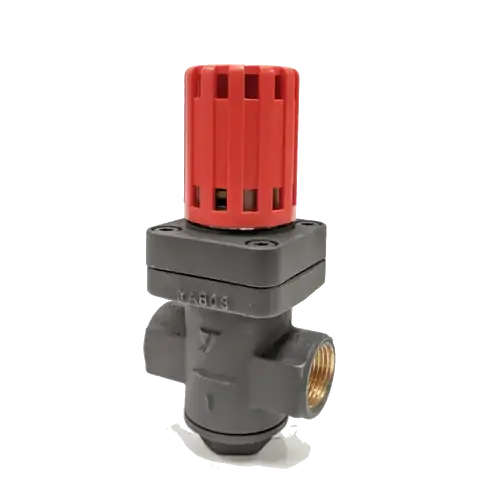

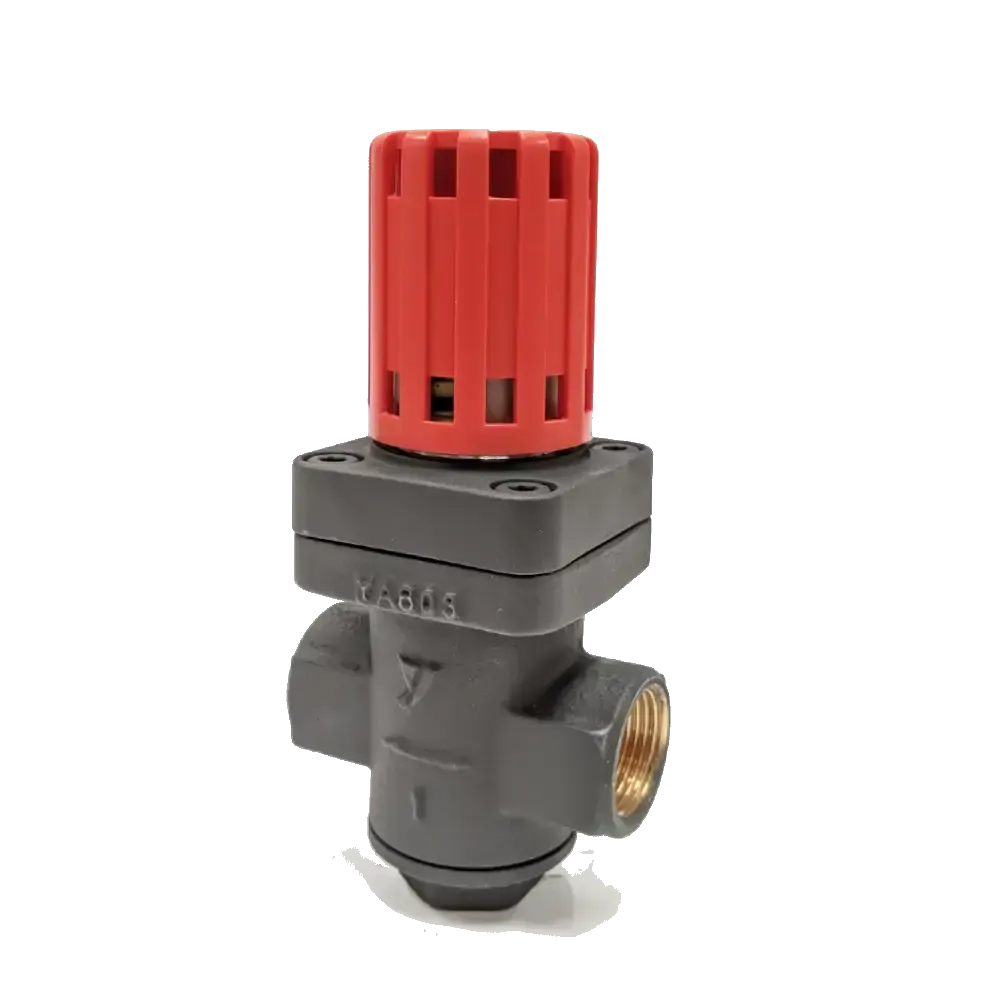

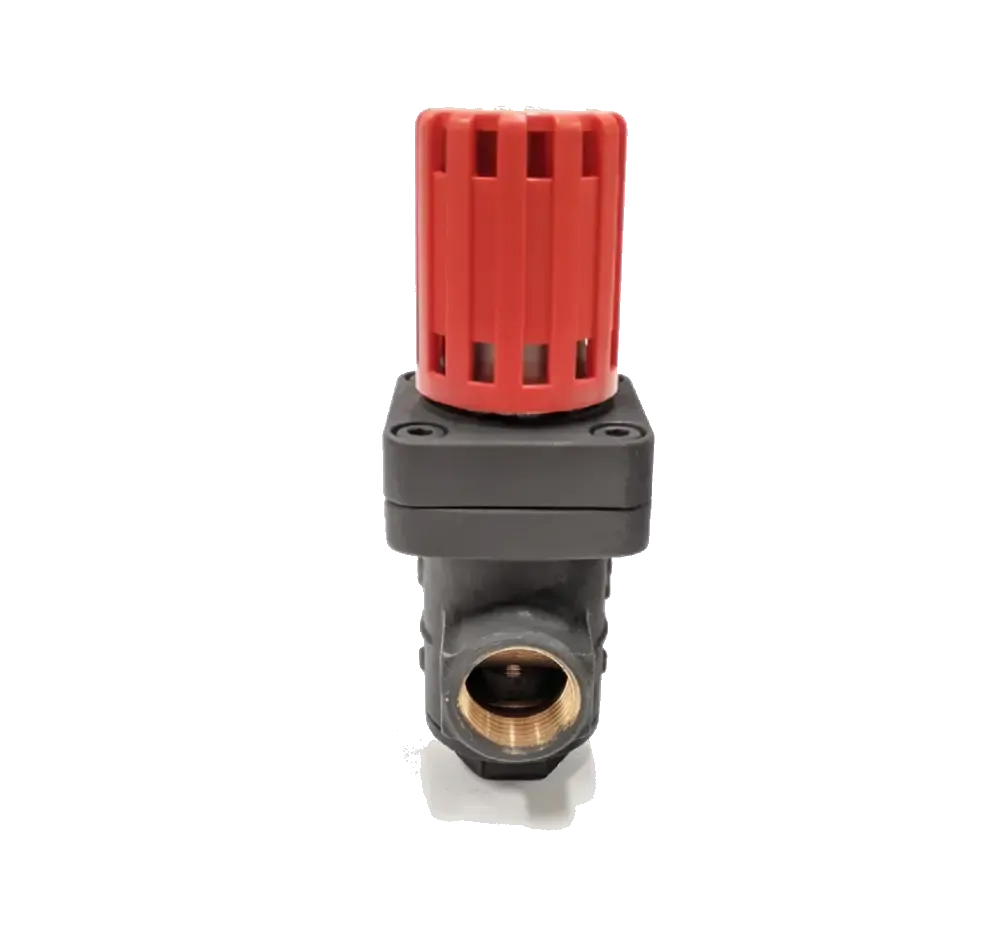

Bronze Pressure Reducing Valve for Steam

From $641.30

Inc GST
In Stock
Make an Enquiry

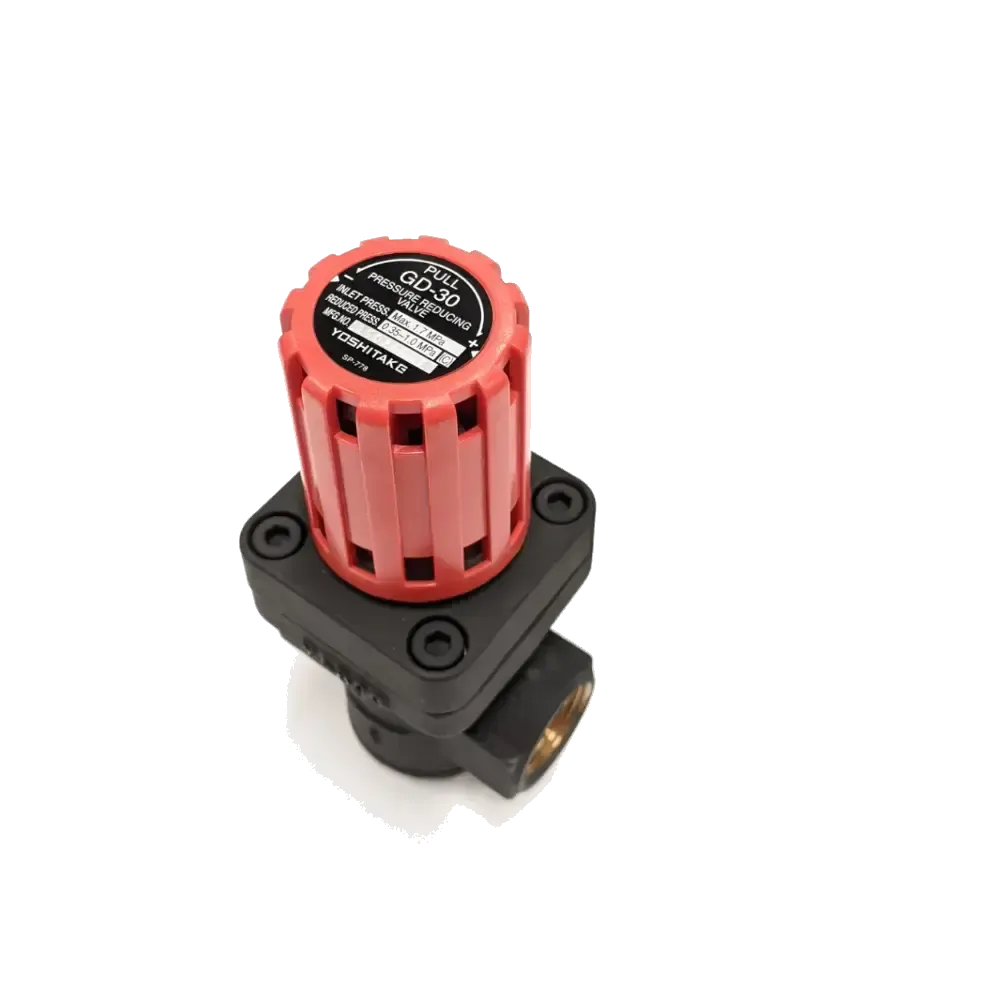

GD-30 Pressure Reducing Valves for Steam.

  • Direct-acting type
  • Integral strainer to prevent debris
  • Easy handle adjustment
  • Superior performance & durability
  • Made by Yoshitake Japan
Application Steam
Type Direct-Acting
Inlet Pressure 0 to 17 Bar
Reduced Pressure 0.2 to 10 Bar
Connection BSPT (ISO7.1 Rc)
Minimum Differential Pressure 0.5 Bar
Maximum Pressure Reduction Ratio 10:1
Temperature 0 to 210°C
Body Bronze
Valve & Seat Stainless Steel
Bellows Phosphorous Bronze

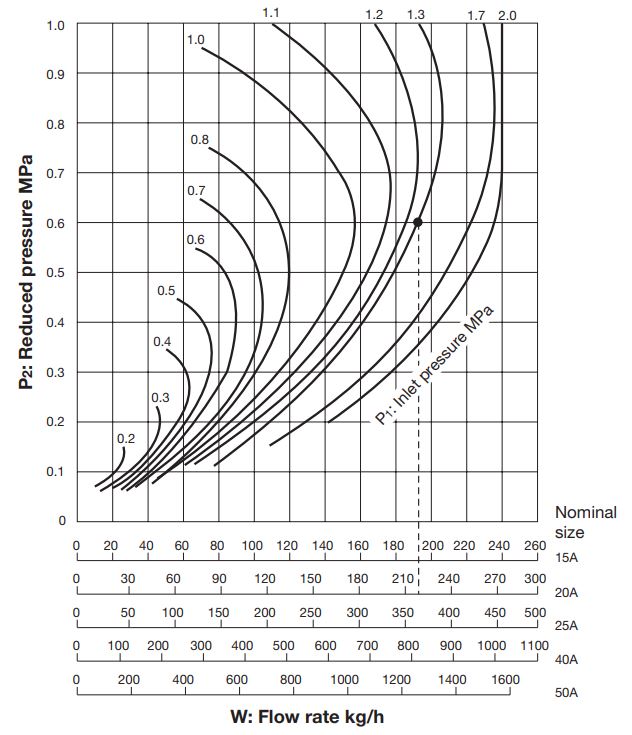

Flow Rate in kg/hr

P1 (MPa) P2 (MPa) 1/2" BSPT 3/4" BSPT 1" BSPT
2.00 0.97 240 278 464
0.69 240 278 464
0.48 217 250 420
0.27 140 163 270
1.89 0.97 240 278 464
0.83 240 278 464
0.48 213 246 409
0.19 134 156 255
1.72 0.97 238 275 460
0.83 250 265 471
0.48 210 240 405
0.17 125 145 240
1.55 0.97 220 260 430
0.8 225 265 436
0.59 210 245 410
0.16 115 135 225
1.38 0.97 209 235 395
0.8 215 245 410
0.55 195 225 375
0.14 95 110 175
1.24 0.97 185 220 360
0.8 195 230 390
0.48 175 195 335
0.12 75 85 140
1.03 0.83 130 151 250
0.59 165 191 320
0.38 135 160 270
0.1 60 75 115
0.83 0.66 105 125 205
0.48 125 141 235
0.31 109 121 204
0.08 50 55 90
0.69 0.55 92 110 180
0.45 102 119 198
0.28 90 105 170
0.07 31 36 60
0.55 0.44 80 93 155
0.37 85 102 160
0.16 55 62 100
0.05 27 35 49
0.40 0.33 62 70 120
0.28 68 75 131
0.12 41 47 77
0.04 25 33 45
0.34 0.28 59 65 110
0.14 45 52 85
0.03 22 28 40
0.28 0.22 45 55 85
0.14 36 44 72
0.03 18 25 35
0.20 0.16 28 32 51
0.1 24 27 46
0.02 15 18 27
0.14 0.09 24 28 48
0.05 19 25 35
0.10 0.05 22 25 42

P1 = Inlet Pressure , P2 = Outlet Pressure

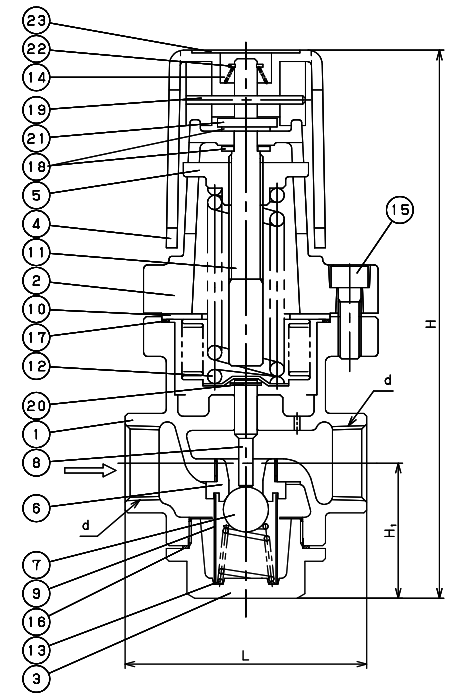

Bronze Pressure Reducing Valve Dimensions

Size d L H1 H Kg
15 1/2" BSPT 80 47 191 1.9
20 3/4" BSPT 85 47 191 1.9
25 1" BSPT 95 47 191 2

All dimensions in mm unless shown otherwise.

Bronze Pressure Reducing Valve Construction

Number Part Material Grade QTY
1 Body Bronze CAC406 1
2 Spring Chamber Aluminium ADC12 1
3 Cap Brass C3771 1
4 Handle Polycarobonate PC 1
5 Spring Plate Cast Iron FC200 1
6 Valve Seat Stainless Steel SUS304 1
7 Valve Stainless Steel SUS440 1
8 Spindle Stainless Steel SUS304 1
9 Screen Stainless Steel SUS304 1
10 Bellows Phosphorous Bronze C5212 1
11 Adjusting Screw Carbon Steel SUM22 1
12 Spring Alloy Steel SWOSC 1
13 Spring Stainless Steel SUS304 1
14 Spring Stainless Steel SUS304 1
15 Bolts Carbon Steel SCM435 4
16 Gasket Copper C1100 1
17 Gasket Copper C1100 1
18 Washer Stainless Steel SUS304 2
19 Pin Stainless Steel SUS304 1
20 E Rign Stainless Steel SUS304 1
21 Split Pin Stainless Steel SUS304 1
22 Push Nut Stainless Steel SUS304 1
23 Name Plate Aluminium A1050P 1

Size 1/2" to 2" BSPT
Body Bronze
Application Steam
Inlet Pressure Range 0 to 17 Bar
Outlet Pressure Range 0.2 to 10 BAR
Temperature 0°C to 210°C

  1. What is a Bronze Pressure Reducing Valve for Steam, and what is its primary purpose?

    • A Bronze Pressure Reducing Valve for Steam is a specialized valve designed to control and reduce the high-pressure steam entering a system to a safe and manageable level. Its primary purpose is to maintain a consistent and lower steam pressure downstream, preventing damage to equipment and ensuring safe operation.

  2. How does a pressure reducing valve work in a steam system?

    • Pressure reducing valves work by using a spring-loaded mechanism to regulate the flow of steam. When the upstream pressure exceeds the desired setpoint, the valve opens, allowing steam to pass through. As the pressure approaches the setpoint, the valve gradually closes, reducing the pressure until it reaches the desired level.

  3. Why is bronze commonly used as the material for these valves?

    • Bronze is a preferred material for steam pressure reducing valves because it offers excellent corrosion resistance, durability, and can withstand high-temperature and high-pressure conditions typically found in steam systems. It is also less prone to scaling and deposits compared to other materials.

  4. What are the key components of a bronze pressure reducing valve for steam?

    • The key components typically include a valve body, a diaphragm or piston assembly, a spring, an adjustment knob, and inlet/outlet connections. The diaphragm or piston is sensitive to pressure changes and controls the opening and closing of the valve to maintain the desired outlet pressure.

  5. What is the ideal pressure range for steam systems where these valves are used?

    • The ideal pressure range for a steam system will depend on the specific application and equipment being used. However, bronze pressure reducing valves for steam are commonly designed to handle pressures in the range of 15 to 150 psi (1 to 10 bar), which is typical for many industrial and commercial steam applications. It's important to select a valve that matches the pressure requirements of your system.
