63mm Stainless Steel Liquid Filled Rear Entry Pressure Gauge

From $26.40

In Stock
Make an Enquiry

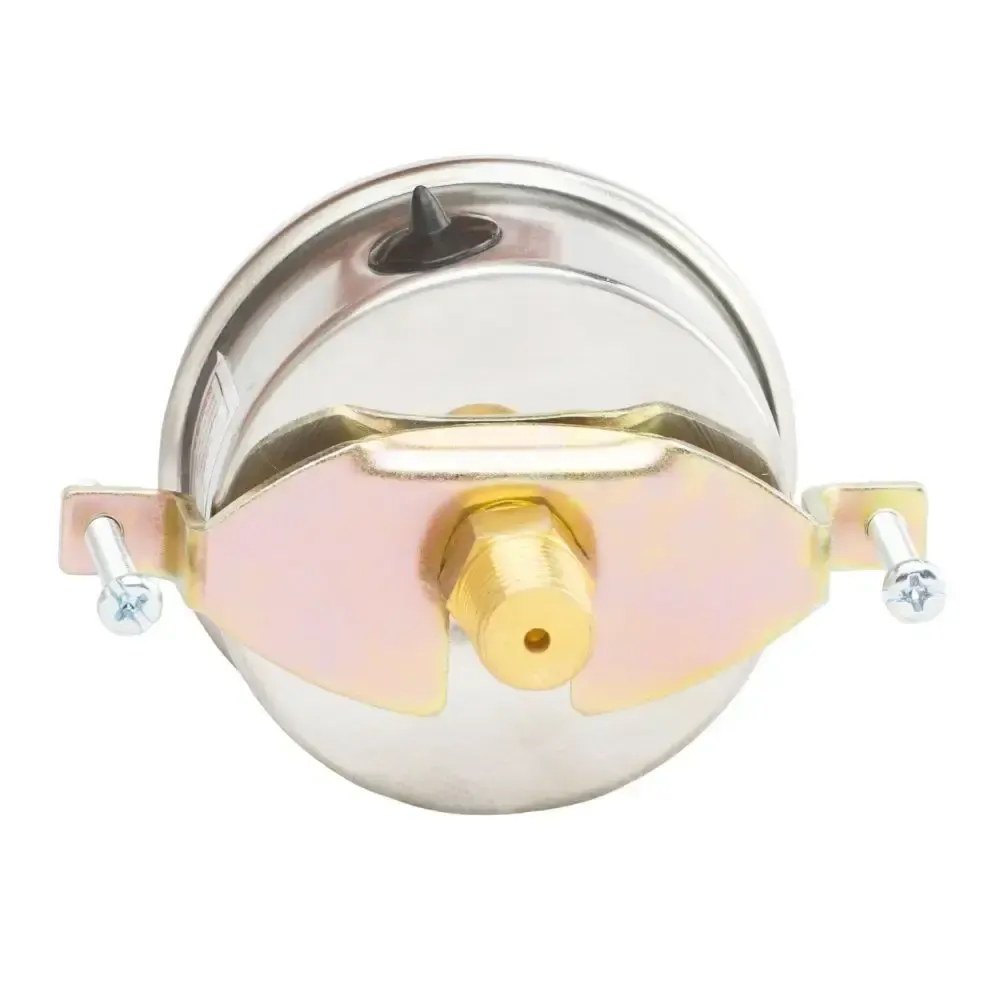

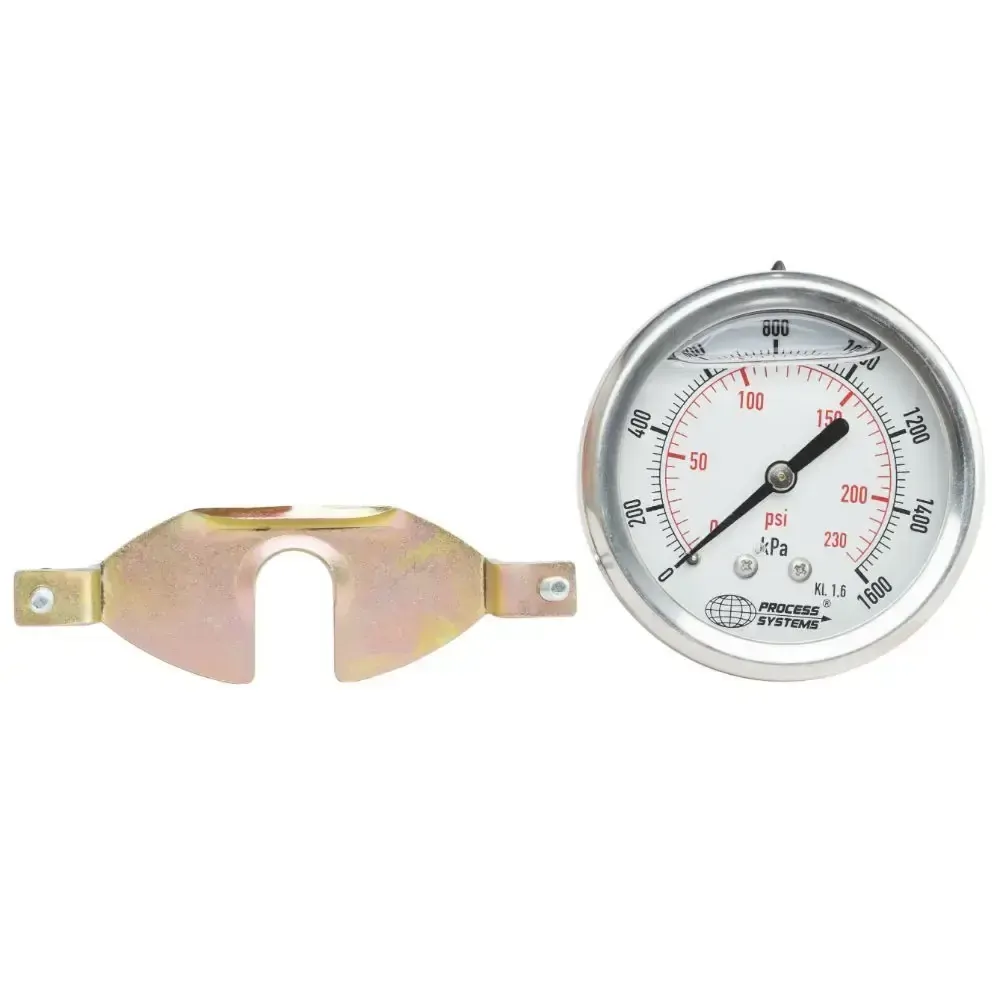

63mm 304 Stainless Steel Case glycerine filled rear entry pressure gauge with brass internals and entry. Crimped ring housing with polycarbonate window. Dual scale kpa/psi. Operating temperature of -20°C to 60°C. Comes with removeable panel mount clamp to give panel mounting option. For use on compatable gases and liquids. All pressure guages are calibrated and tested to ensure accuracy and reliability.

Model Range
GAU63R~100V -100 to 0 kpa vacuum (30" Hg)
GAU63R~-100C -100 to 1600 kpa
GAU63R~100 0 to 100 kpa (0 to 15 PSI)
GAU63R~200 0 to 200 kpa (0 to 30 PSI)
GAU63R~400 0 to 400 kpa (0 to 60 PSI)
GAU63R~600 0 to 600 kpa (0 to 90 PSI)
GAU63R~800 0 to 800 kpa (0 to 110 PSI)
GAU63R~1000 0 to 1000 kpa (0 to 140 PSI)
GAU63R~1600 0 to 1600 kpa (0 to 230 PSI)
GAU63R~2500 0 to 2500 kpa (0 to 360 PSI)
GAU63R~4000 0 to 4000 kpa (0 to 580 PSI)

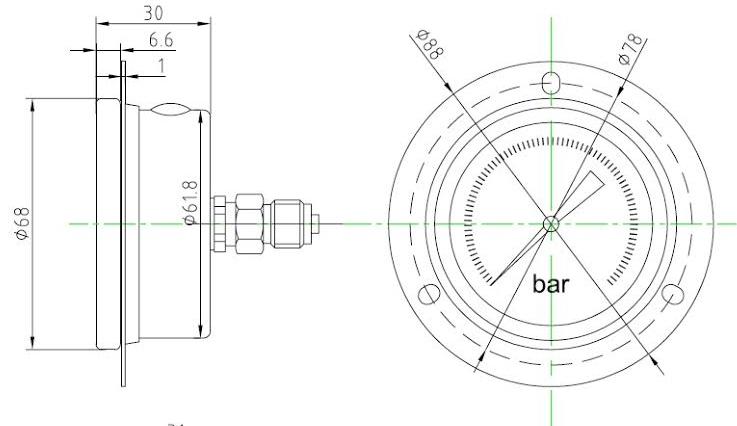

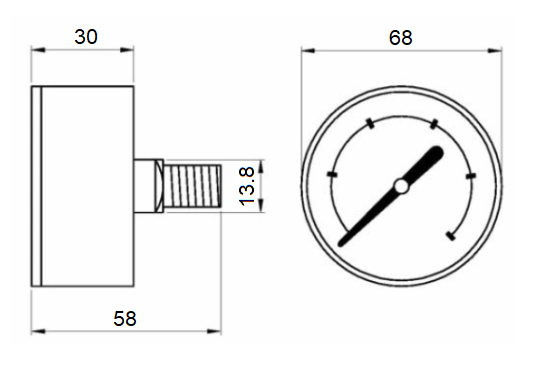

Size 63mm (2 1/2")
Accuracy +/- 1.6%
Range Depends upon model
Work Pressure 3/4 of full scale
Fluctuating pressure 2/3 of full scale
Short Time Pressure Full Scale
Operating Temperature -10°C to 60°C
Media Compatible gases and liquids
Housing 304 Stainless Steel Case and crimped ring
Window Polycarbonate
Liquid Filled Glycerine
Bourdon Tube Copper alloy
Movement Copper alloy
Connection Brass
Thread BSPT

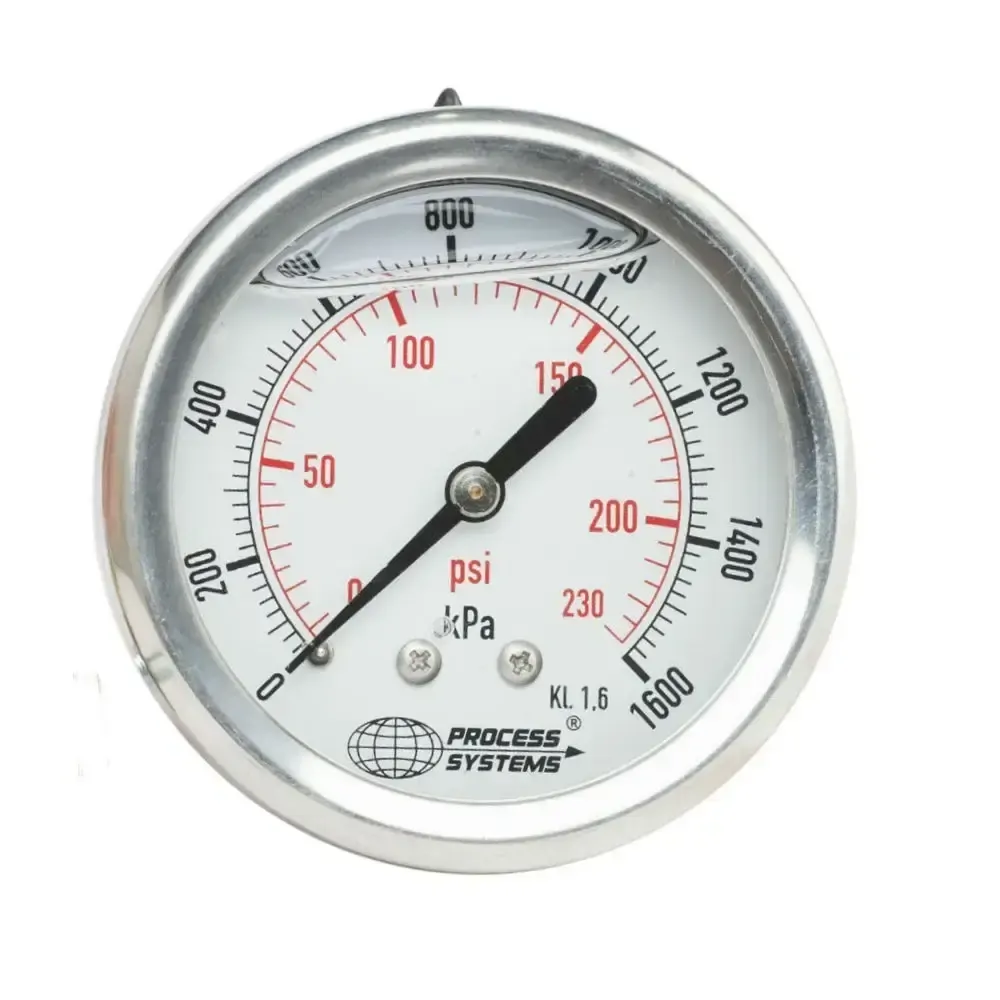

Scale Dual Scale Kpa/Psi

63mm Stainless Steel Rear Entry Pressure Gauge

Pressure Range -100 kpa to 4000 kpa
Body Stainless Steel
Function Dual Scale Kpa/PSI glycerine filled pressure gauge
Connection 1/4" BSPT Rear Entry
Factory Accredited CE, ISO 9001, TUV
