3 Way Stainless Steel Electric Ball Valve

From $616.00

Inc GST
In Stock
Make an Enquiry

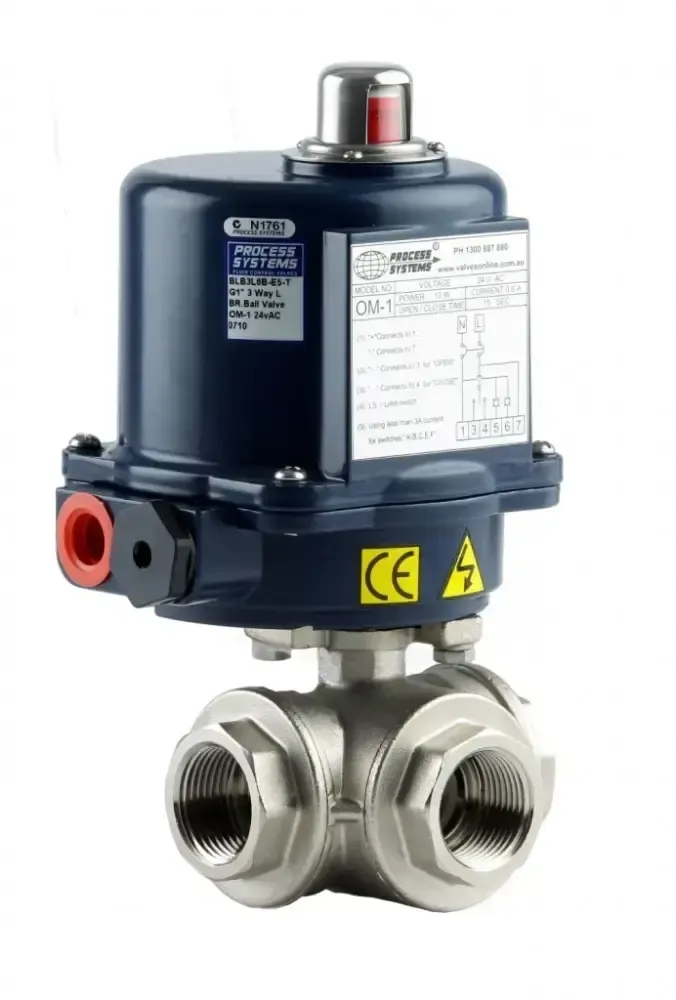

316 Stainless Steel 3 Way Ball valve with reduced bore and BSP threaded end connections. This high performance valve is suitable for many applications such as the water, chemical, petrochemical, marine and general industries. Fitted with a Powder Coated Die Cast Aluminium Electric Actuator (Other Electric Actuator options include Modulating, Explosion Proof, Spring Return & Stainless Steel Housing - Contact Sales for options).

  • L & T Port Configurations (Reduced Bore)
  • BSP End Connections (ISO 7.1 Sealing Threads)
  • IP67 Quarter Turn Electric Actuator with M20x1.5 Cable Glands, Visual Indicator, Manual Override and additional limit switches as standard
  • Suitable for use on Potable Water with Watermark Certification (License Number WMK26529)
  • Reinforced PTFE Seats suitable for a wide range of media and temperatures up to 180°C (Refer to Pressure Temperature Curve and Material Data sheets for Chemical Compatibility)
  • Self Adjusting Stem Packing by the use of Belleville washers which assist with temperature fluctuations and vibrations.
  • Vented design on the Neck of the Valve allows for a reduction in thermal transfer from the valve to the actuator
Model Size(BSP) Orifice (mm) Actuator Media Pressure Media Temperature
BLS3L2B-E*-RT 1/4 8 0M-1 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C
BLS3L3B-E*-RT 3/8 10 0M-1 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C
BLS3L4B-E*-RT 1/2 12 0M-1 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C
BLS3L5B-E*-RT 3/4 15 0M-1 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C
BLS3L6B-E*-RT 1 20 0M-1 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C
BLS3L7B-E*-RT 1 1/4 25 0M-1 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C
BLS3L8B-E*-RT 1 ½ 32 0M-A Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C
BLS3L9B-E*-RT 2 43 0M-2 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C
BLS3L10B-E*-RT 2 ½ 55 0M-2 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C
BLS3L11B-E*-RT 3 66 0M-3 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC.

 For T port change the ‘L’ to a ‘T’.

3 way stainless steel ball valve electrically actuated

3 way Stainless Steel Electric Ball Valve Pressure vs Temperature

L Port T Port

3 way stainless steel ball valve electrically actuated

Model Size Actuator d L h F A B C
BLS3L2B-E*-RT 1/4" 0M-1 9.5 75 36.8 37.5 5.5 108 155
BLS3L3B-E*-RT 3/8" 0M-1 11 75 36.8 37.5 57.5 108 155
BLS3L4B-E*-RT 1/2" 0M-1 12 75 36.8 37.5 57.5 108 155
BLS3L5B-E*-RT 3/4" 0M-1 15 85 41.2 42.5 65.5 108 155
BLS3L6B-E*-RT 1" 0M-1 20 100 46.5 50 79 108 155
BLS3L7B-E*-RT 1-1/4" 0M-1 25 122 56 61 97 108 155
BLS3L8B-E*-RT 1-1/2" 0M-A 32 131 60 65.5 106.5 130 200
BLS3L9B-E*-RT 2" 0M-2 40 158 70.5 79 129 200 290
BLS3L10B-E*-RT 2-1/2" 0M-2 49 178 95.5 89 145 200 290
BLS3L11B-E*-RT 3" 0M-3 60 202 106 101 167 200 290

All dimensions in mm unless shown otherwise. Please note 0M-2 models and higher have a hand wheel not taken into account here. Please see actuator details.

3 way stainless steel ball valve electrically actuated

Item Part Material Qty
1 Cap CF8M 3
2 Gasket PTFE 3
3 Ball Seat 15%R-PTFE 4
4 Ball 316SS 1
5 Body CF8M 1
6 Stem 316SS 1
7 Thrust Washer PTFE 1
8 O-Ring Viton 1
9 Stem Packing PTFE 1
10 Stem Ring 316SS 1
11 Bellevlle Washer 304(301) 1
12 Nut 304SS 2
13 Plate Washer 304SS 1
14 Nut Stopper 304SS 1
15 Actuator Powder Coated Die Cast Aluminium 1

Size 1/4" to 3" BSP
Body 316 Stainless Steel
Seat Reinfoced PTFE
Pressure  63 BAR
Temperature -20°C to 180°C
Actuation Electric

BLS3E

3 Way Stainless Steel Electric Ball Valve

Features:

Size 1/4" to 3" BSP
Body 316 Stainless Steel
Seat Reinfoced PTFE
Pressure  63 BAR
Temperature -20°C to 180°C
Actuation Electric

Description:

316 Stainless Steel 3 Way Ball valve with reduced bore and BSP threaded end connections. This high performance valve is suitable for many applications such as the water, chemical, petrochemical, marine and general industries. Fitted with a Powder Coated Die Cast Aluminium Electric Actuator (Other Electric Actuator options include Modulating, Explosion Proof, Spring Return & Stainless Steel Housing - Contact Sales for options).

  • L & T Port Configurations (Reduced Bore)
  • BSP End Connections (ISO 7.1 Sealing Threads)
  • IP67 Quarter Turn Electric Actuator with M20x1.5 Cable Glands, Visual Indicator, Manual Override and additional limit switches as standard
  • Suitable for use on Potable Water with Watermark Certification (License Number WMK26529)
  • Reinforced PTFE Seats suitable for a wide range of media and temperatures up to 180°C (Refer to Pressure Temperature Curve and Material Data sheets for Chemical Compatibility)
  • Self Adjusting Stem Packing by the use of Belleville washers which assist with temperature fluctuations and vibrations.
  • Vented design on the Neck of the Valve allows for a reduction in thermal transfer from the valve to the actuator
Model Size(BSP) Orifice (mm) Actuator Media Pressure Media Temperature
BLS3L2B-E*-RT 1/4 8 0M-1 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C
BLS3L3B-E*-RT 3/8 10 0M-1 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C
BLS3L4B-E*-RT 1/2 12 0M-1 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C
BLS3L5B-E*-RT 3/4 15 0M-1 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C
BLS3L6B-E*-RT 1 20 0M-1 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C
BLS3L7B-E*-RT 1 1/4 25 0M-1 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C
BLS3L8B-E*-RT 1 ½ 32 0M-A Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C
BLS3L9B-E*-RT 2 43 0M-2 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C
BLS3L10B-E*-RT 2 ½ 55 0M-2 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C
BLS3L11B-E*-RT 3 66 0M-3 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC.

 For T port change the ‘L’ to a ‘T’.

3 way stainless steel ball valve electrically actuated

3 way Stainless Steel Electric Ball Valve Pressure vs Temperature

L Port T Port
.

3 Way Stainless Steel Electric Ball Valve

BLS3E

Dimensions:

3 way stainless steel ball valve electrically actuated

Model Size Actuator d L h F A B C
BLS3L2B-E*-RT 1/4" 0M-1 9.5 75 36.8 37.5 5.5 108 155
BLS3L3B-E*-RT 3/8" 0M-1 11 75 36.8 37.5 57.5 108 155
BLS3L4B-E*-RT 1/2" 0M-1 12 75 36.8 37.5 57.5 108 155
BLS3L5B-E*-RT 3/4" 0M-1 15 85 41.2 42.5 65.5 108 155
BLS3L6B-E*-RT 1" 0M-1 20 100 46.5 50 79 108 155
BLS3L7B-E*-RT 1-1/4" 0M-1 25 122 56 61 97 108 155
BLS3L8B-E*-RT 1-1/2" 0M-A 32 131 60 65.5 106.5 130 200
BLS3L9B-E*-RT 2" 0M-2 40 158 70.5 79 129 200 290
BLS3L10B-E*-RT 2-1/2" 0M-2 49 178 95.5 89 145 200 290
BLS3L11B-E*-RT 3" 0M-3 60 202 106 101 167 200 290

All dimensions in mm unless shown otherwise. Please note 0M-2 models and higher have a hand wheel not taken into account here. Please see actuator details.

.

3 Way Stainless Steel Electric Ball Valve

BLS3E

Construction:

3 way stainless steel ball valve electrically actuated

Item Part Material Qty
1 Cap CF8M 3
2 Gasket PTFE 3
3 Ball Seat 15%R-PTFE 4
4 Ball 316SS 1
5 Body CF8M 1
6 Stem 316SS 1
7 Thrust Washer PTFE 1
8 O-Ring Viton 1
9 Stem Packing PTFE 1
10 Stem Ring 316SS 1
11 Bellevlle Washer 304(301) 1
12 Nut 304SS 2
13 Plate Washer 304SS 1
14 Nut Stopper 304SS 1
15 Actuator Powder Coated Die Cast Aluminium 1
