Galvanized cast steel gauge cocks for high pressure reflex and level gauges. Simple 90 degree operation permits immediate opening/closing. Simple design ensure uninterupted operation. The packing sleeve is the only part subject to wear and can be replaced within minutes. Valve bore 8mm for shut off and 6mm for drain. Includes top mount and bottom mount with integral safety ball. The valves can easily be changed from right hand to left hand and vice versa.

Size 25mm Flanged
Mount Top and Bottom
Orientation Left or Right Hand
Body Galvanized Cast Steel
Pressure 50 BAR @ ambient
Temperature -100°C to 400°C

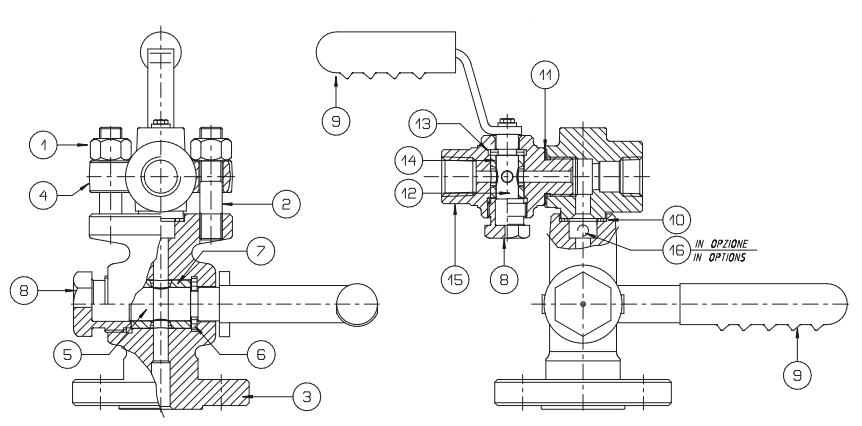

Offiicine Cast Steel Level Gauge Cocks Construction

Part Number Description Material
1 Nut A194 2H
2 Bolt A193 B7
3 Body A105 Galvanized
4 Flange A105 Galvanized
5 Male AISI 316
6 Ring AISI 316
7 Packing Sleeve Graphite
8 Plug A105 Galvanized
9 Handle Cast Steel Galvanized
10 Gasket SW AISI316/Graphite
11 Gasket Copper
12 Packing Sleeve Graphite
13 Ring AISI 316
14 Packing Sleeve Graphite
15 Drain A105 Galvanized
16 Safety Ball AISI 316
